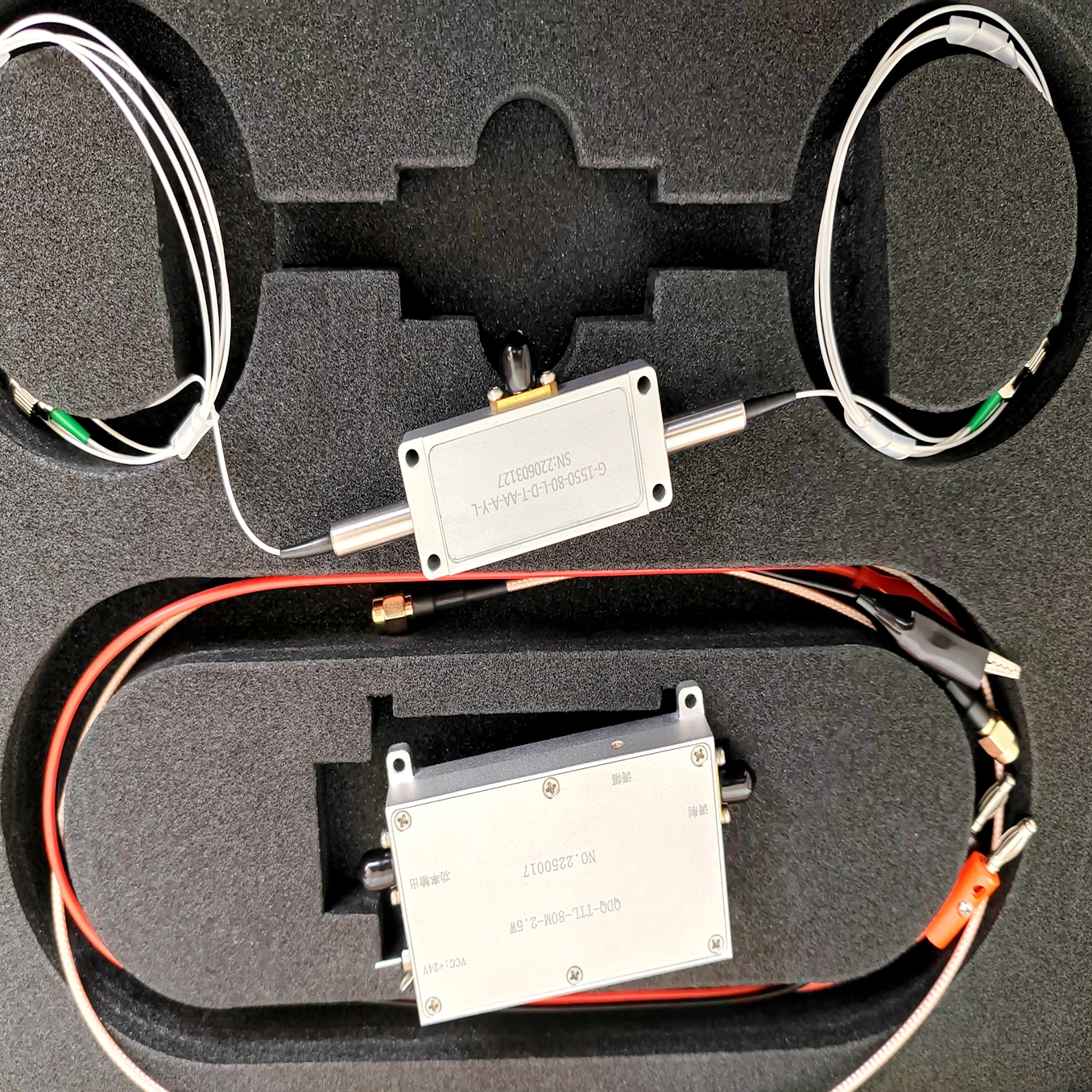

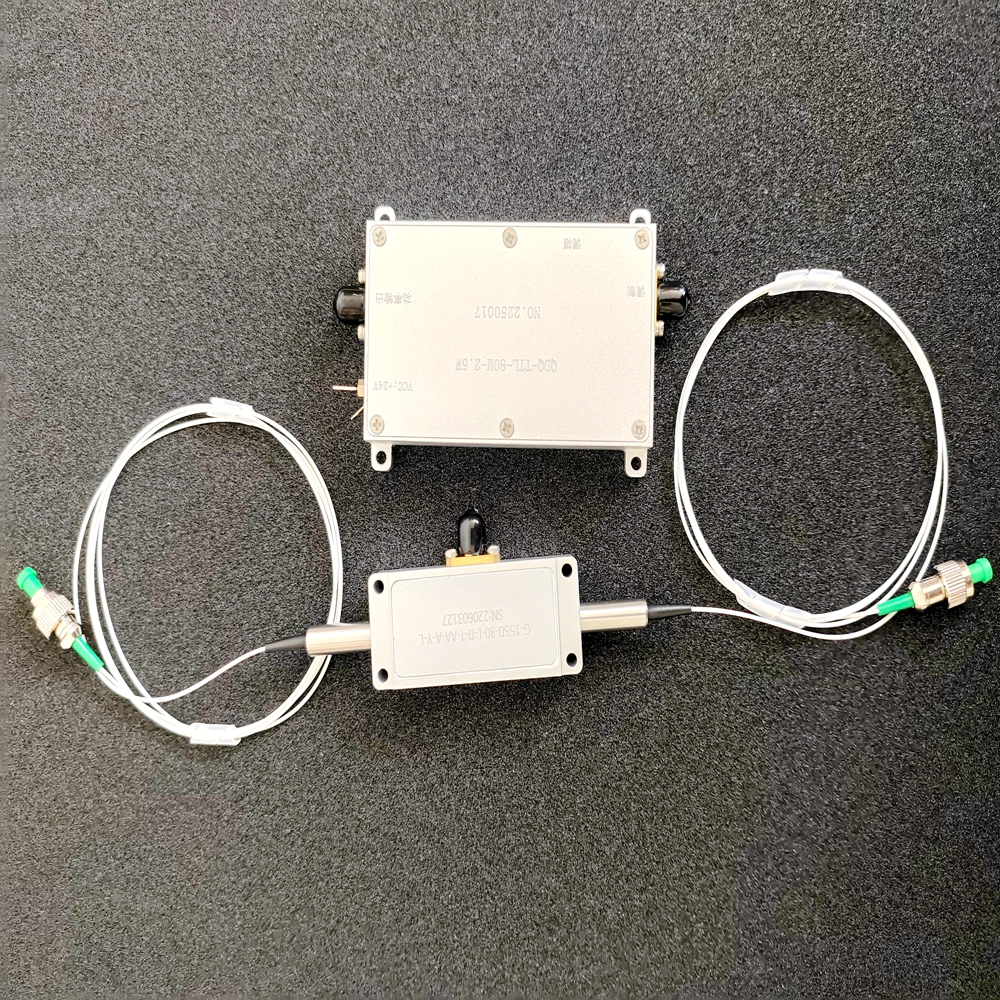

780nm Fiber Coupled Acousto Optic Frequency Shift AOFS with Frequency 100MHz

$1,980.00

780nm Fiber Coupled Acousto Optic Frequency Shift AOFS with Frequency 100MHz. The Frequency  can be customized from 40MHz to 200MHz.

The Acousto Optic Frequency Shift AOFS is made by Acousto Optic Modulator.

Description

780nm Fiber Coupled Acousto Optic Frequency Shift AOFS with Frequency 100MHz

Material : TeO2
Wavelength: 780 nm
Average optical power: 3W
Peak (pulsed) optical power: 3kW
Ultrasonic sound velocity: 4200m/s
Insertion loss: 2.5dB
Extinction ratio: 50dB
Polarization extinction ratio: 18 23 20dB
Return loss: 40dB
Rising edge time: 60ns
Frequency: 100MHz
Frequency Shift: 100MHz Default + Frequency Shift
RF power: 1.5 W
VSWR: 1.3:1
Input impedance: 50Ω
Device interface: SMA
Fiber Type: 780PM
Fiber length: 1m
Optical interface: FC/APC
Operating temperature: -10~60
Storage temperature:C -30~70

Applications:

Cold Atom Frequency Shift

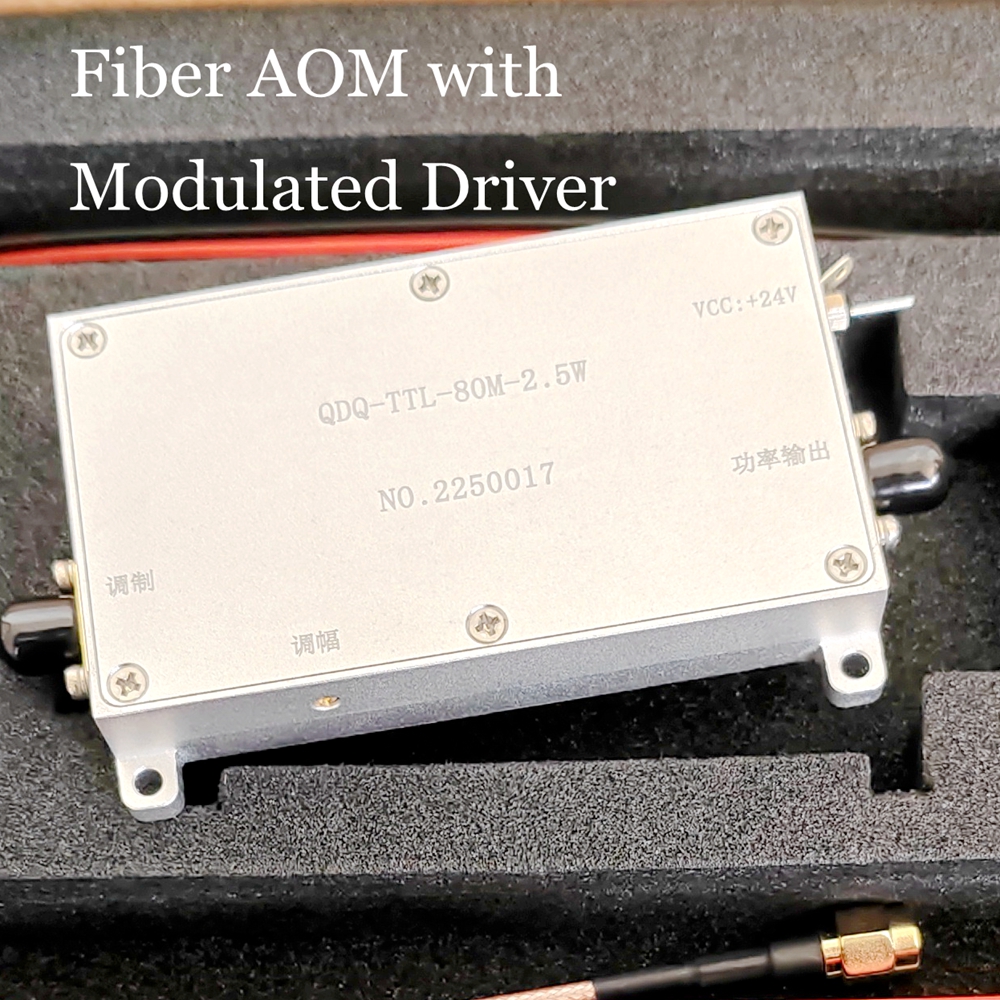

780nm 100MHz Fiber Coupled Acousto-Optic Modulator
