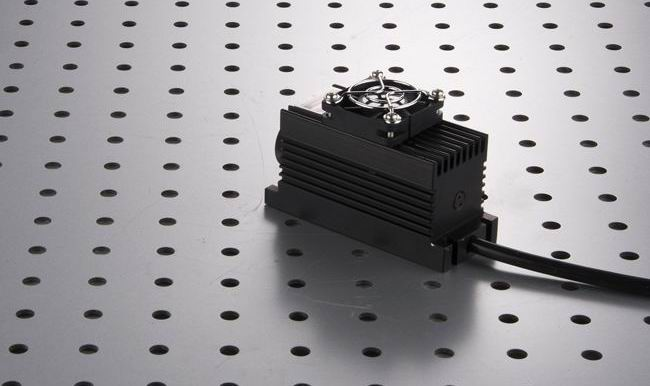

80W-100W 1064nm Pulsed Infrared DPSS Laser



80W-100W 1064nm Pulsed Infrared DPSS Laser


Pulsed 1064nm laser for cutting and laser engraving. The output power can be 130W.

Wavelength (nm) :1064nm

Output Power (W):100W

Working Mode: LD pumped, pulse

Q-Switch: Acousto-Optic

Beam Mode: Transverse, Quasi TEM00 ; Longitude, Multi-longitude

Spectral Linewidth (nm): <0.1

Polarization: Random

Pulse width (ns): <100 (typical, @ 10KHz)

Repitition Rate (KHz): 5~50

Peak Power (KW): 20KW (typical, @20W)

Beam Divergence (full angle, mrad): <3.0

Beam Diameter at Aperture (mm, 1/e2): 5.0 (typical)

Beam Roundness: >90%

Power Stability (RMS, over 4 hours): <5%

Dimensions (L×W×H, mm): 530X160X100

Warm-up Time (minutes): <15

Operation Temperature (℃): 18~30

Expected Lifetime (hours): >10,000

Warranty Time: 1 year
