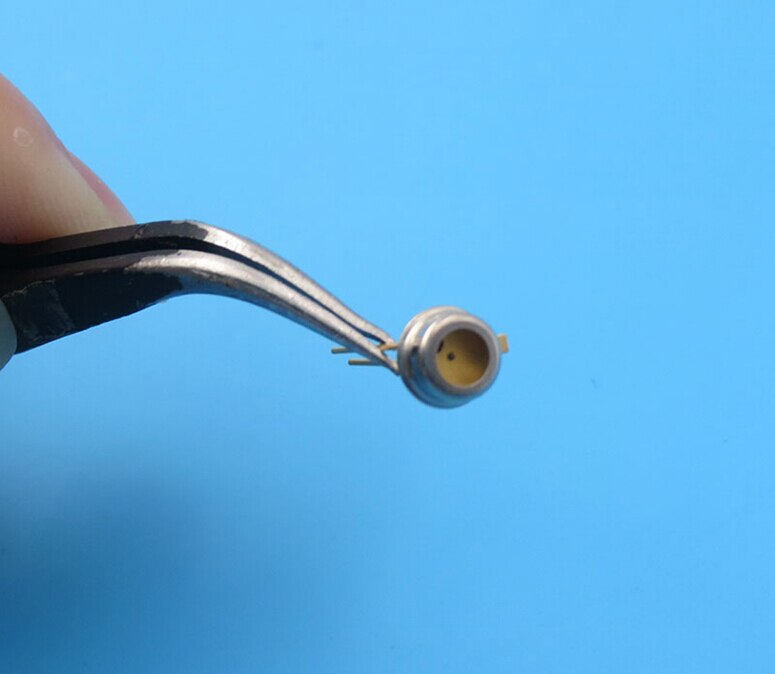

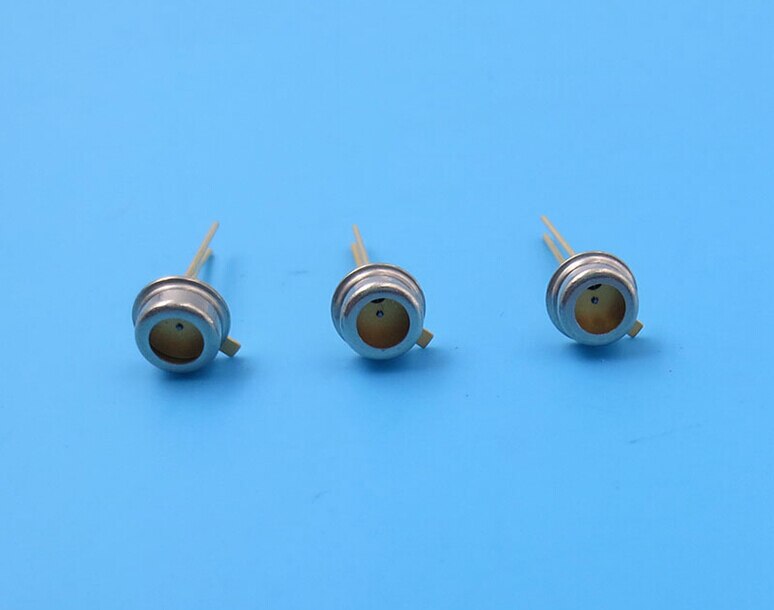

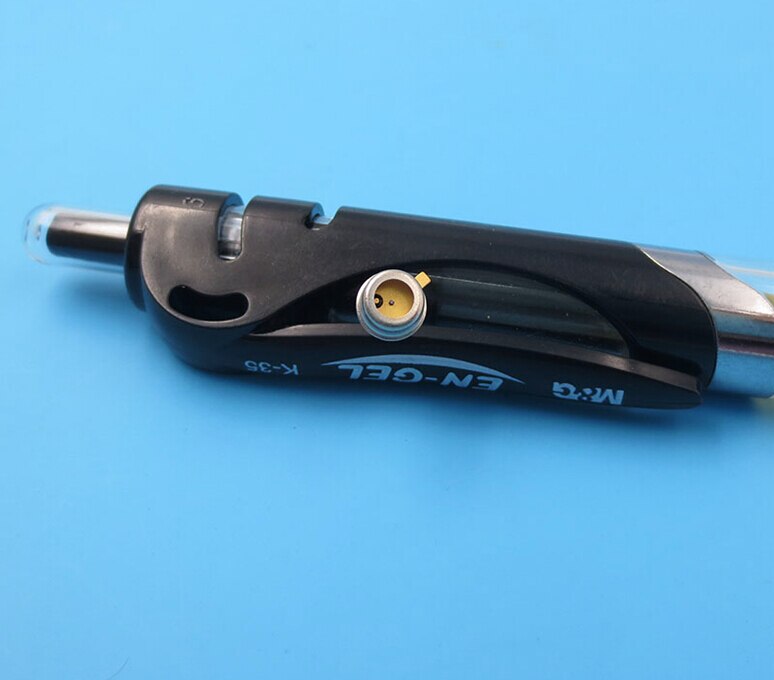

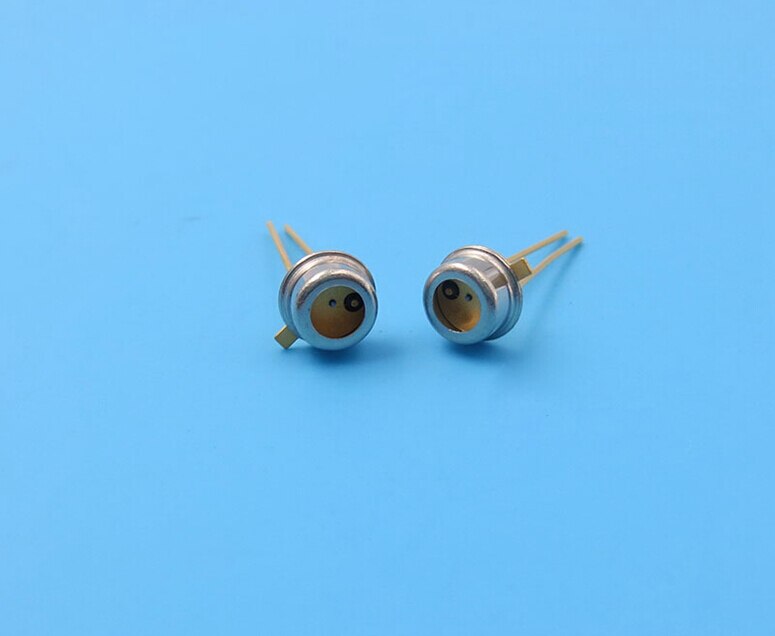

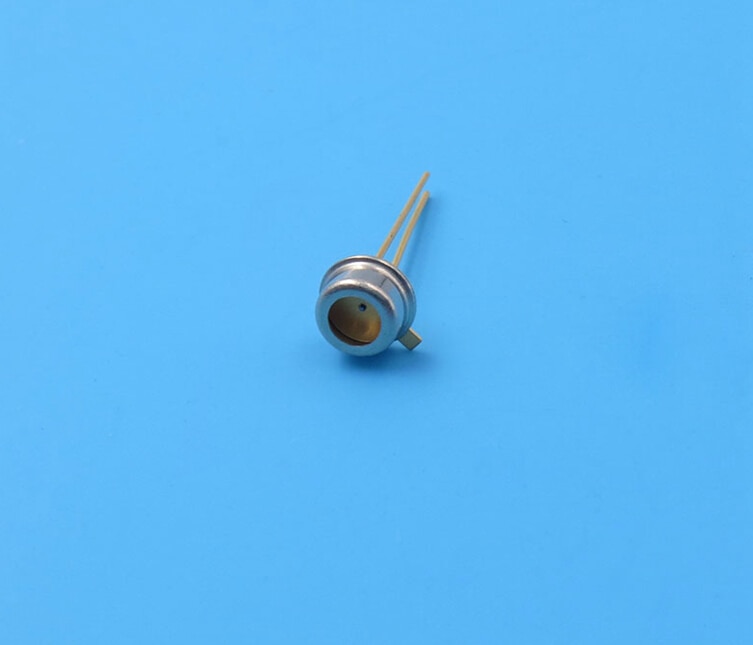

850nm 1.8mw Two-pin Optical Communication Laser Diode Lazer Tube Near-infrared LD Lab DIY High Quality


SKU: 32884601542 Category:


850nm 1.8mwTwo-leg Optical Communication Laser Diode Laser Tube Near-infrared LD



1.High speed Datacenter

2.Low dependence of electrical and optical characteristics over temperature


Threshold current:0.8-2mA

Output power:1.2-1.8mW

Slope efficiency:0.35-0.55mW/mA

Operating voltage:1.9V



Spectral bandwidth:0.5nm

Bean divergence:25-30 deg.

relative intensity noise:-130 dB/Hz


Absolute maximum rating

Storage temperature:-40–100℃

Operating temperature:0-85℃

Continuous forward current:12mA

Soldering temperature:260℃


Chip dimensions

Chip size:250x230x150μm(t)+-15μm

Bonding pad:μm=100μm



1  X  850nm 1.8mw Laser Diode
