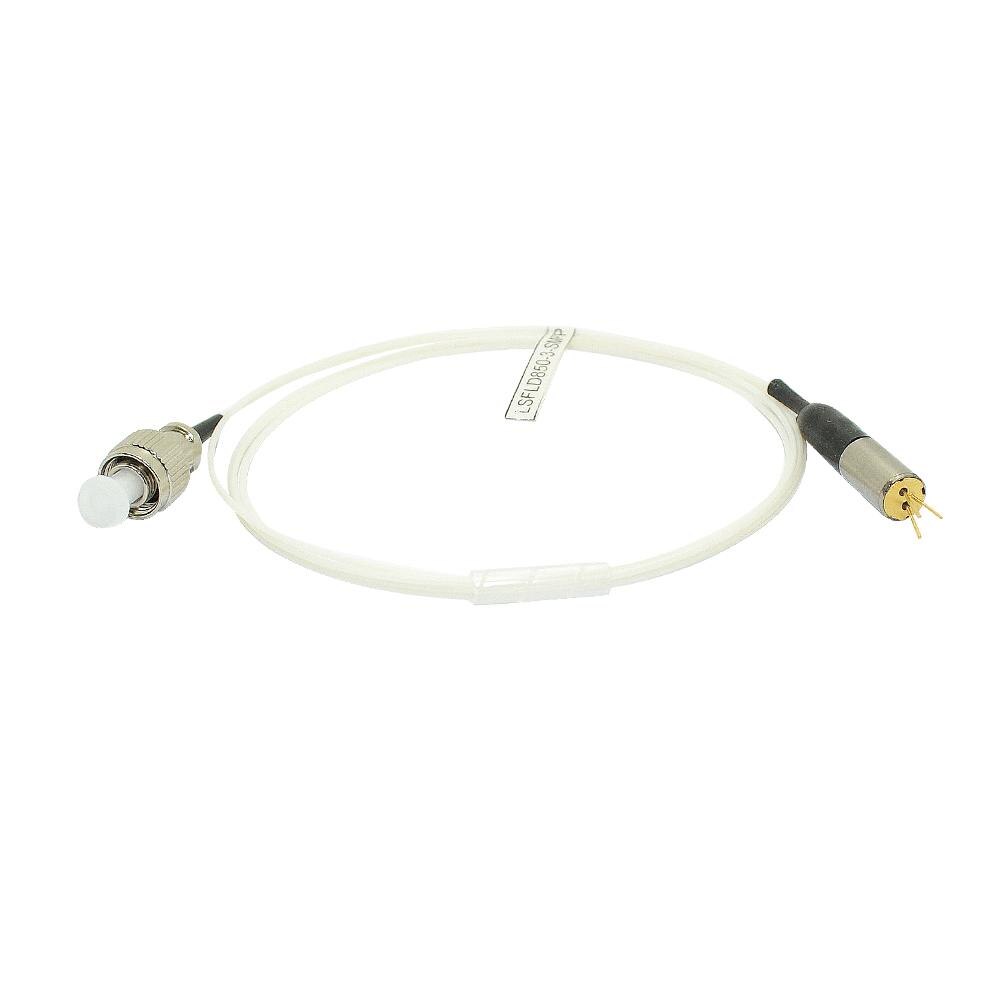

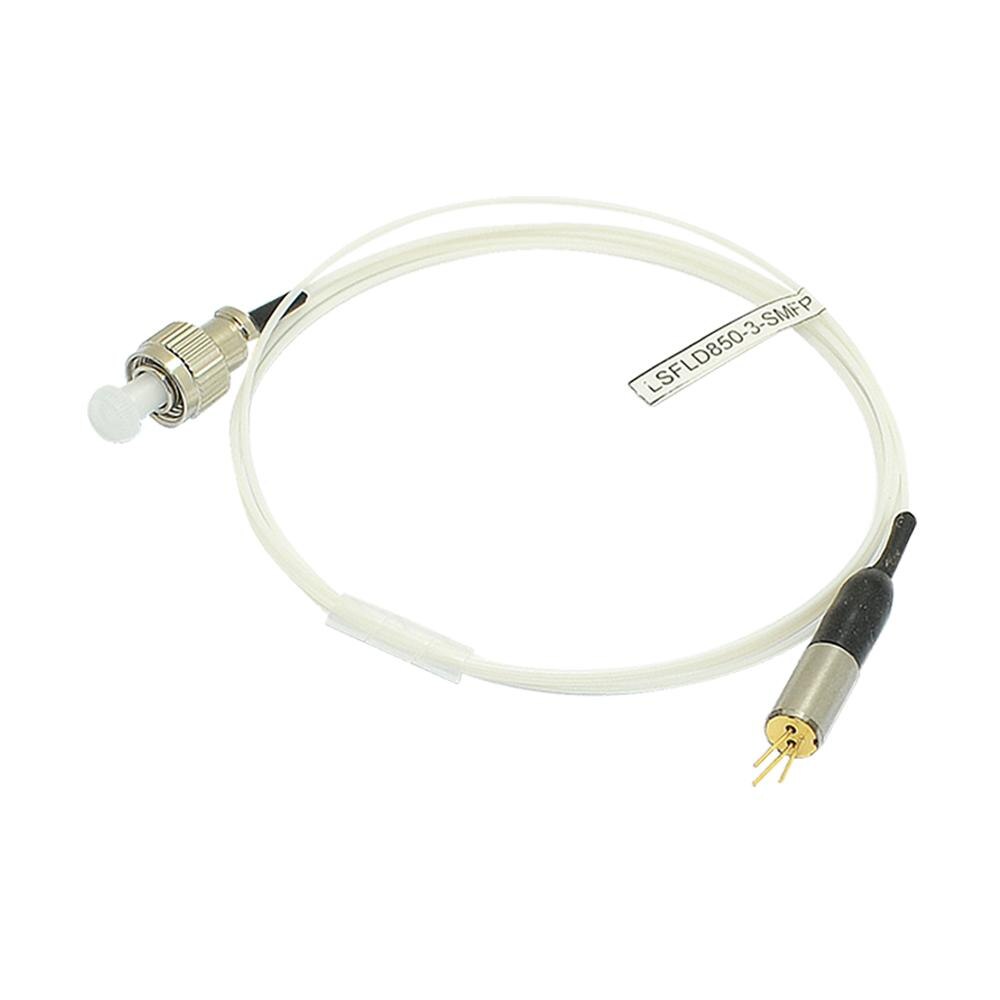

Model: LSFLD850



2. Center wavelength: 850nm



3. Single-mode fiber output power: 3mW



4. Threshold current: 10mA



5. Working current: 25mA

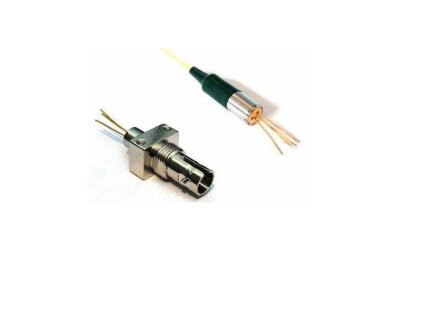

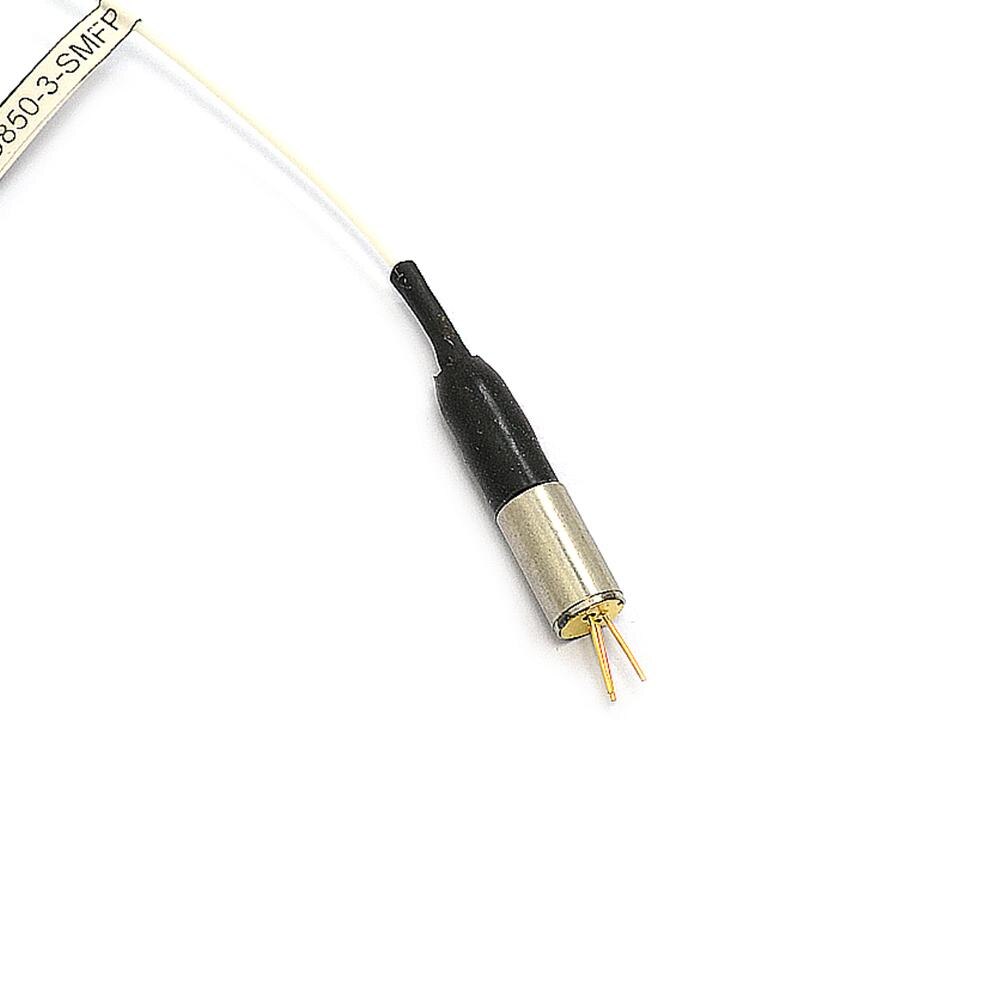

6. Package: coaxial, TO-18 Can, fiber coupling, optical interface optional



The cautions
1 The suitable ESD protection is required in storage, transportation and using
2 The fiber bending radius no less than 20mm for avoiding
fiber damaged ,Be sure the fiber coupling
facet is clean before connecting it to opto-circuit.
