8mm Low operating temperature 1mW 5mW 10mW 520nm Green Dot Laser Diode Module Industrial Grade APC Driver TYLASERS


SKU: 32865687245 Category:

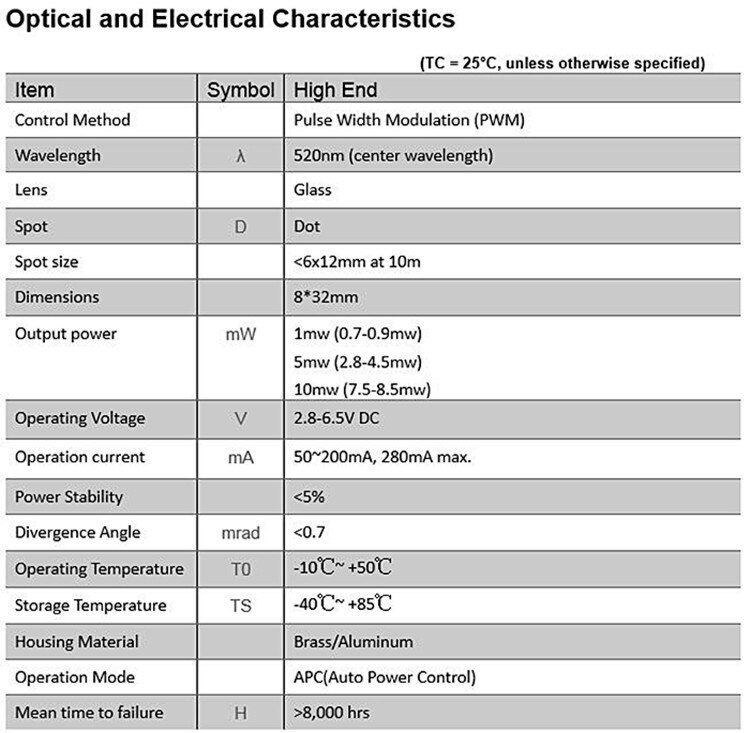

1:Wide operating temperature: -20 degree ~60 degree; Quick start at low temperature ;
2: Low Working Current      : <150mA at 3v DC ,<5mw; less than DPSS laser module;
3:Low Working  Voltage      :  2.2V~8.0V; Suitable for battery-powered;

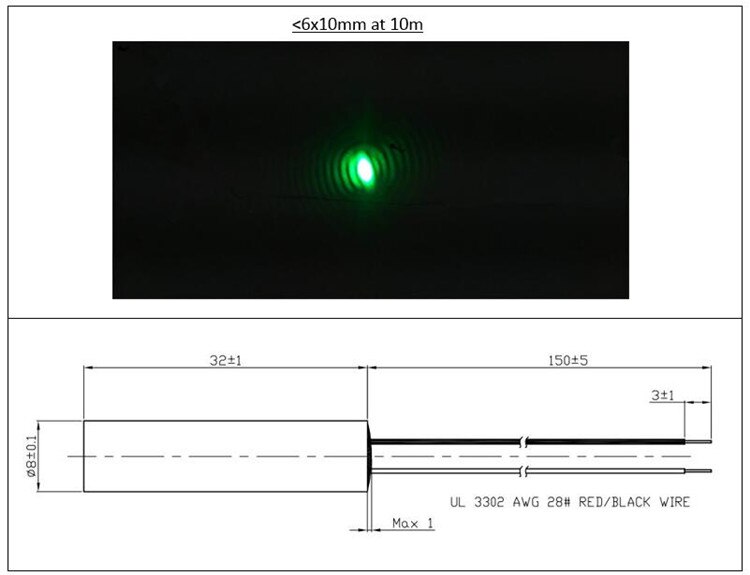

4:Ultra-Small Size          : 8*32mm;Built-in circuit board,Tail filled epoxy,Power stability;

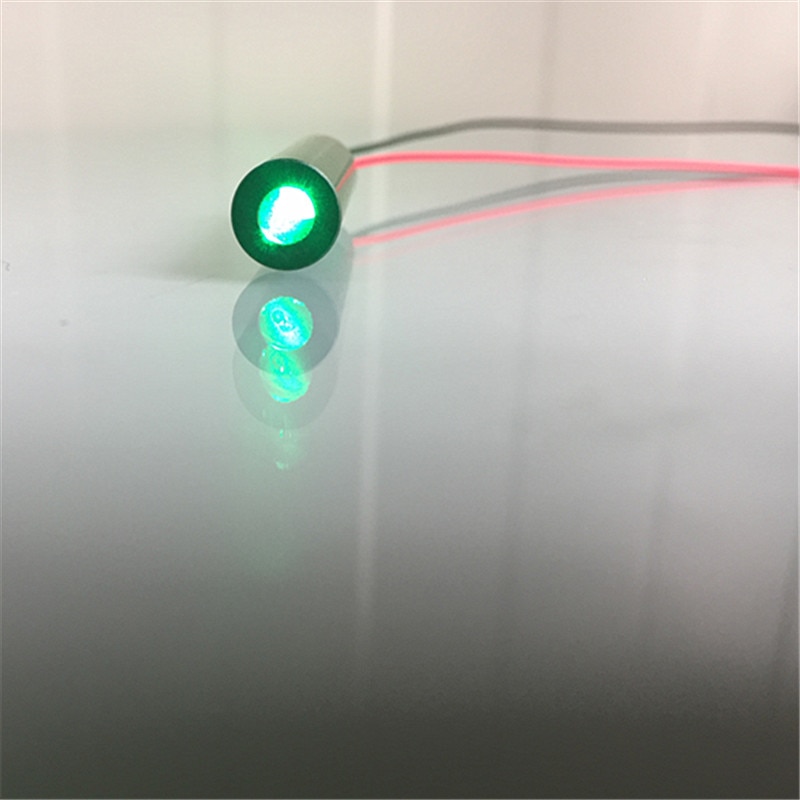

Item Pictures
H835155D (8)

Cstomized Laser Moudle

Any part or specification of each module can be modified.


We divide a laser diode module structure into 4 main sections:

– a laser diode
– an optical lens
– a laser driver circuit
– optical and mechanical properties


1. Laser diode:

-Main characteristics of laser diode: wavelength, output power, and operating temperature


2. Optical Lens:

– Main characteristics for the beam collimation: divergence angle, laser spot size

– Choice of the laser pattern: laser dot, laser line, laser cross line, or any kind of laser pattern achieved through using DOE


Spot size:  The laser spot size has a direct relationship to the distance of projection.


3. Laser Driver Circuit:


The driving circuit of the laser modules can be either APC (Auto Power Control) or ACC (Auto Current Control).

An APC driver controlled laser module will automatically adjust the input current in order to output a constant value of optical power.

An ACC driver controlled laser module will in another way have a constant value of input current, while the output power may vary.


4. Optical and mechanical properties:

-Main characteristics for mechanical requirements: dimension requirements, boresight or called coaxial angel accuracy of laser module.
