Description
- Brand Name: Broodio
- Certification: CE
- Accessory Type: Battery Accessories
- Origin: CN(Origin)

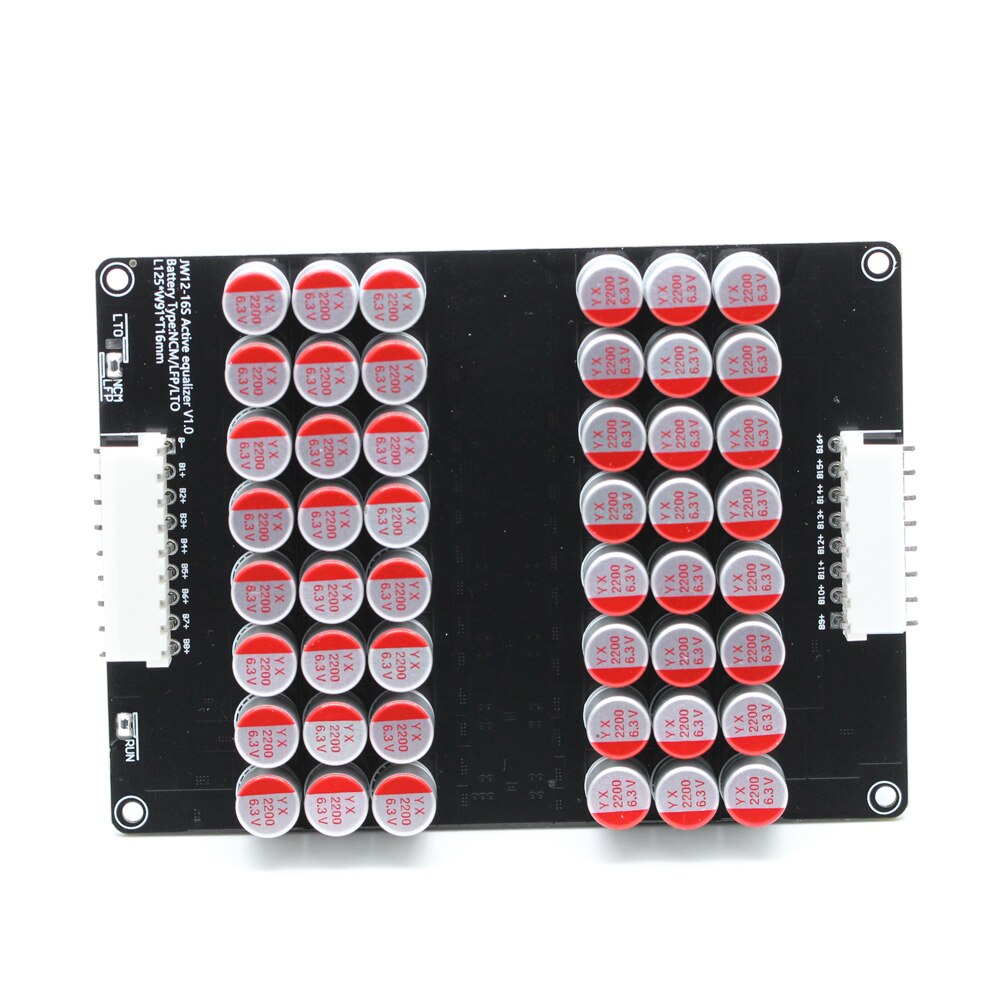

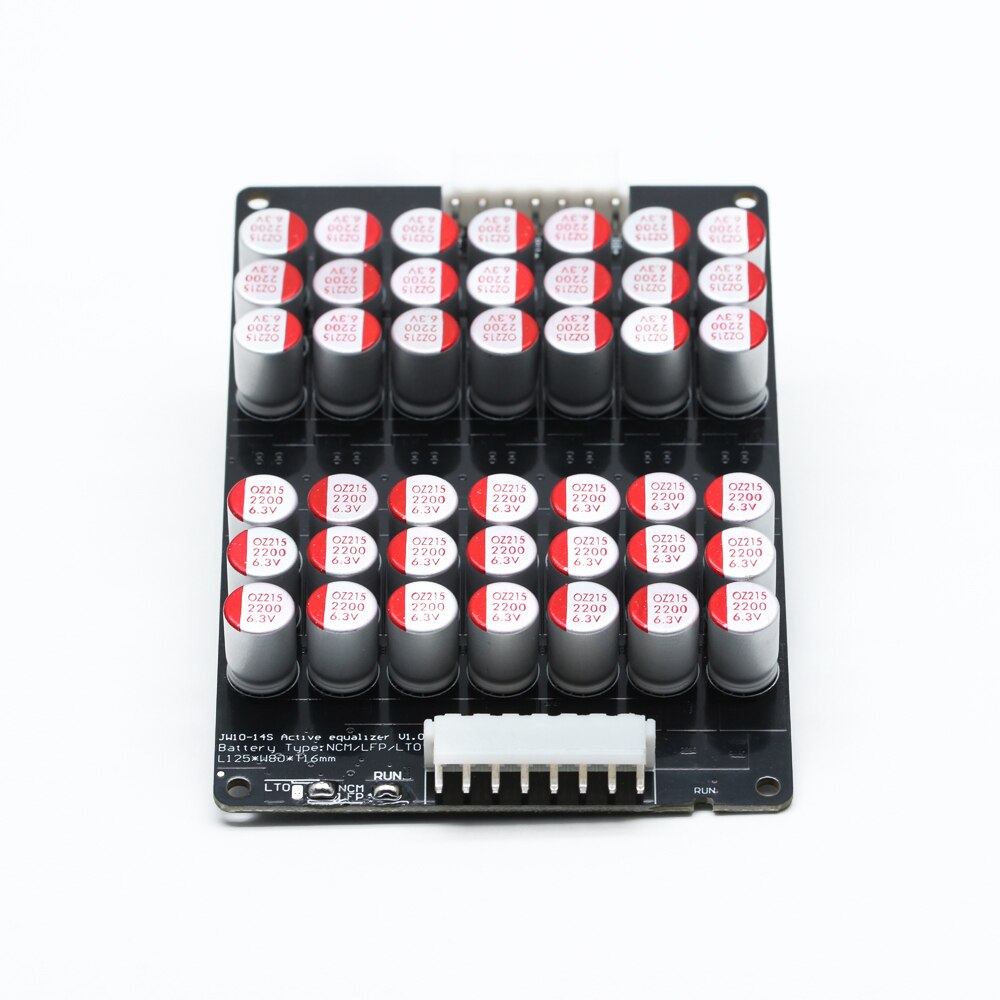

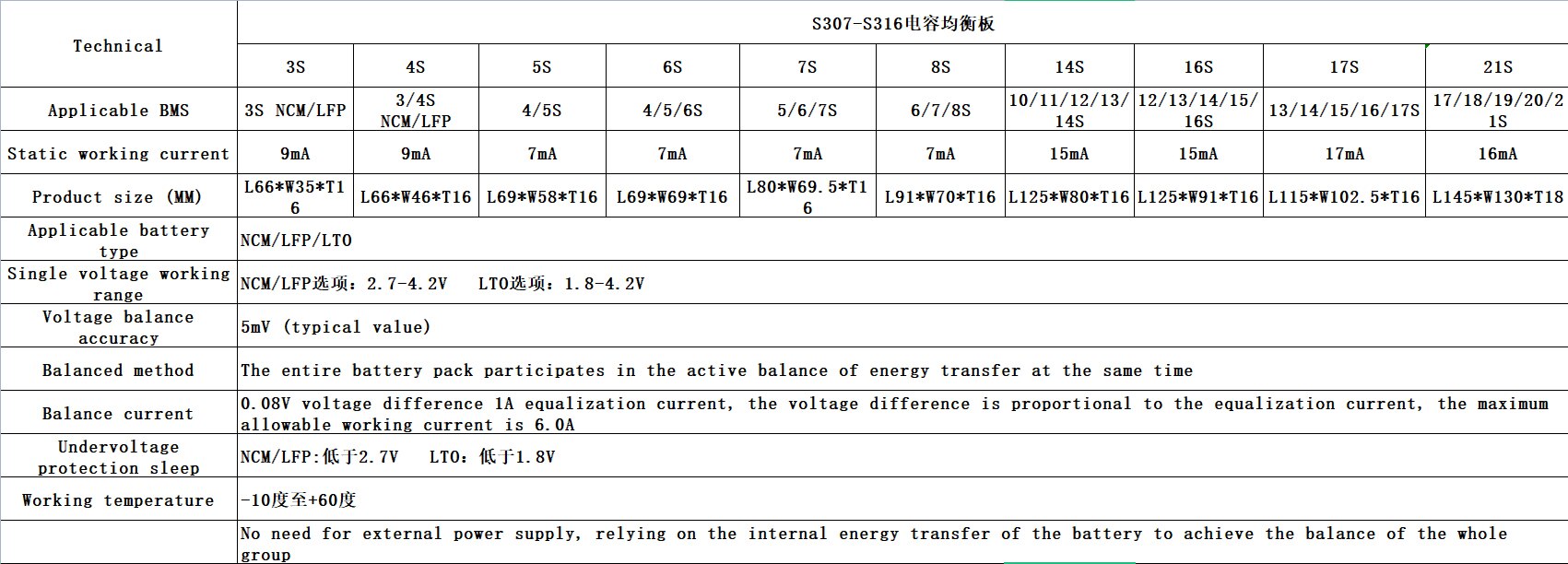

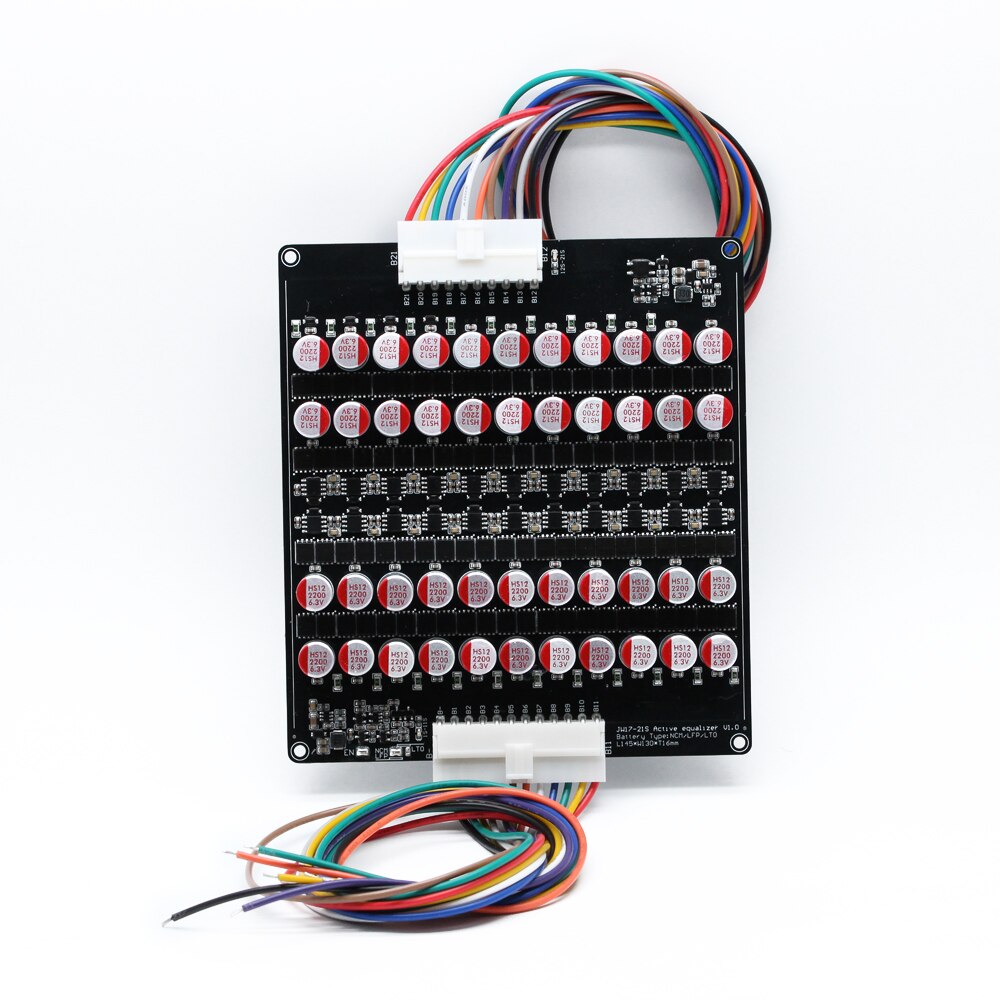

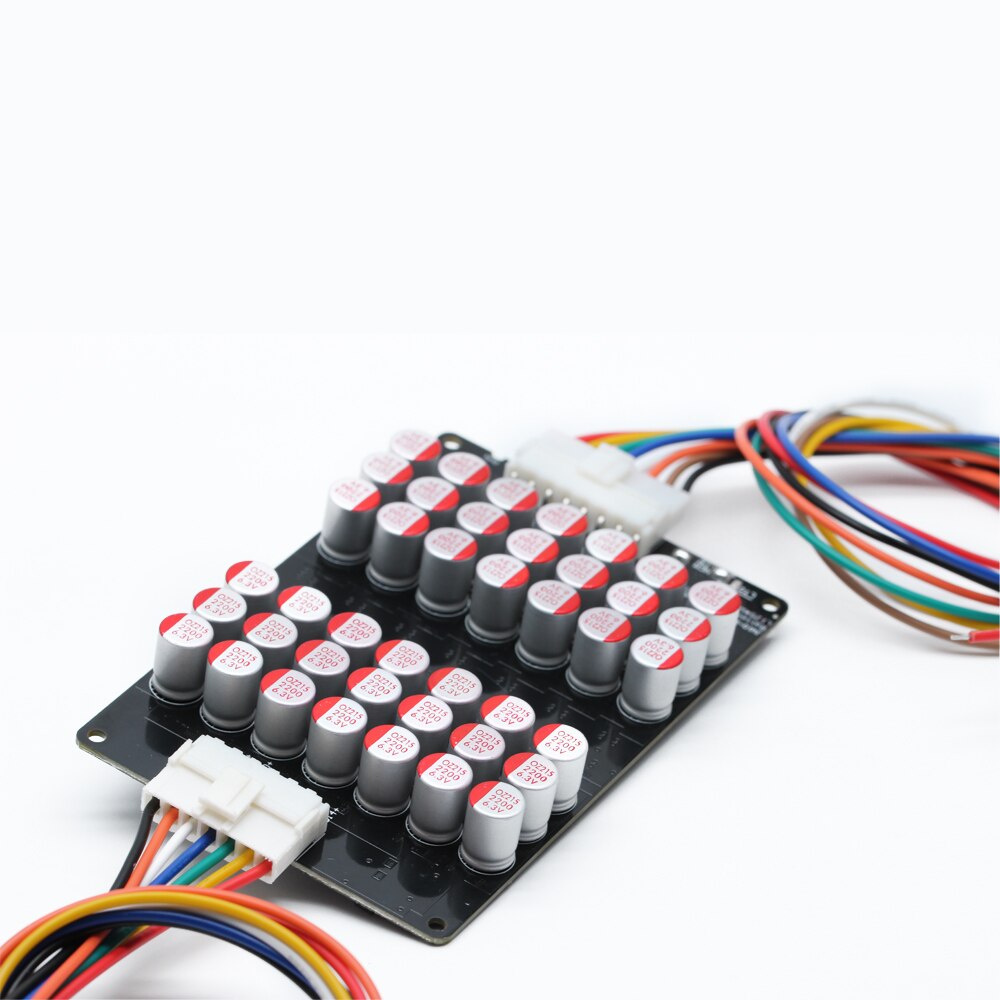

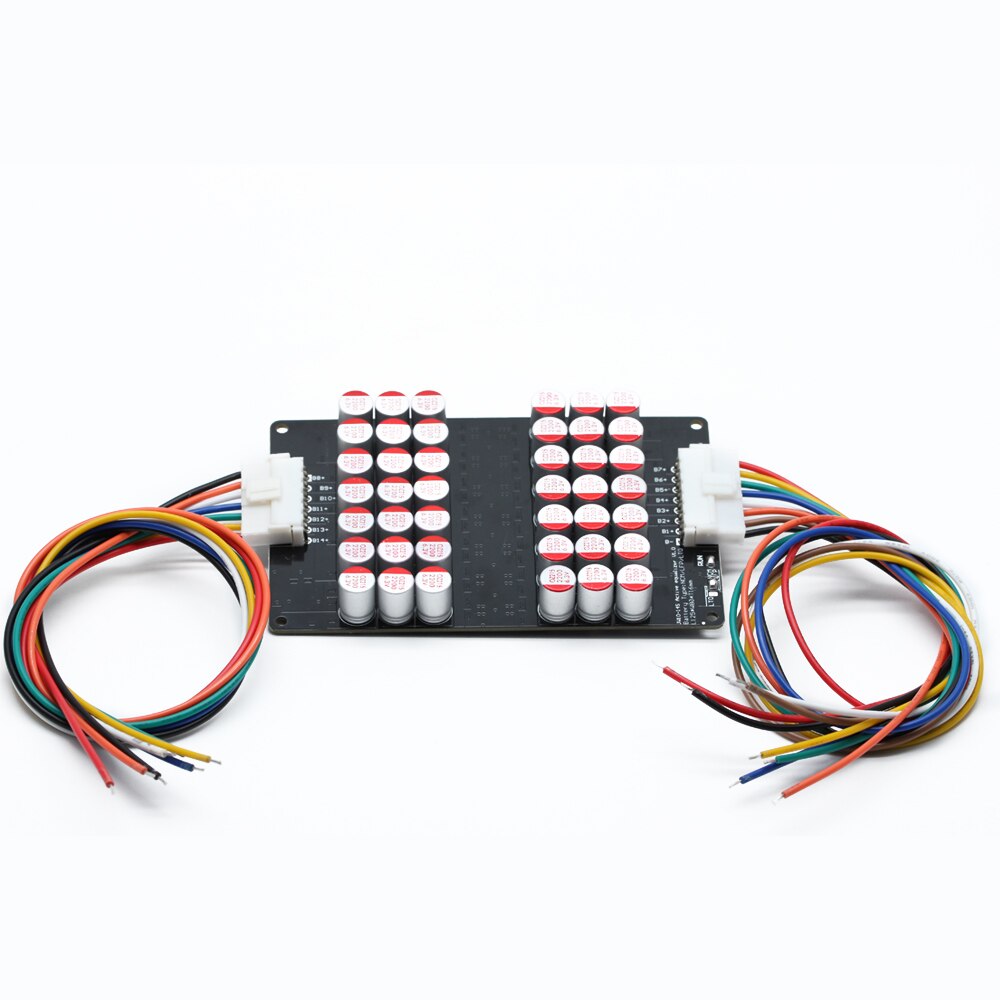

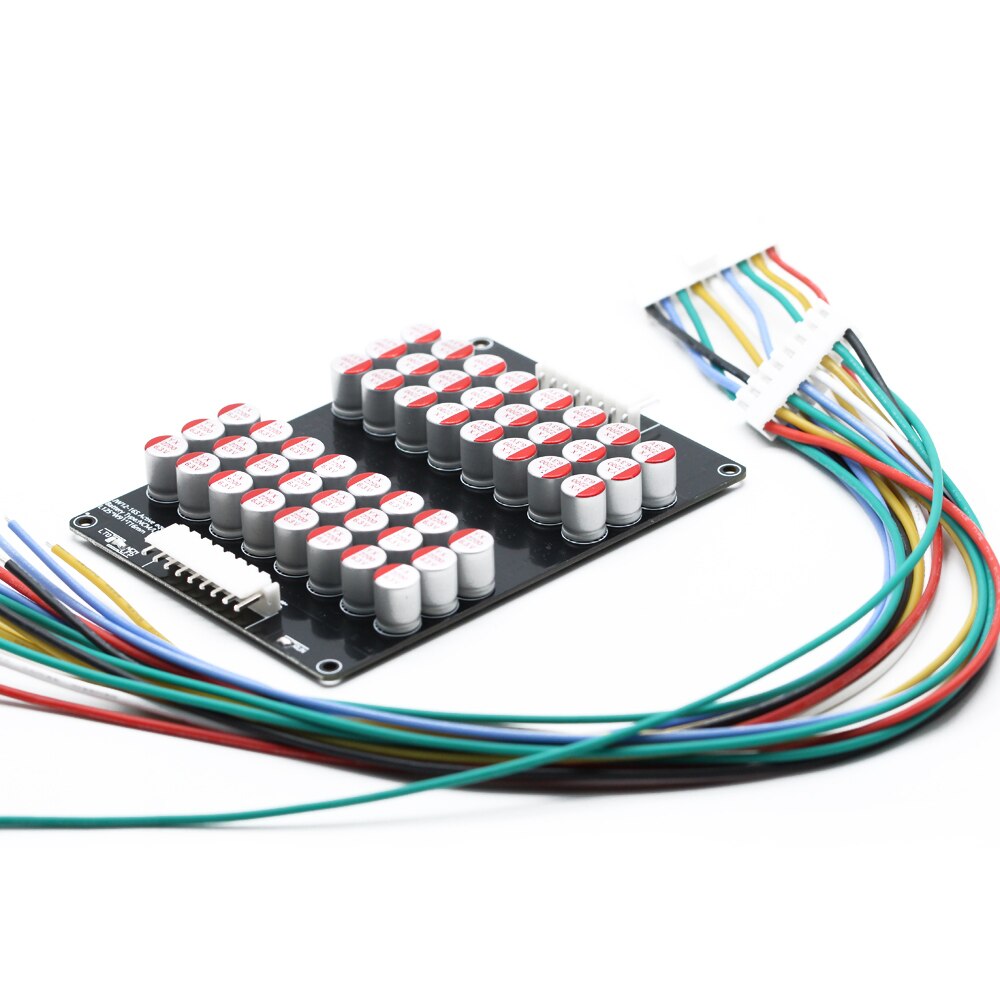

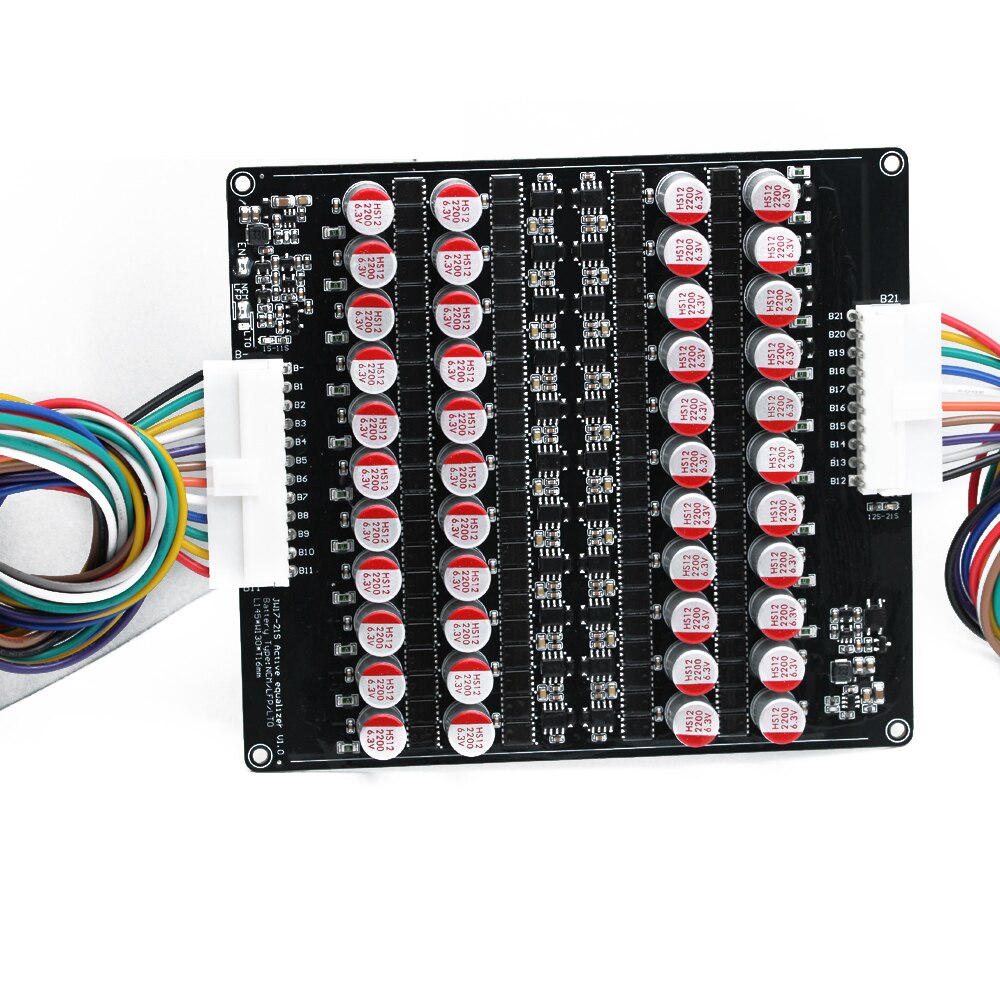

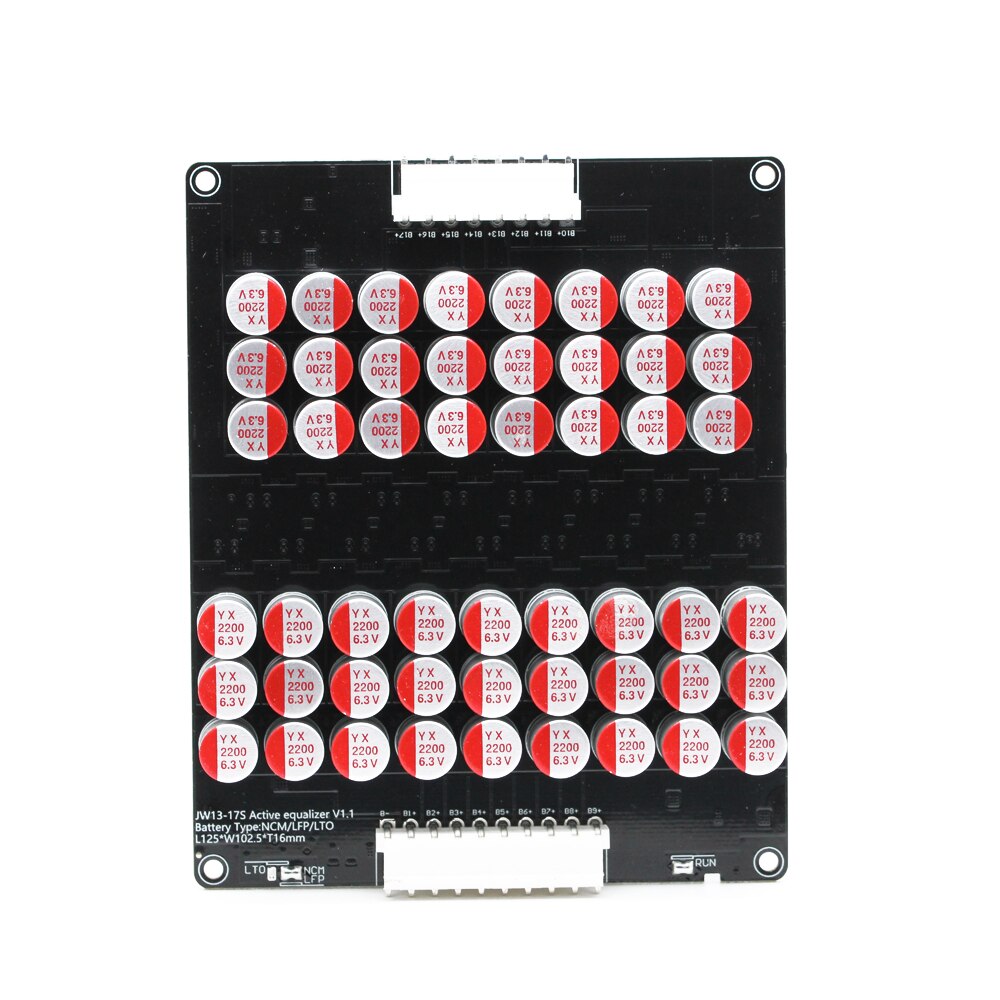

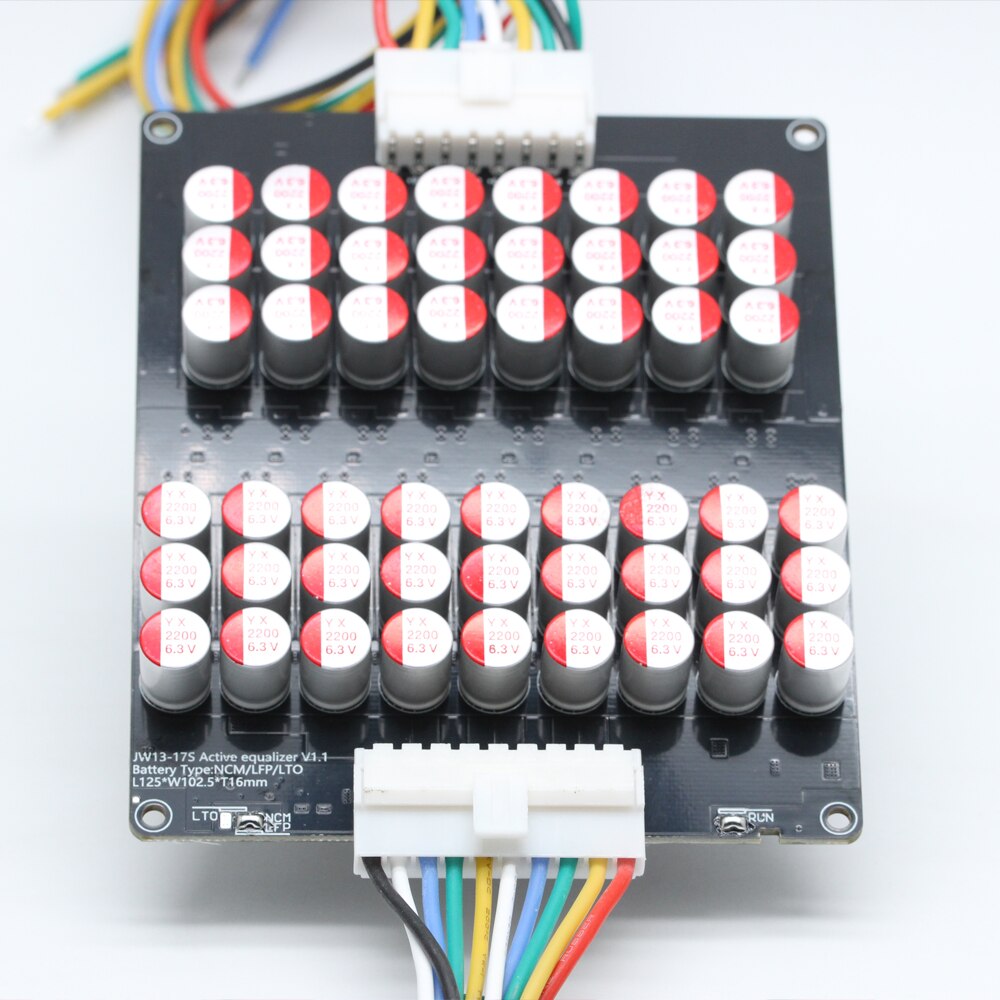

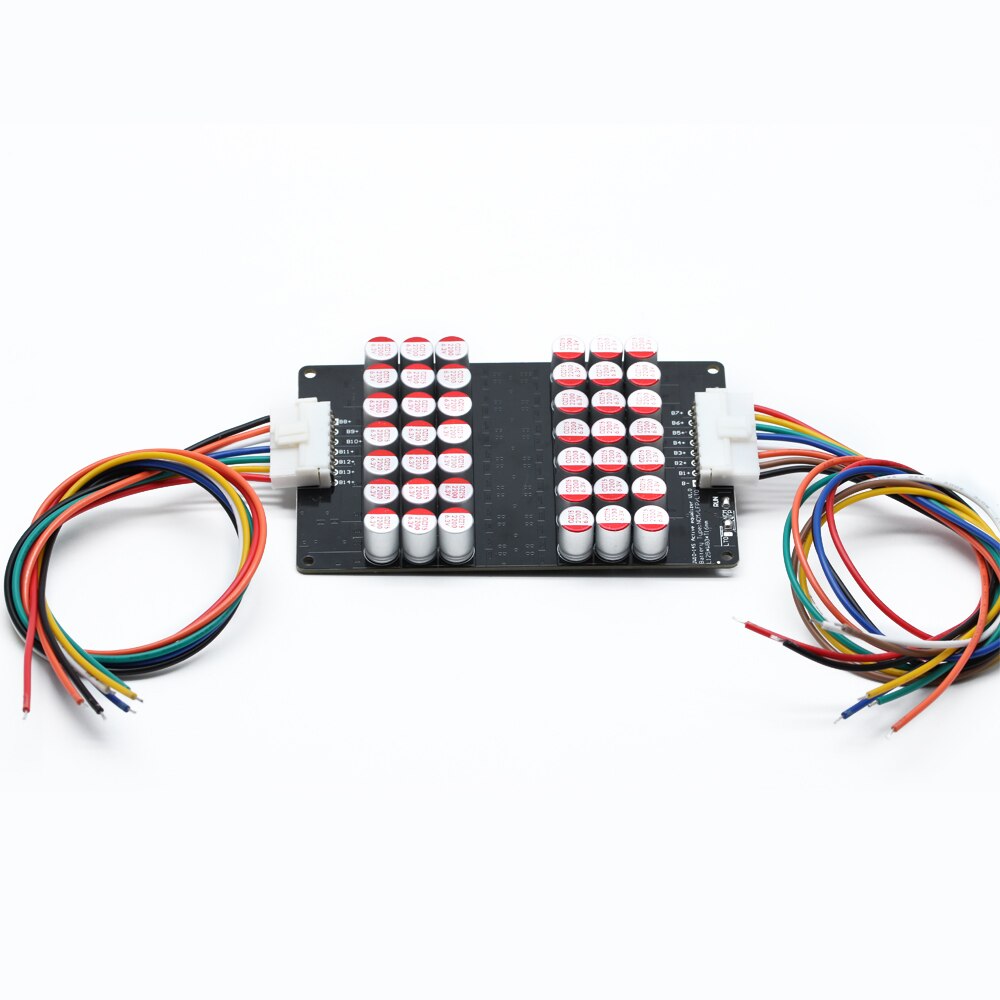

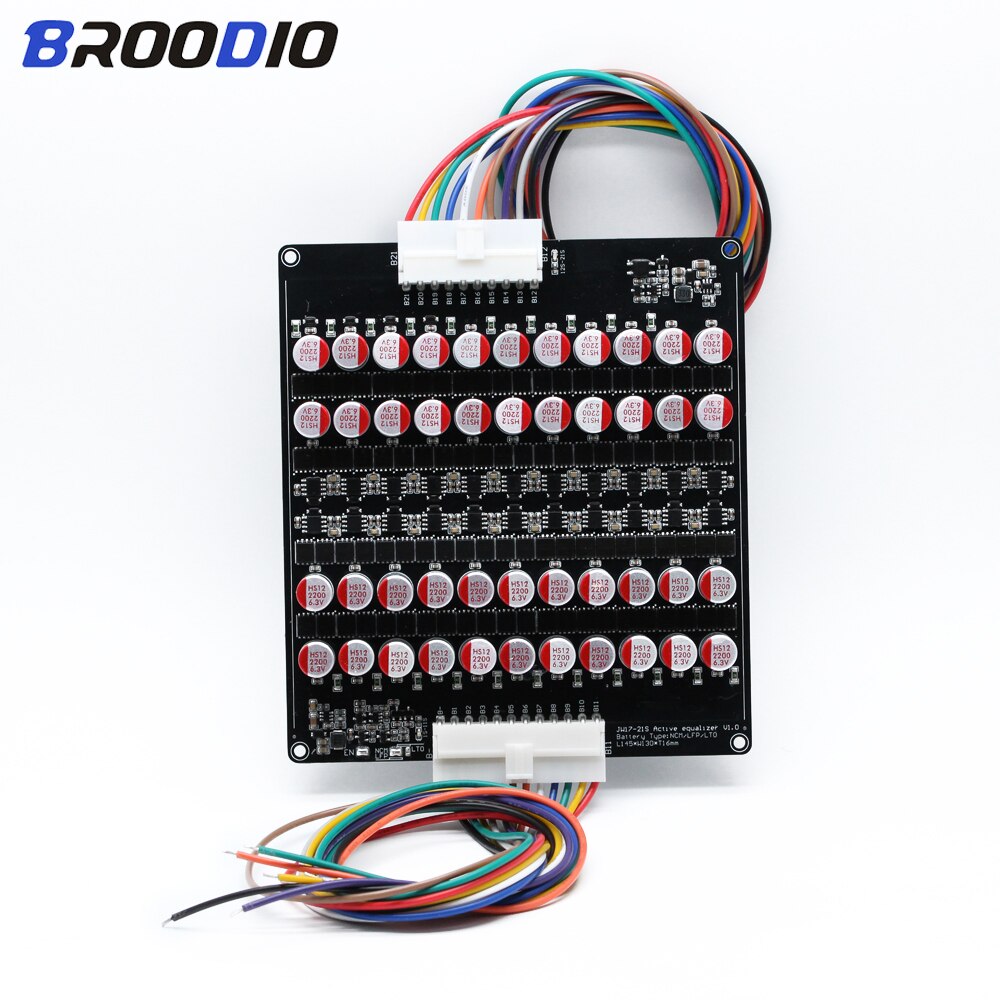

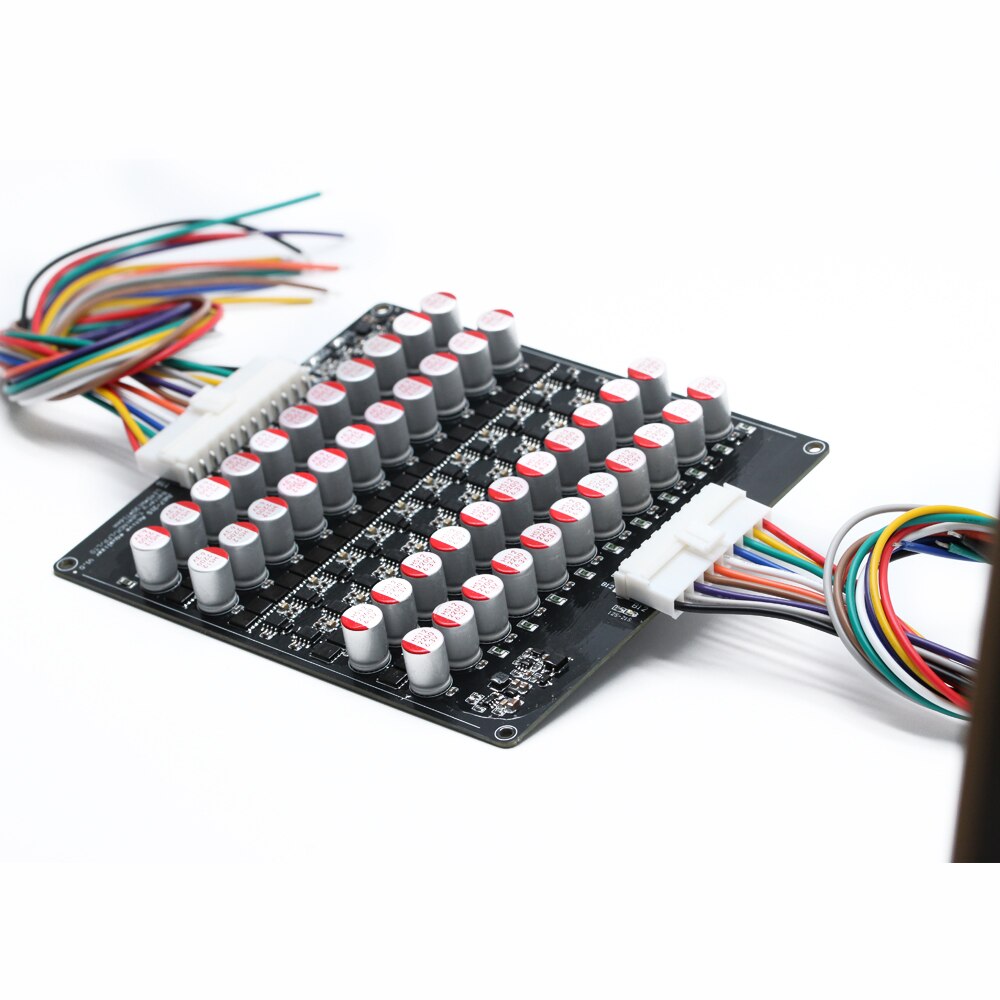

3 to 21 strings of ternary lithium iron lithium titanate 5mv high-precision active balance energy transfer
Working voltage 1.8V-4.5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate.

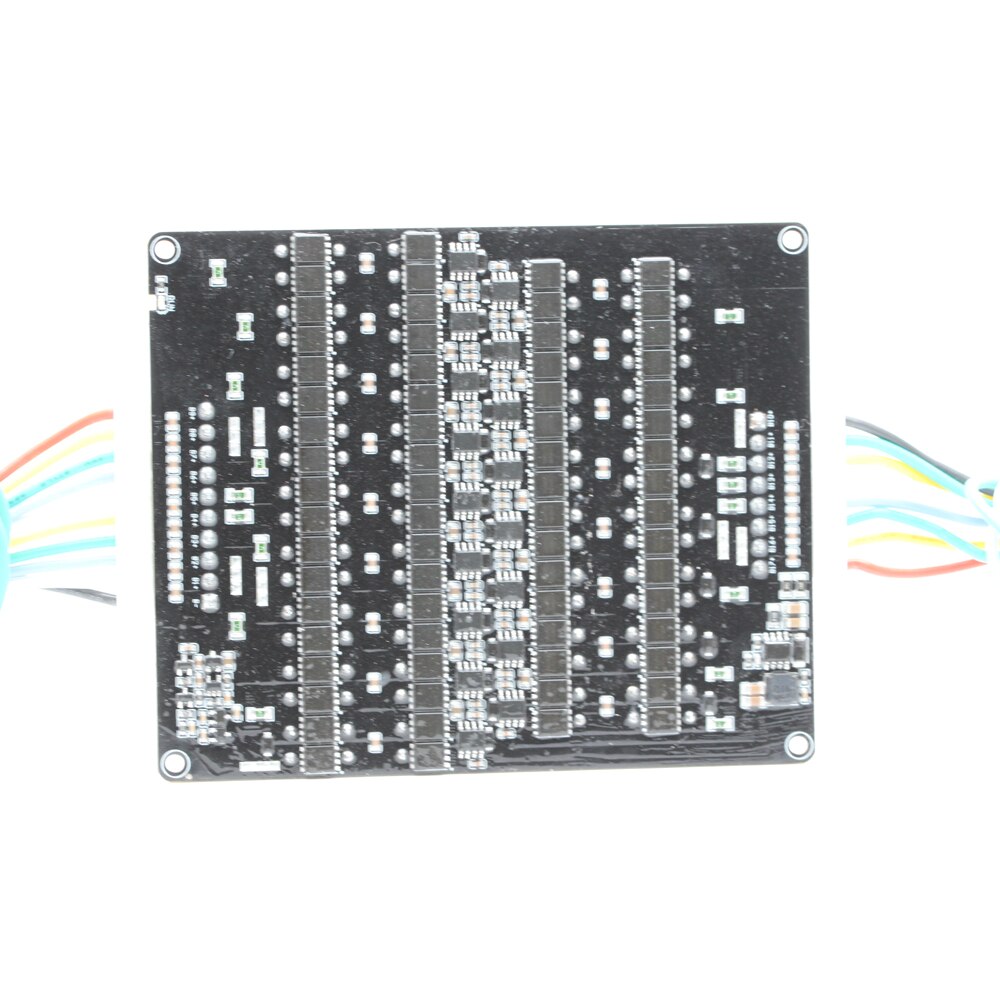

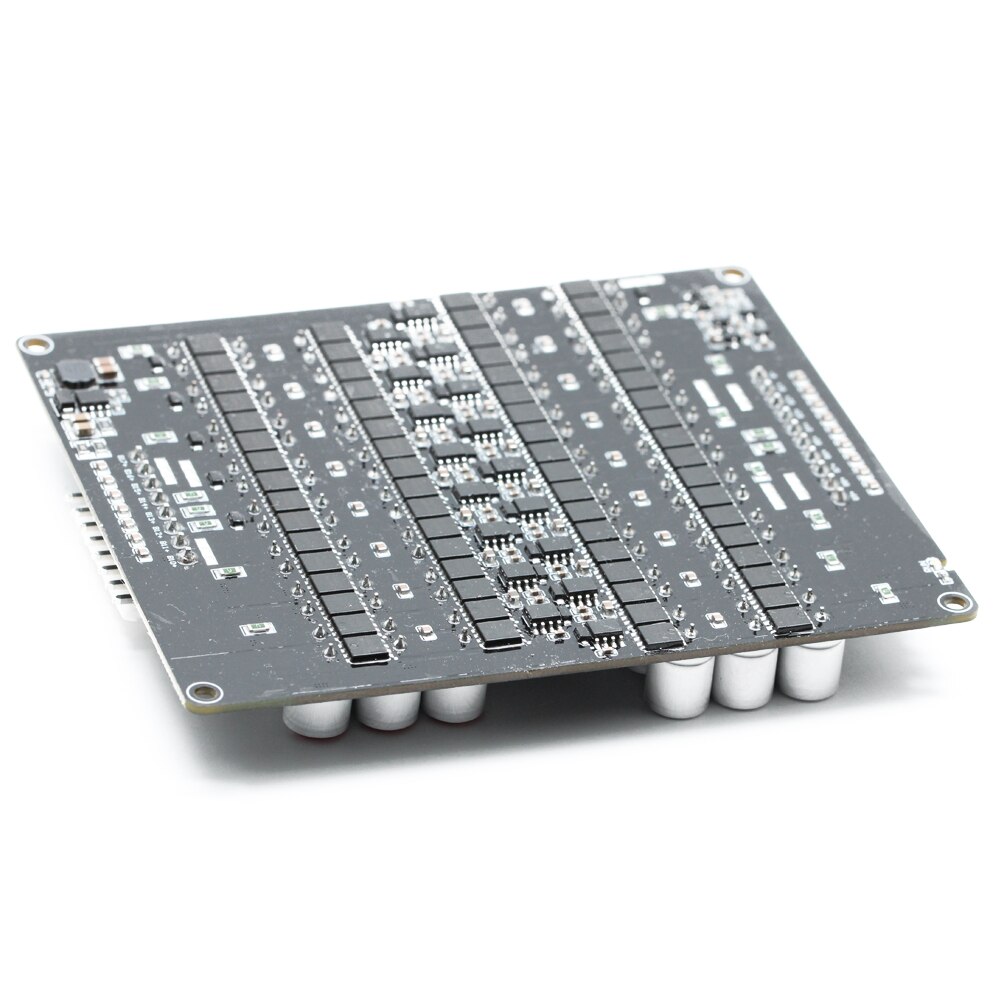

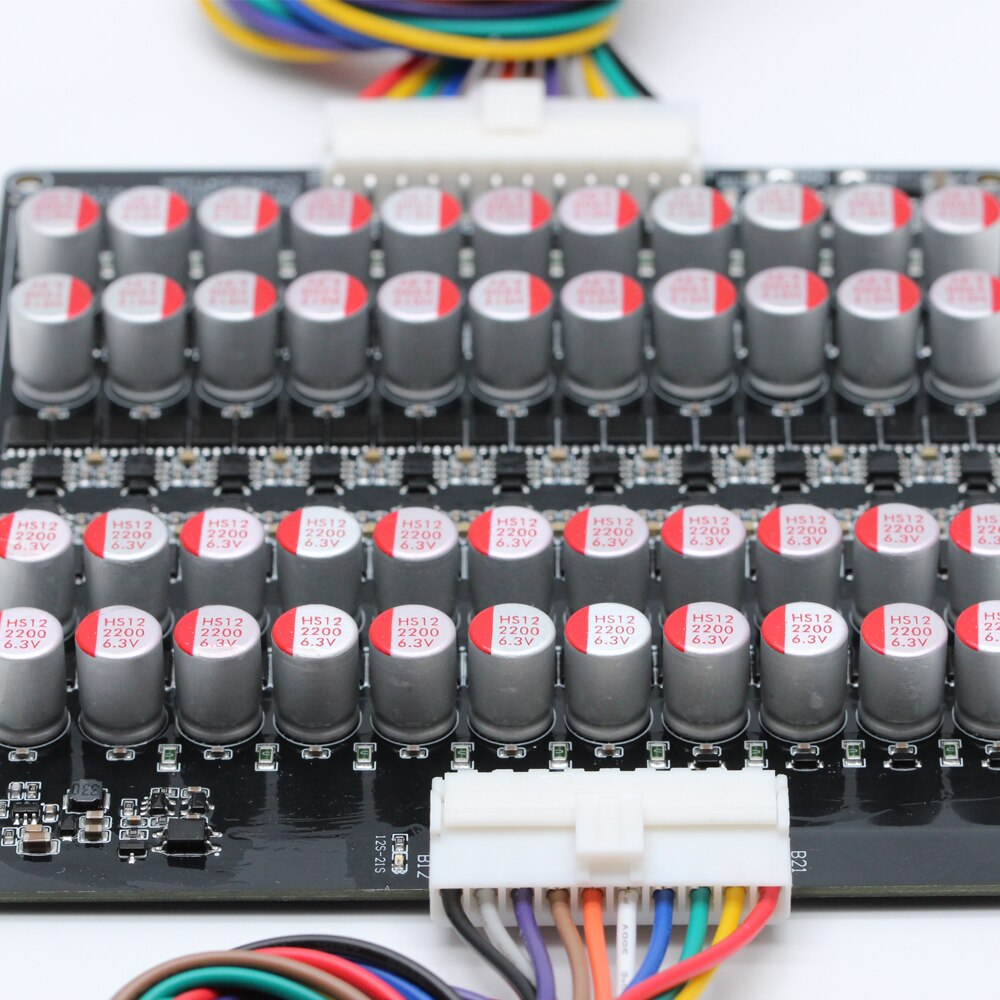

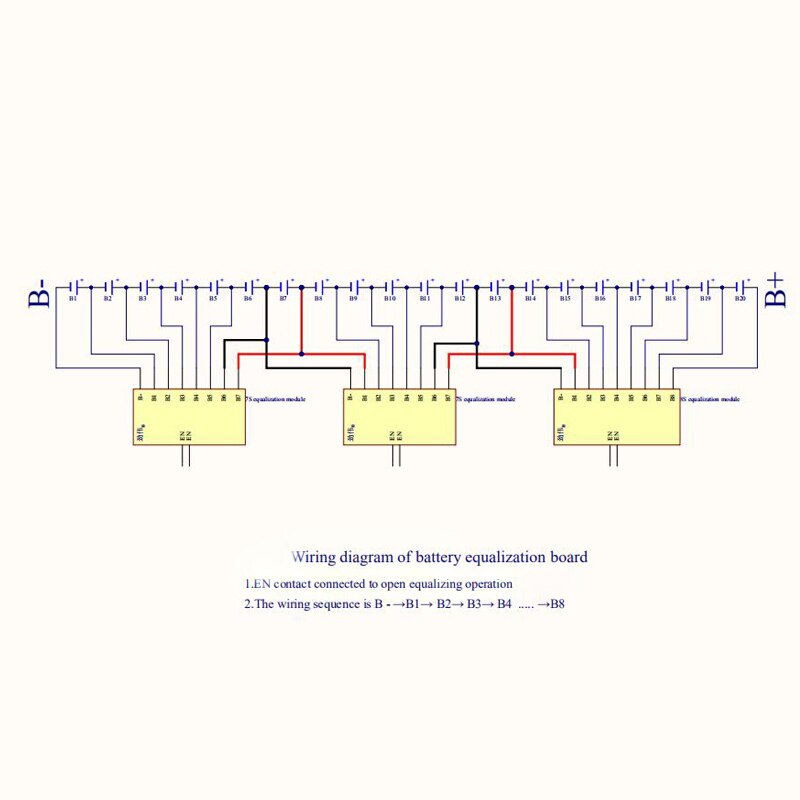

Working principle, the capacitive fit transfers the charge porter, the equalization board is connected to the battery to start the equalization work, the original new ultra-low internal resistance MOS, 2OZ copper thickness PCB, equalization current 0-5.5A, the more the battery, the smaller the equalization current, The wiring position of the dormant switch is reserved, the working current of dormant power-off mode is less than 0.1mA, and the balance voltage accuracy is within 5mv!
The quiescent current is about 12 mA, and it is recommended that the battery capacity is between 60-300 AH.
With under-voltage sleep protection, the voltage will automatically stop and enter the sleep state when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1 mA
