Description
- Brand Name: Broodio
- Certification: CE
- Accessory Type: Battery Accessories
- Origin: CN(Origin)

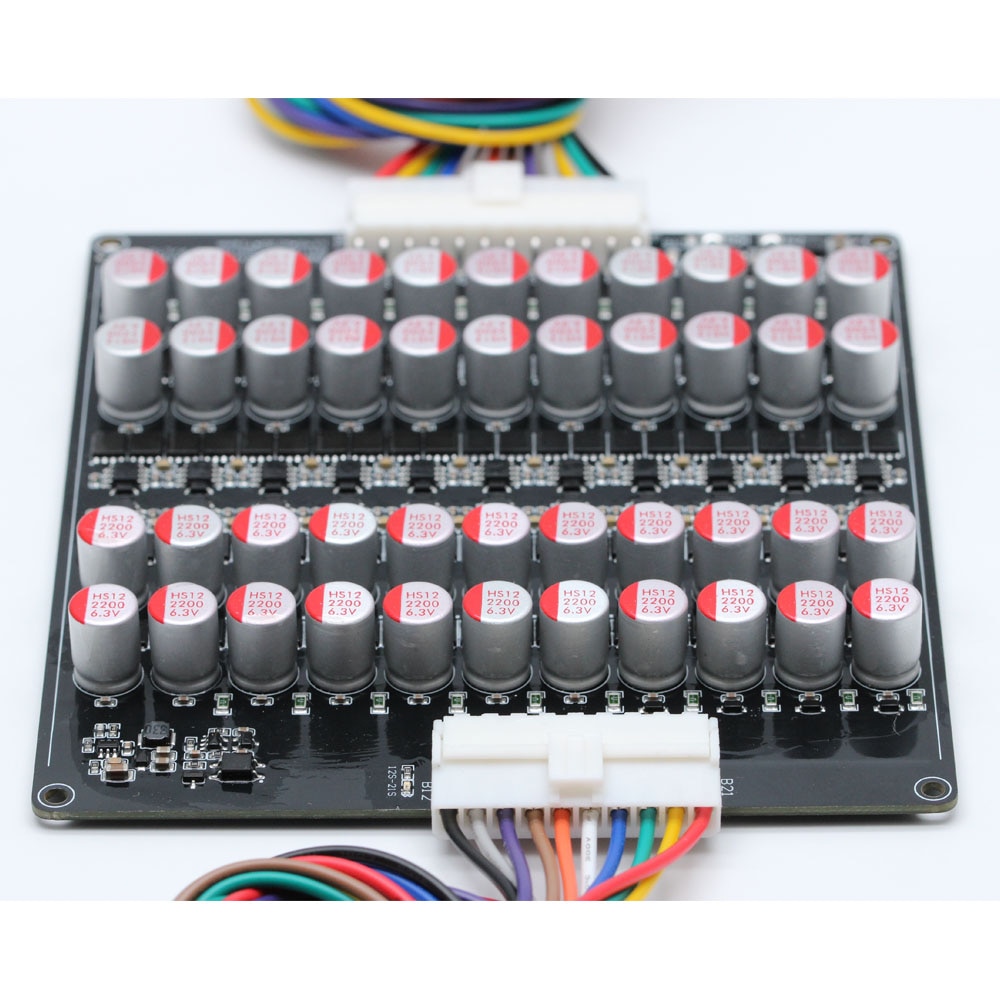

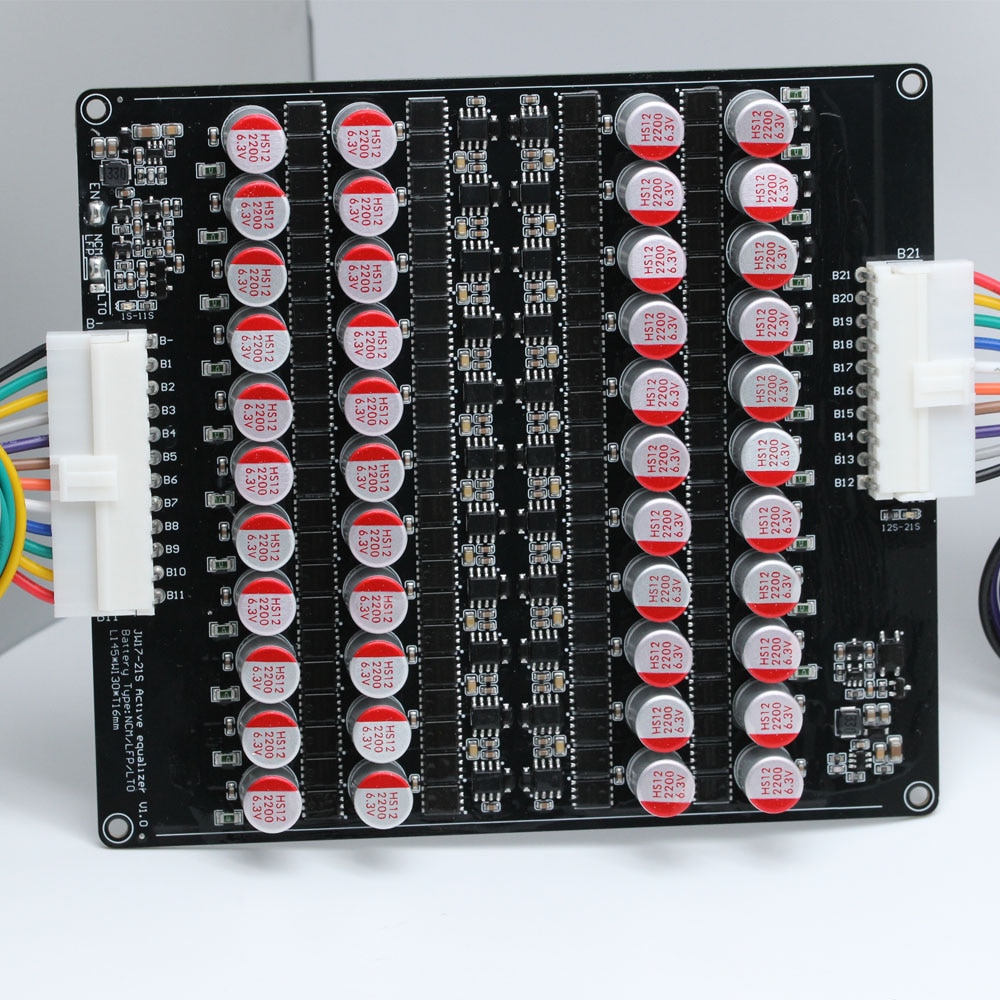

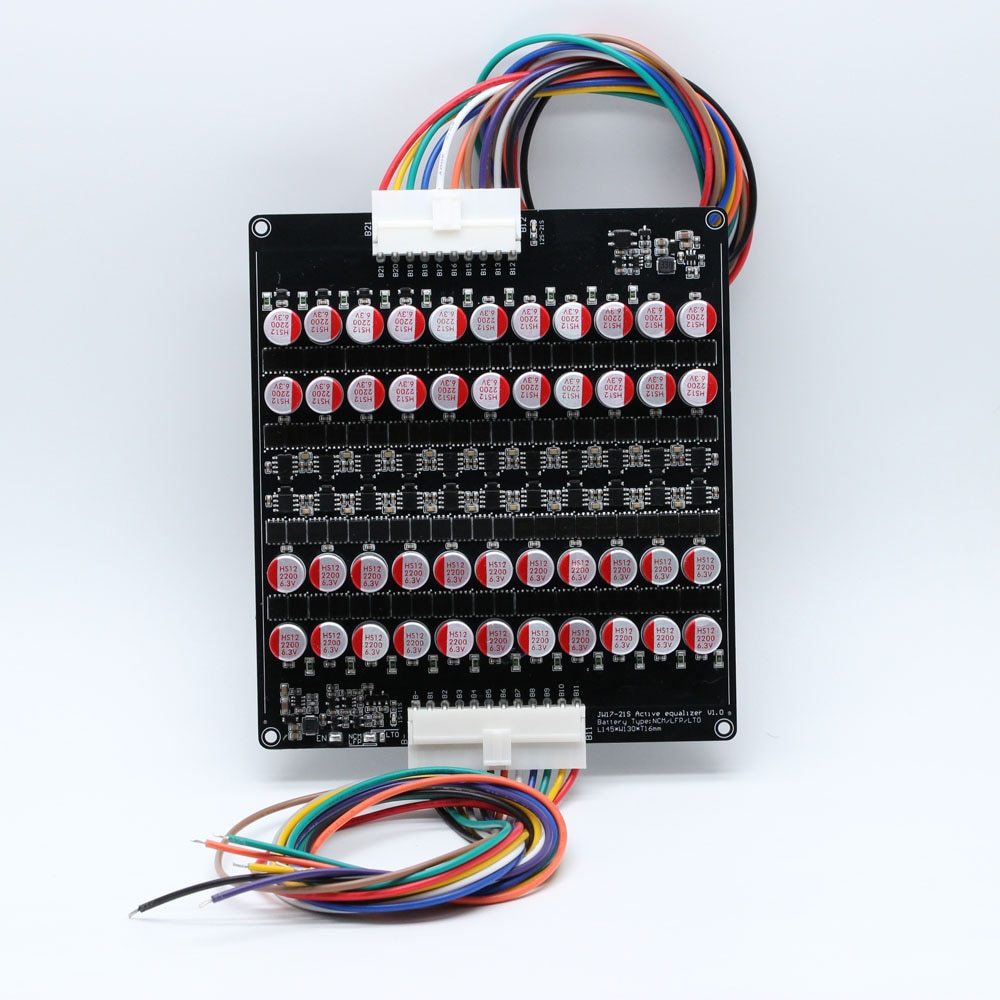

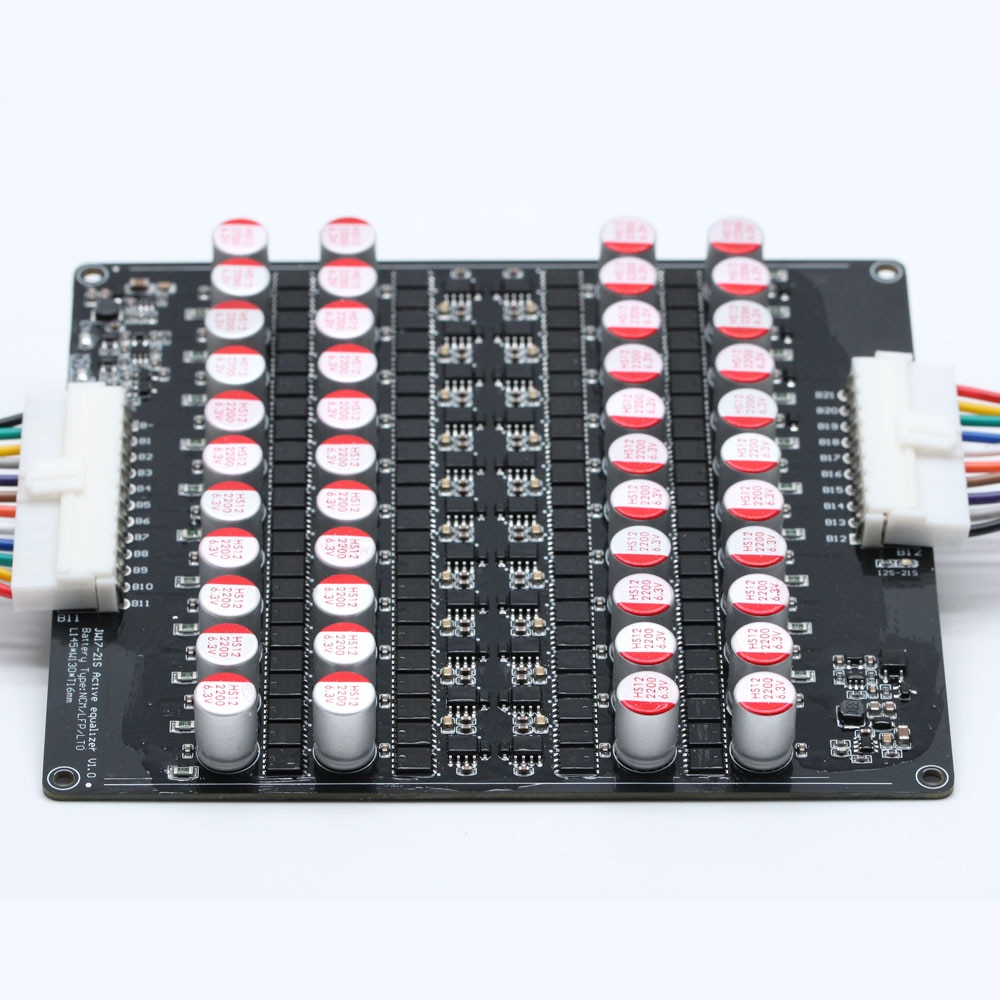

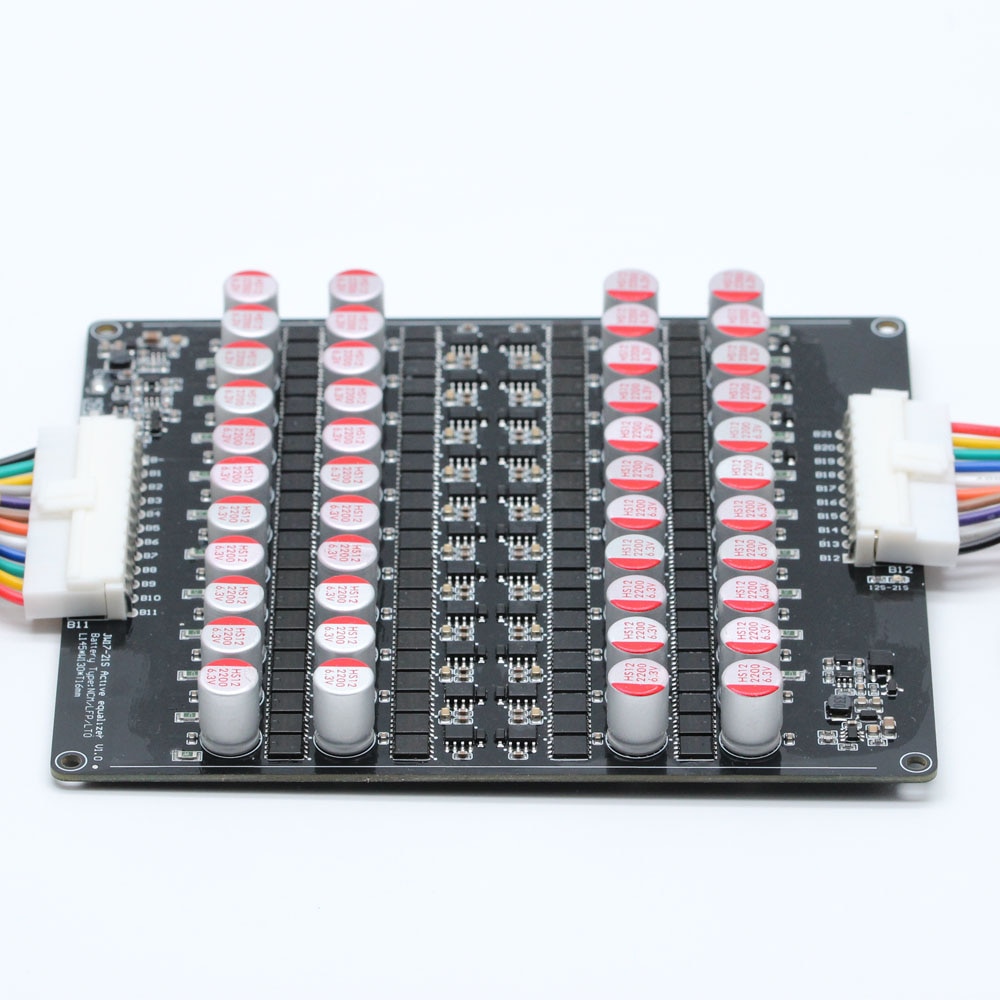

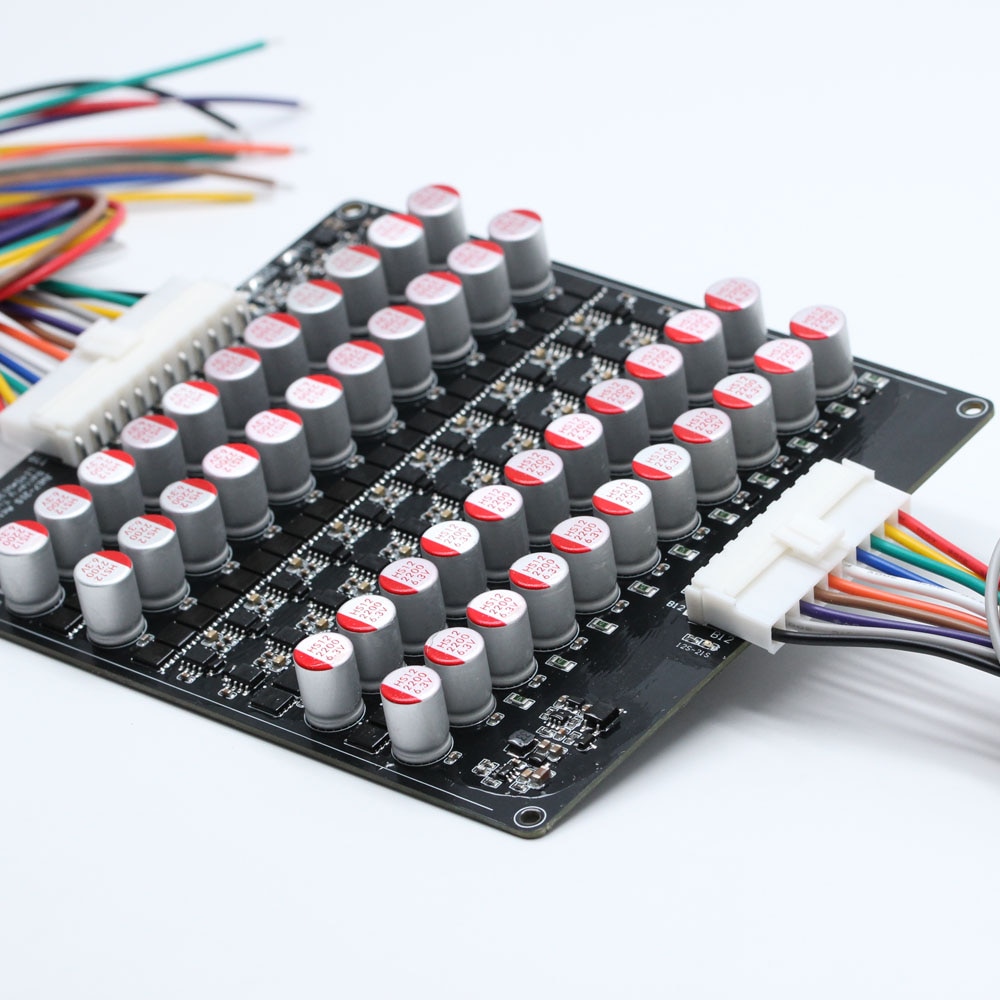

100% Brand New and High Quality 3S-8S Capacitive BMS Balancer Board
Li-ion/Lifepo4/Lipo Capacitive BMS Balancer Board
Balance start voltage : 3.0V-4.2V
Balance termination voltage : 2.9V (into undervoltage sleep state)
Maximum Balance current : The whole group accuracy is 0.1V1A ; 0.5V3.5A; 1.0V5.5A (18awg 30CM cable test)
4S quiescent current Full state : (4.2v*4cell) 16.5V 15mA
8S quiescent current Full power state : (4.2v*7cell) 33.6V 14mA
Whether external power supply is required : no external power supply is required, and the internal energy transfer of the battery is used to transfer and the entire set batteries pack in balance .
Working environment temperature : 0-60 degrees
LTO 3S-8S Capacitive BMS Balancer Board
Balance start voltage: 2.0V-2.8V
Balance termination voltage: 1.9V (into undervoltage sleep state)
Maximum Balance current: The whole group error is 0.1V1A; 0.5V3.5A; 1.0V5.5A (18awg 30CM cable test)
8S LTO quiescent current Full state: 2.8v*8cell) 33.6V 14mA
Whether external power supply is required: no external power supply is required, and the internal energy transfer of the battery is used to transfer and the entire set batteries pack in balance .
Working environment temperature: 0-60 degrees
