CUV-UV Fiber Optic Cuvette Holder

$199.00

SKU: N/A Category:

Description

Details:The CUV-UV Cuvette Holder for 1-cm path length cuvettes couples via SMA-terminated optical fibers to BeamQ high-sensitivity miniature fiber optic spectrometers and light sources to create small-footprint spectrophotometric systems for absolute absorbance measurements of aqueous solutions. This compact cuvette holder is optimized for UV-VIS-NIR (~200 nm-2 µm) applications.

It is used to connect fiber spectrometer and light source with SMA905 fiber, for the transmittance and absorbance measurement of various liquid samples.
The optical fiber spectrometer and light source can be coupled with the optical fiber of the SMA905 connector to form a miniaturized spectroscopy system for the transmittance and absorbance measurement of various liquid samples.
An optional black anodized aluminum cover (not included in the standard configuration) can be used to shield ambient light and cut off the light path for dark backgrounds.
Module: BIM-6305-01
Cuvette Tank Size(W× L): 12.5mm x 12.5mm
Optical fiber Connector: 2 SMA connectors with Collimator lens

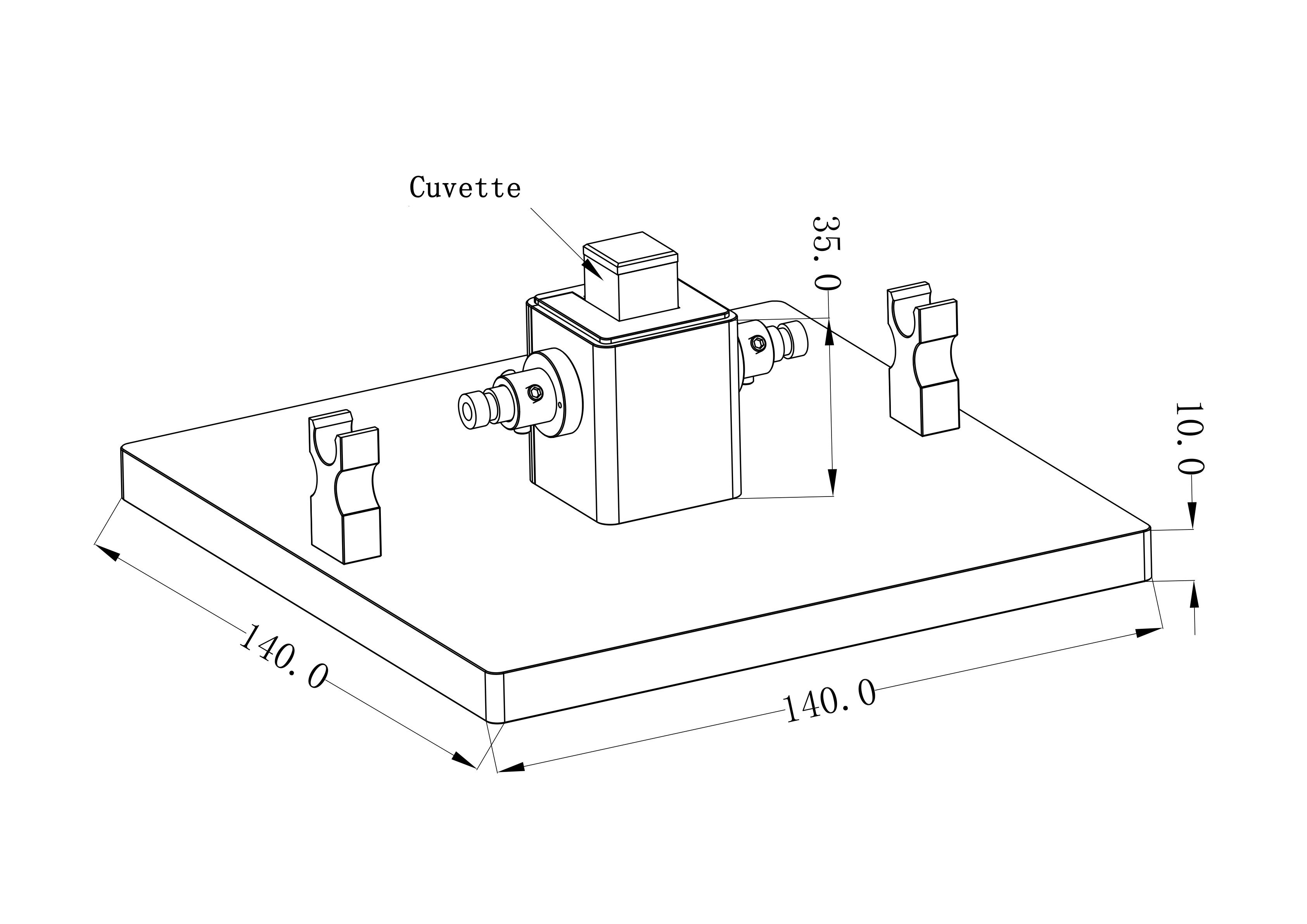

Total Size: 140mm x 140mm x 40mm
Filter slot: 5.5mm
Module: BIM-6305-02
Cuvette Tank Size(W× L): 12.5mm x 12.5mm
Optical fiber Connector: 2 SMA connectors with Collimator lens
Total Size: 140mm x 140mm x 45mm
Filter slot: None

01

02

Additional information

model

01, 02
