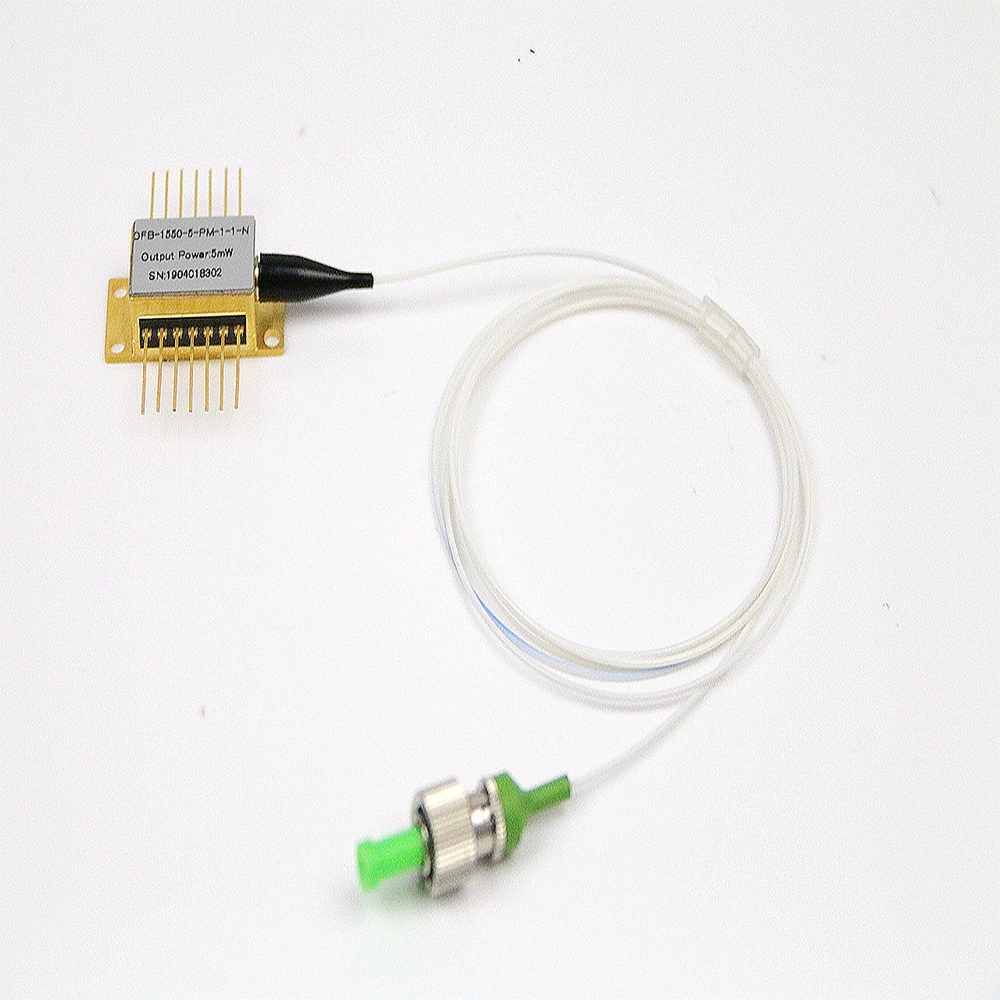

CWDM DFB Laser Diode Butterfly with TEC For Telecommunication Output Power 10mW

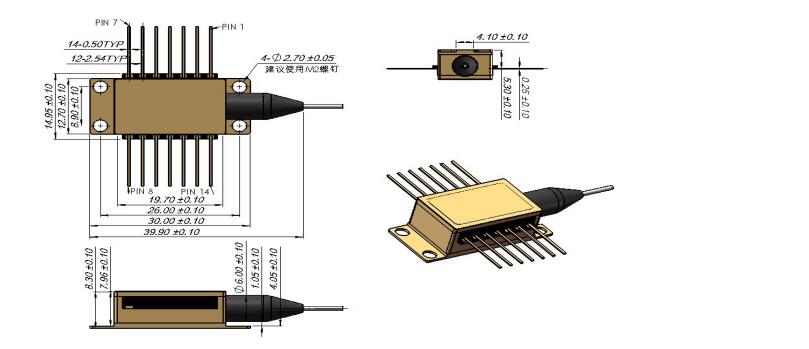

The CWDM series laser diodes cover customer selection of large wavelengths from 1260nm to 1650nm which are fabricated in a hermetically sealed 14-pin butterfly package.We also have full customer selection of output powers, package types and output fibers of SM fibers, PM fibers and other special fibers.

ITU wavelengths available from 1270-1610nm

DFB wavelength stabilized single mode laser.

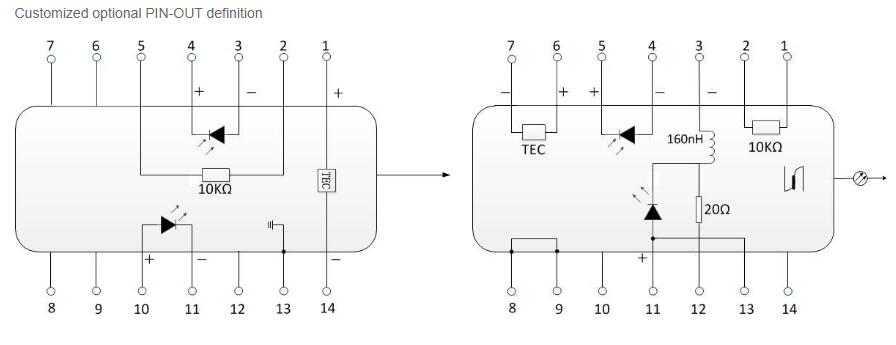

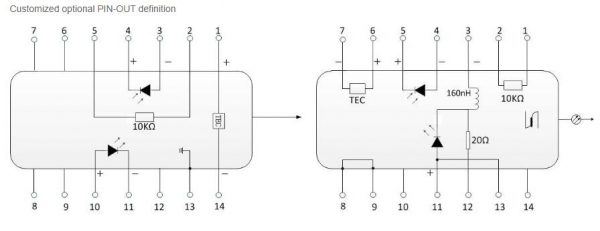

Built-in optical isolator, monitor photodiode, thermo-electric cooler and thermistor.

Polarization maintaining (PM) or Single mode(SM) fiber pigtail.

LAN, WAN and metro networks;

C/DWDM systems;

Laser sources;
