Description
- Brand Name: diymore
- Condition: New
- Technology: Wirewound
- Type: Rotary Potentiometer
- is_customized: Yes
- Model Number: 3590S series potentiometer

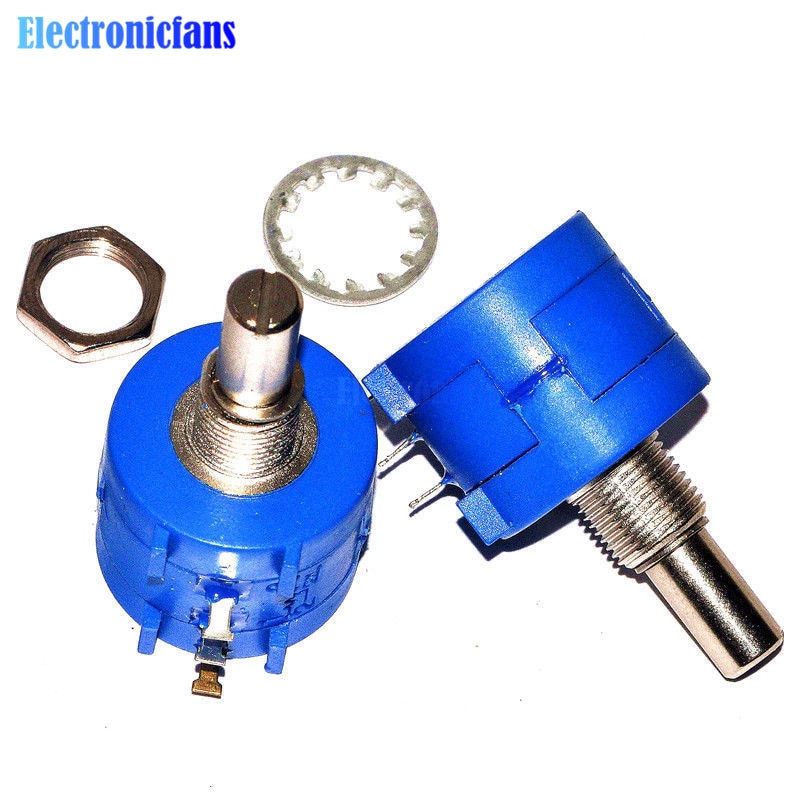

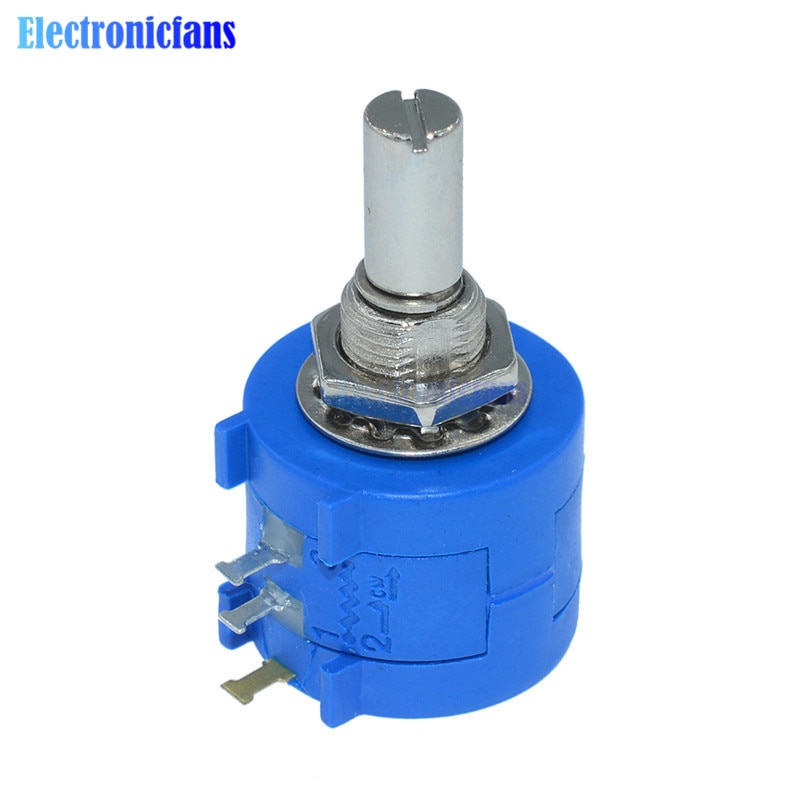

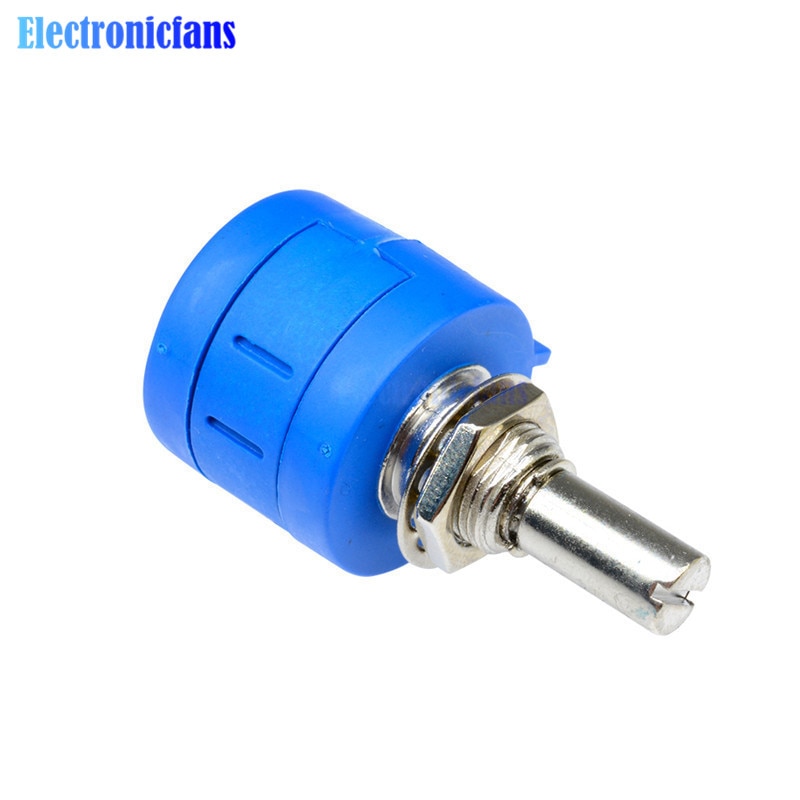

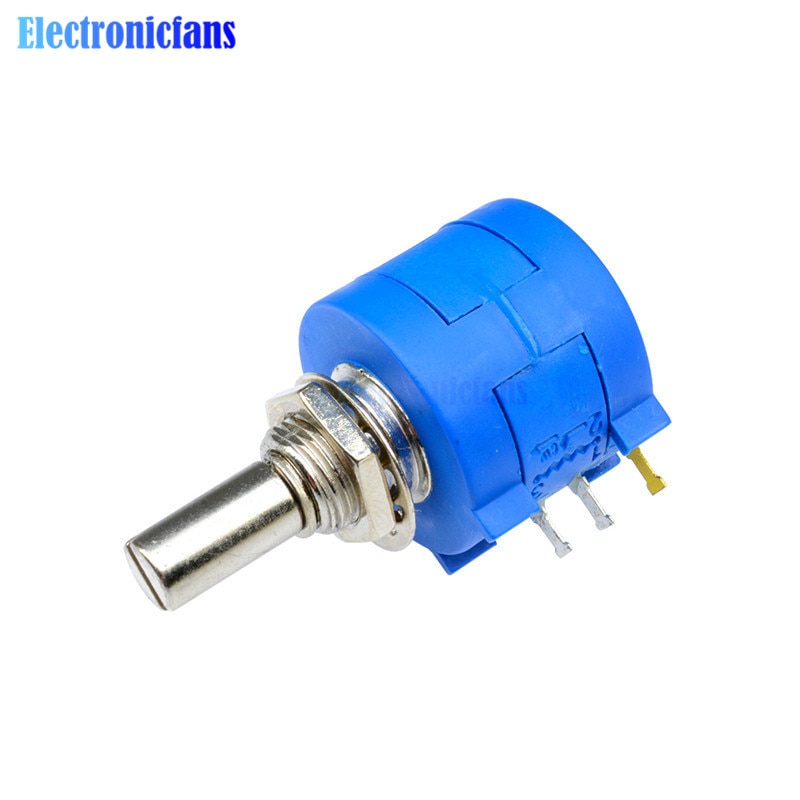

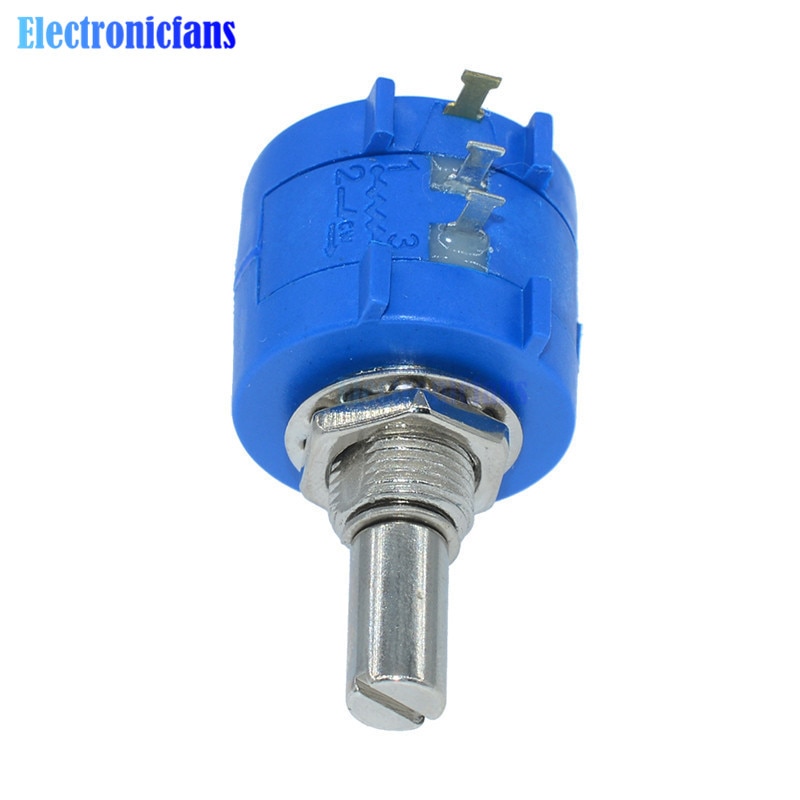

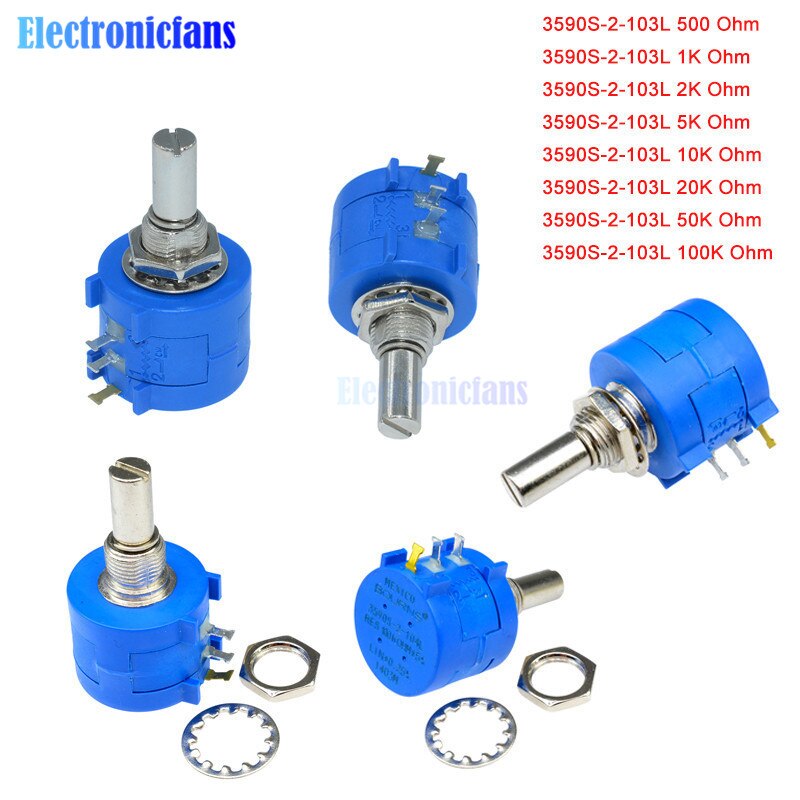

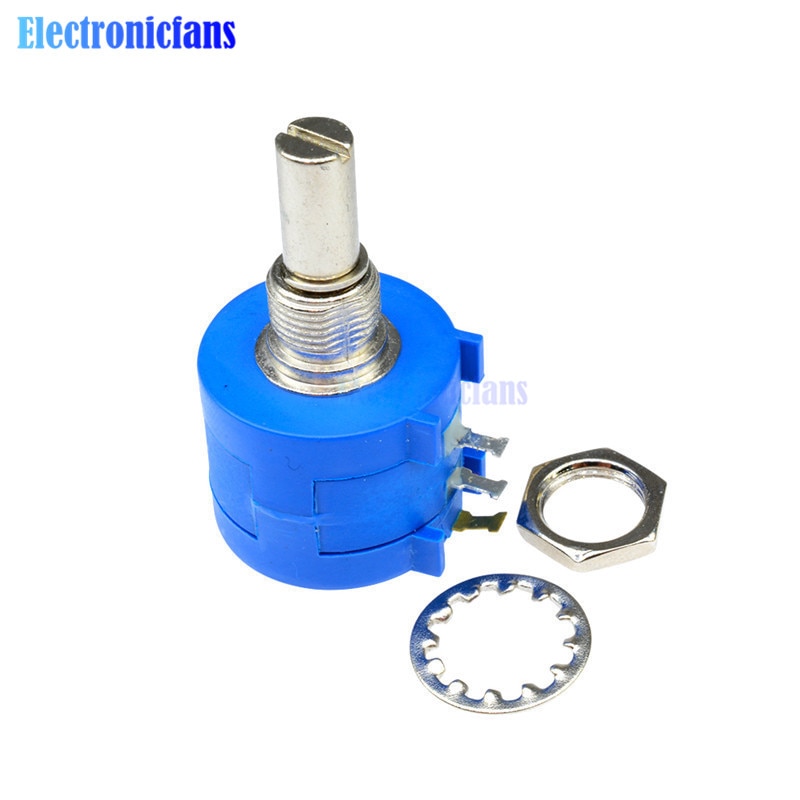

3590S Series 500R -100KΩ ±5% 2W Potentiometer
Specification: Material: Plastic Color: Blue Model: 3590S-2-501L, 3590S-2-102L, 3590S-2-202L, 3590S-2-502L, 3590S-2-103L, 3590S-2-203L, 3590S-2-503L, 3590S-2-104L Type: Rotary Shaft Technology: Wirewound Turns: 10 Spinning life: 1,000,000 revolutions Power: 2W Resistance Value: 500R Ohm, 1K Ohm, 2K Ohm, 5K Ohm, 10K Ohm, 20K Ohm, 50K Ohm, 100K Ohm (Option) Resistance Tolerance: ±5% Linearity: ±0.25% Shaft Diameter: 6mm/0.24″ Threaded Diameter: 9mm/0.35″ Total Length: 40mm/1.6″ Load life: 1000 hours Mechanical angle: 3600° ±10° Operating temperature range: -55℃ – 125℃ Size(No Include Shaft): 22x19mm/0.9″x0.7″(DxH)
