Description

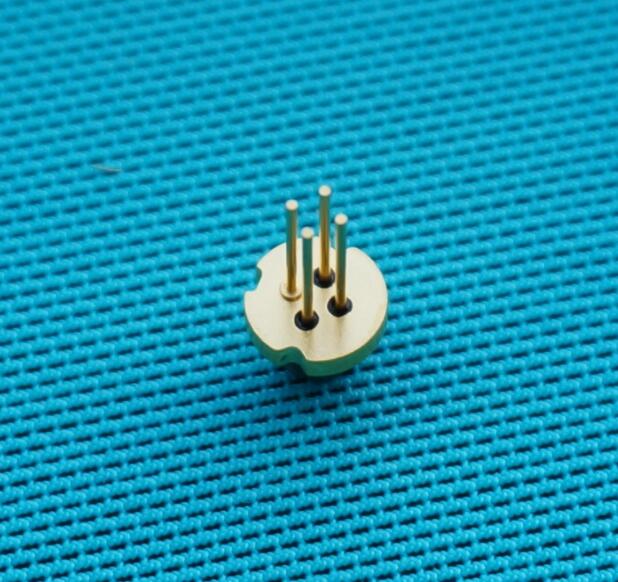

5PCS 5mW 780/650nm Dual Wavelength Laser Diode SLD6164RL-G

This laser tube is dual wavelength, that is to say, there are two wavelengths at the same time, mainly used on DVD drive. If we only need to use one of them, for example, I only need 650nm red light, then cut the 780nm foot. Drop or not.  Dual Wavelength Laser Diode has 2 wavelengths in one !

Basic parameters:
Product name; laser diode
Product model: SLD6164RL-G-51

Output Power:
DVD 6mW (650nm visible red light)
CD 7mW (780nm infrared is close to non-light)
Working current: DVD 52mA CD 68mA
Working voltage: 2.2-2.6V
Package form: T018 (5.6MM)
Working life: more than 10,000 hours
Working temperature: -40 to +70 degrees



This laser diode is not a single red laser beam , either a single infrared 780nm laser beam.  Here is red laser diodes.

This laser tube is dual wavelength, that is to say, there are two wavelengths at the same time, mainly used on DVD drive.
