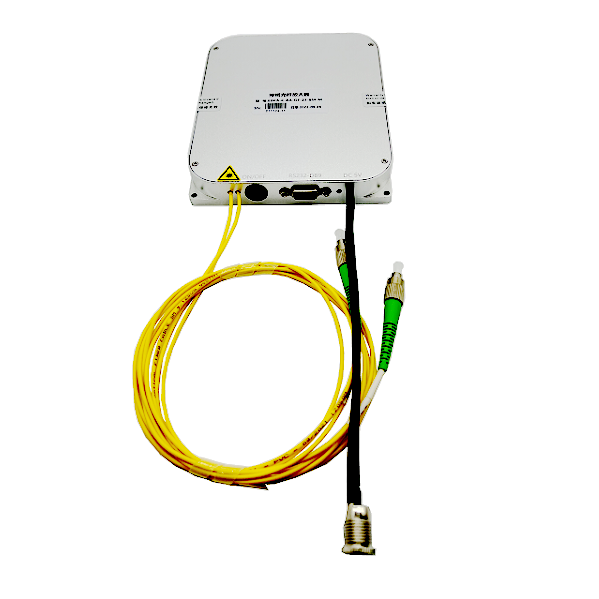

Erbium Doped Fiber Amplifier Single Channel EDFA 1530-1566nm C-band


The Erbium Doped Fiber Amplifier EDFA can be used to improve the optical signal power in the range of – 6dbm to + 3dbm, and the saturation power can be up to 26dbm, which can be used after the optical transmitter to improve the transmission power.


Wide wavelength range;

High output power;

Low noise.


Optical fiber communication;

Optical fiber sensor;

Other Fiber lasers.


Parameters Unit Values Notes
Operating wavelength nm 1530~1565 C-band
Input power dBm -6~+3
Saturated output power dBm 15/17/20/23/25/26 @-3dBm Input
Noise figure dB 5.0 @-3dBm Input
Gain flatness dB 3
Polarization dependent gain dB <0.3
Polarization mode dispersion ps 0.5
Input/Output isolation dB >35
Fiber type SMF-28e
Connector FC/APC
Operating mode ACC/APC(1)
Dimensions mm 260(W)×280(D)×120(H) Benchtop
125(W)×150(D)×20(H) Module
Power supply V AC 110~240V, <30W@25℃ Benchtop
5VDC,  <15W Module
Control mode RS232 Serial communication Module
Communication Interface DB9 Female Module
Operating temperature -5~ +55
Operating humidity range % 0~70


(1) .ACC mode-automatic current control: EDFA pumping working current is set by the user and automatically locked by EDFA to achieve constant pumping current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is applicable to all EDFA models.

(2) APC mode-automatic power control: the user sets the EDFA signal light output power, PD automatically monitors and feeds back the output power, EDFA control and adaptive adjustment of the pump to stabilize the output signal. When the input optical power fluctuates, the APC mode will reduce the output power fluctuation as much as possible, which is suitable for power type and line type EDFA.

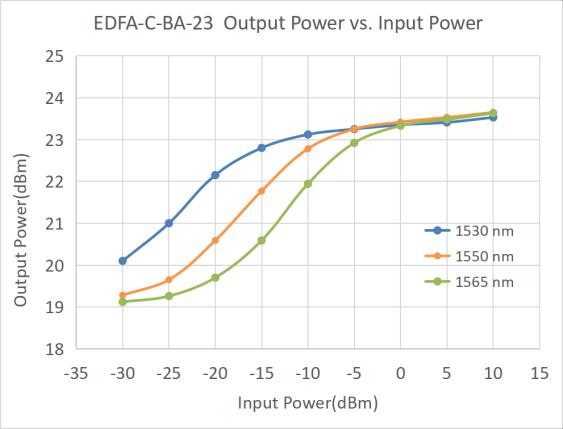

Typical curve Output power VS Input Power

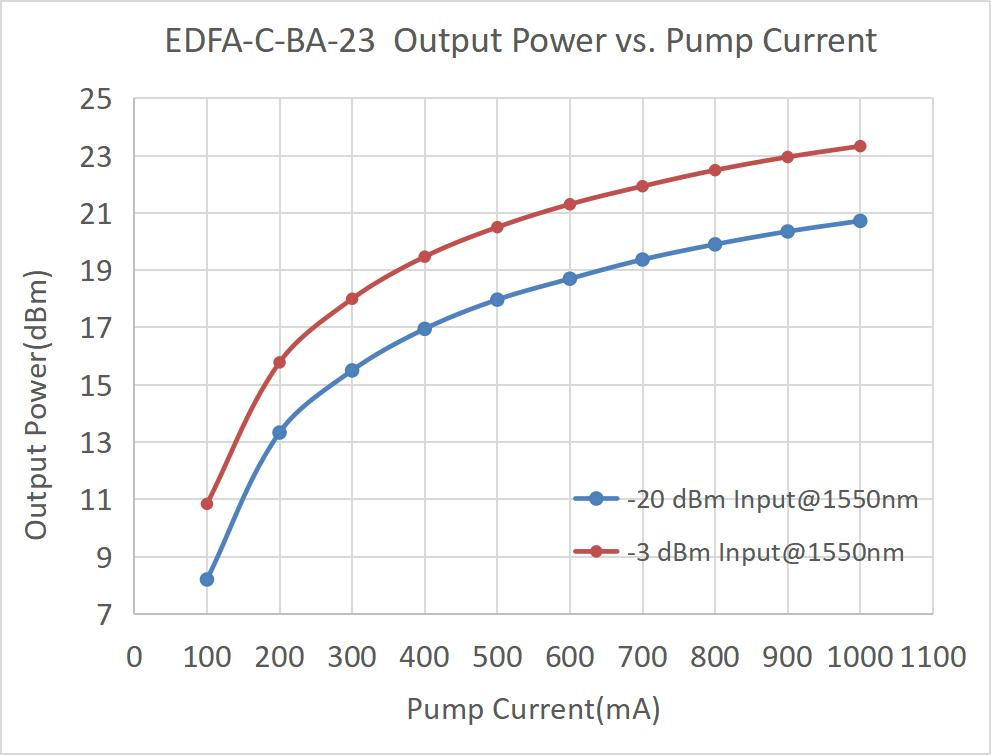

Typical curve Output power VS pump Current
