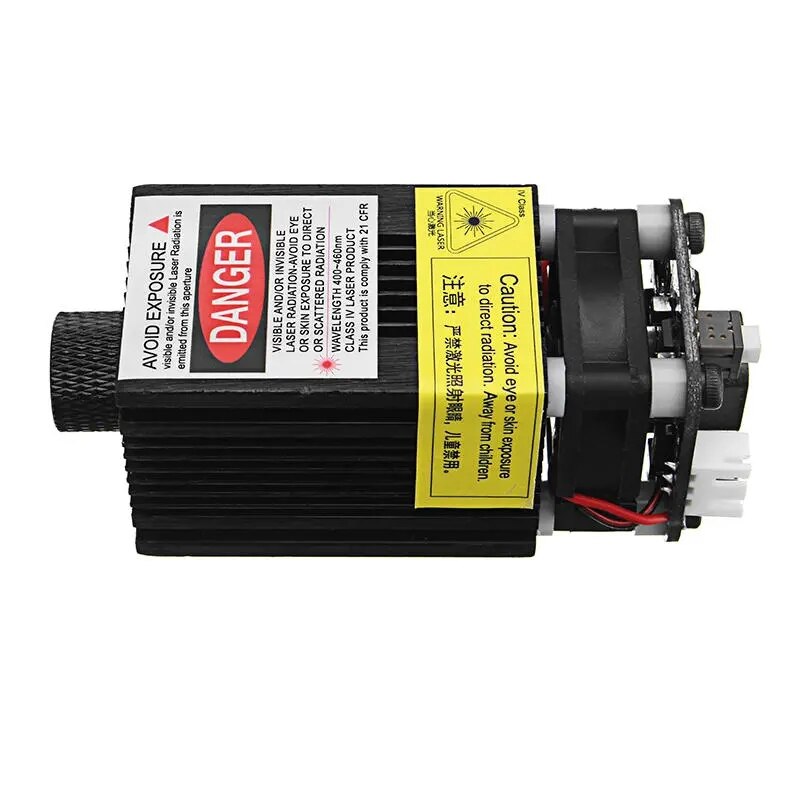

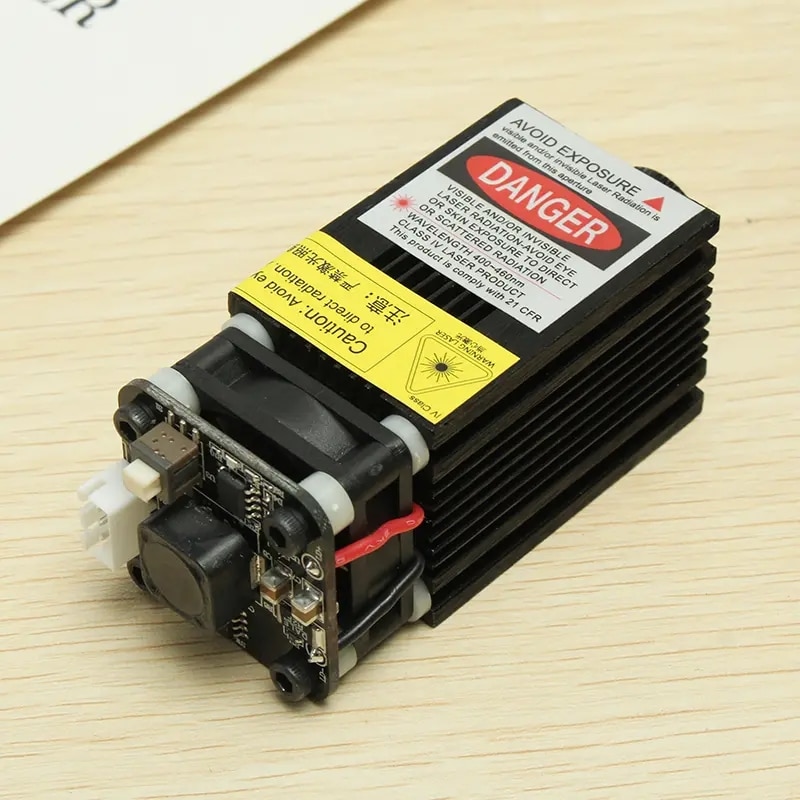

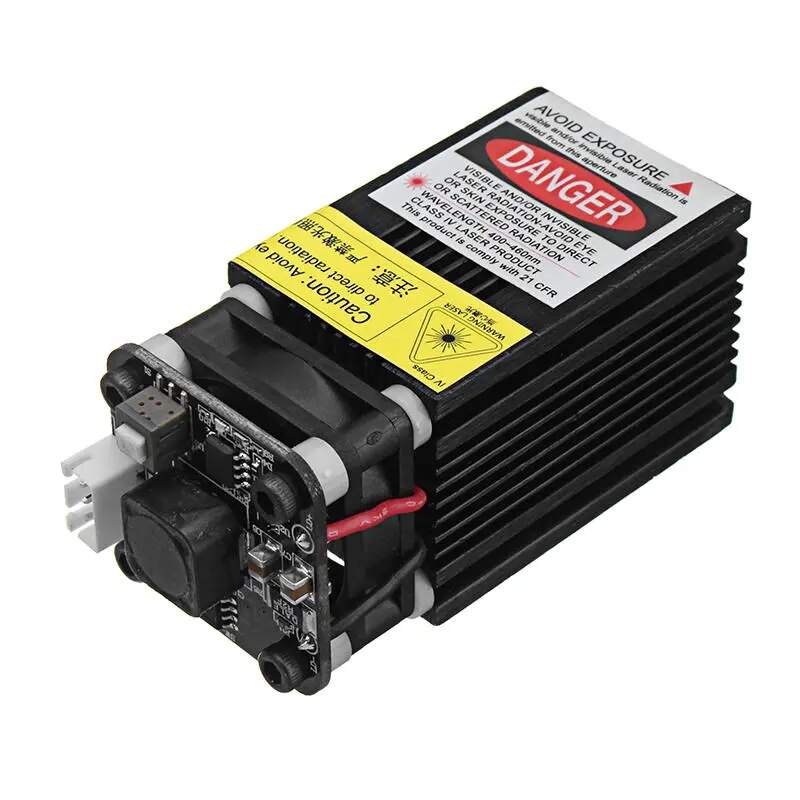

FB03-500 500mW 405nm Blue Violet Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver for EleksMaker


SKU: 1005003345950204 Category:


500mW 405nm Blue Violet Laser Module 2.54-3P TTL/PWM Modulation DIY Engraver for EleksMaker

  • Certification: CE
  • Condition: New
  • Model: FB03-500
  • Heatsink Material: Aircraft Aluminum
  • Laser Power: 500mW
  • Wavelength: 405nm
  • Beam Shape: Dot (Focusable)
  • Input Voltage: DC 12V
  • Input Interface: XH2.54-3P
  • Section Size: 33mm x 33mm
  • Life Time: >10,000 hours
FB03 new series of laser modules, suitable for laser engraver, and also other engraver that ensures XH2.54-3P interface and DC 12V input voltage.Specification:



 Heatsink Material

 Aircraft Aluminum

 Laser Power




 Beam Shape

 Dot (Focusable)

 Input Voltage

 DC 12V

 Input Interface


 Section Size

 33mm x 33mm

 Life Time

 >10,000 hours


– FB03 new series of laser modules, exquisite workmanship and nice appearance.
– 445nm 500mW focusable blue violet laser module, with TTL/PWM functions. (TTL and PWM are compatibe while TTL can control the switch and PWM can control the power).
– Aircraft aluminum heatsink with cooling fan ensure long working time continuously.

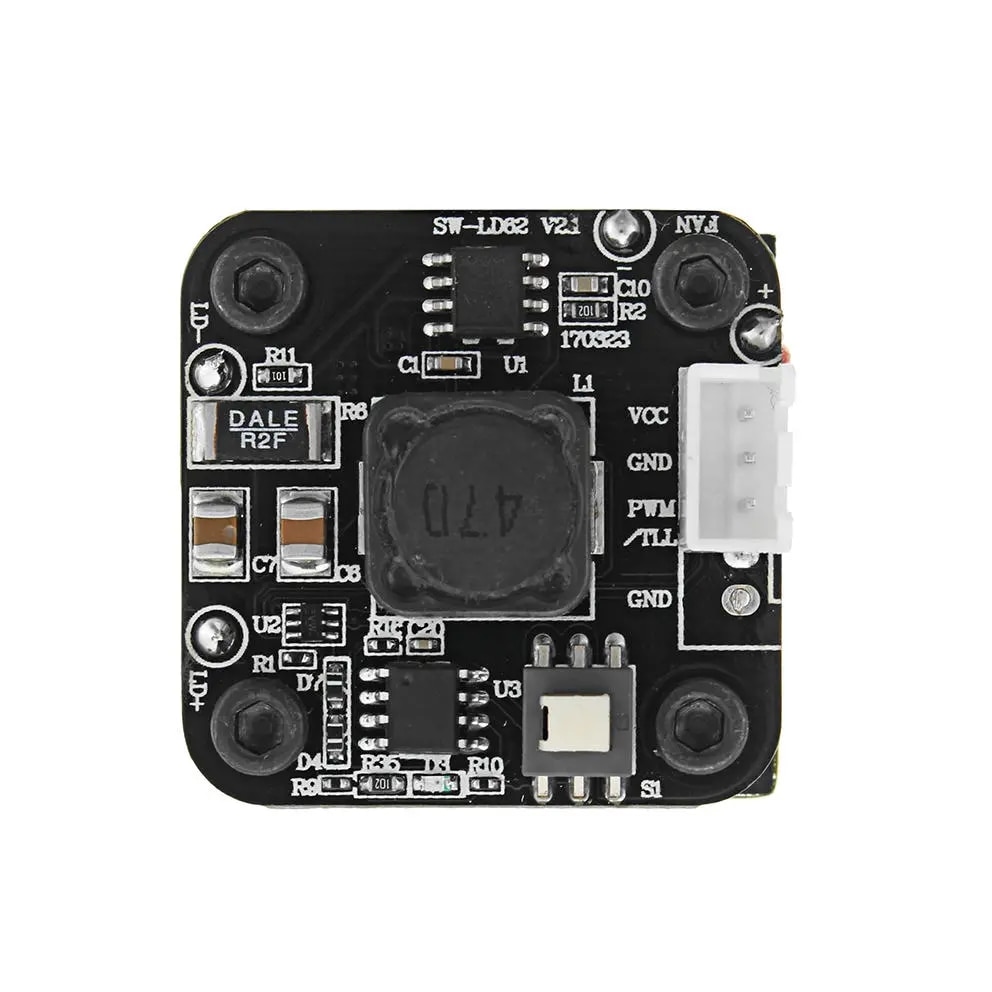

– Equipped with constant-current driver board ensure stable output optical power, low heat no external driver board needed, easy to use.
– 3 pins plug, TTL/PWM drive mode, suitable for laser engraving machine equipment usage.
– Can Engrave: Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, etc.
  Can Not Engrave: Metal, Stone, Ceramics, Glass, Reflective or Transparent Material.
1. Please wear laser goggles during usage, avoid to touch the laser directly to the eyes and skin! Keep away from children and pets.
2. Usually used for laser machine, 3 pins connector cable is needed to connect to the  Board. This item will come with the cable, and the cable from your A3 machine is also suitable.
3. Note that the laser module works less than half an hour in one time, and please wait until it has cooled down before continuing the work.
4. The warranty period of laser module is one month. If you have any quality problem(Except individual situation like using the laser module more than 30 minute one time and casue the damage ), please feel free to ask our customer service for a help. Thanks for your understanding.

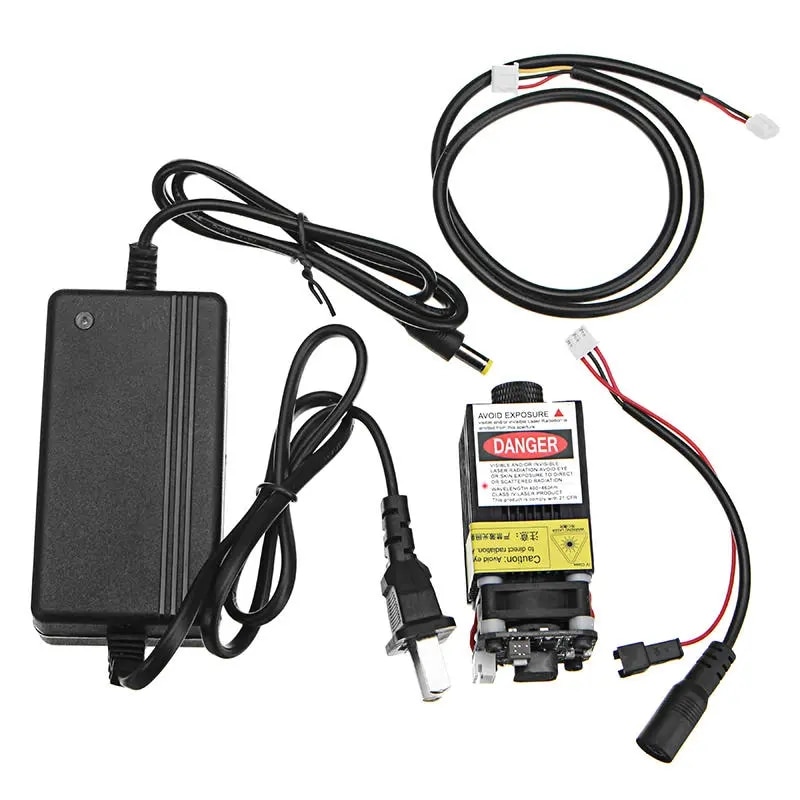

Package Included:
1 x FB03-500 500mW Blue Violet Laser Module

1 x Power Adapter

2 x Connector Cables

(Carboard Box Packing)
