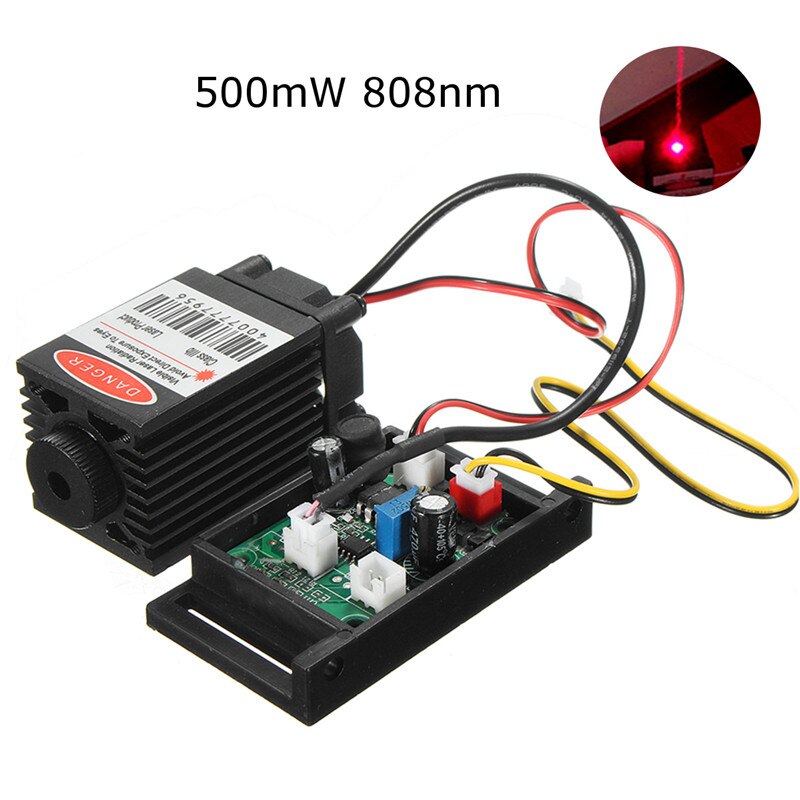

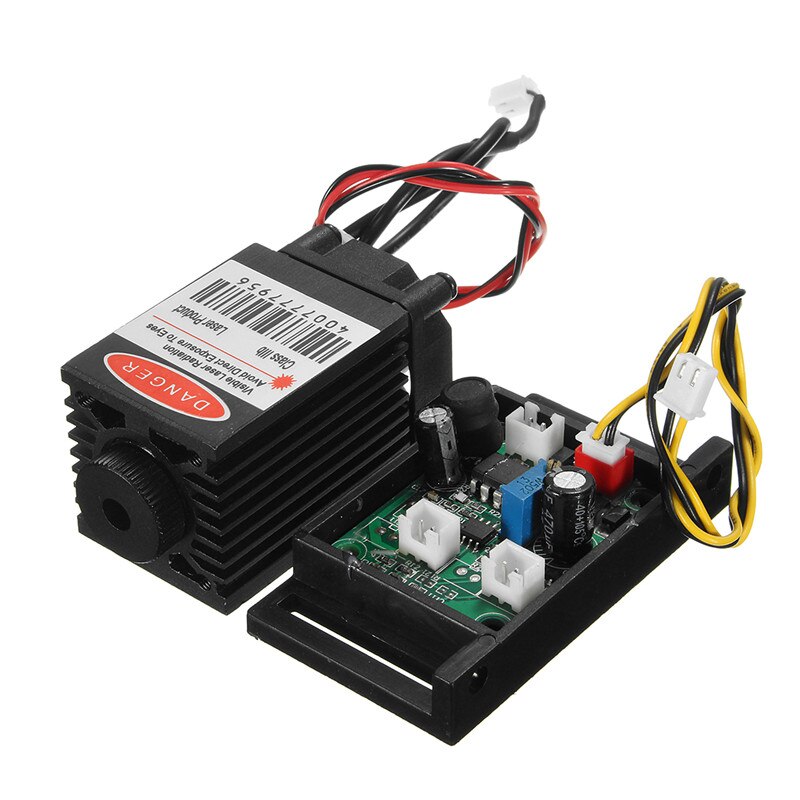

Focusable 500mw 808nm Infrared IR Laser Diode Dot Module 12V TTL Fan Cooling Laser Module For CNC Engraving Machine


SKU: 32956205911 Category:




This 808nm laser module with driver is an industrial electronic component
and used for industrial testament, Lab etc. The laser module is and precise
and sensitive optical instrument. Before carrying on some laser DIY activities,
please read about the technical information first and protect your eyes before laser ray.
Focusable 500mw 808nm Infrared IR Laser Diode Dot Module 12V+ TTL+ Fan Cooling
For the instrument set, construction, military, factory, health care (beauty instrument),
Kam pseudo security, stage lighting, tools, U disk, mobile phone, projection teaching flip pen,
flashlight, temperature measurement (ranging) Locator, sweep instrument, marking instrument,
level, toys, indoor and outdoor decoration and other products.

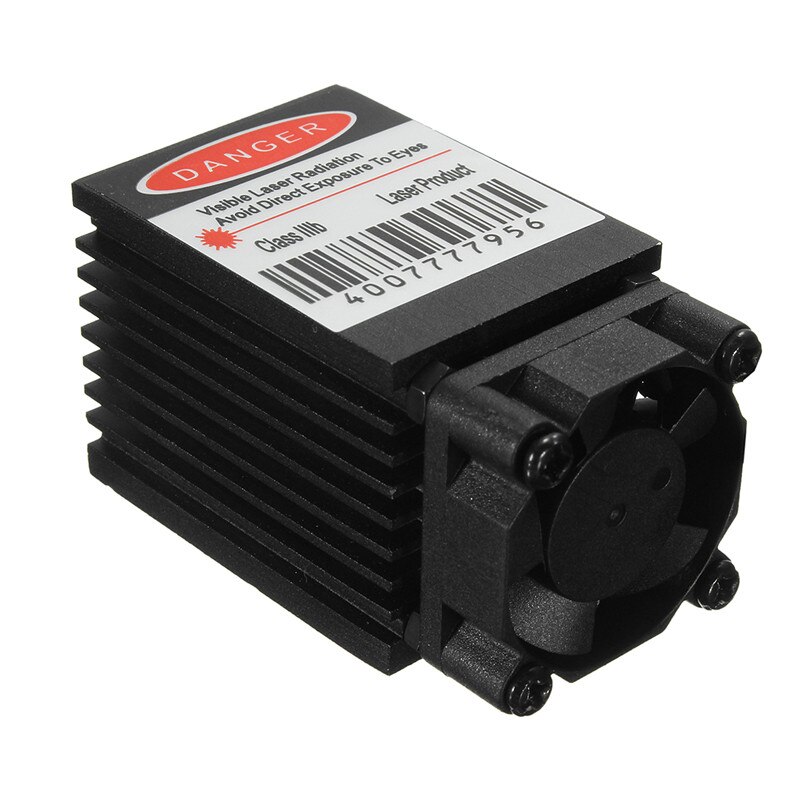

Laser head size: 58mmx34mmx34mm

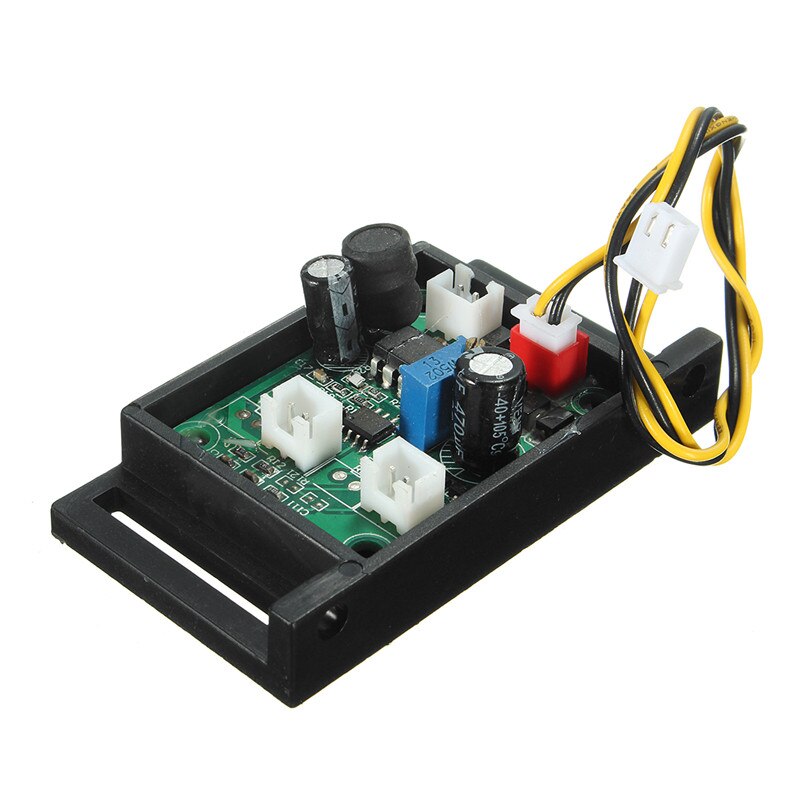

Circuit Board size: 70mm*40mm
Wavelength: 808nm
Output power: 500mW
Laser shape:Dot(rectangular to oval)
Modulation frequency: Adujstable  TTL modulation
Working:Long time working
Finish Color: Black
Case Material: Aluminum
The circuits control: constant current
Reverse polarity protection: with automatically identify the positive and negative
Operating voltage: DC = 12V
Input Current:1A
Wire Length:25cm
Warm-up time: None
Operating Temperature: -10 ℃ ~ +40 ℃
Storage temperature: -40 ℃ ~ +85 ℃
Service Life:8000H
Package Included:
1x Red Laser Module
– Please allow 1-2mm differs due to manual measurement.
– Due to the different display and different light, the picture may not reflect the actual color of the item.
– Thank for your understanding.
