Free shippng 3 pieces/Lot 5.6mm 500mW 808nm Infrared IR Laser Diode-Specially for Producing Green Lasers


SKU: 32347234163 Category:

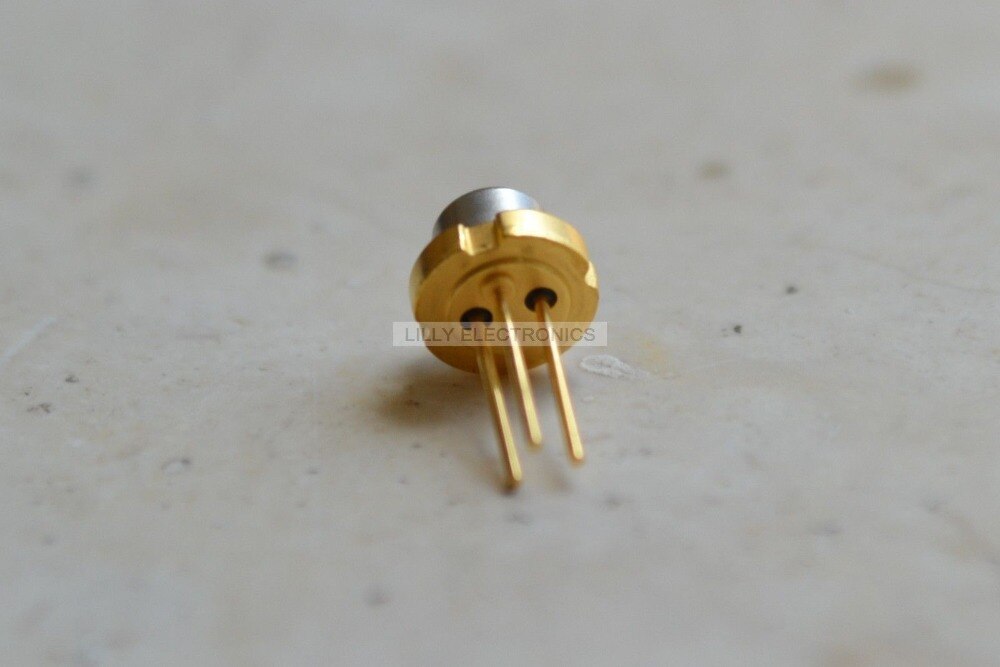

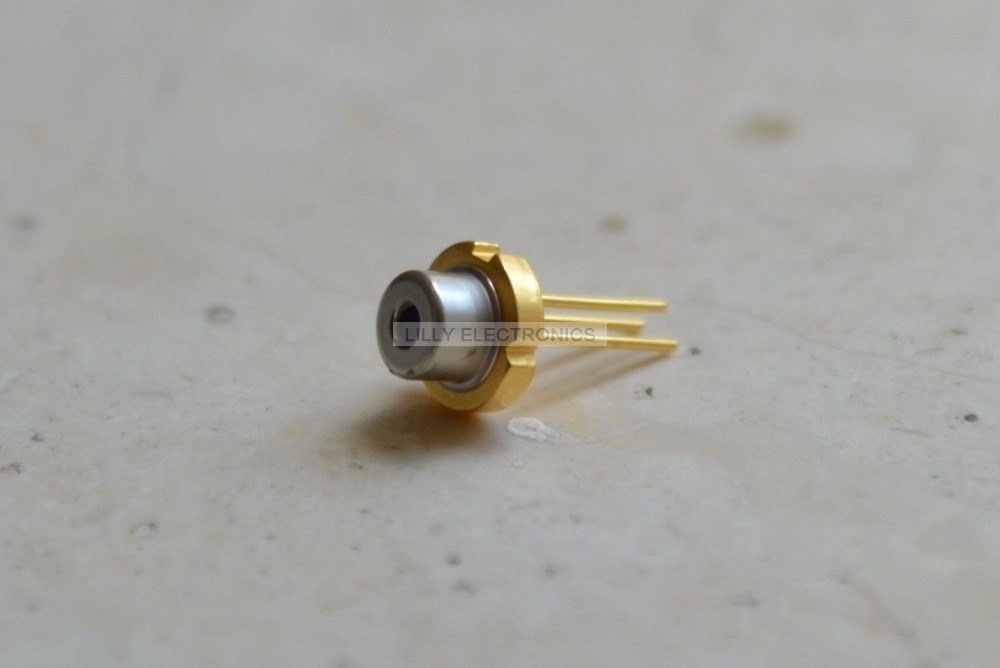

5.6mm 500mW 808nm Infrared IR Laser Diode


Features:                                                                           .

Output Power 500mw
Wavelength 808nm
Working Voltage 2.2VDC
Working Current 500mA
Working Temperature -10degrees~+40degrees

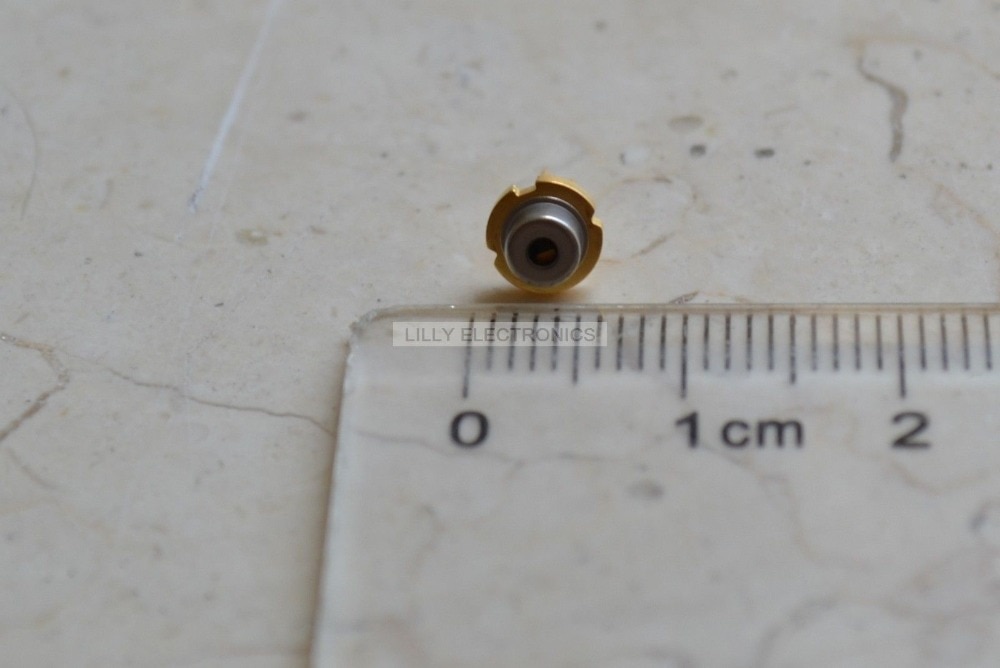

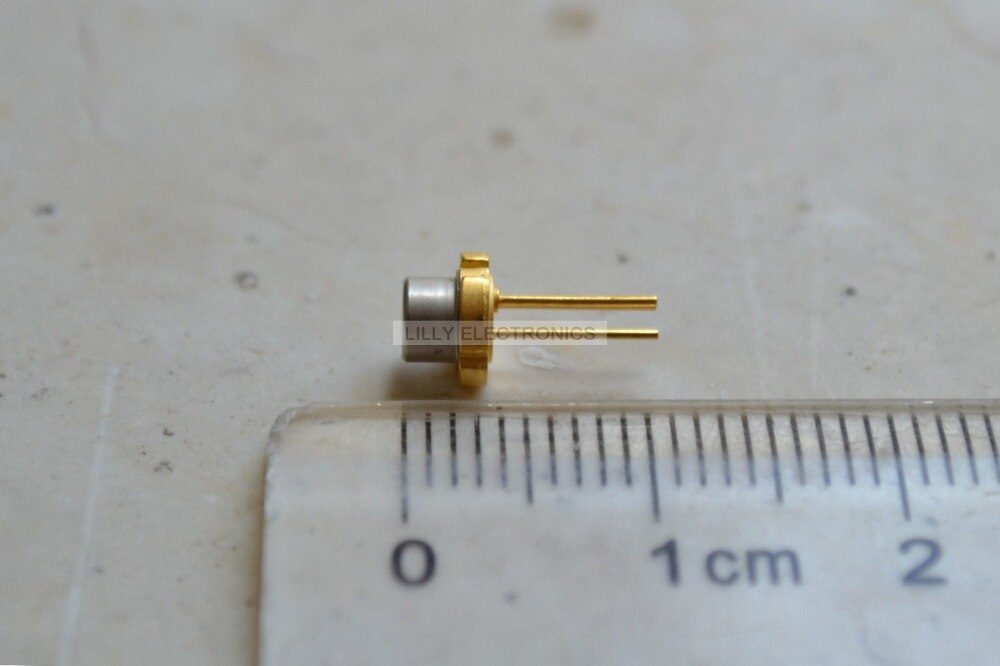

Dimensions TO18 (5.6mm)



This Infrared laser diode is an industrial electronic component and used for as Industrial testament,Lad,DIY.

This 808nm laser diode is especially used for producing green lasers after passing through crystals.
The laser diode is and precise and sensitive optical instrument.Before carrying on some laser DIY activities,please read about the technical information first and protect your eyes before laser ray,Be sure the operator has experience in optics DIY or testing.and Don't operate when the power is connected.


Note:If you need user manual please contact me .thank you.


3X 5.6mm 500mW 808nm Infrared IR Laser Diode-Especially for producing Green Laser
