Description

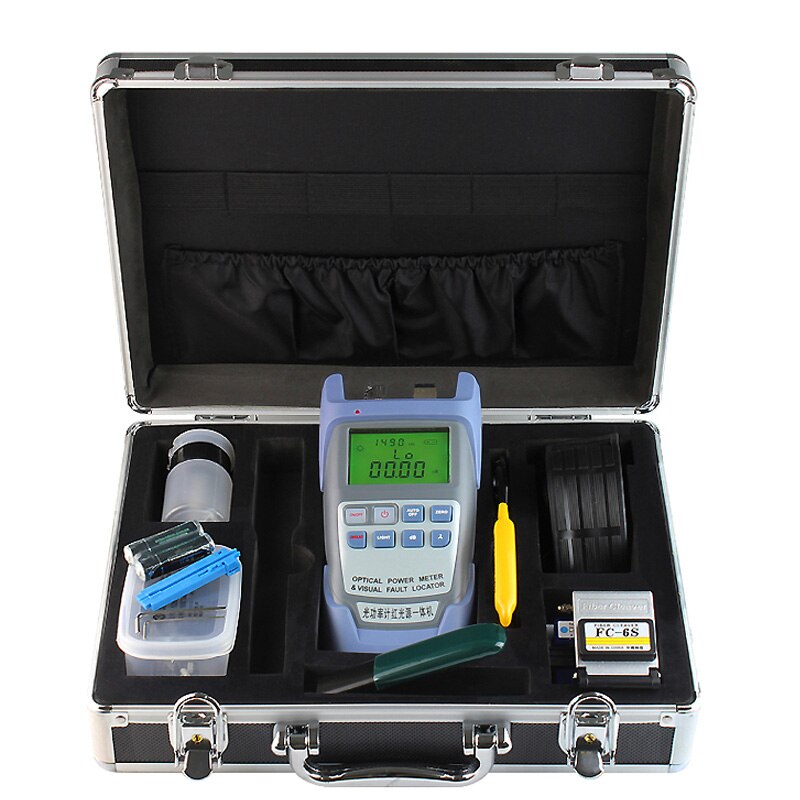

FTTH FIber Optic toolbox FIber Optic Meter+5MW VFL Visual Fault Locator and FC-6S Fiber Cleaver and Fiber Stripping Fiber Tools
I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems, please do not panic, do feel free to submit disputes, please contact our customer service, we will give you the most satisfactory answer! Happy shopping, thank you very much
Product Attributes
Major Features:
LD light source
CW & MOD work mode
FC, SC, ST universal connector
Stable output frequency
Long distance detect
Strong & durable casing
Pen type design, portable, and easy to use
Place of Origin:China (Mainland)

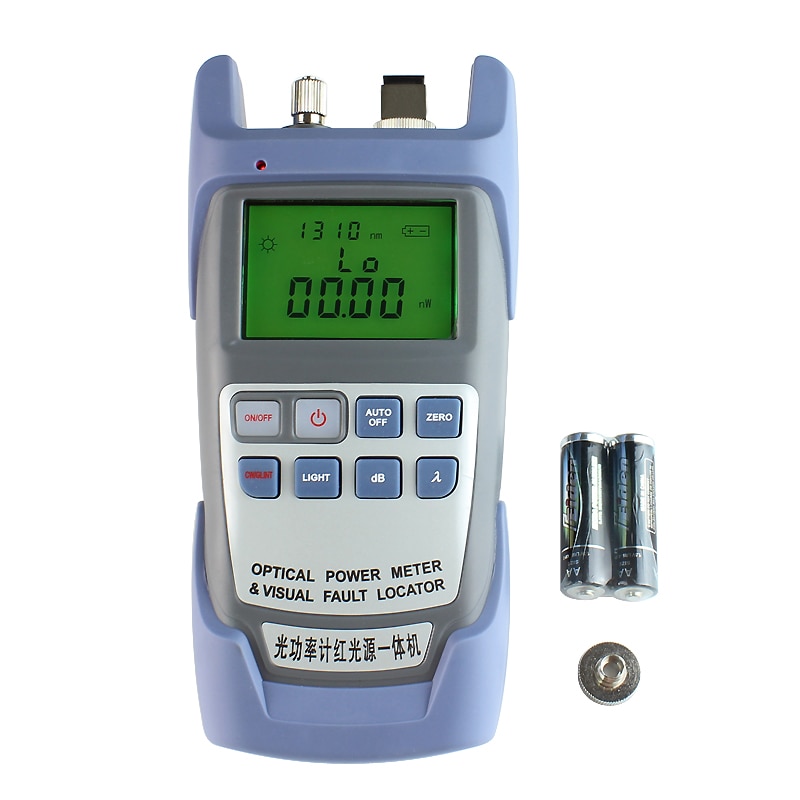

Available wavelength:800-1700nm
Sensing Fiber: InGaAs
VD708B Measurement Range: -70~+3dBm
Uncertainty: ±5%
Standard Wavelength: 850/1300/1310/1490/1550/1625nm
Power supply: 1.5v Battery2
Resolution: 0.01dB
Optical connector: interchangeable FC,SC/ST with built-in universal 2.5mm adaptor
Visual Fault Locator Output power: 5 mw
Central wavelength: 650nm
Duration: more than 48 hours
Operating temperature: -10 to 60
Storage temperature: -25 to 70
Weight: 400g
model: FC-6S
Cutting angle: 0.5 °
Cutting length: 0.9mm fiber is 10-16mm; 0.25mm fiber is 9-16mm
Fibre package diameter: 125μm
Jacket OD: 0.25 & 0.9mm
Size: 63W × 76D × 63H (mm)
Weight: 430g
Blade life: 36000 core (core 1000 × 12 × 3 blade height blade angle
1.FC-6S Fiber optic Cleaver
3.Kevlar scissors

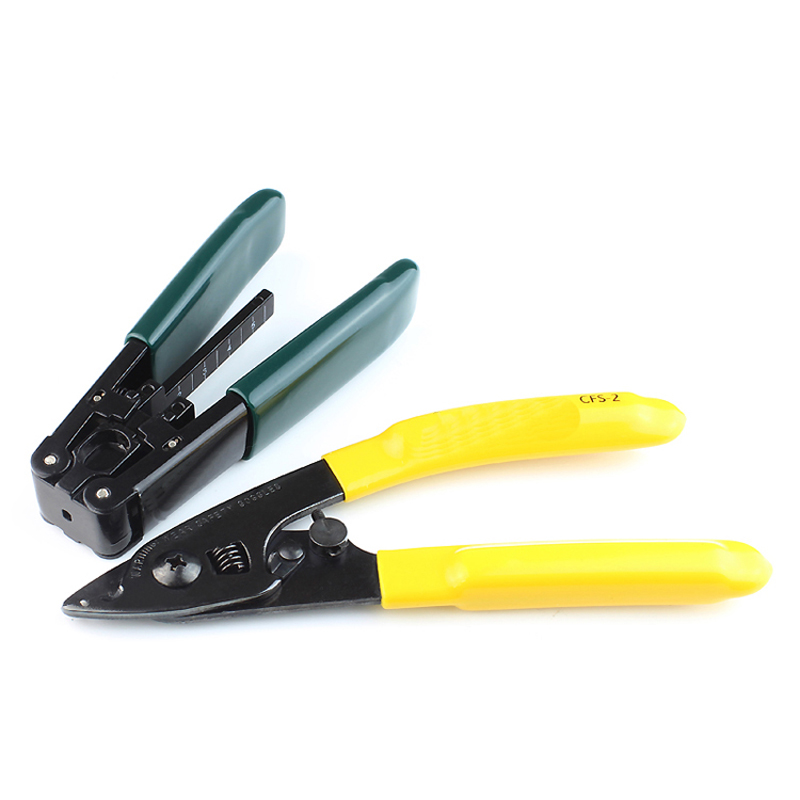

4.Fiber optic wire stripping pliers

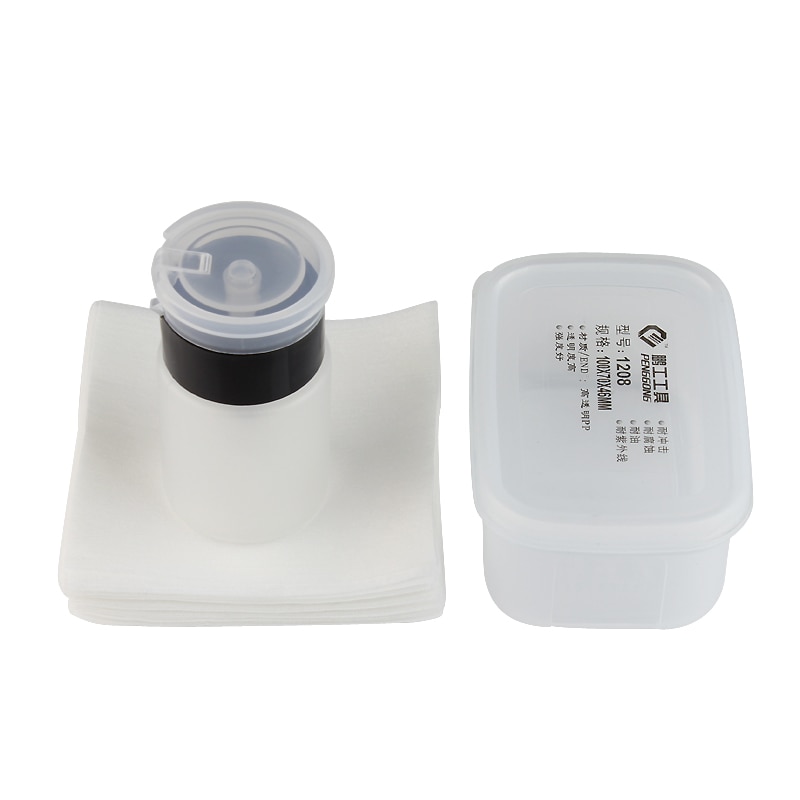

5.alcohol bottle
6.Cleaning paper
7.Storage Box
8.Rails

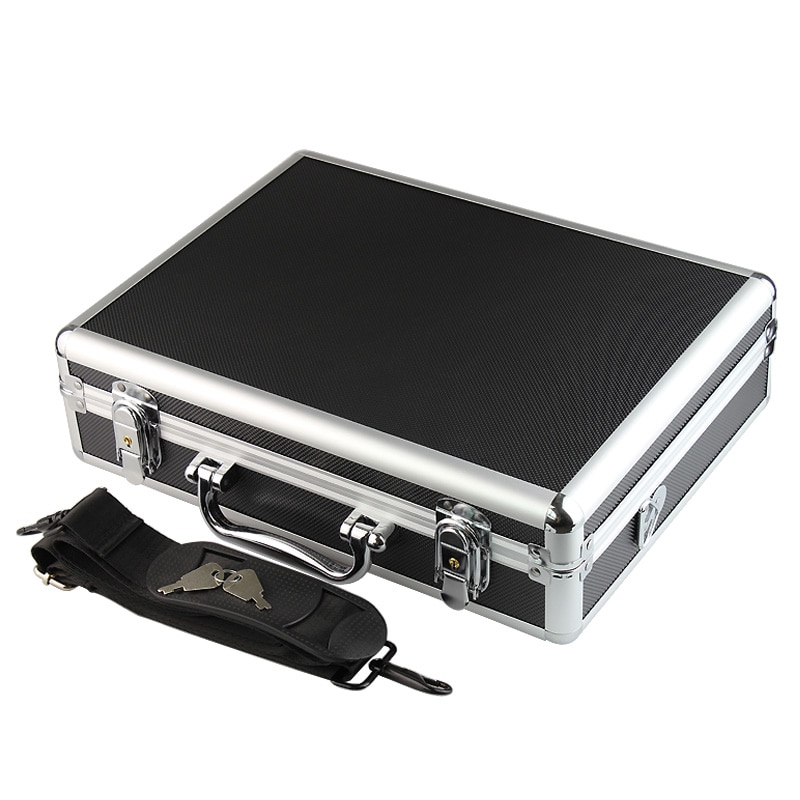

9.Toolbox
