Description

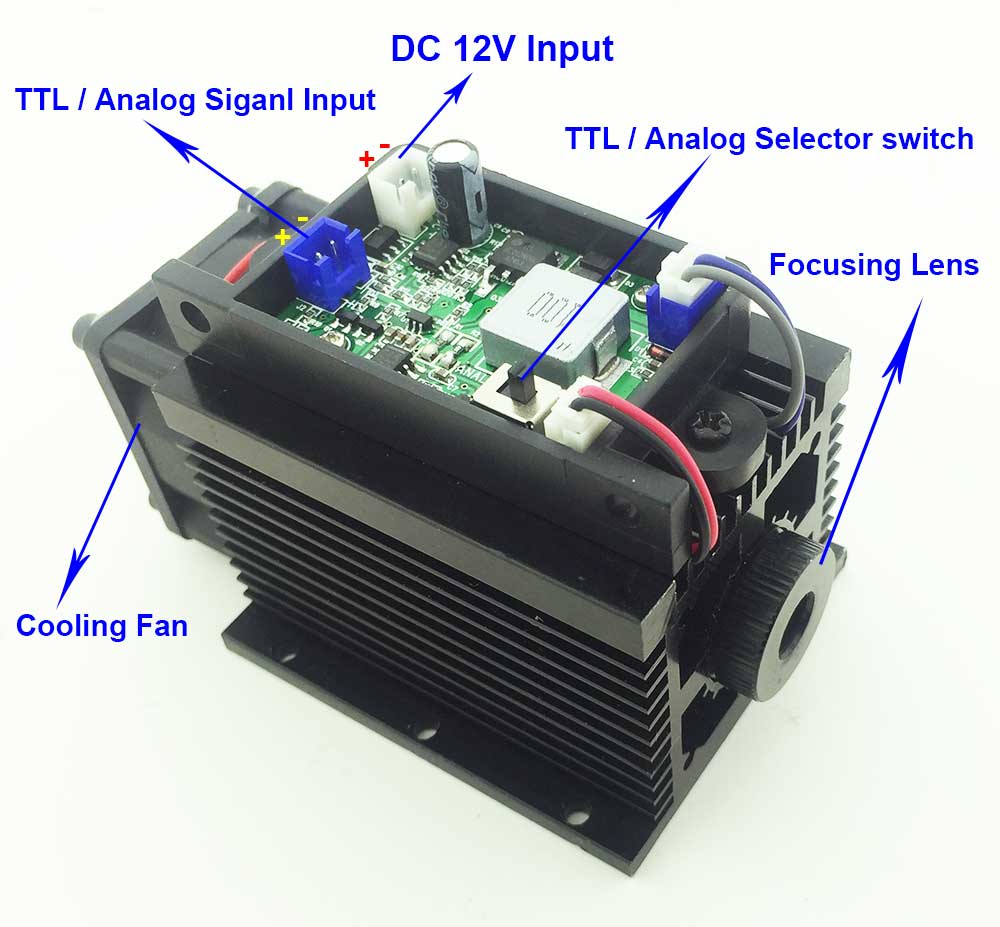

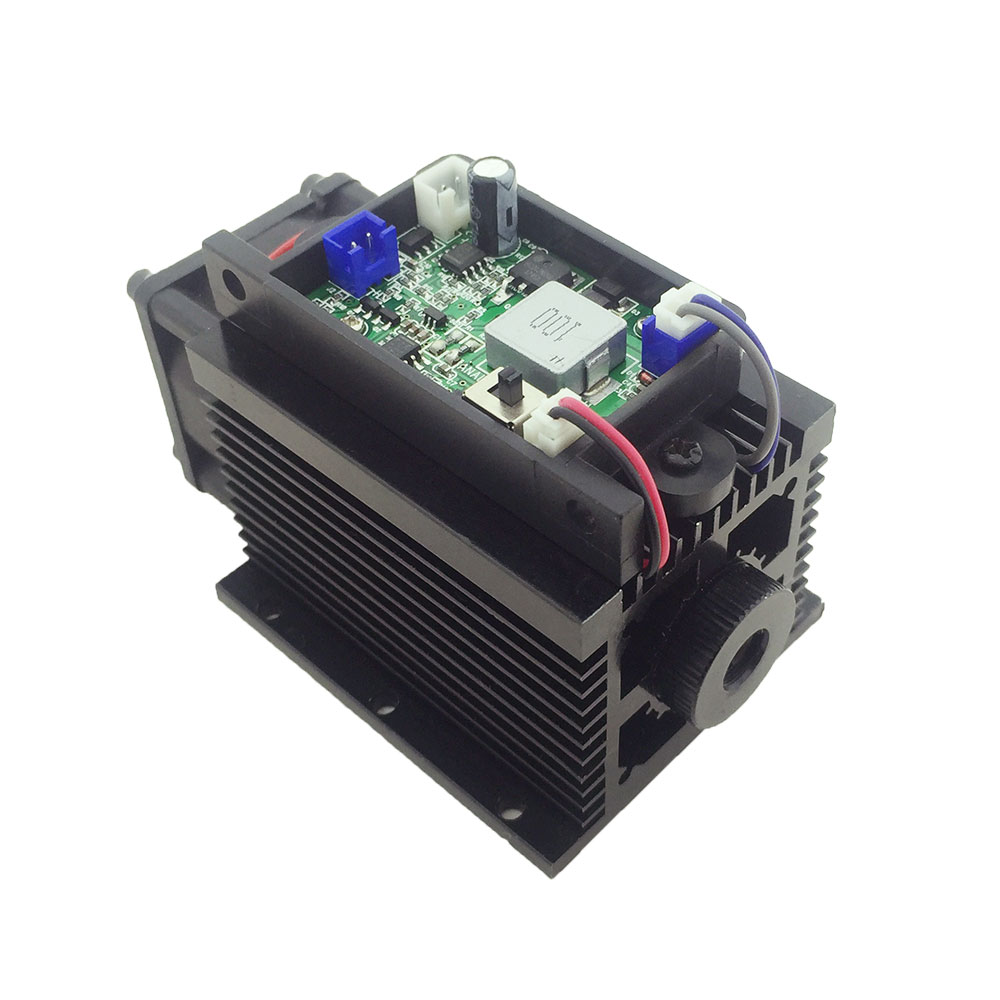

High power 15w 445nm 450nm Blue Laser Engraving Module on Metal CNC Cutter Machine
Description OF PRODUCTS:
Focal length: Can adjust
Wavelength: 445nm-450nm
Output Power: 15W pulsed
Average 8W (Max)
Modulation frequency: TTL can be modulated
0v Off
5v ON
pwm frequency <20Khz
Operating Voltage: DC = 12V
Working Current: <4A
Focal length: 15mm~50mm;(can adjustable)
Operating temperature: 15 degrees to 45 degrees
Spot diameter: 15mm~50mm at ≤Φ0.12 (mm)
Operation mode: pulsed laser 100 ns Duty 50%,
With TTL modulation/ Analog modulation
Material: hard aluminum + brass
Finish: Black anodized + sandblasting
Heat dissipation: Fan
Can be carved materials: stainless steel, iron, aluminum, ceramics, stone, wood, bamboo, leather, plastics, etc

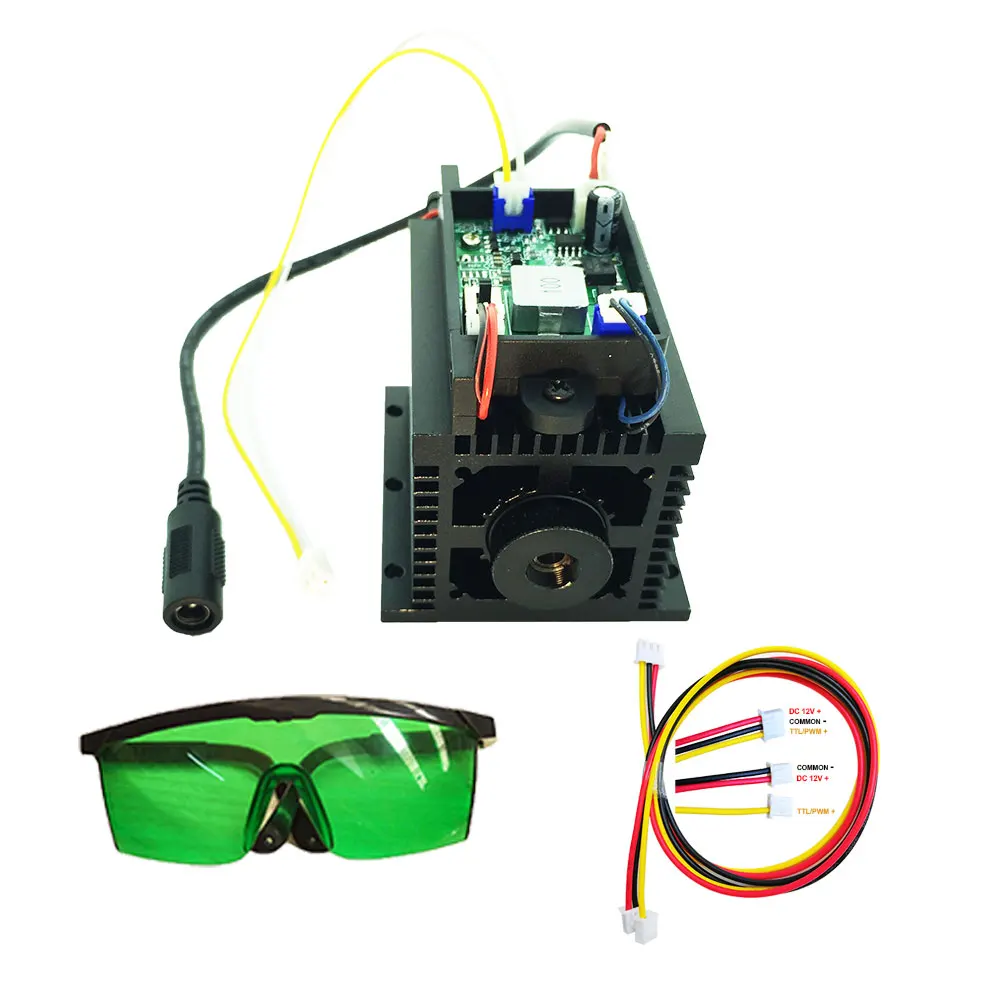

Package: 1 X 450nm 15W Laser Module with TTL / PWM and Analog Driver board
1 x Free Green Protective Glasse s
Free one 4PIN to 3PIN Cable + one 2 PIN TTL Cable + one DC Voltage input Cable
