High Power 808nm Infrared Laser Diode Module 2000mW WITHOUT DIRVER


SKU: 1005001384292304 Category:


High Power 808nm Infrared Laser Diode Module 2000mW WITHOUT DRIVER

​Description OF PRODUCTS:
High Power Focusable 808nm Infrared Invisible Laser Module
Laser Beam: Focusalbe Beam, Collimated Beam
Wavelength: 808nm
Output Power: 2000mW / 2W
Drive mode: external ACC constant current drive
TTL Modulation (TTL/PWM)
TTL/PWM logic:
Low level (0V):  OFF,
High level (5V) or Unconnected:  ON,
Frequency <20Khz
Operating Voltage: DC 12V
Power supply current: >3A
Lifespan: >10000hours

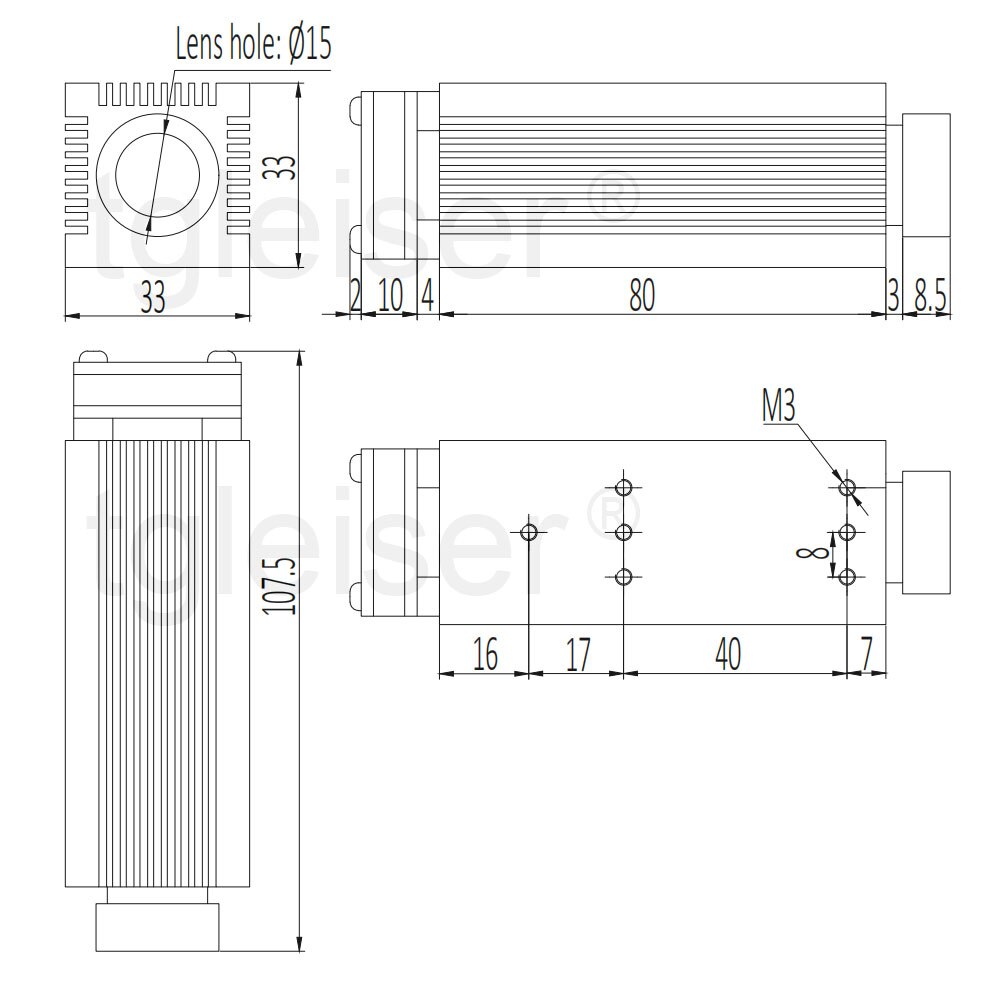

Module Size:  33mmx33mmx110mm
Driver board:  92mmx46mmx45mm

Material: hard aluminum + brass
Finish: Black anodized + sandblasting
Heat dissipation: Fan cooling
1. High power output. Can adjust the focus.
2. Wood carving can light matches, pop balloons, black plastic
3. Coated glass lens, constant current, high quality.
4. Good cooling, with TTL / PWM (0~20KHz).
5. the output light beam can very small. Focus diameter <1mm
6. The output beam is Infrared Invisible . human eye can only see the weak red color or see nothing.
Dry and black wood is the best. Not suitable for long distance burn. about within 300mm can set the focus.
can be carved materials: balsa wood, plywood, wood, bamboo, leather, plastics, etc.
the effect depend on the material color, reflectivity, transparency, density, thermal conductivity, etc.
the darker the color, the better effect, enhancing the effect may require multiple operations.
different materials have different effects. and reflected light reflected from highly reflective materials may cause damage to the module.

1. Voltage Input: DC 12V.
2. Please make sure input voltage polarity is correct and does not exceed 12V, and TTL / PWM input signal is correct, otherwise it will burn laser module.
3. Prevent high voltage electrostatic damage.
4. It is recommended to install on a metal plate with good heat dissipation.
5. The light beam can not shoot to anyone or any flammable, otherwise It can result in injury or fire!!!
6. A high proportion reflected beam reflecting to the module itself may cause damage.
7. Please keep the lens clean, smoke and dust can damage the lens.

Package: 1 x 808nm 2W Infrared Laser Module WITHOUT DRIVER

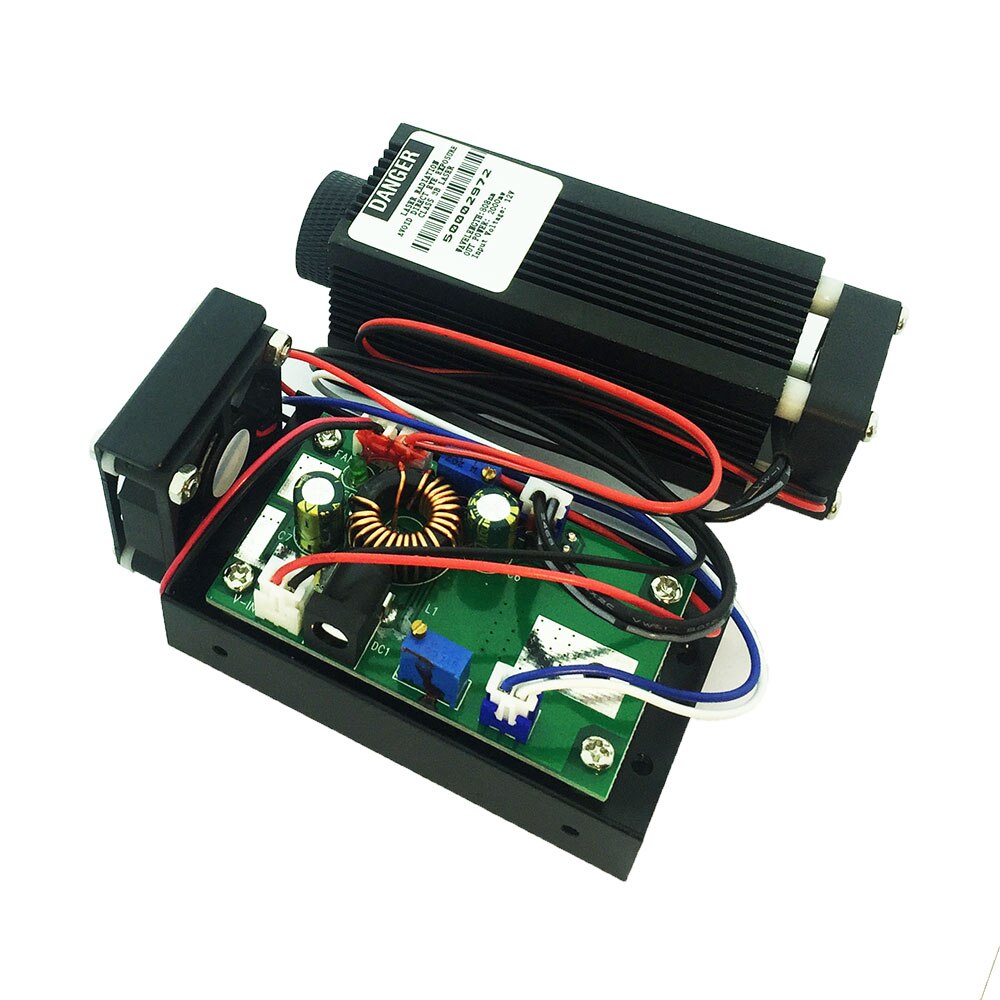

Item Pictures:
