Industrial laboratory APC 3 v DC 532 nm 1mw green laser diode lazer diameter of 12 mm module


SKU: 32492476146 Category:


Welcome to our shop!!!imageDirect manufacturers, professional R & D, design, production, sales of all types of laser module, laser /LED flashlights, laser pen, laser /LED stage lights and other products. We have nearly 10 years of laser related product design experience! To undertake the bulk orders, be customized, the volume of more than favorably.Means of transport and transport price and we can discussimage

APC Green Laser 1MW

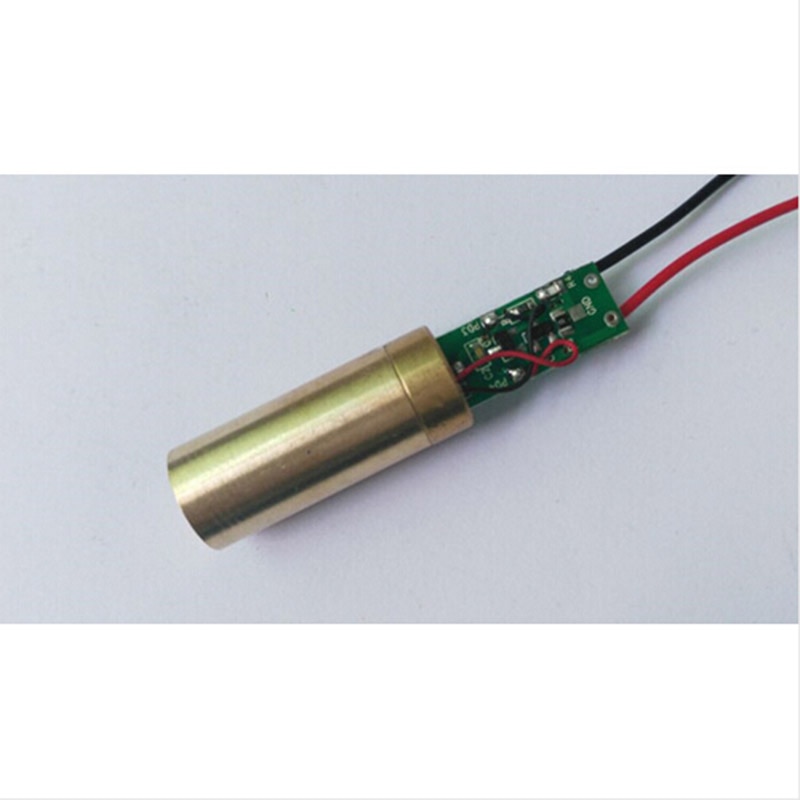

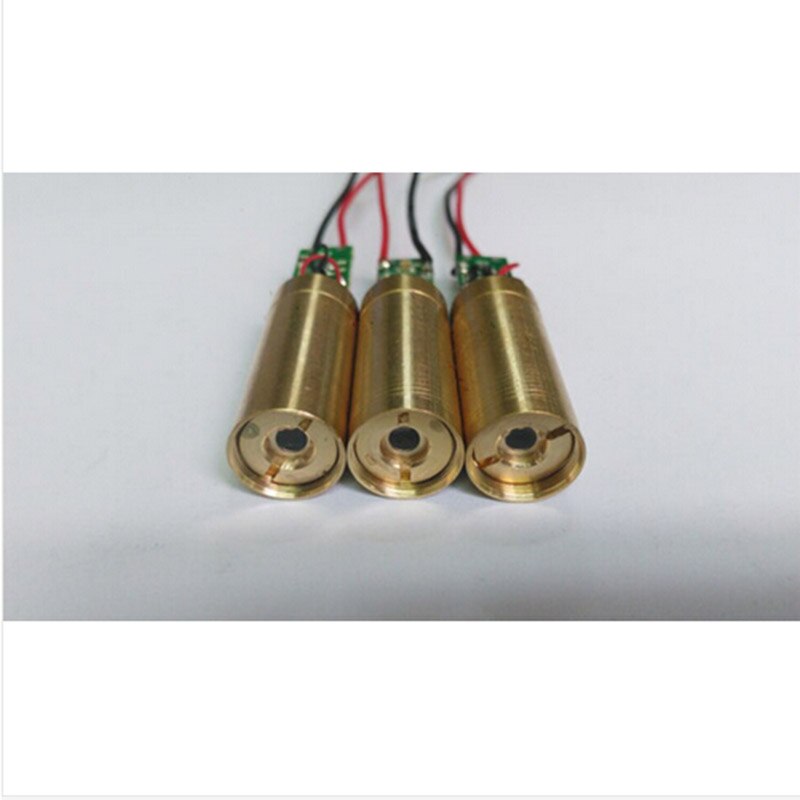

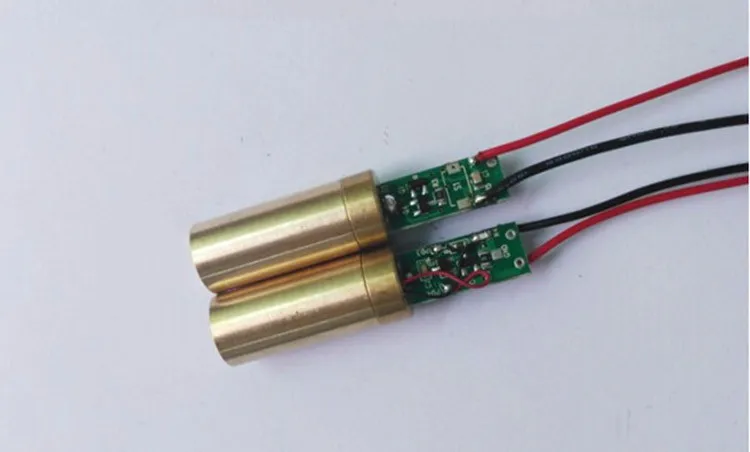

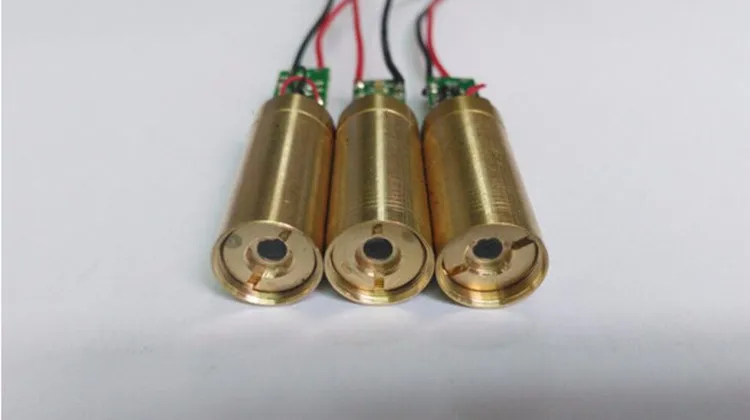

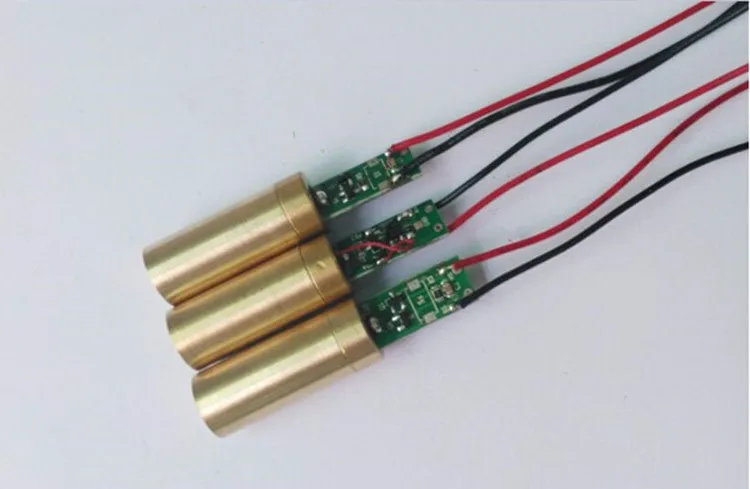

Size: 12 mm diameter length of 49 (30+19) mm; {length: copper +PCB board}
The output wavelength: 532nm
Output power: 1mW

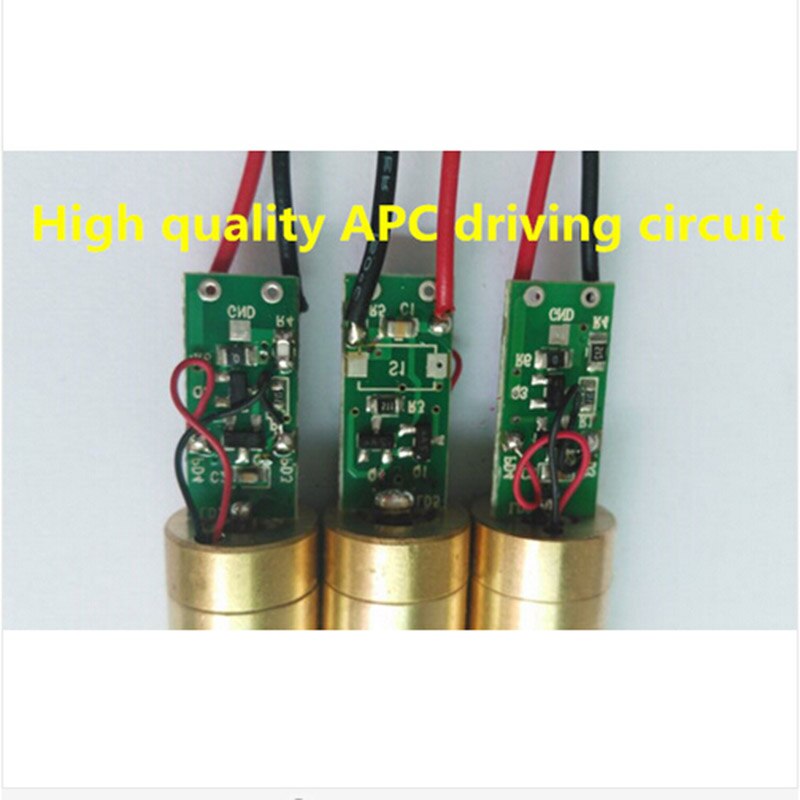

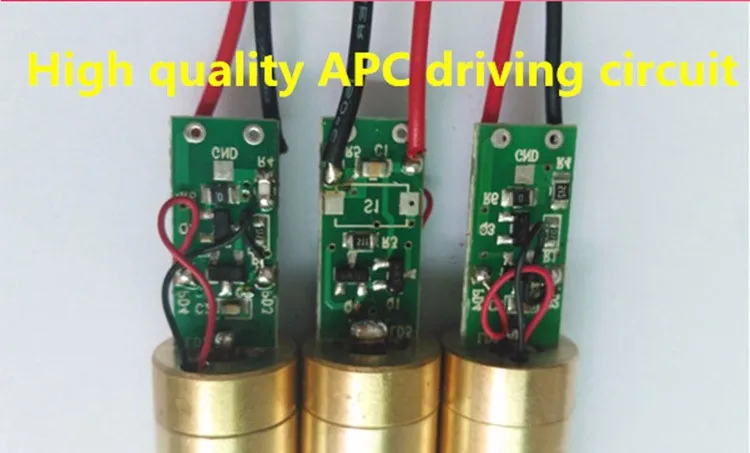

The circuit control: APC line
Working voltage: DC=3V (3V is the most suitable voltage, such as the selection of battery voltage can be 3-3.7V, such as the selection of transformer for power supply, please make sure that the voltage between 3-3.3V)
Working current: 250mA
Working temperature: +20 degrees to 30 C
Storage temperature: +10 degrees to 40 C
Spot forms: point
Beam: continuous linear form
Focus mode: fixed focus
Description: the factory default spot focusing in 15 meters, which is 15 meters to the point 15*15mm
Range: 1000 meters
Structure characteristics: laser tube + Crystal + glass lens group
Working time: at room temperature (25 DEG C) sustainable light for about 2 minutes, the body heat when close to re-use after cooling, so that is conducive to the life of the product.
Method of use: directly add 3V voltage can be connected with the anode work, red, black is connected with the negative pole, if long time lighting is required to do laser radiation.

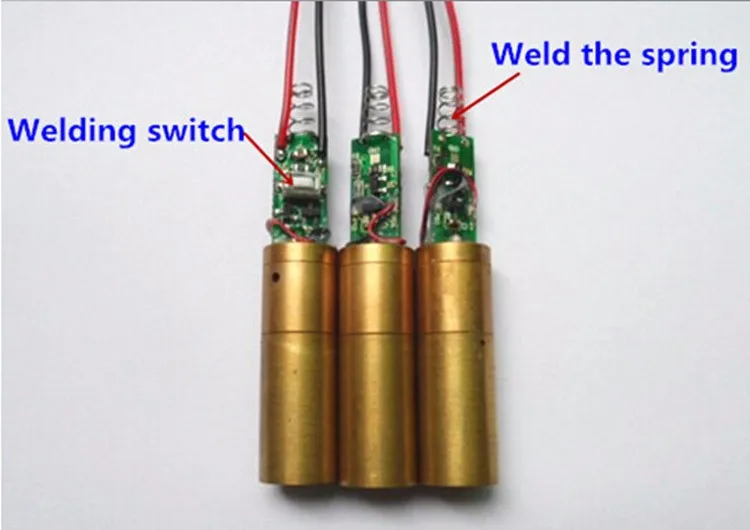

Can be customized according to customer requirements: module with spring, wire, PCB can be directly welded copper element and the circuit board with a switch, or copper, and the circuit board connecting line, no requirement by copper and direct plate welding. (Note: Have required please leave us a message,no requirement our default board only welding wire)image
For laser positioning, range finder, medical equipment, props, bar KTV decoration, electronic production of DIY lovers, all kinds of industrial identification, locator, industrial instruments and equipment, laser pointer, teaching to the test light source, laser light source and other demonstration…image
1, the laser eyes do not light in front, do not look directly at the light hole.
2, pay attention to the use of the environment, do not have to use dust or mist serious situation, avoid the debris stuck on the export of glass surface, effects of beam quality.
3, after use should be placed in the children's reach, so as to avoid accidental injury.
1.Buyer photographed before the goods, please contact us to confirm whether there are goods, in order to prevent shortages delay your time, but are generally spot. As the spot product can be shipped within one day after the payment is in store.
2.Because the process of display, camera and do in the graph, the product may occur slight color deviation, color to prevail in kind.
3.We have a group of professional technical support to all project sales. If you need help in any commodity of your questions, please do not hesitate to contact us, our techniques support will help you there
4. If you are not satisfied with your purchase, please contact us as soon as possible, we can give you another, but buyers are responsible for return shipping costs. If you have any questions of the product, please send email to us, we will try our best to settle within 24 hours, please contact us before leaving feedback is not good, we will give you a satisfactory answer, thank you!
5.Your satisfaction and positive feedback is very important to us. Please leave positive feedback and five star, if you are satisfied with our products and services. If you have any questions about our products or services, please feel free to contact us, you first before leaving negative feedback. We will try our best to solve any problem, to provide the best customer service for you.
Reminder: when you receive the goods in time, please according to product outer packing information carefully check whether the consensus number received cargo with your order, if not or is damaged, please do not sign!
