Laser Driver Board 450nm 532nm 650nm 808nm Laser Diode Driver with Heat sink 200mW 500mW 1W 2W 2.5W 5W 5.5W AC DC 12V TTL PWM


SKU: 32836918084 Category:


Laser Driver Board 450nm 520nm 532nm 638nm 650nm 808nm 980nm Laser Diode Driver with Heat sink 200mW 500mW 1W 2W 2.5W 5W 5.5W AC / DC 12V with TTL / PWM

Item Description:

Name: Laser Diode Driver

Power: Suitable for 405nm, 450nm, 532nm, 650nm 50mw ~ 5.5W laser diode;

Input Voltage: AC/DC 12V

Output Voltage: DC2.8V – 11V

Output Current: 0 – 4A

TTL Modulation: Yes, 0-20KHz

Size: 91mm x 46mm x 41mm

Applications: Laser driver, Laser power supply, Laser diode driver, TTL laser driver, Laser light,

Laser machine, Blue laser driver, Laser driver circuit, Laser cut driver, Laser engraving driver, Laser diy.




*Stability is very good!
*This driver have been rigorously tested.
*This driver is not a simple circuit, not is just raise the voltage or reduce voltage.

*Constant current Stable voltage IC circuit, laser diode can be better protected without being damaged.


Package: 1 X Driver Board

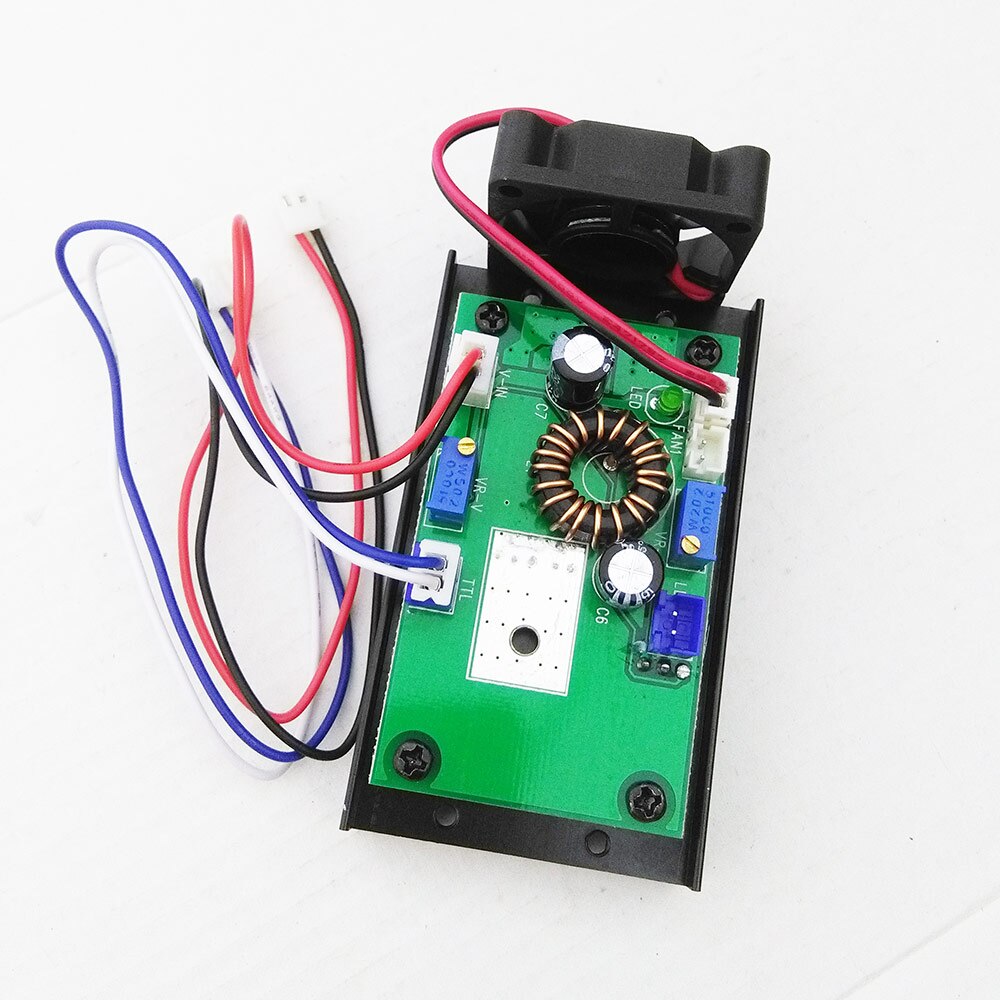

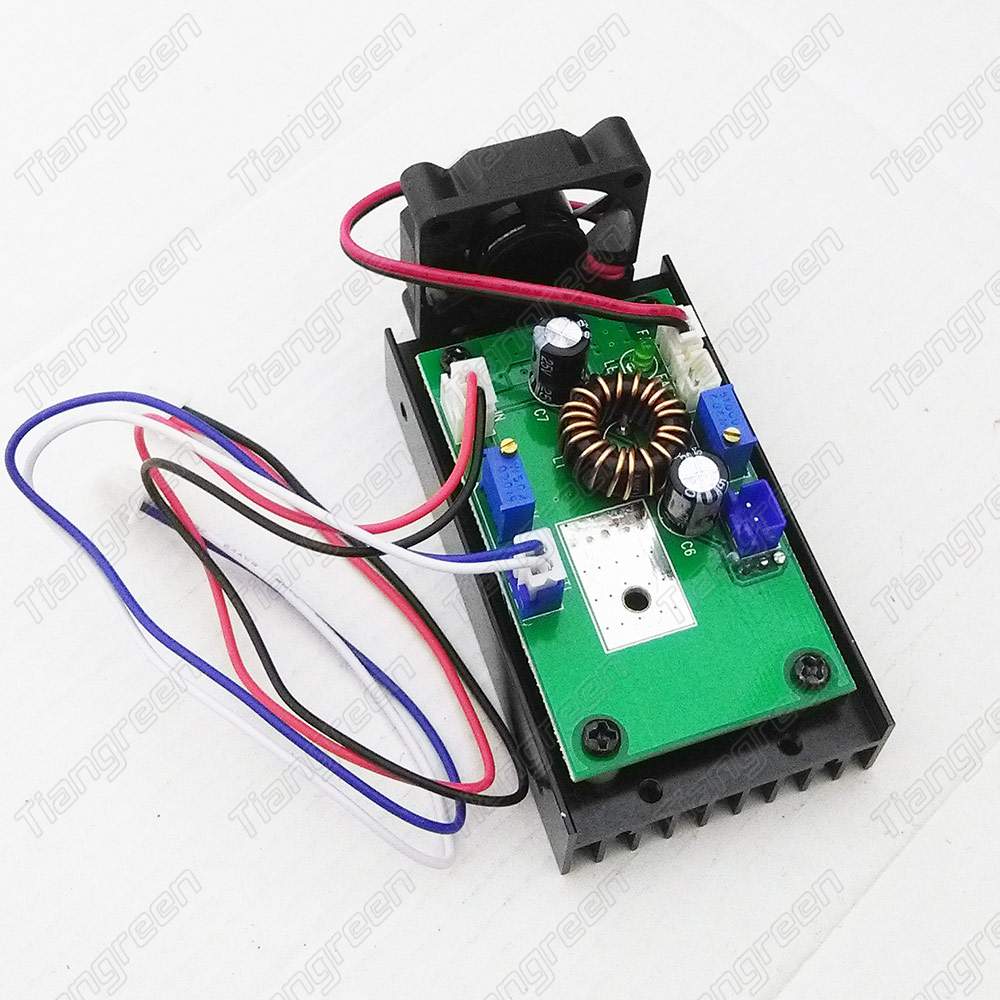

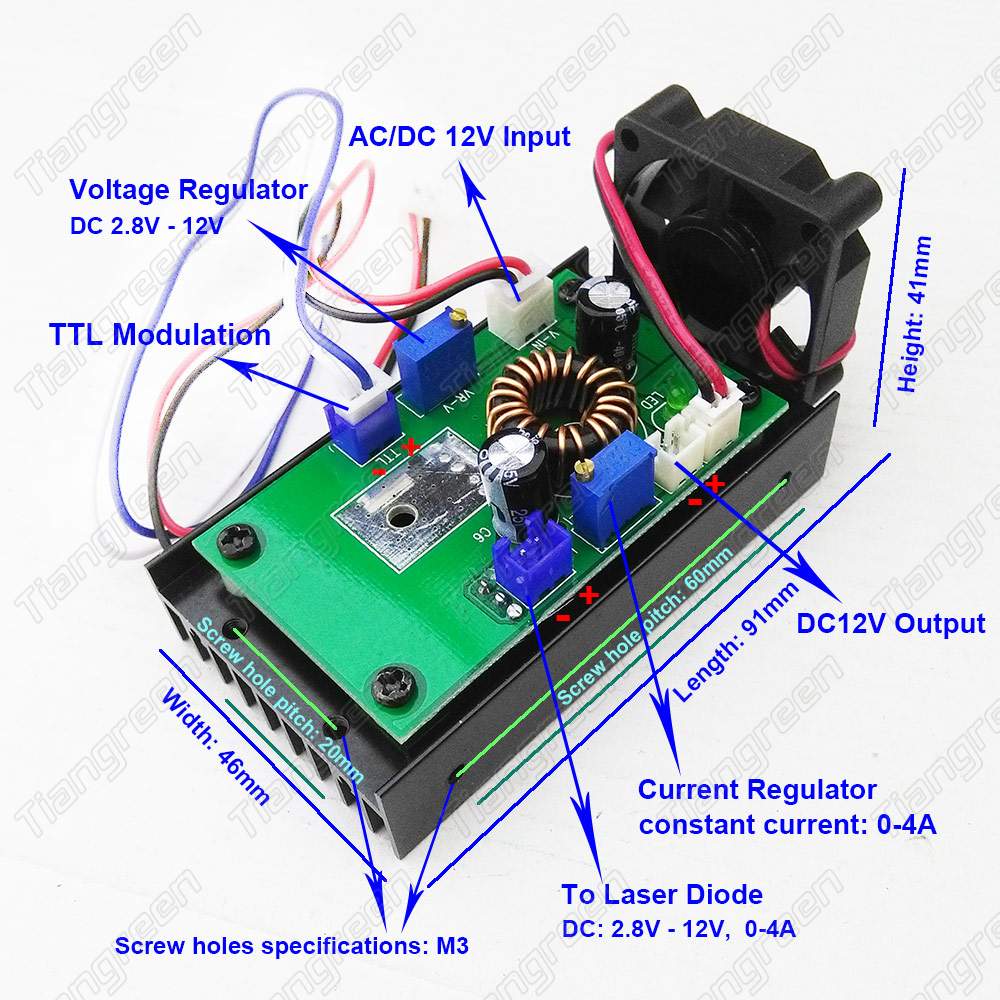

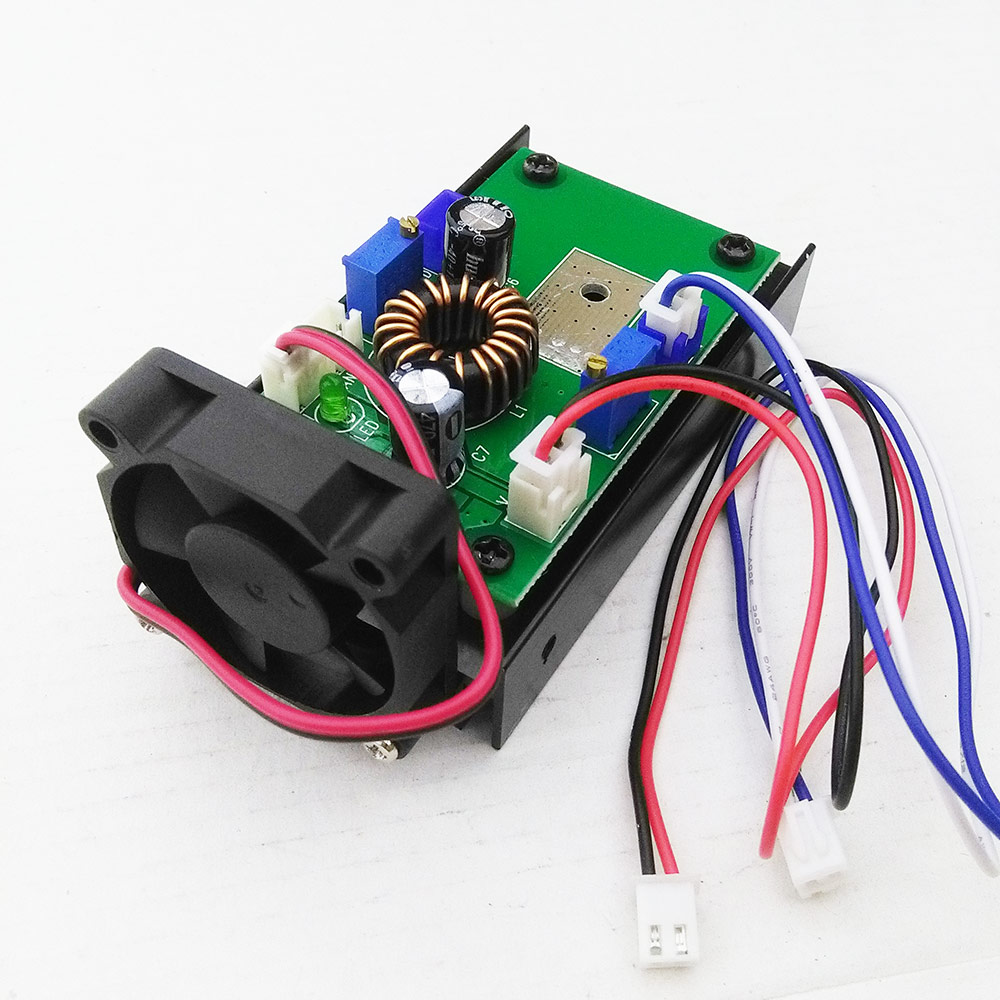

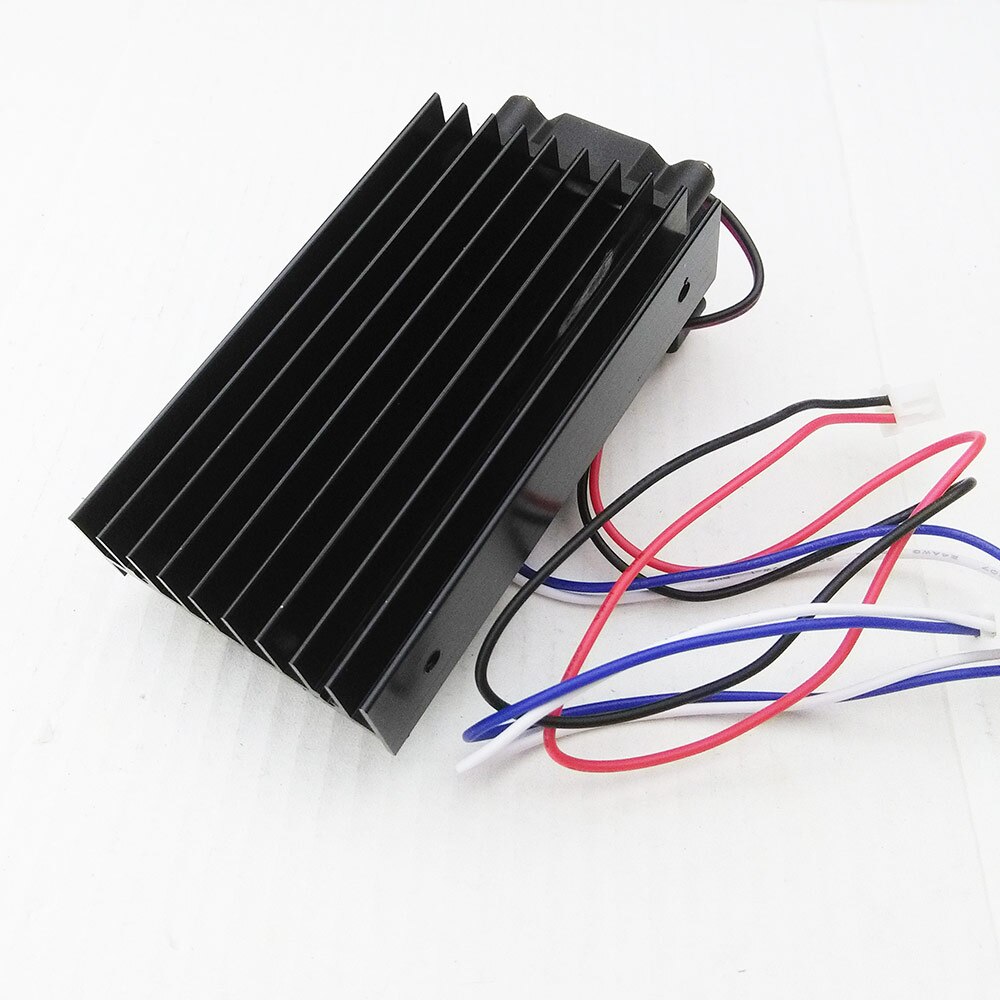

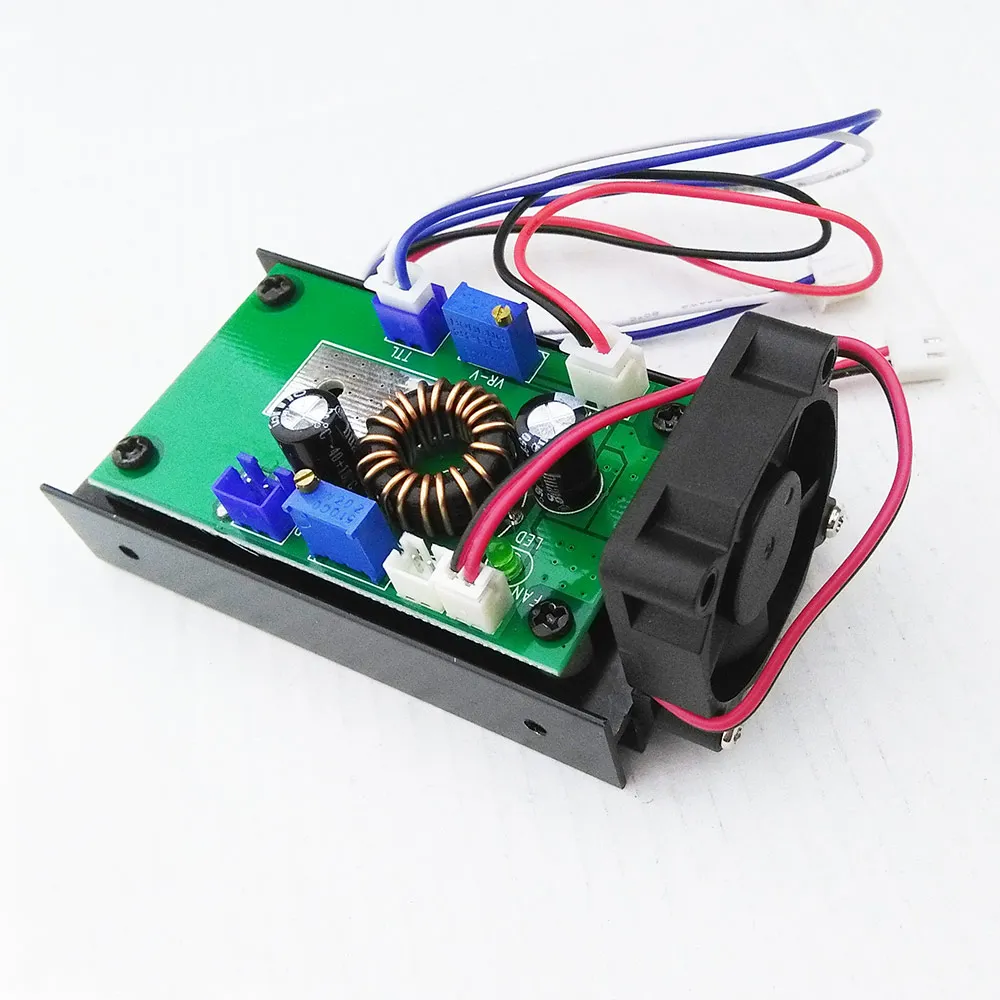

Item Pictures:


laser-module-driver-450nm-3W-005  laser-module-driver-450nm-3W-004
