Opt101 Analog Light Sensor Light Intensity Module Monolithic Photodiode Kit Professional Equipment


SKU: 1005001349052441 Category: Tag:

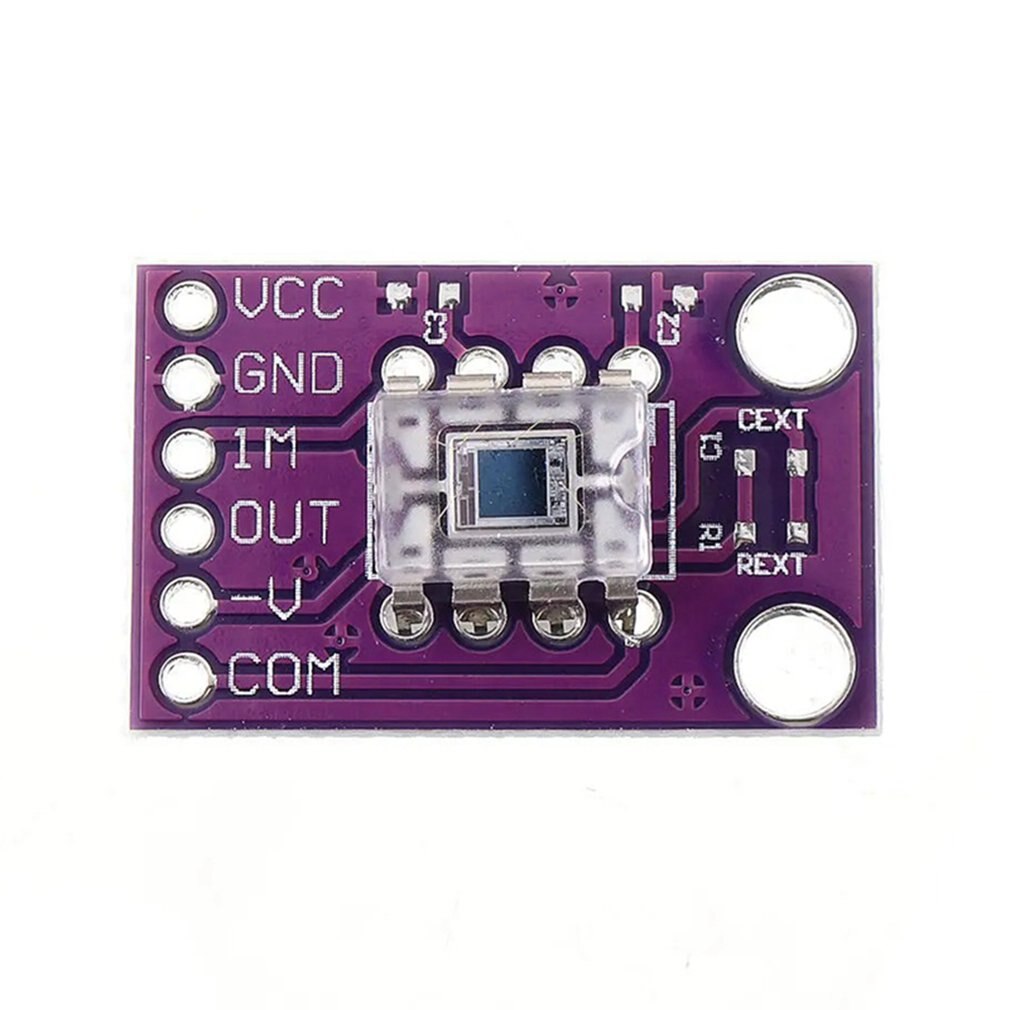

OPT101 is an illuminance photoelectric sensor integrating a photodiode and a specially optimized operational amplifier. Transparent packaging enables the photodiode to have a larger sensing surface, higher sensitivity and a wider spectral response range (infrared to visible light 300nm-1000nm)

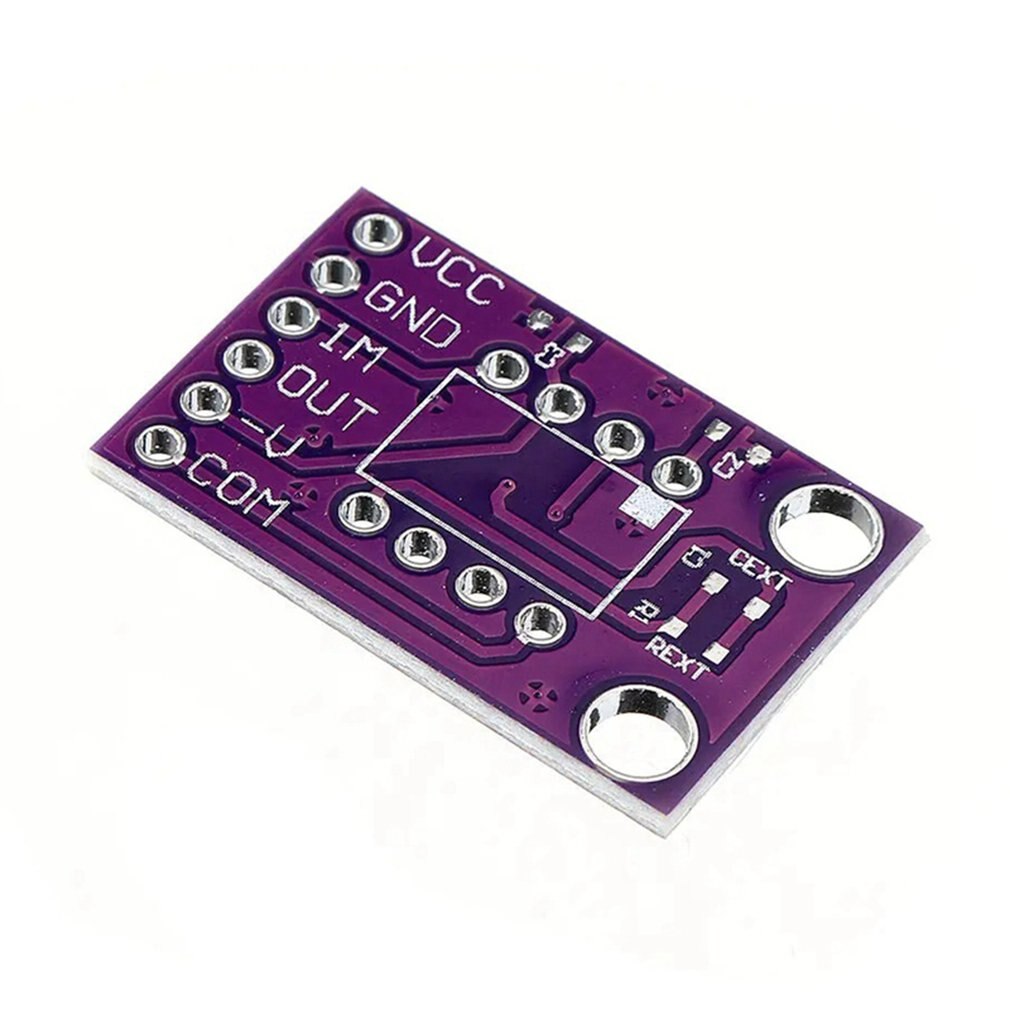

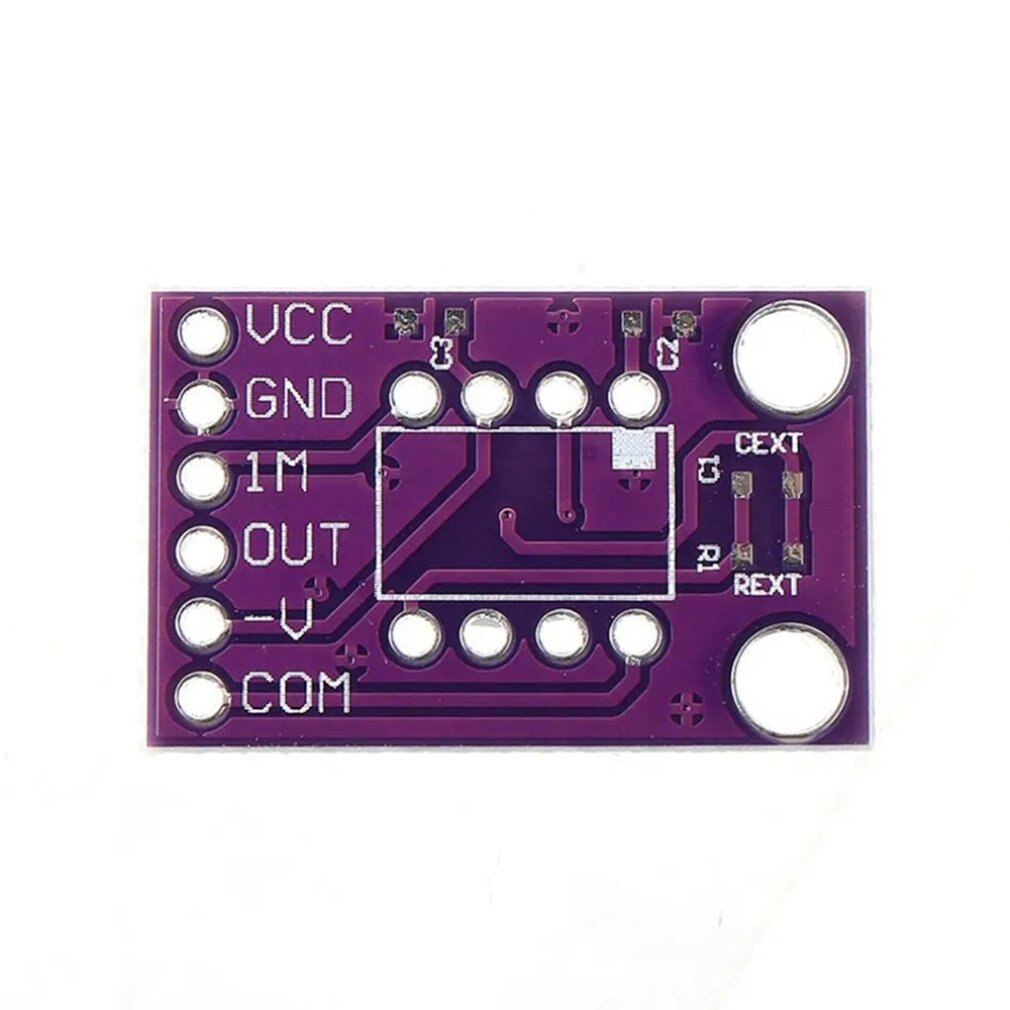

IN code description:
VCC: Positive power supply pin
-V: negative power supply
-IN: The inverting input of the internal operational amplifier and the negative electrode of the internal photodiode,
Do not connect or apply feedback that is abandoned in operation
1M: Internal 1MΩ feedback resistance input
OUT: amplifier output
COM: The anode of the internal photodiode, usually connected to GND
Note: The module does not solder CEXT external capacitors and REXT external resistors, and makes the pads easy to expand.

Working voltage: 2.7? 9? 136V
Working temperature: 0°C?9?170°C
Photodiode irradiation area: 5.2mm2
Photocurrent: 0.45A/W (λ= 650nm)
Output voltage ratio: 0.45V/uW
Analog voltage output range: Vs-1.15
Bandwidth: 14KHz
Static power consumption: 120uA

Package Included:

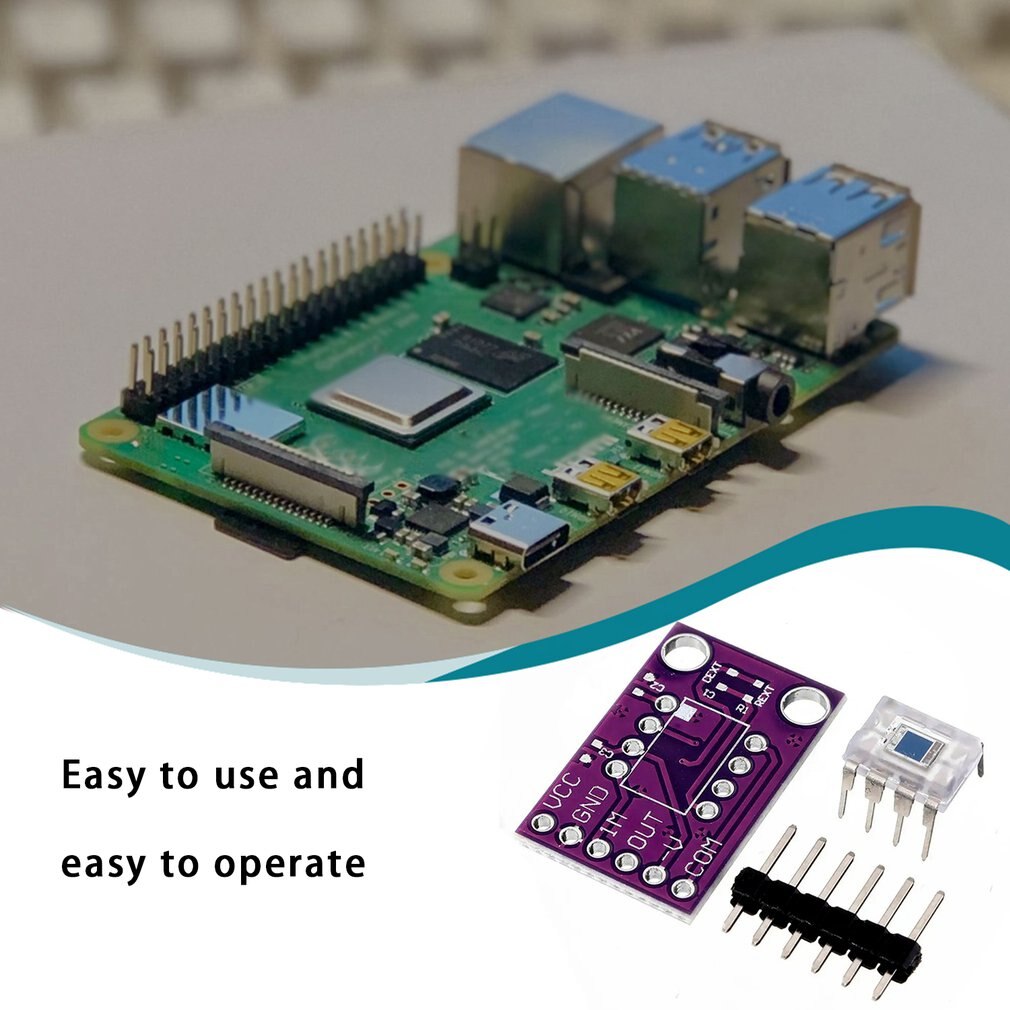

1*OPT101 lighting sensor
