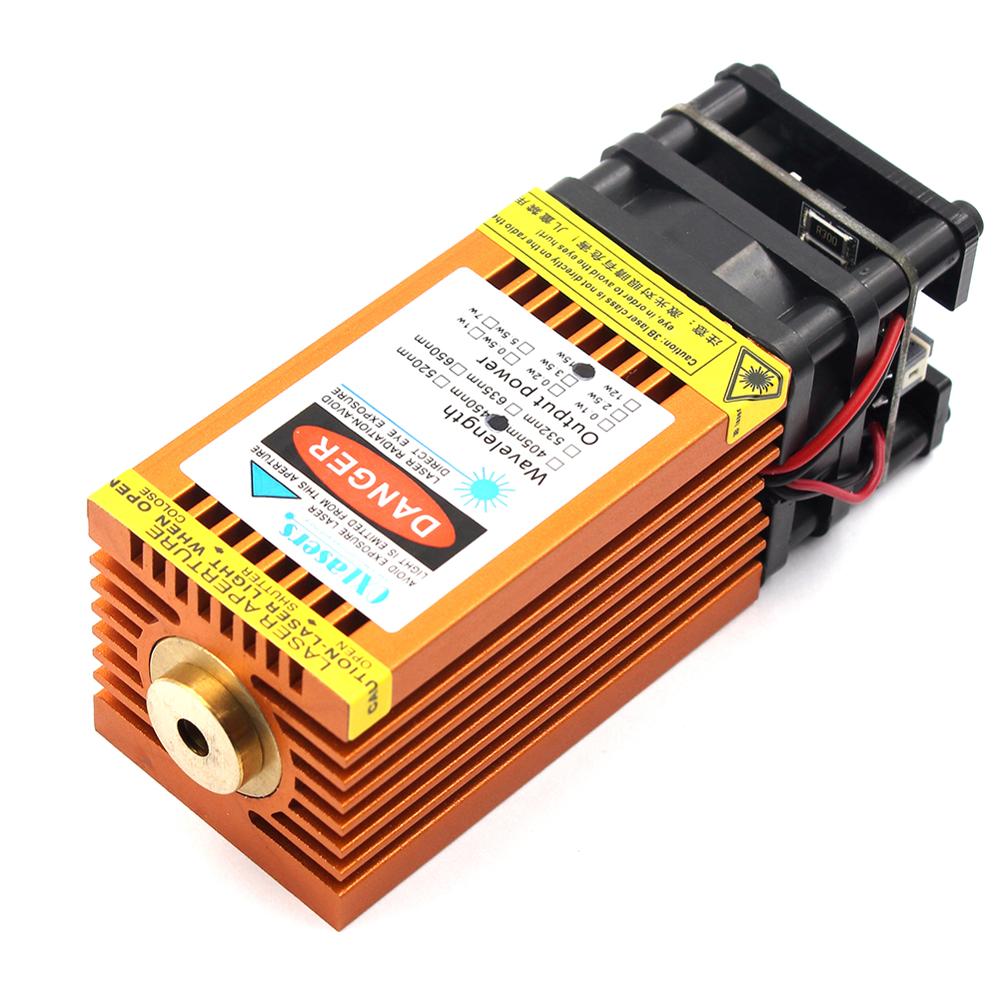

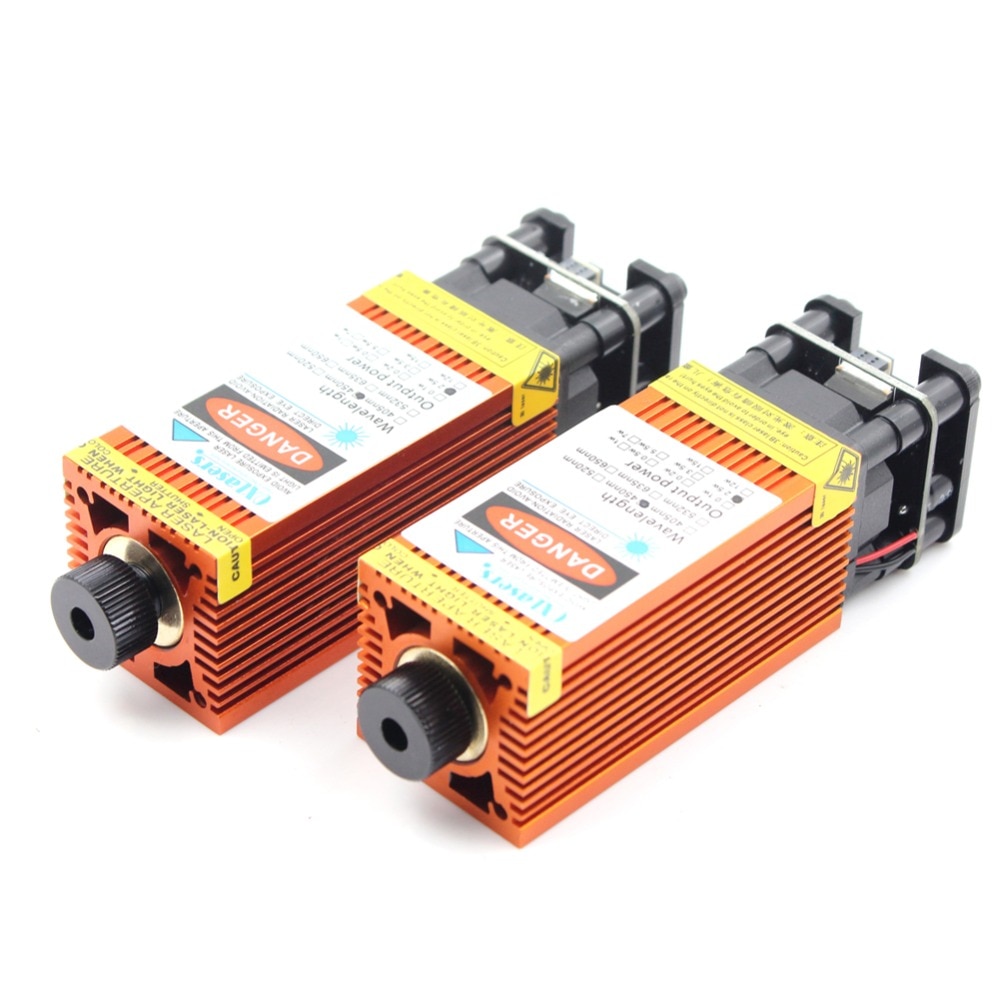

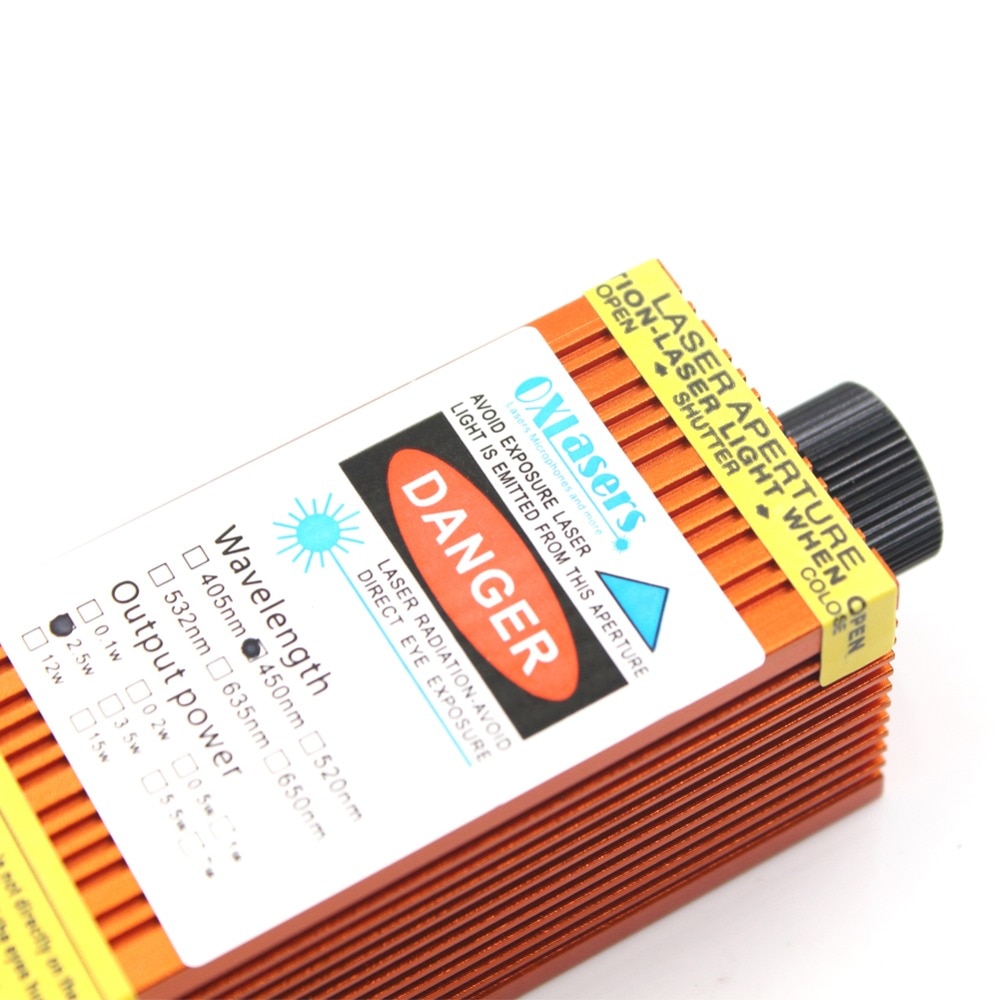

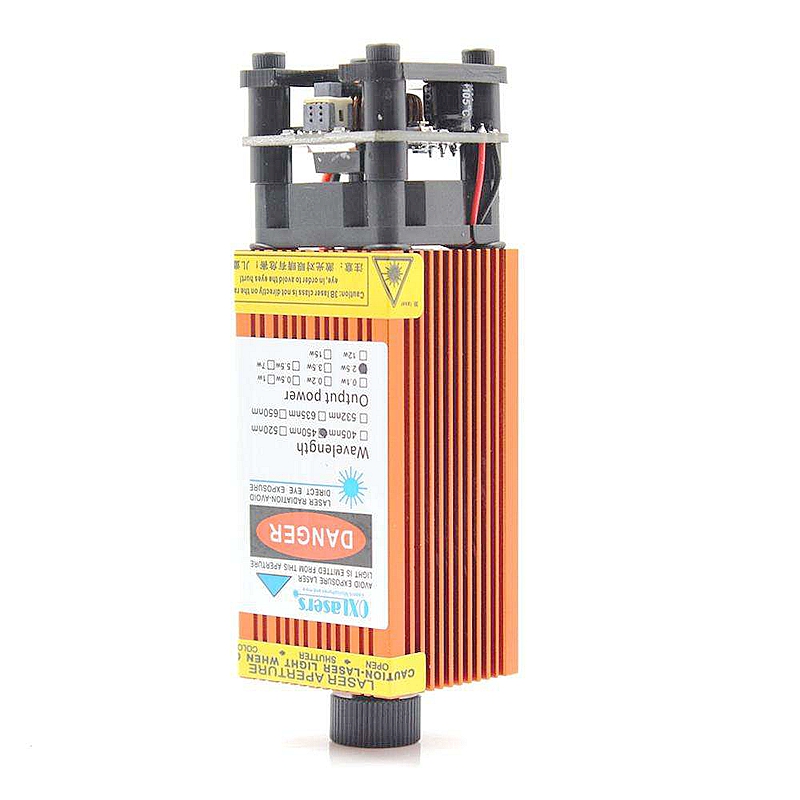

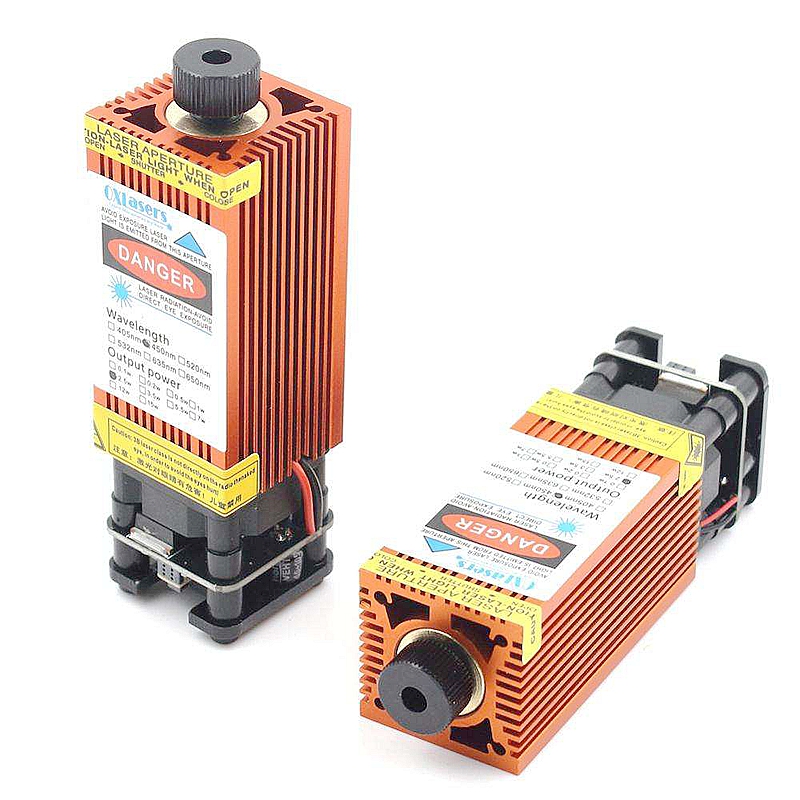

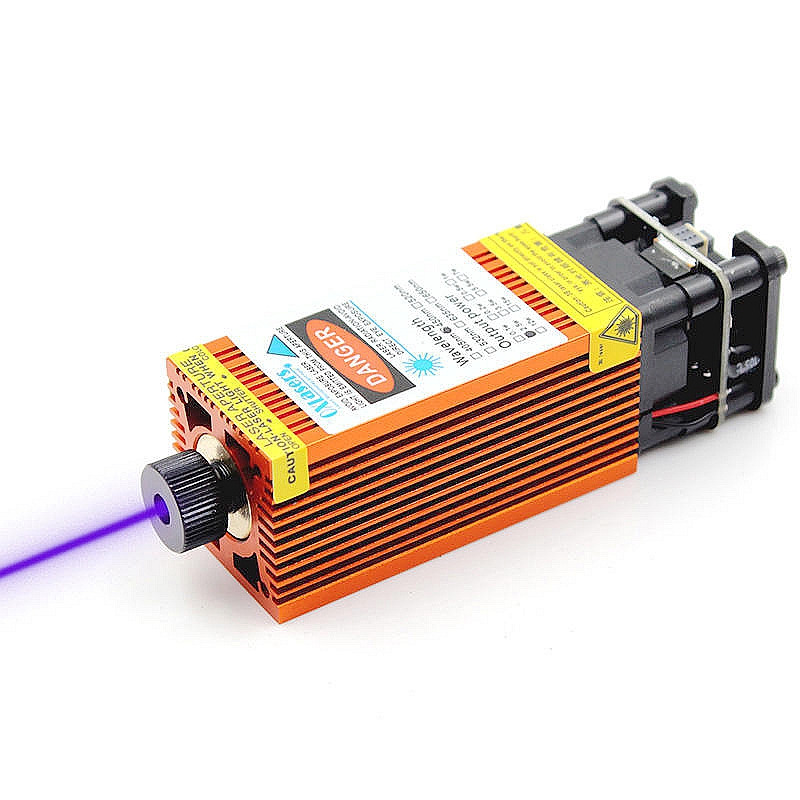

oxlasers NEW 12V 2.5W 3.5W 4W 5.5W 15W 450nm blue laser modules with Orange Color for DIY Engraving laser head with PWM

$52.88$158.11

SKU: 32978460122 Category:

Description

Technical Parameters:

Laser wavelength: 445nm-450nm blue laser
Spot type: dotted (adjustable)


Output power: 2.5W(True Power)  focusable

                        3.5W(True Power)   focusable

                        5W(real output is:3.8-4W)  focusable

                        5.5W(real output is 5W)  focusable



                        15W(Fixed Focus, Not Focusable)



Size: 2.5W(33*70mm) , 3.5W(33*70mm)  5W(33*70mm)  5.5W(40*70)  15W(40*70)

Drive mode: external ACC constant current drive

Cooling method: forced air cooling
Operating voltage: 12V  DC
Control interface: 3pin  (PWM VCC+ GND-)
Shell material: aluminum, surface anodized
Collimator lens: optical glass coating



HEAT SINK COLOR: ORANGE

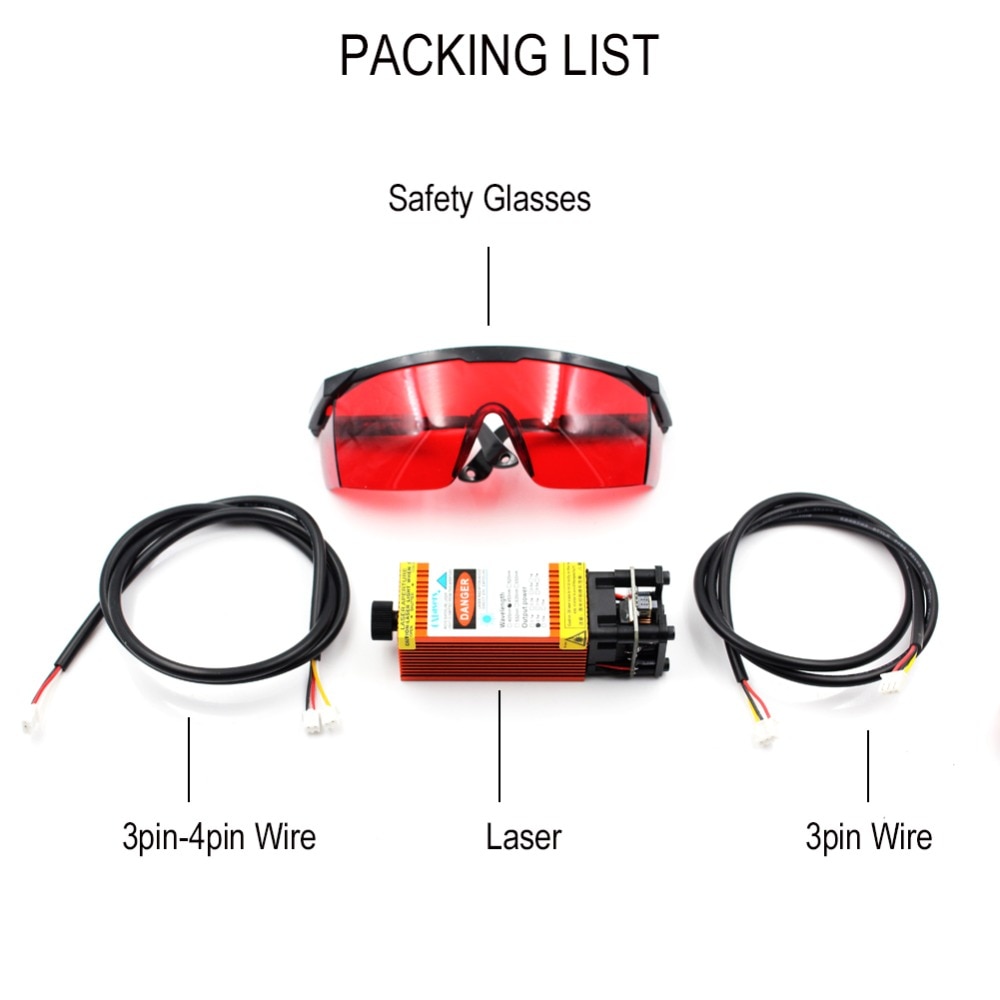

PACKING LIST:



LASER*1

3PIN CABLE*1

3PIN TO 4PIN CABLE*1

SAFETY GLASSES*1



‚ÄčBUYER MUST READING:

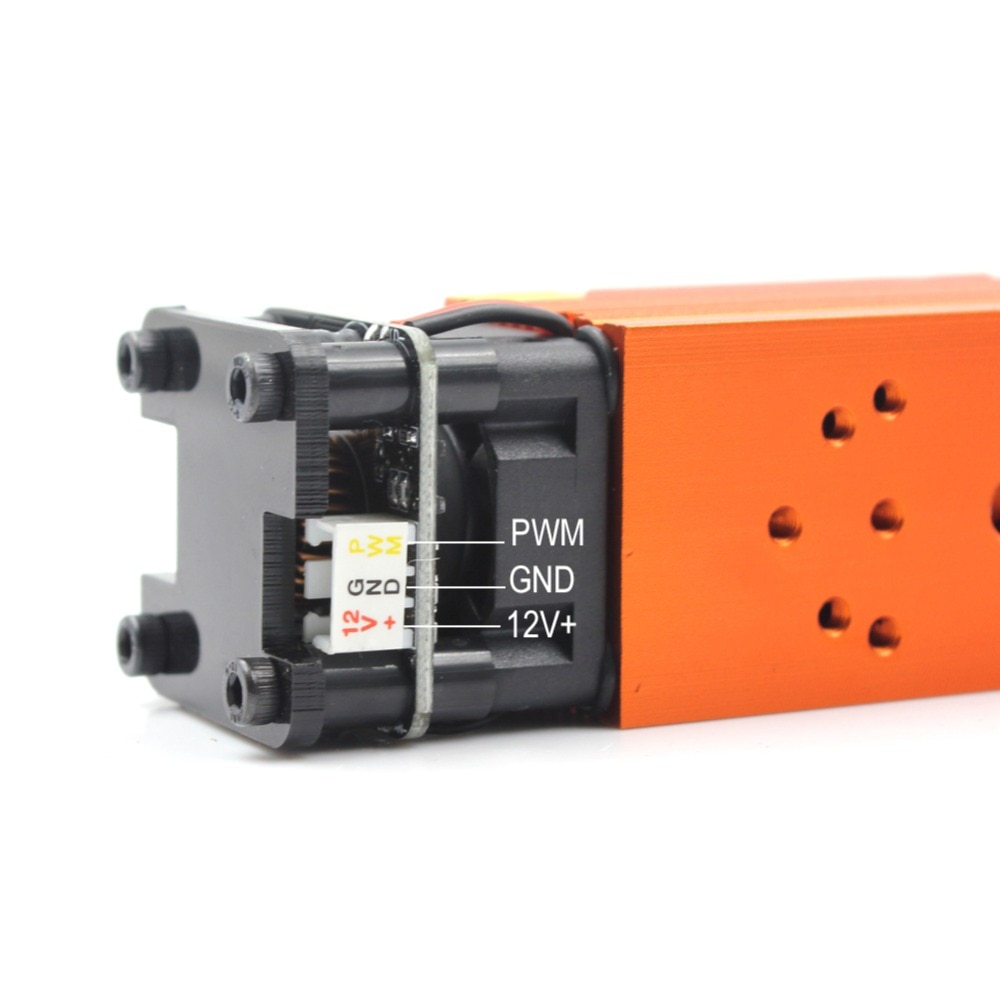

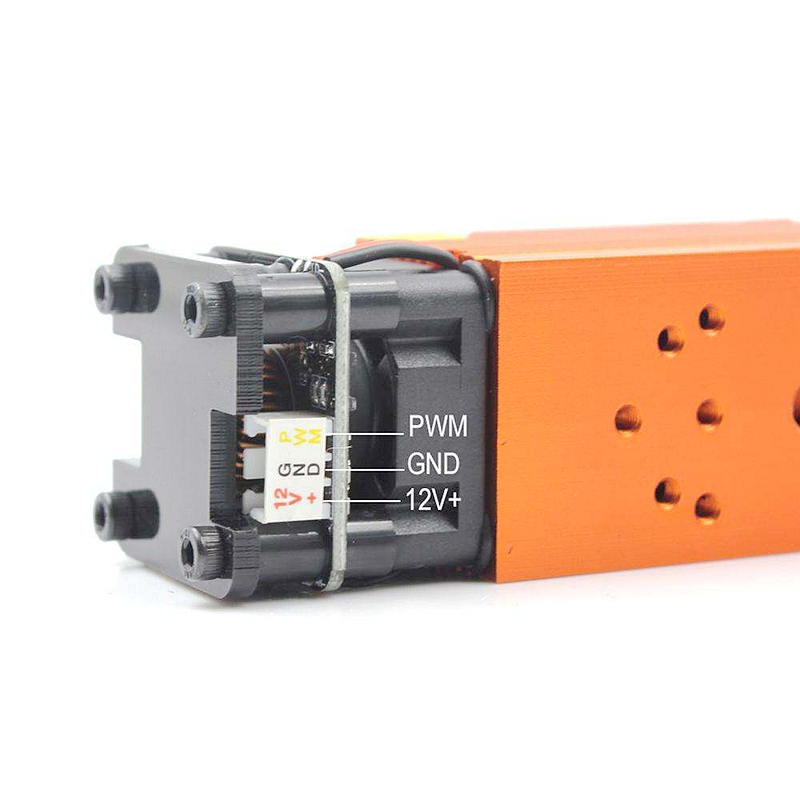

 When you connect laser to your controller board, please pay attention to the pin positions of 12v+ GND- and PWM/TTL,  red wire=12V+, black wire=GND-. Yello wire=PWM+, white wire=PWM-(3-4pin wire). So Red Wire must be connected to the 12v+ pin on your controller board’s interface, Black Wire Must be connected to the GND- pin and Yellow Wire must be connected to the PWM/TTL pin,  if you use 3-4pin wire, White wire should be connected to the PWM- pin.

if your controller board’s laser interface pins are in different position, please change the wires position to make it match the positions of + – PWM of your interface. If the wires connected wrong, it will damage the diode and the driver board.

Please add a fan when you engraving or cutting, in case smoke blur the lens damage the lens

IMG_5033FOCUSABLE LENSSIZE790IMG_5010IMG_5020IMG_5022IMG_5028



15W is not focusable!!

IMG_6258IMG_6263IMG_6266IMG_6268IMG_6270IMG_6273PACKING LIST

HTB1uCidaEjrK1RkHFNRq6ySvpXad



HTB1ujsKaifrK1RjSspbq6A4pFXaLHTB1x9.NajzuK1Rjy0Fpq6yEpFXap
