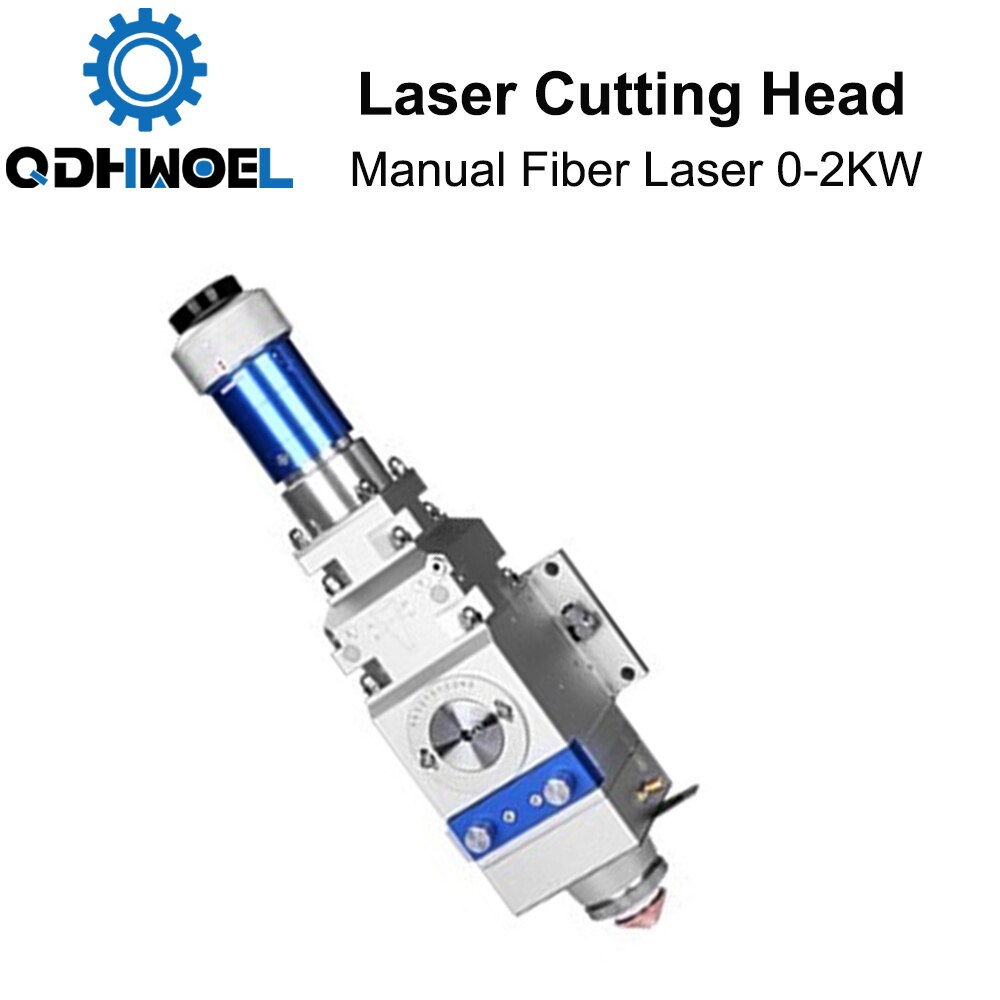

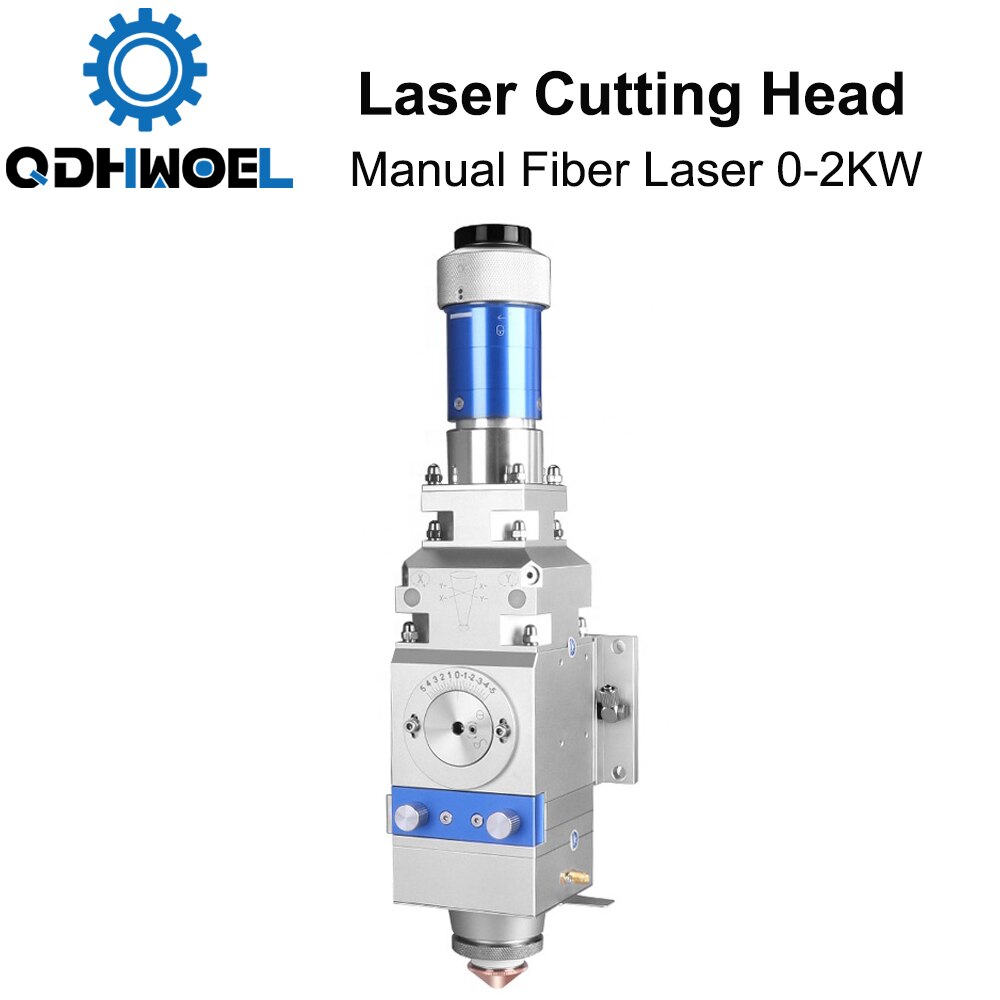

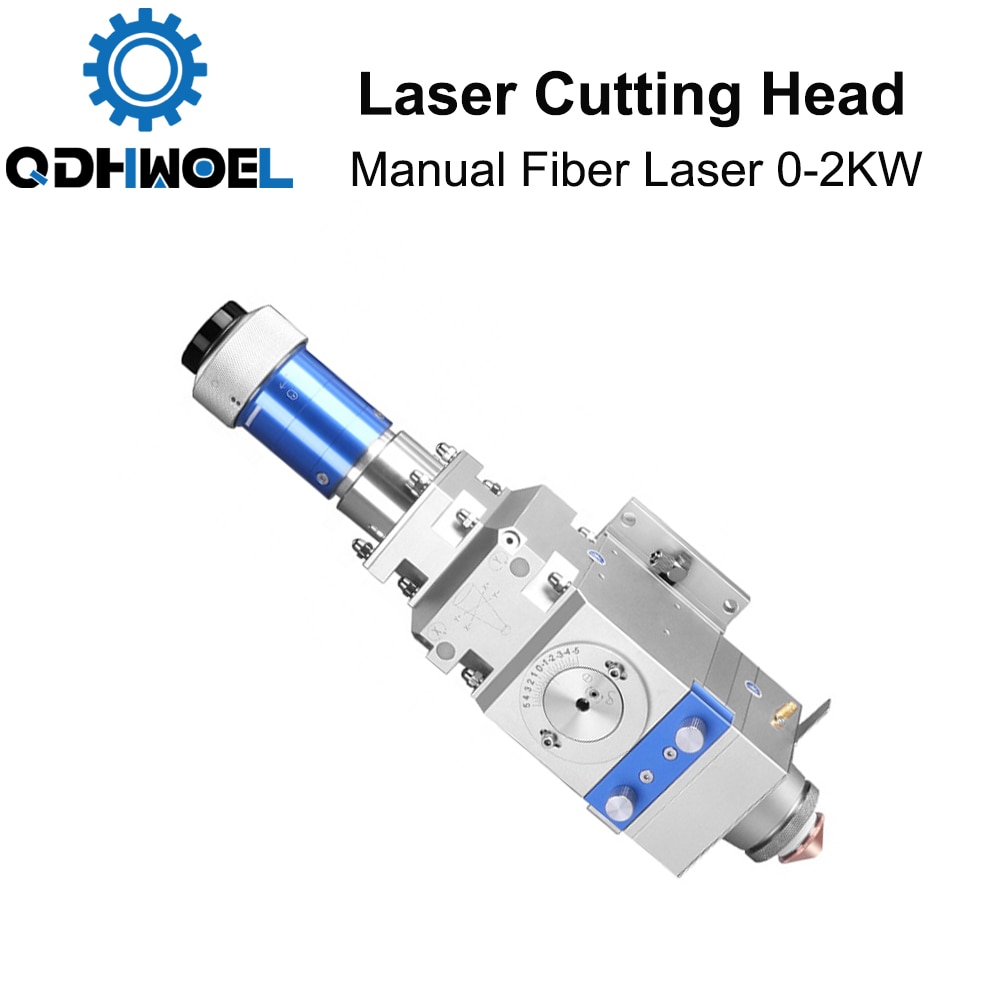

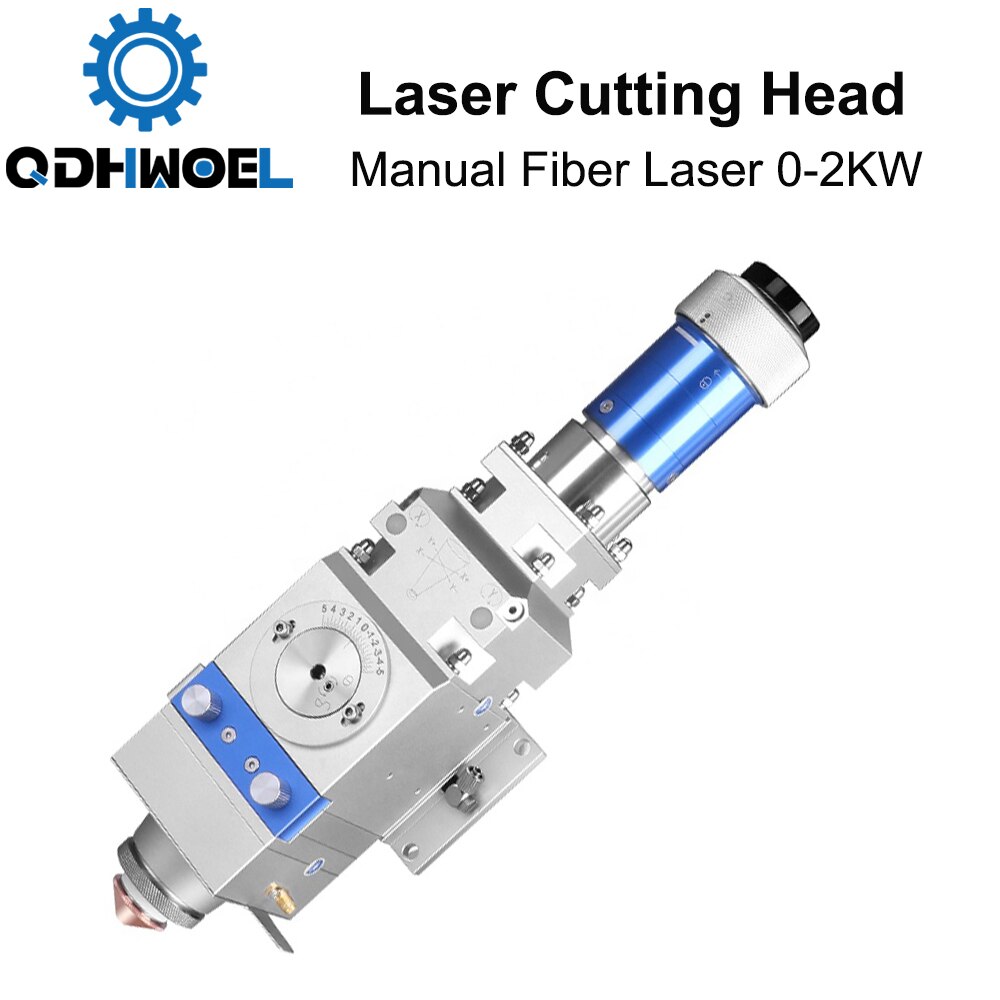

QDHWOEL WSX 0-2KW Fiber Laser Cutting Head KC13 Manual Cutting Head 2000W for Metal Cutting


SKU: 4001285611043 Category: Tag:


WSX 0-2kw Fiber Laser Cutting Head KC13

1. This cutting head has a strong advantage in the application of medium power large format fiber laser cutting.
2. The internal structure is completely sealed to avoid dust contamination on the optical part.
3. This laser head adopts two-point alignment,and the focusing is adjusted by cam structure accurately and conveniently.
4. The protective window is installed in cartridge,and is conve-nient to replace.
5. Can be equipped with various kinds of laser source with QBH connector.

Manual Cutting Head 0-2KW

Max Gas Pressure  25Bar
Collimating Focal Length 75mm/100mm
Focusing Focal Length 125mm/150mm/200mm
Horizontal Adjustment Rang  ±1. 5mm
Effective Aperture 25mm
Vertical Adjustment Rang ±5mm
Applicable Power ≤2000w
Gross Weight  3.1kg

Can be equipped with QBH connector
Can be used for lasers below 2000W
Can be used for general purpose lasers such as IPG, SPI, Rofin, nLight, Raycus, MAX, JPT, CAS,etc.

Product Dimension
Manual Cutting Head 0-2KW

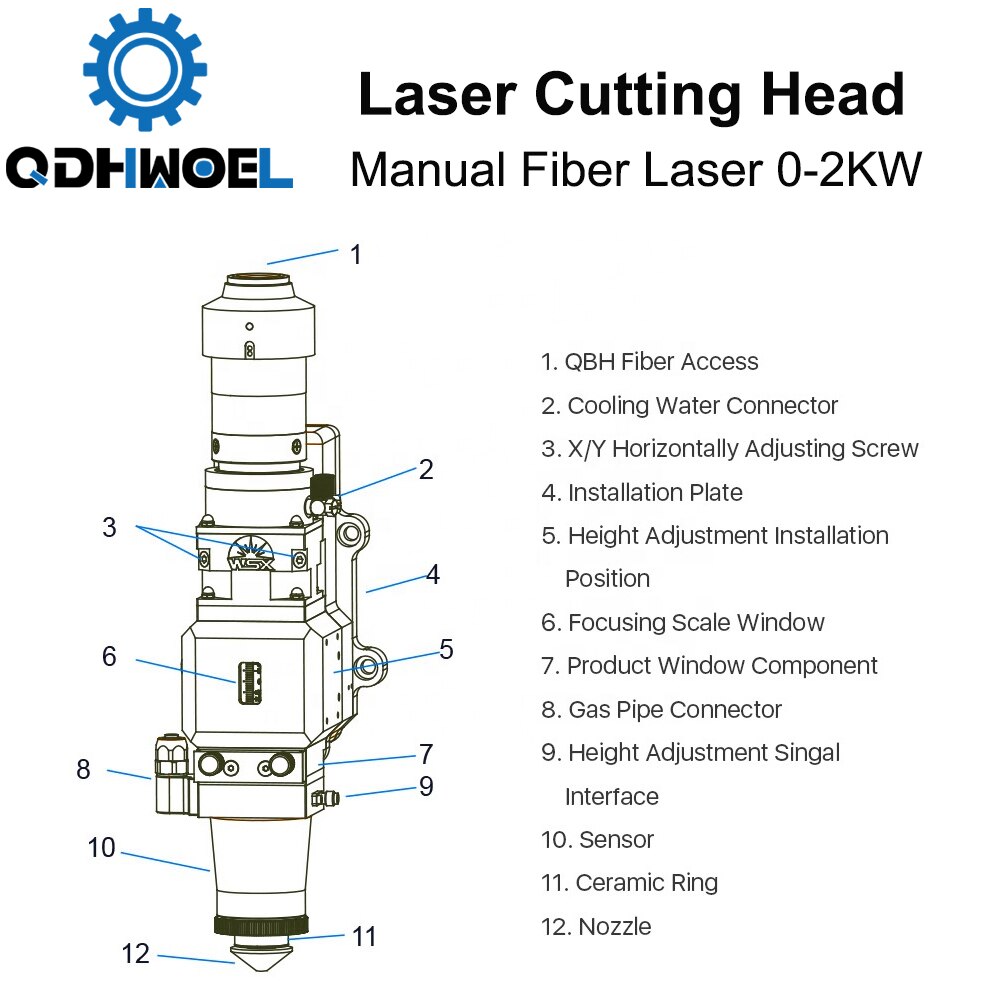

Product Details
Manual Cutting Head 0-2KW

Fiber Connection
Manual Cutting Head 0-2KW
