Red green and blue 53°large circle laser positioning light hollow circle laser light laser module to draw a circle

$259.00$299.00

SKU: N/A Category:

Description

Red green and blue 53° large circle laser positioning light hollow circle laser light laser module to draw a circle

Specifications:
Wavelength: 650nm red laser/520nm green laser/450nm blue laser(Can be choose)
Output power: 100mw(Default)
Working voltage: DC 2.8~5.2V (Accept customize)
Woking Current: <500mA
Laser Shape: 100% uniform linewidth and collimation line;
Size: φ16*70mm (can be customized)
Optical lens: grating (imported from Germany)

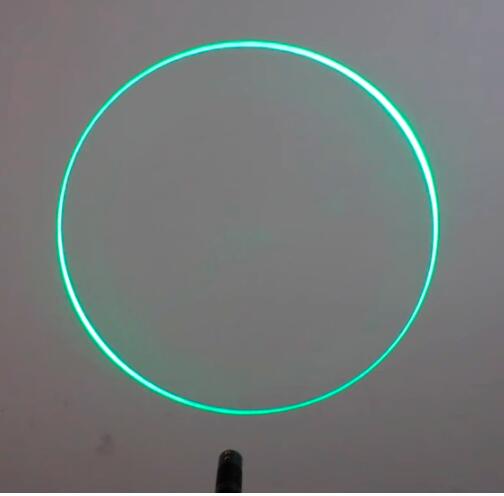

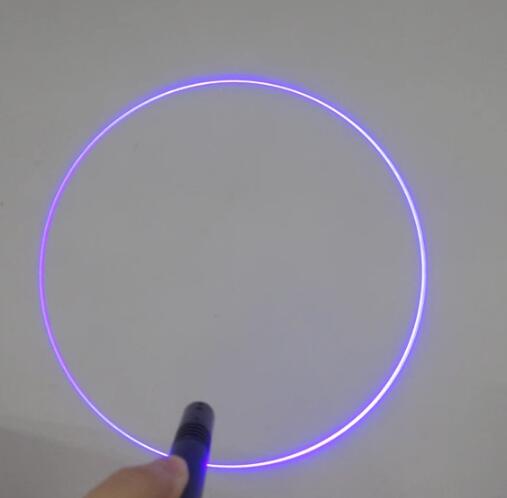

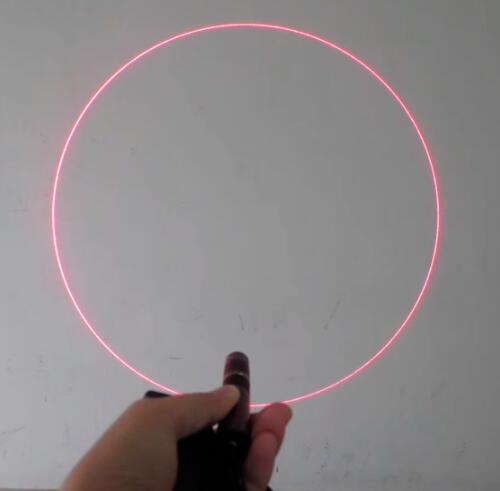

The diameter of the circle at 0.5 m is 0.5 m

The diameter of the circle at 1 meter is 1 meter

The circle diameter at 2 meters is 2 meters

The size of the circle is 1:1 in ratio to the irradiation distance

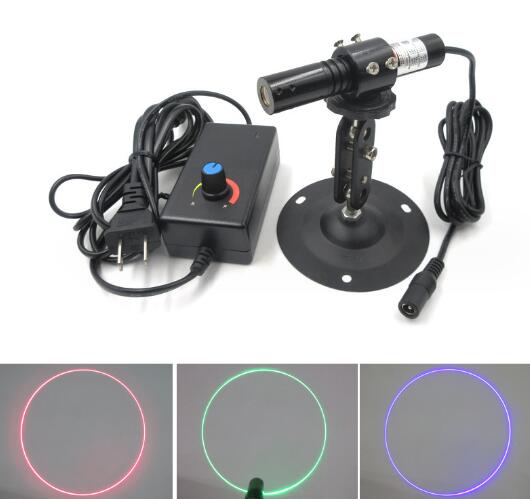

Package includes:
1* laser module;
1* laser bracket;
1* adjustable power supply.





Additional information

color

red, green, blue
