Upgrade 30W Laser Module Laser Head 450nm Blue Lase For Laser Cutting Machine CNC DIY Laser Wood Marking Cutting Tool


SKU: 1005001419221260 Category:


Upgrade Blue Laser Module with Lower Loss and Higher Precision is designed for both 3D printer and CNC mill.  With 450nm wavelength, it is an effective tool for laser engraving and laser cutting.  There 4 powerful laser modual for choose, they can engrave and cut a variaty of materials.

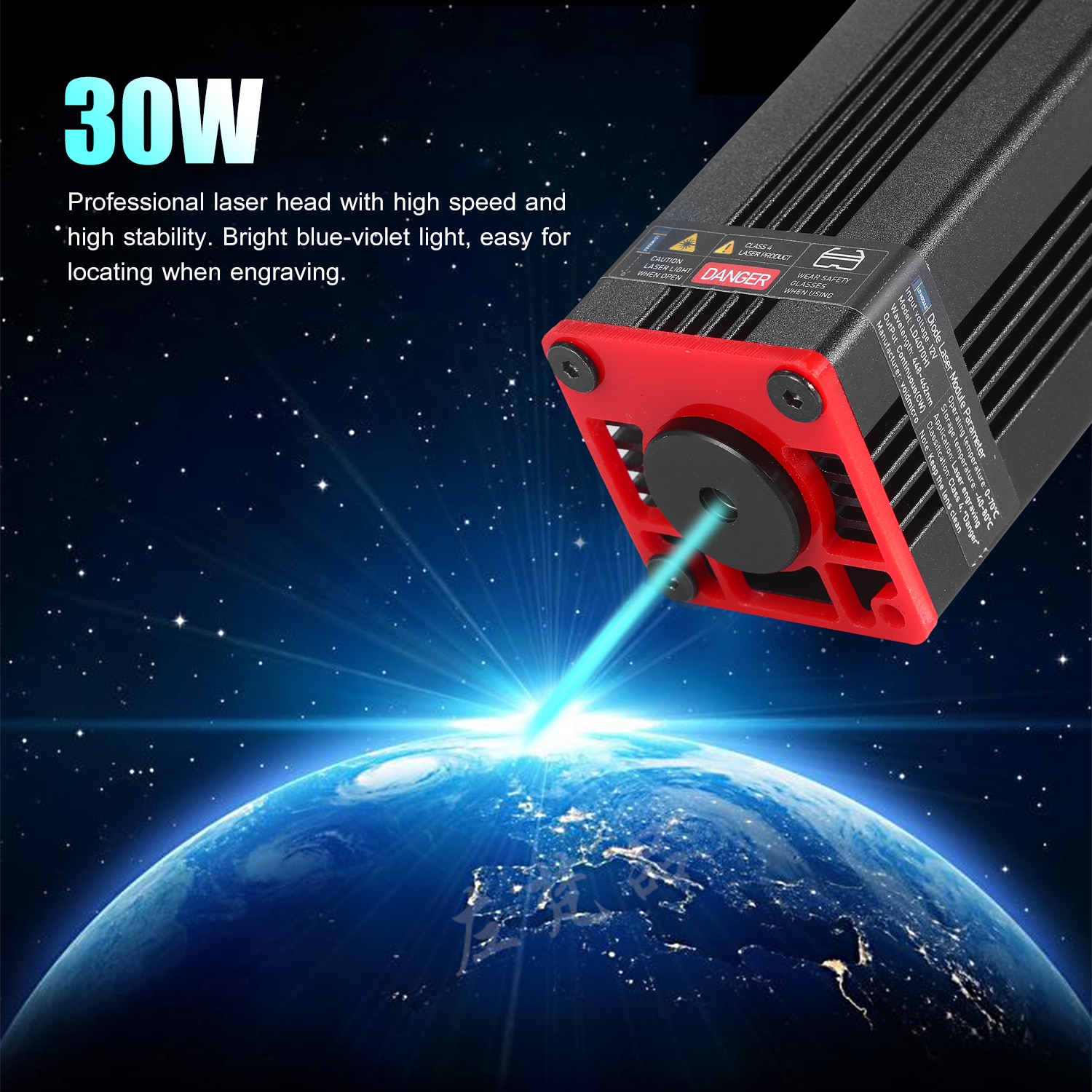

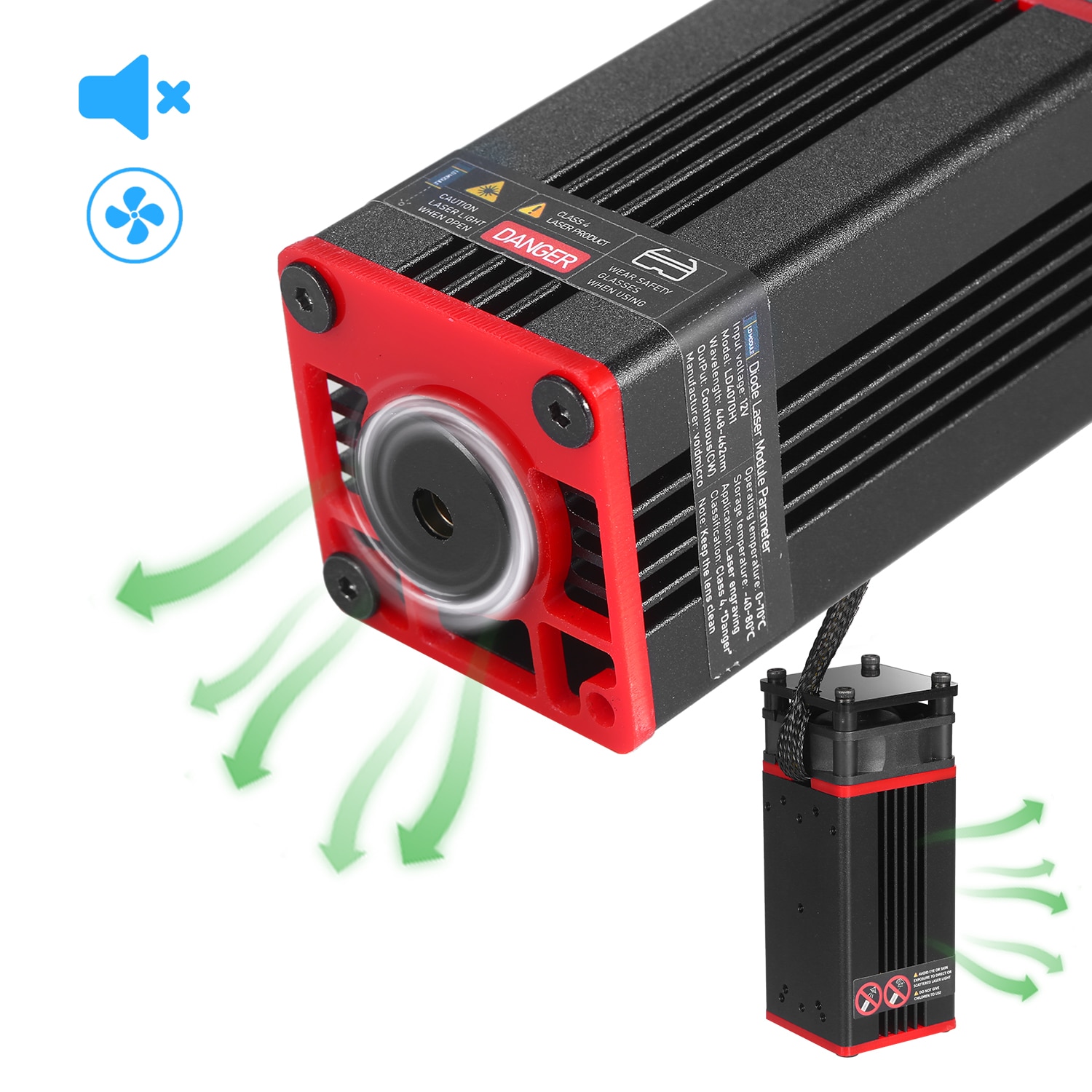

Upgrade Blue Laser Module — Professional laser head have upgrade with a lower loss and higer precision and keep with high speed and high stability, at the same time prolong the laser modual's service time.  Bright blue-violet light, easy for locating when engraving.
Adjustable Focuse — Adjustable laser head, easy to adjust, more flexible use and ensure engraving with good quality and high efficiency.
Easy to Assemble Safety Use — Small and compact, convenient and easy to install.  Come with a protect goggles, ensure a safety working process.
30W Carving Material — Wood type, some plastics, paper, bamboo, horn, thin leather (wallet), rubber stamp, tooth, PU, Printing paper, PVC, horn, crab shell,  lobster, mammoth, ivory, linden root, resin, spectacle lens, metal painted surface,those kinds of flammable materials.   And colored ceramics, colored aluminum, pebbles, etc.    Part of stainless steel, anodized, dark electroplating, swimming paint, baking paint, wood grain transfer aluminum. Coke cans, mobile phone back shell, etc.
30W Cutting Material — Within 3mm thick paper, leather, non-woven fabrics, flocking fabrics, aircraft wood, stickers, etc.    Non-transparent plastic sheet within 2mm Black acrylic sheet within 2mm

Color: Black/Red (optional)
Laser Power: 5500mW/10W/20W/30W (Optional)
Material: Aluminum Alloy+Plastic
Light Color: Blue-violet
Wave Length: 450nm
Facula Form: Punctiform, Adjustable Focus(30W can not adjust focuse)
Input Voltage: 12V 2A

Interface Parameter: Support TTL signal controls power
Line Length: 330mm

Item Size:
100*30*30mm/3.94*1.18*1.18in  (5500mW/10W)
99*40*40mm / 3.90*1.57*1.57in  (30W/20W)
Item Weight:
165g / 5.82oz  (5500mW)
170g / 6.00oz  (10W)
184g / 6.49oz  (20W)
221g / 7.80oz  (30W)

Package List:
1 * Laser Head
1 * Pretect Goggles
7 * Kraft Paper
1 * Focus Auxiliary Column
1 * Bag of Installation Accessories
1 * Screwdriver
