Description

woodworking machinery positioning Locator Line laser Red laser light Shears single sawing

wavelength 648nm (mitsubishi ML101J23 ld in)
output: 100mW
divergence : 0.1-2mrad
working voltage:DC 3.6V-5.5v
line diameter: min 0.5mm at 1 meter
Duty cycle: 2 hours on, 5 minutes off
size: 16mm×68mm

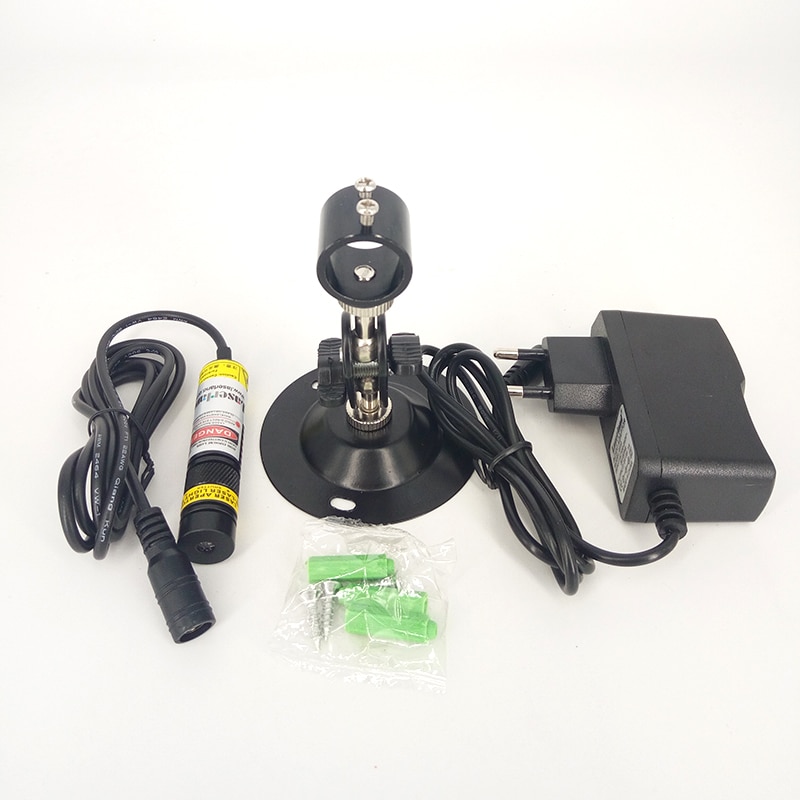

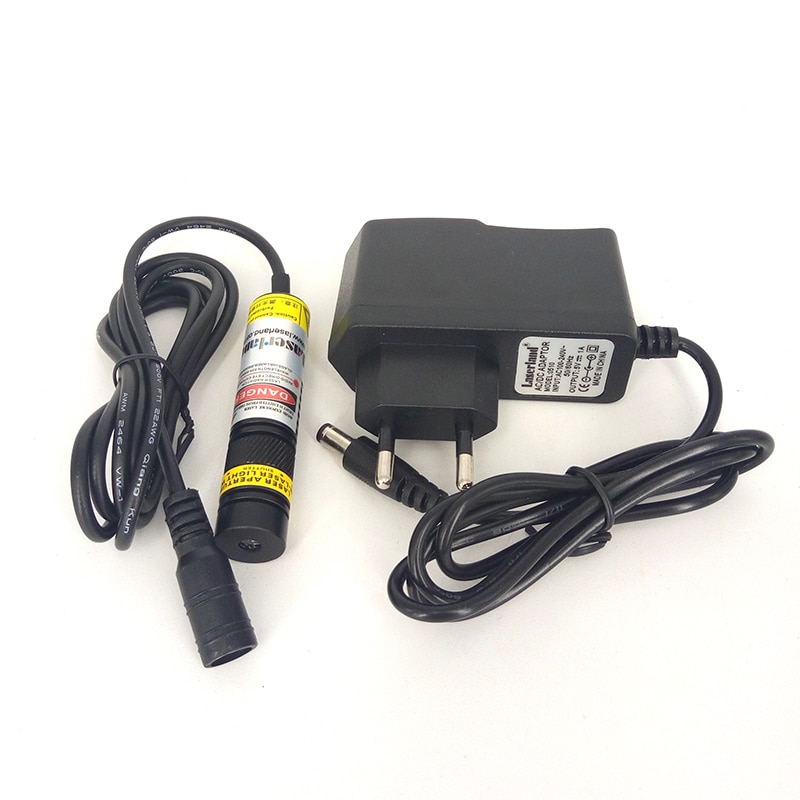

Package: one line module, one adapter(optional), one mount(optional)

Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
