Yag Fiber DPSS 1064nm Laser Galvanometer System Laser Marking Lenses and Optics Beam Expand Laser Expander
| Parameter |
| 1064nm Beam Expander | ||||||||
| Part Number | magnification | input max | output max | Dia1(mm) | Dia2(mm) | L1(mm) | L2(mm) | Connection |
| BE1064-2XA | 2 | 10 | 14 | 22 | – | 51 | – | M22x0.75 |
| BE1064-2.5XA | 2.5 | 10 | 14 | 22 | – | 51 | – | M22x0.75 |
| BE1064-3XA | 3 | 10 | 18 | 25 | – | 68 | – | M22x0.75 |
| BE1064-4XA | 4 | 10 | 24 | 31 | – | 75 | – | M22x0.7 |
| BE1064-5XA | 5 | 10 | 26 | 33 | – | 73 | – | M22x0.75 |
| BE1064-6XA | 6 | 10 | 28 | 38 | – | 75 | – | M22x0.75 |
| BE1064-8XA | 8 | 10 | 29 | 45 | – | 77 | – | M22x0.75 |
| BE1064-10XA | 10 | 10 | 18 | 14 | – | 51 | – | M22x0.75 |
| BE1064-2XB | 2 | 13 | 23 | 30 | 30 | 82.7 | 67.7 | M22x0.75 |
| BE1064-3XB | 3 | 6 | 23 | 30 | 30 | 83 | 67 | M22x0.75 |
| BE1064-4XB | 4 | 6 | 23 | 30 | 30 | 83 | 67 | M22x0.75 |
| BE1064-5XB | 5 | 8 | 24 | 30 | 30 | 83 | 65 | M30x0.5 |
| BE1064-6XB | 6 | 6 | 23.6 | 30 | 30 | 83 | 67 | M22x0.75 |
| BE1064-8XB | 8 | 6 | 16 | 30 | 30 | 83 | 67 | M22x0.75 |

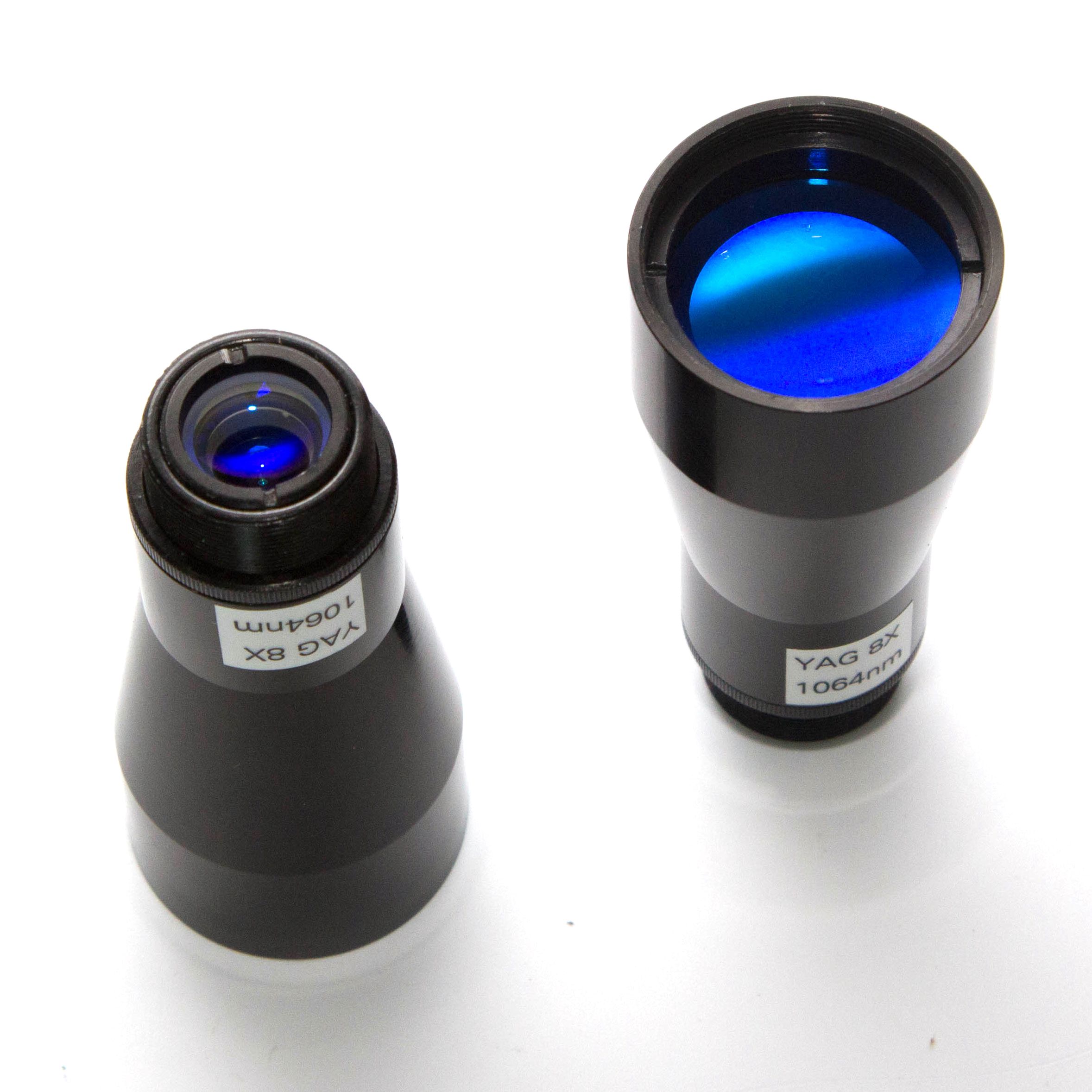

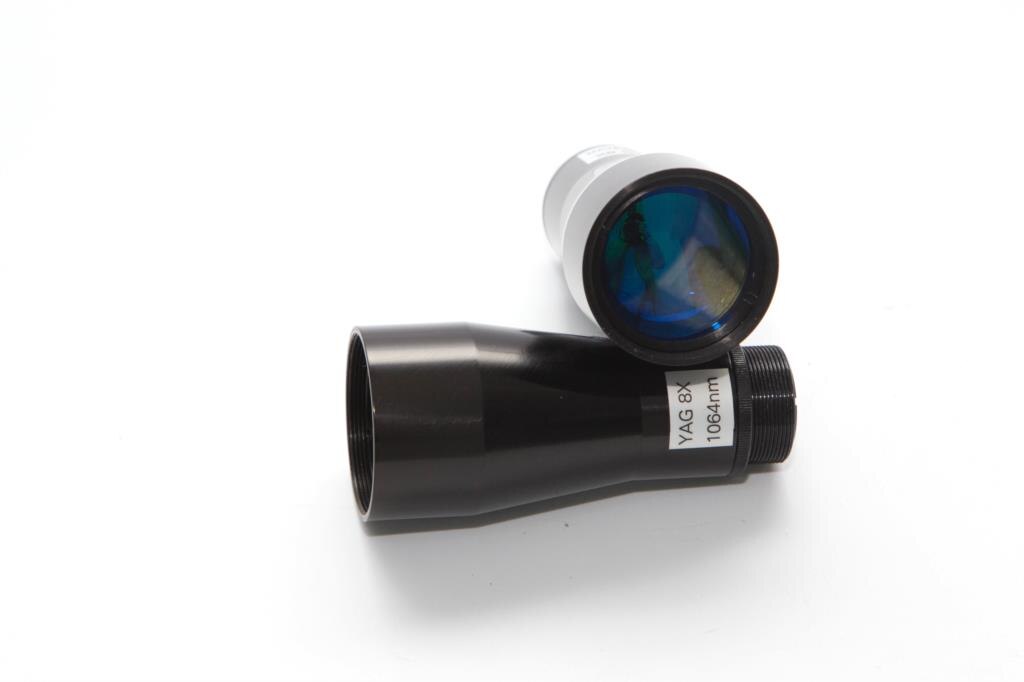

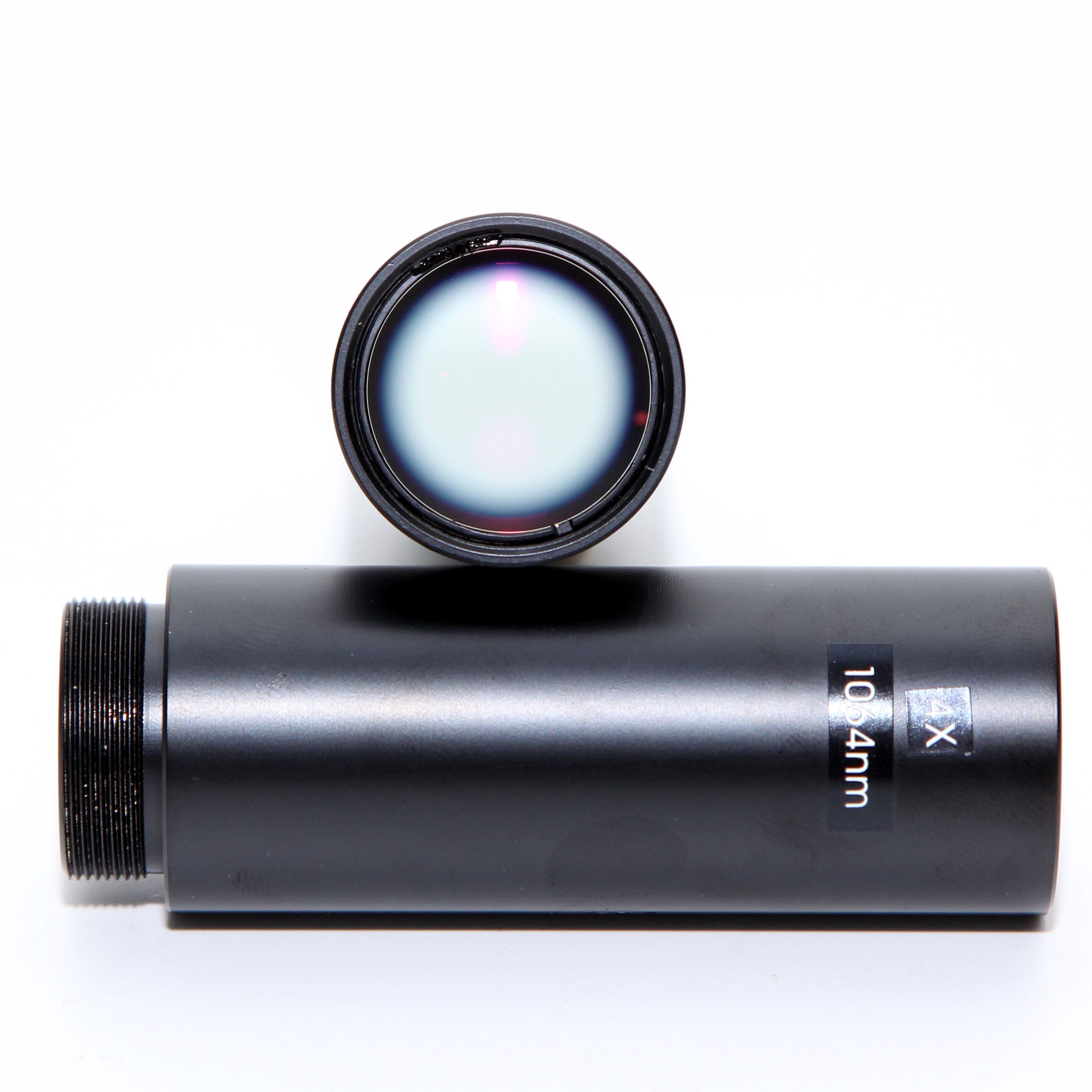

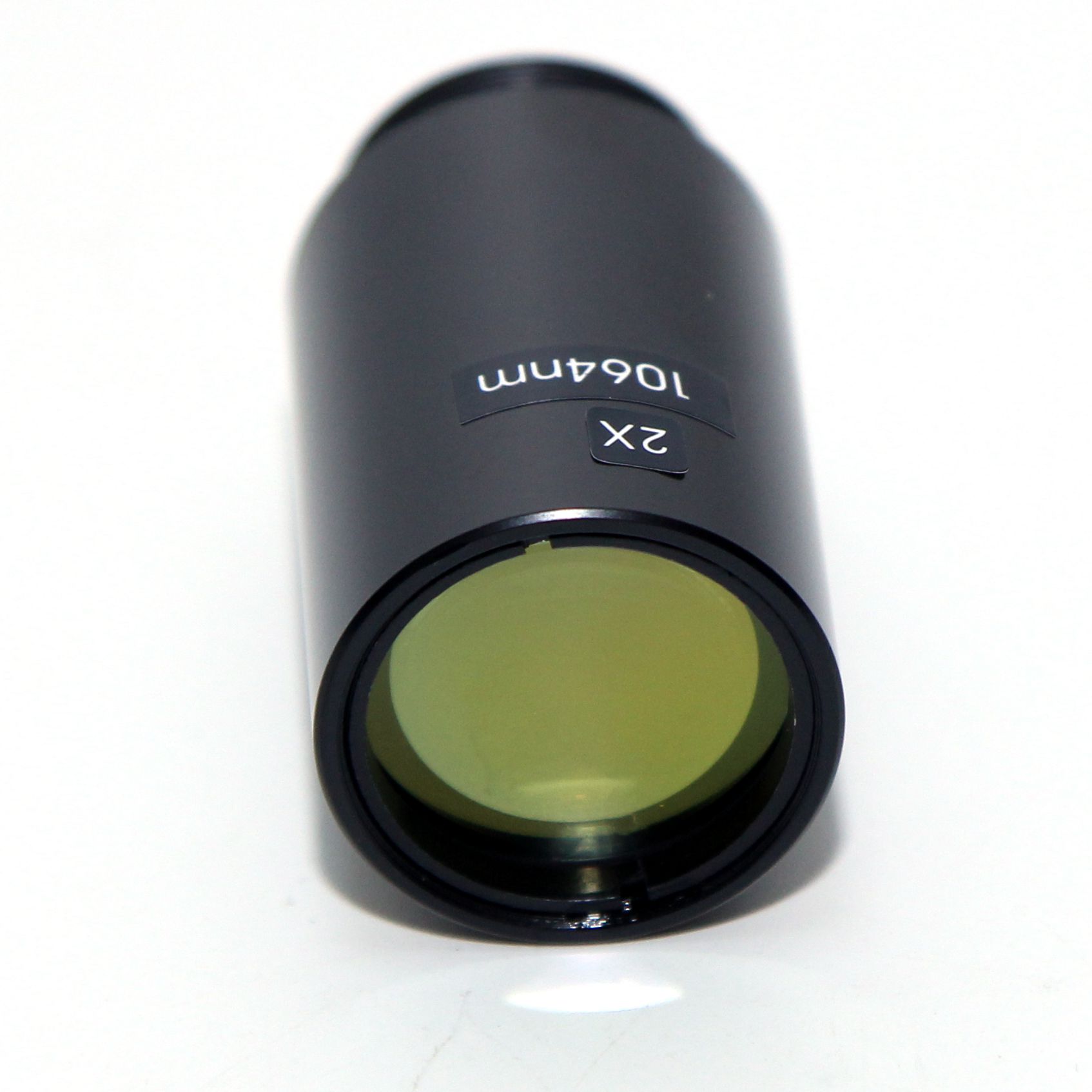

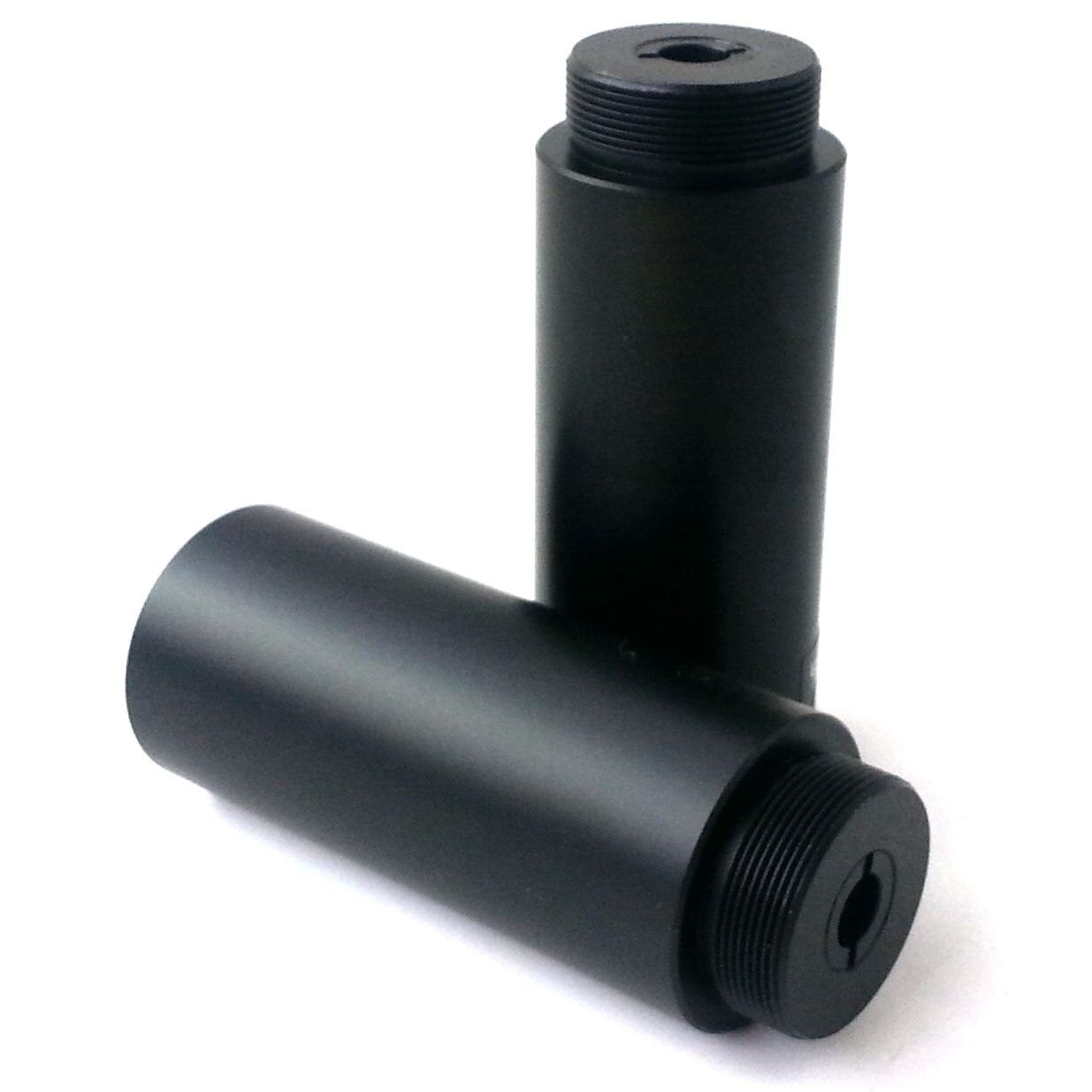

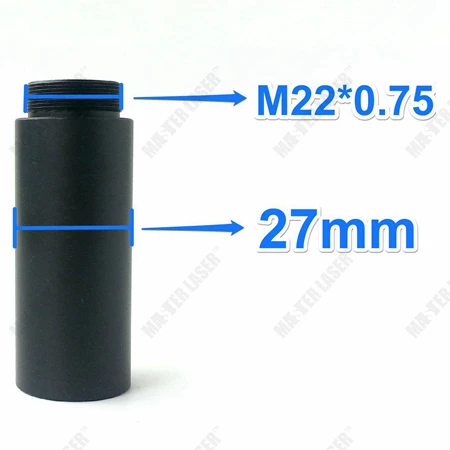

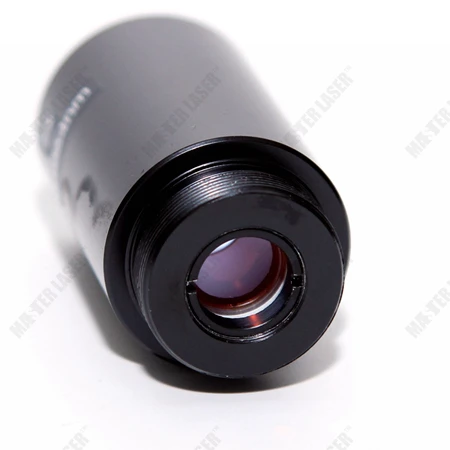

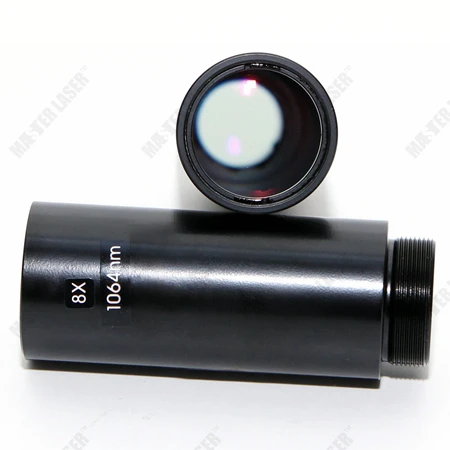

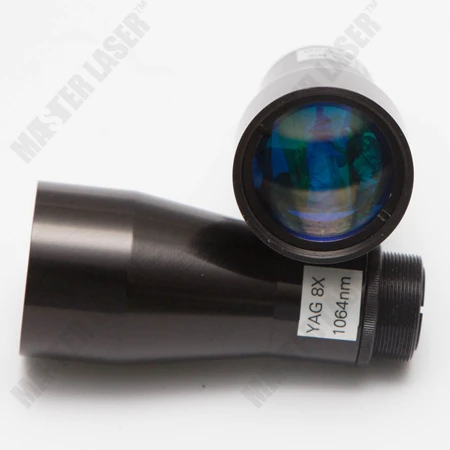

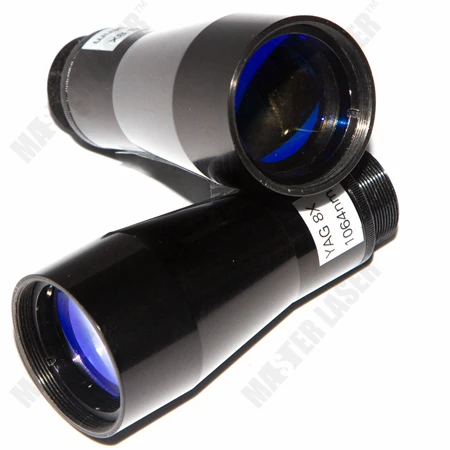

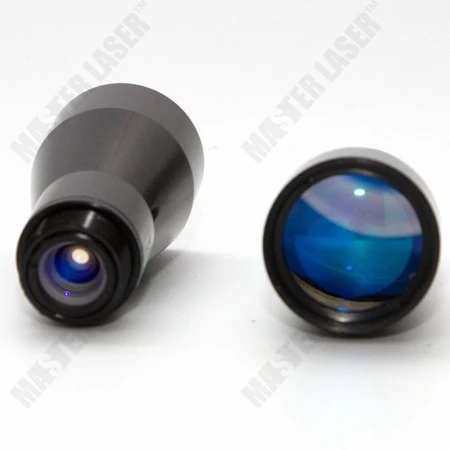

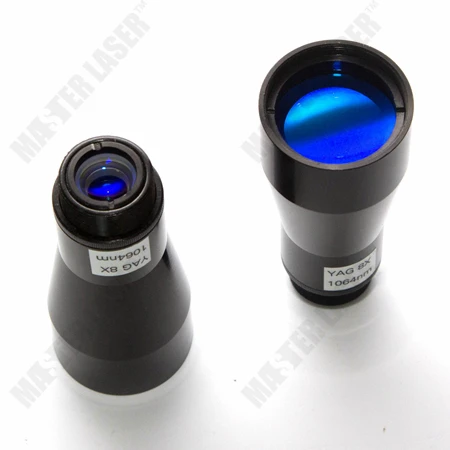

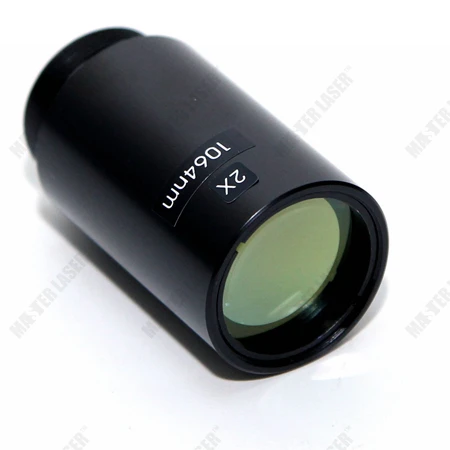

| Product Picture |
