Description

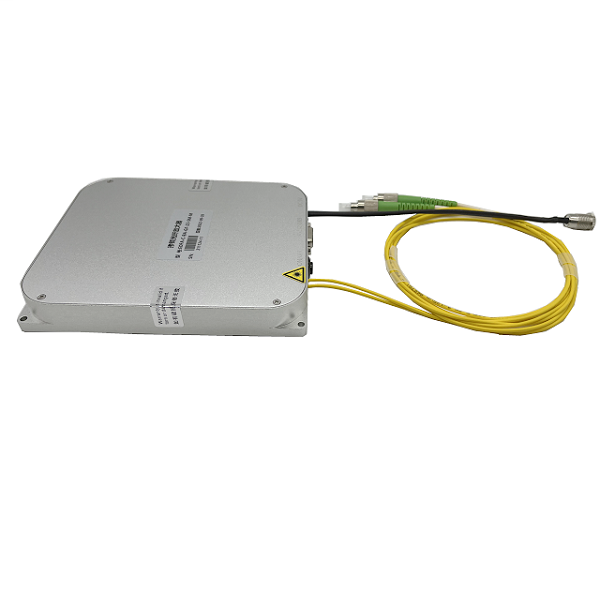

Ytterbium doped fiber amplifier YDFA of wavelength 1064nm generates gain by pumping ytterbium doped fiber with semiconductor laser. The semiconductor laser is used for laser signal in the 1030nm~1100nm band.

Hi1060 single-mode fiber or PM980 polarization-maintaining fiber output, the output power is continuously adjustable, with high gain and With the advantage of low noise.

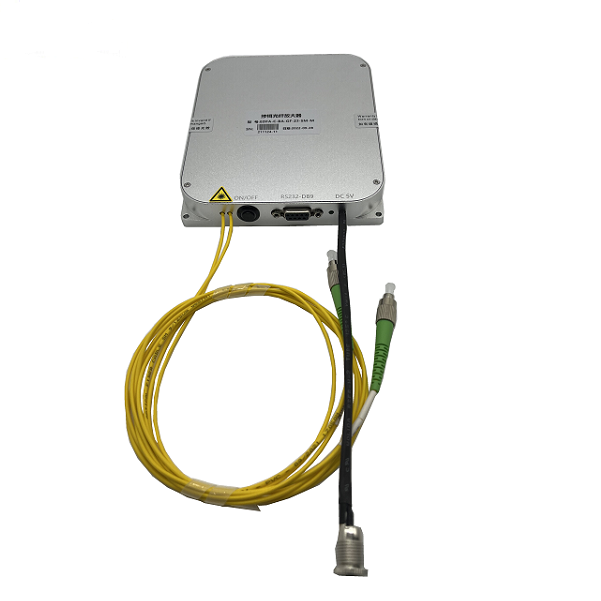

The desktop Ytterbium doped fiber amplifier YDFA is convenient for experimental operation, and the user can adjust the pump current and output power.

Features:

Wide wavelength range;
High output power;
Low noise.

Applications

Optical fiber communication;
Optical fiber sensor;
Fiber laser;

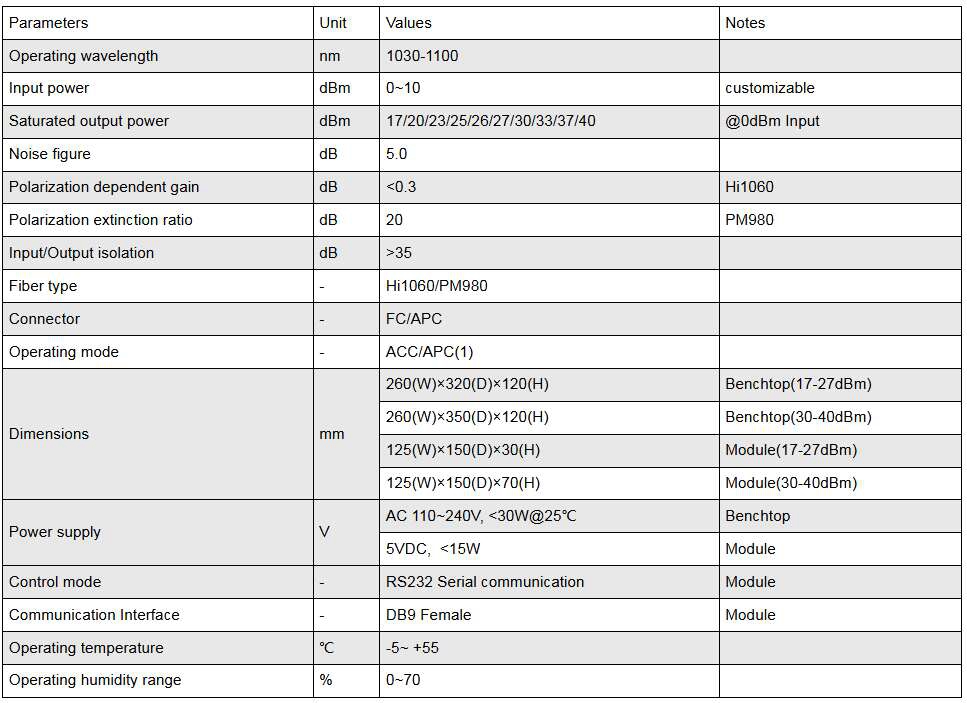

Operating wavelength：1030-1100nm
Input power:0~10 dBm
Saturated output power:dBm 17/20/23/25/26/27/30/33/37/40@0dBm Input
Noise figure:5.0dB
Polarization dependent gain:Hi1060 < 0.3dB
Polarization extinction ratio:PM980 20dB
Input/Output isolation:>35dB
