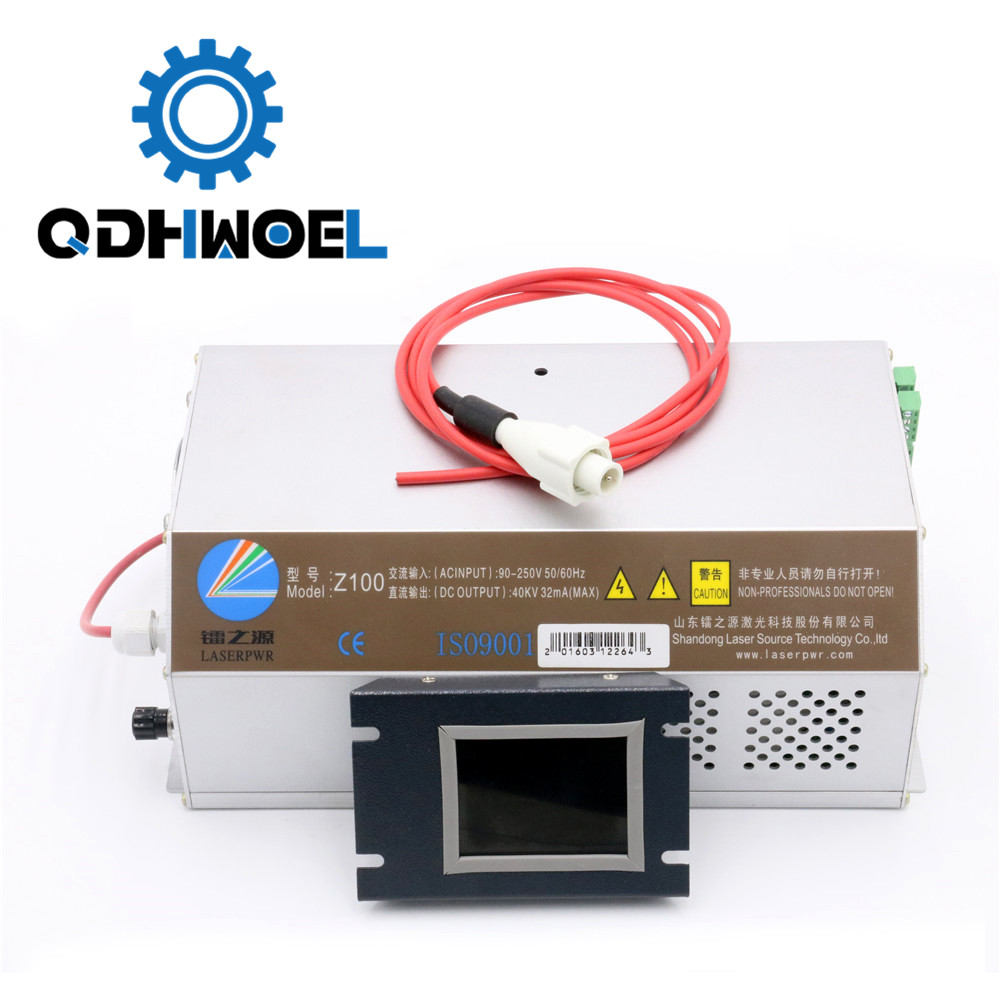

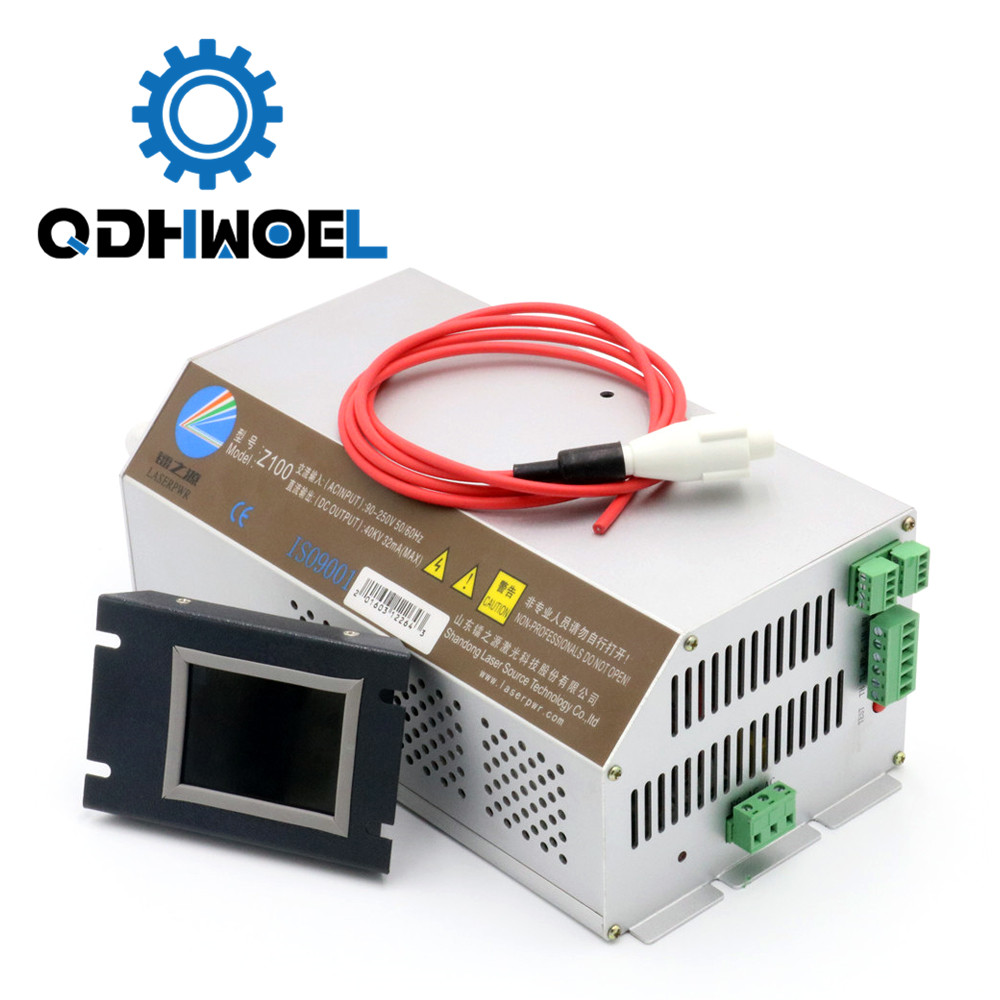

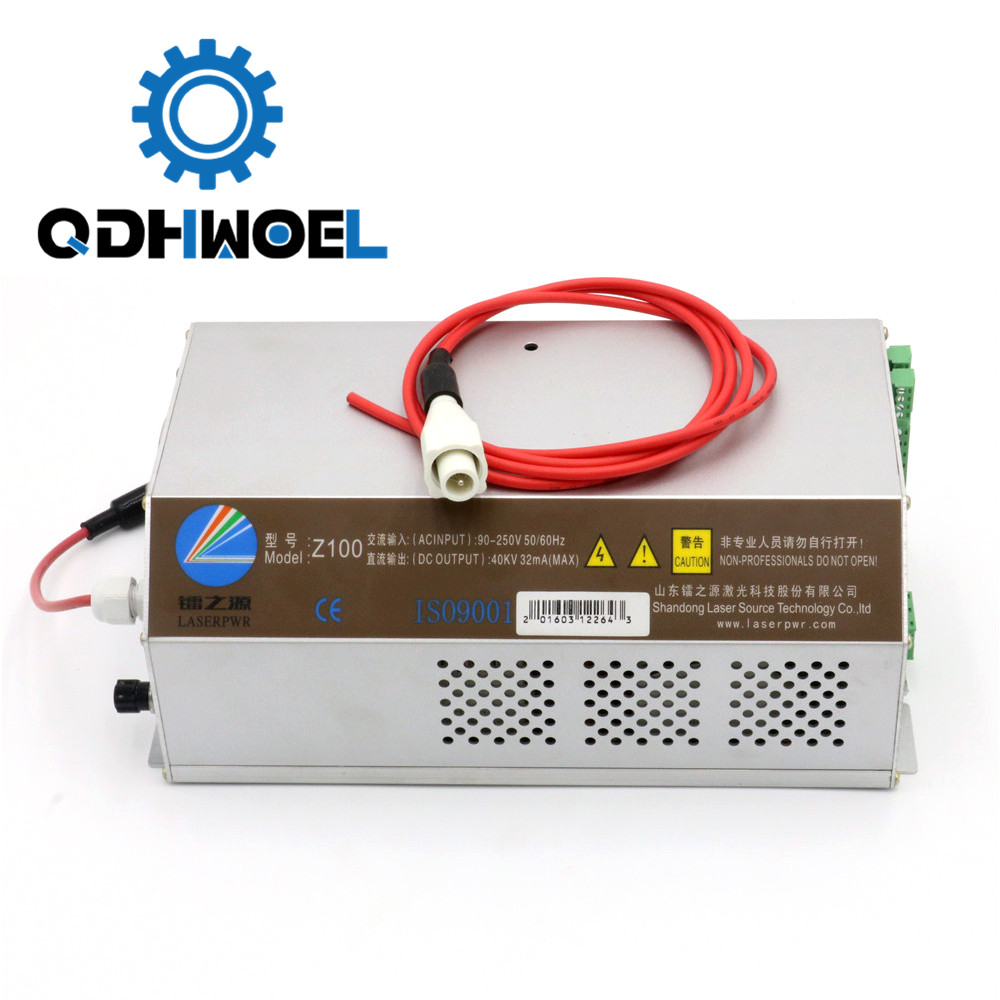

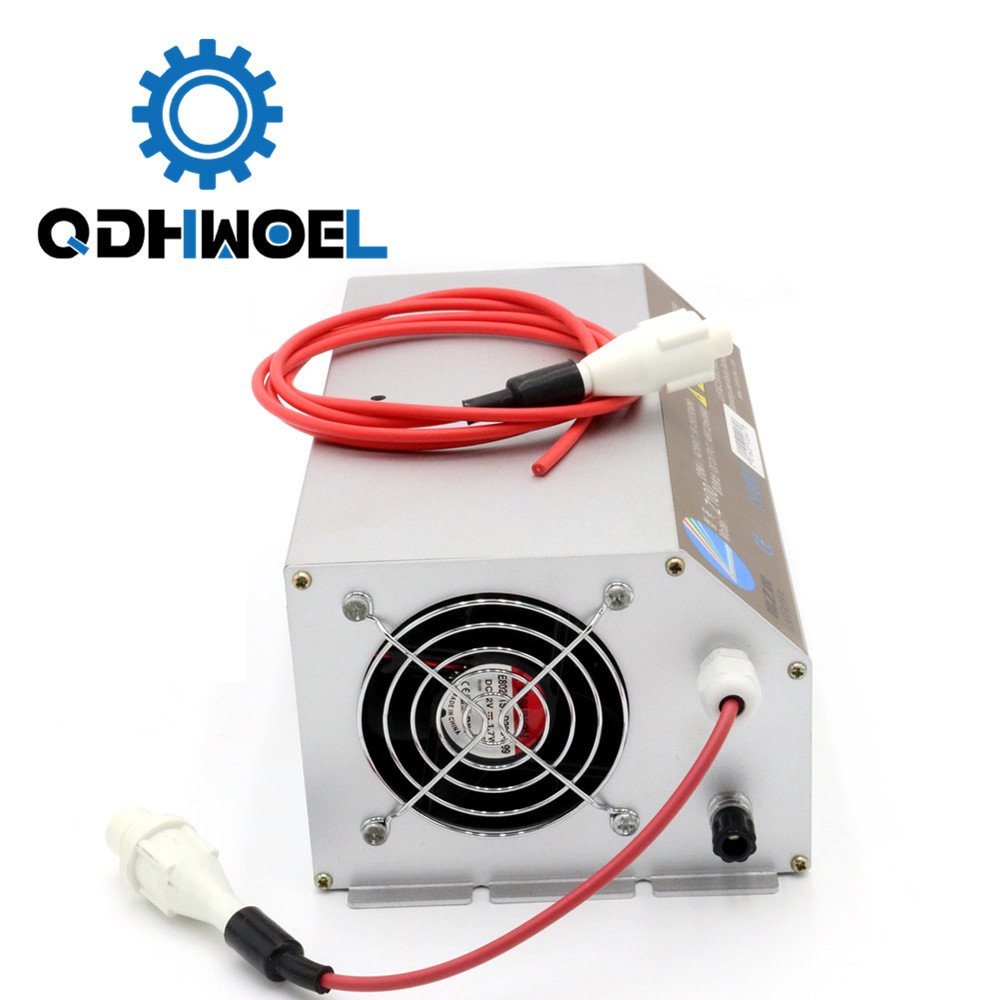

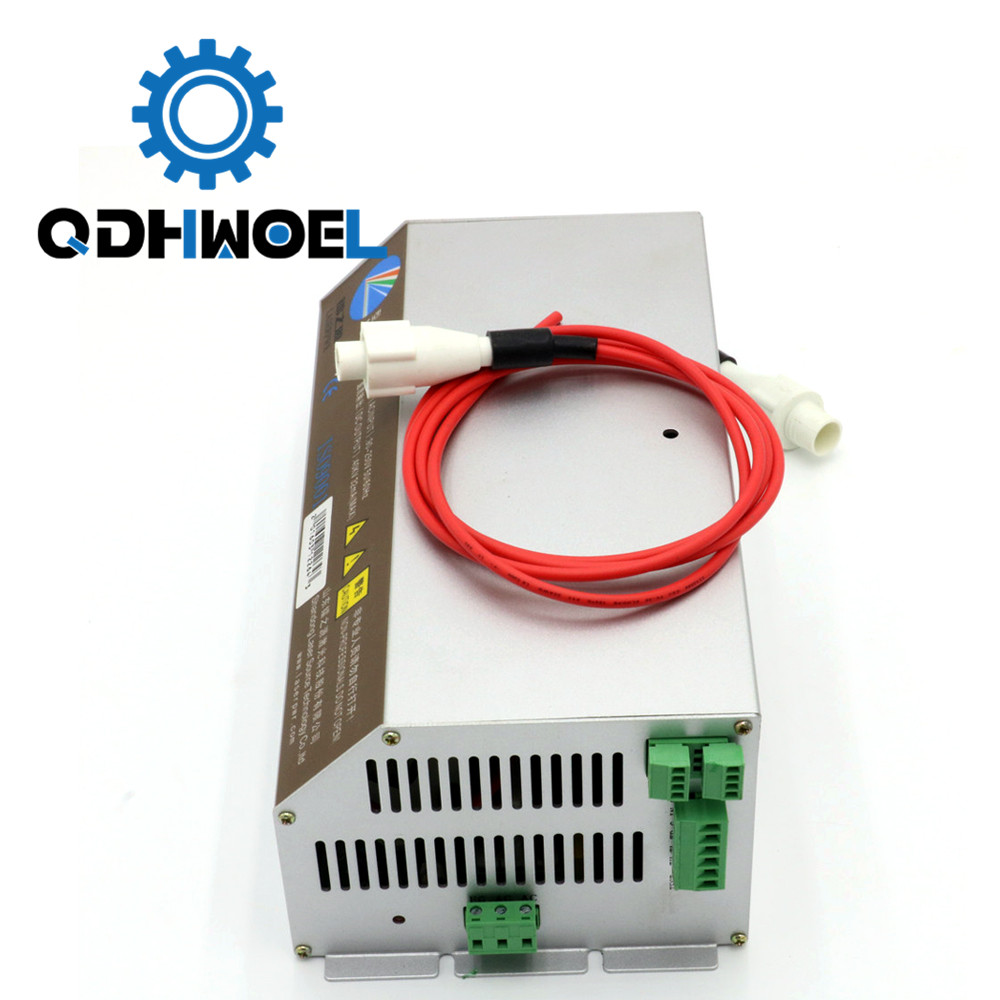

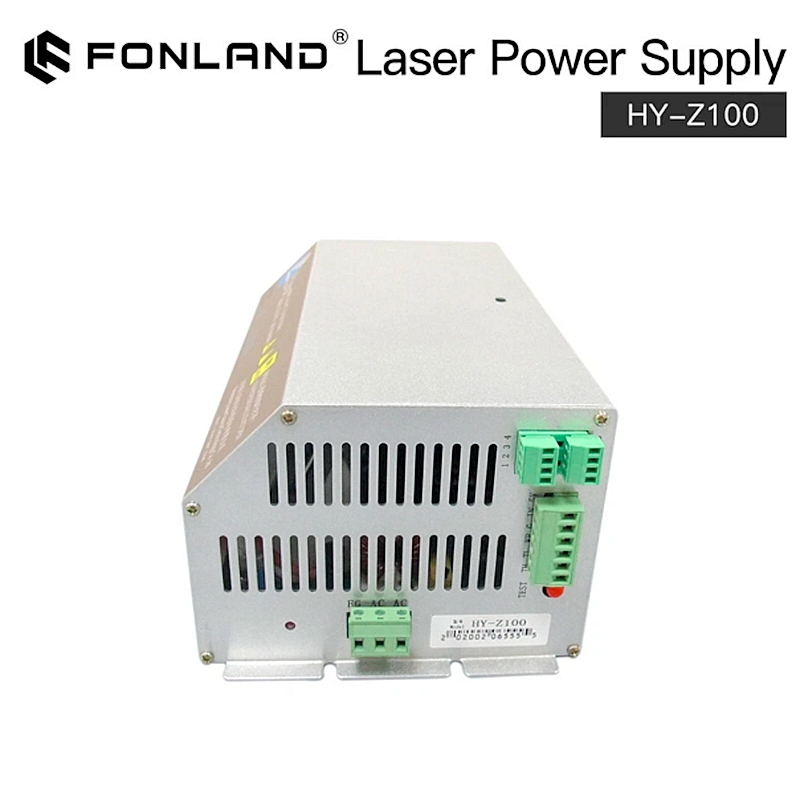

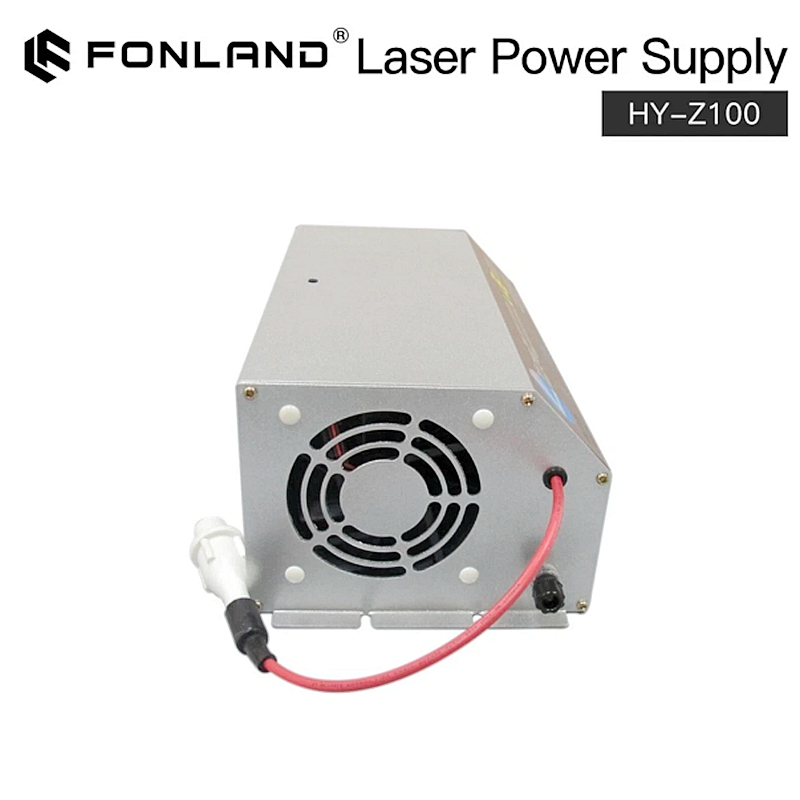

Z100 Intelligent Co2 Laser Power Supply 100W For 100-120W Co2 Laser Tube With LCD PFC function



1.Main Features:



1. Unique design with several patents



2. High intelligence: built-in control, can communicate with motion controller, and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working condition of power supply, very easy for user to monitor and judge the fault.



3. Make the maintenance much easier: User can judge the problem by himself.



4. Multi-function LCD screen: One LCD screen can show the information of two power supplies, easy use for multi-head machine.



5. Universal: with PFC function, AC90-250V input voltage range, globally universal.



6. Open circuit protection: When the high voltage end is in open circuit or not connected well, the power supply will start automatic protection, to prevent high voltage arc effectively.



7. More safety: with high voltage discharge function, no residual voltage when turning off, safer for user.



8. Excellent cover with patent design: Good appearance, better heat dissipation.



9. Improved current control mode, more stable laser, better compatibility.





2.Parameters:



















Laser power supply maintenance of common sense:

1, Before maintenance, check the power supply shell is normal grounding;
2, measuring power box shell on the work station or whether there is a voltage difference between the workbench
3, power box with high pressure on many places, after power on, hand can’t touch the metal parts of the device
4, Before replace the power box inside device ,turn off the power supply of the energy storage capacitor shall be discharged completely and voltage profile after confirm no voltage for the next step of replacement or repair measures
5, if the laser machine works unstable, or fall of work, can check circuit screw, terminal blocks, such as whether is loose, wiring the phenomenon such as oxidation.the old power supply or the power supply works under poor environment ,pay more attention on formation condition.
6 ,when maintenance,don’t tear down the internal cable tie and connecting wire, control panel, or cut disorderly change, is likely to cause the whole machine interference or performance degradation, and even cause scrap.



Fault Analysis of CO2 Laser Power Supply Not Working:

CO2 laser power does not work

(1) Maybe overvoltage protection action:
     A. Please check whether the power supply output and the positive connection of the lamp are reliable!
     B. may be damaged or lamp tube aging, breakdown voltage exceeds 35KV.
(2) Check that the AC input cable and the control wire are securely connected.
(3) Check the high-voltage output line for damage, leakage may lead to power in the work, but the lamp is not light!
(4) Power ground wire (not the power output of the black line but the first port of the AC input terminal see page 3 of the manual) is correct and reliable access to the earth.
