Description
- Brand Name: ZEAST
- Certification: None
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Accuracy Class: other
- Model Number: 4000W Voltage Regulator
- Measuring Range: other
- Dimensions: 85x60x40mm

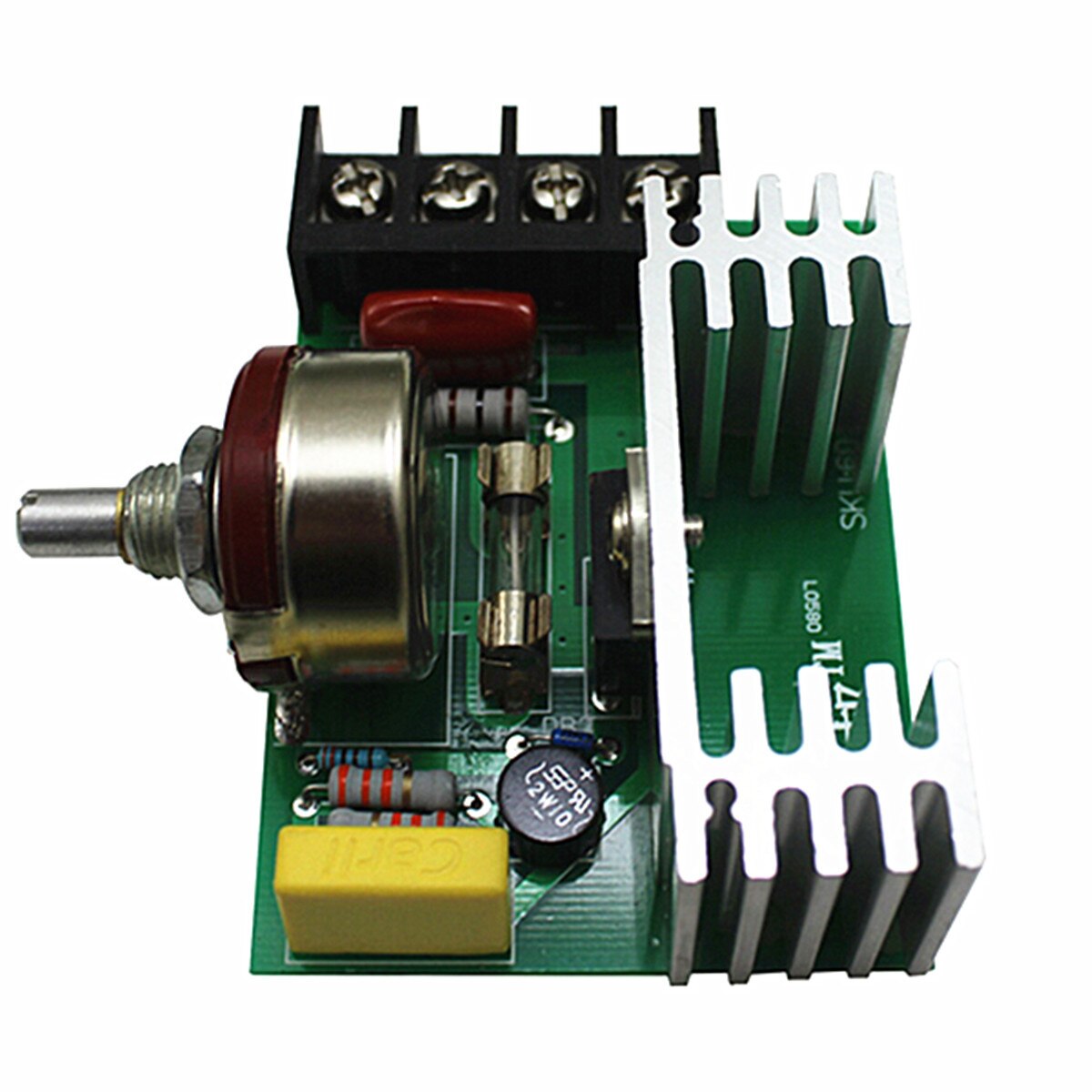

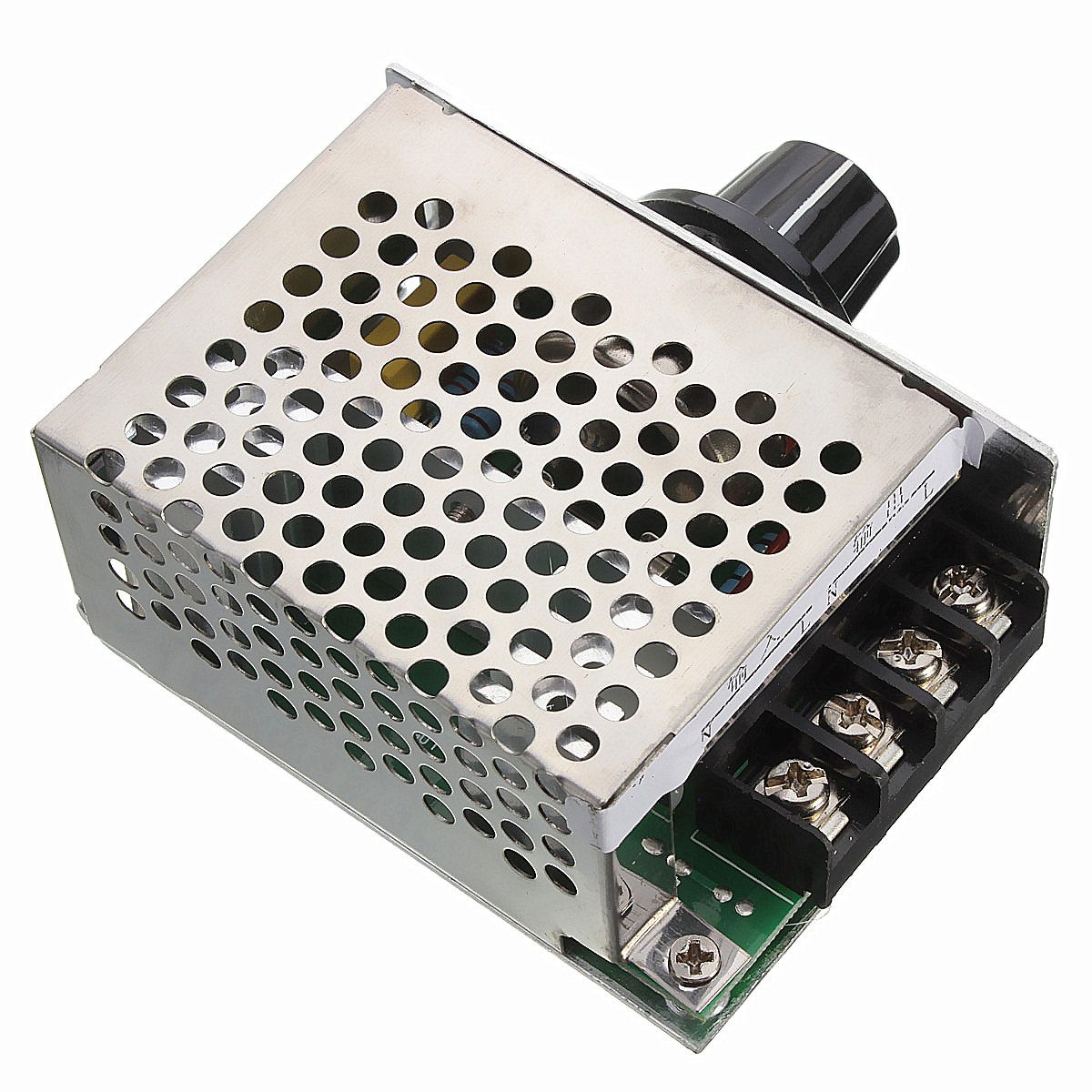

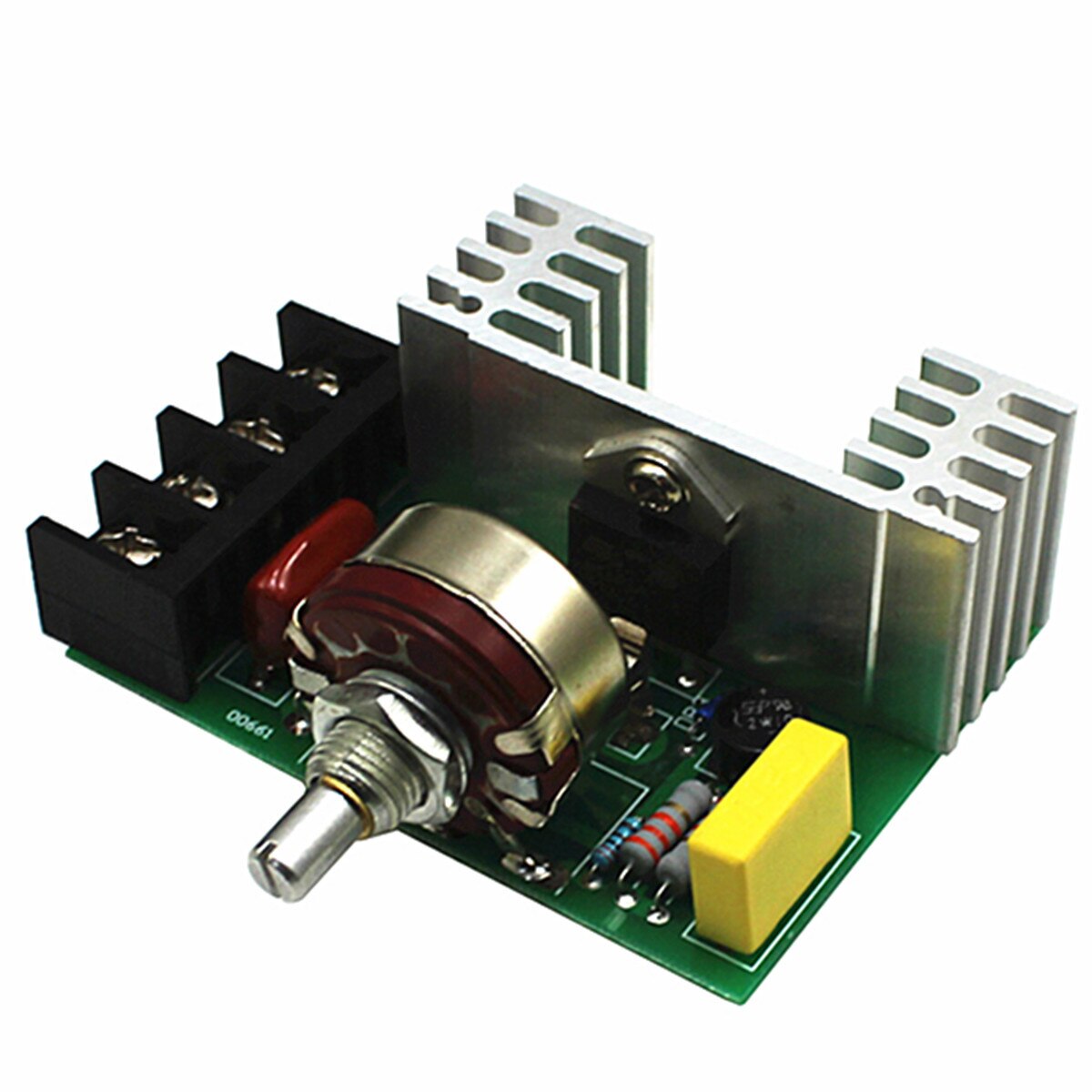

4000W AC voltage regulator, easy to use, can play dimming, thermostats, pressure effect
Voltage: AC220V
Maximum : 4000W
Voltage Regulation: AC0 ~ AC20V

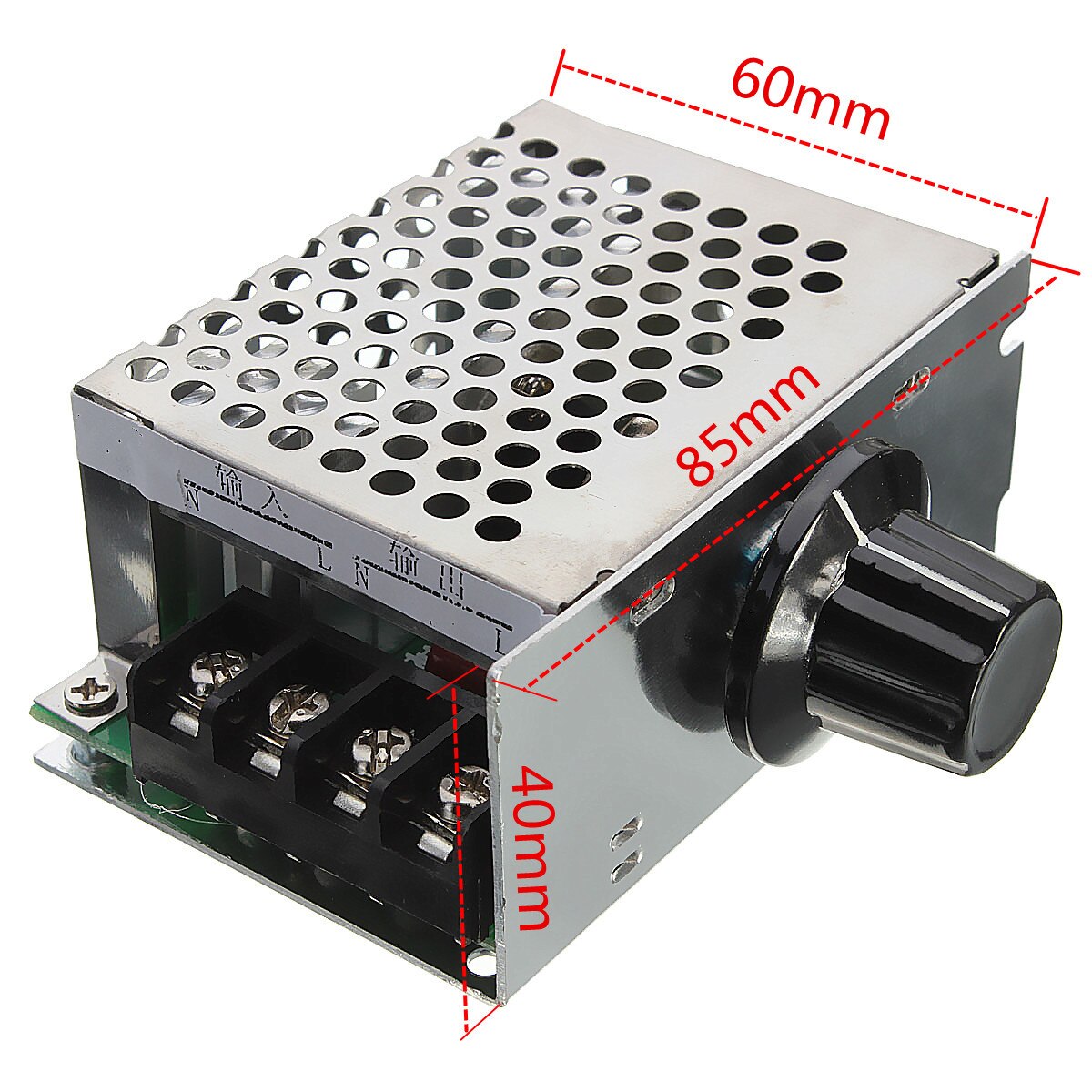

Size: L85mm x W60mm x H40mm rotation hole 6mm
Instructions:

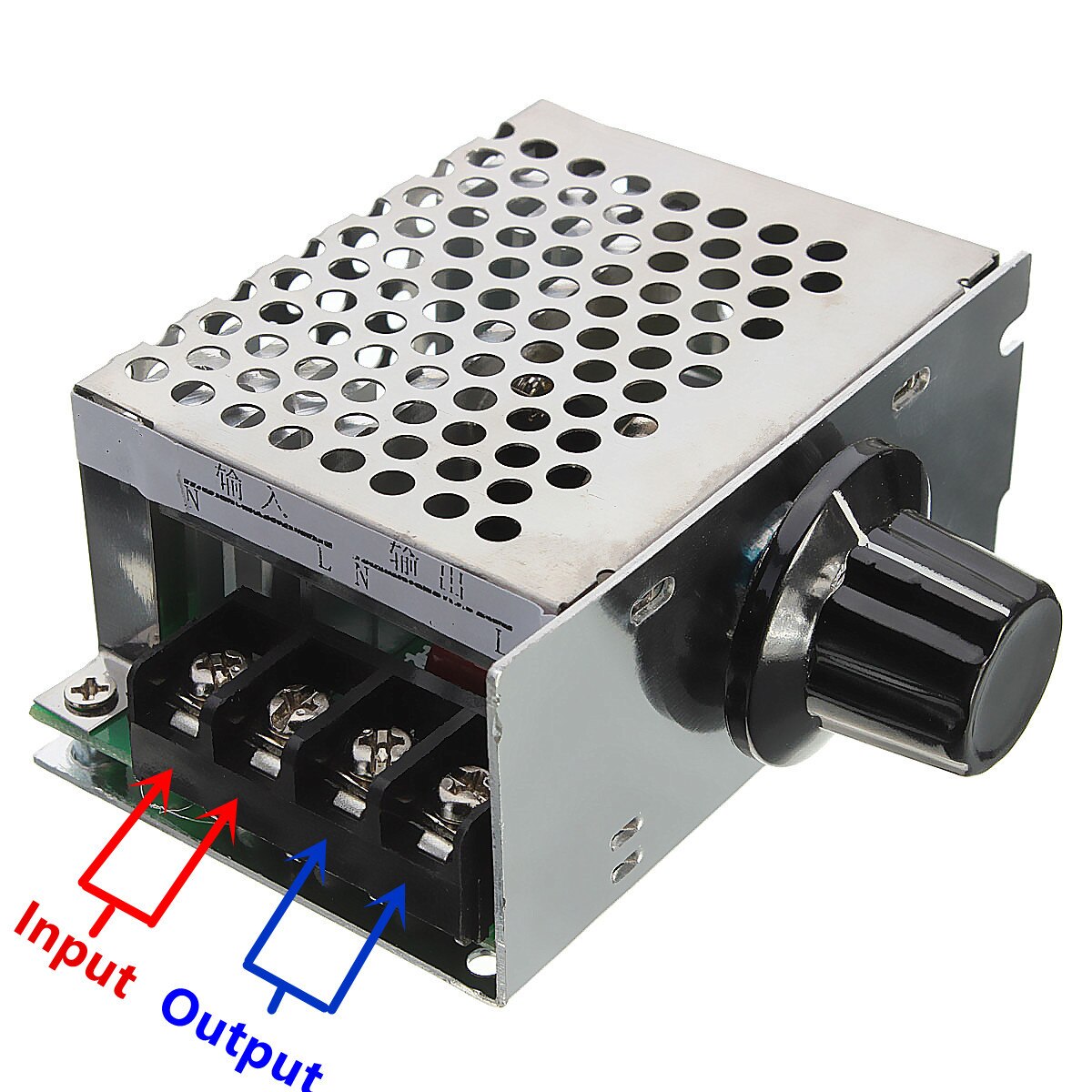

The role of the product access AC220V, output is connected to the electric wire or electrical appliances,
rotary potentiometer, can play speed, pressure, thermostat
Suitable for:
Using the new two-way high- thyristor, because the design maximum current can 20A,
a good solution to the problem of over-current electric wire in the case of cooling caused by the resistance is too small, can easily adjust the output voltage at AC0 ~ any adjustment between AC220V
Precautions:
Note that the load can not exceed the specified maximum ,
otherwise it will burn the module and electrical
Try using a resistive load, inductive capacitive load to be greatly reduced
Do not try to open or modify regulator
Package include:
1x Regulator
