Description
- Brand Name: MS-moto
- Model Number: SD-AR824C9-60
- Wavelength: 940 nm
- Viewing Angle: 60 degree
- Chip Size: 24mil
- Diameter: 8 mm
- Current: 150 mA
- Color: Water clear
- Voltage: 1.3-1.5V
- Lighting Source: Invisibe infrared light
- Use for: Hunting Camera
- Package Type: Through hole
- LED leg material: copper
- LED size: H:11.5mm, W: 8.8mm
- Type: IR LED
- Lighting source type:Infrared
- Color: white clear
- Size: 8mm
- Shape: round
- Wavelength:940nm
- Max Power Dissipation : 0.5W
- Voltage:1.2-1.5V
- Forword current: 150mA
- Viewing angle: 60 degree
- Operating temperature range (°C): -40 to +85
- Lens Life: 10,000h
-

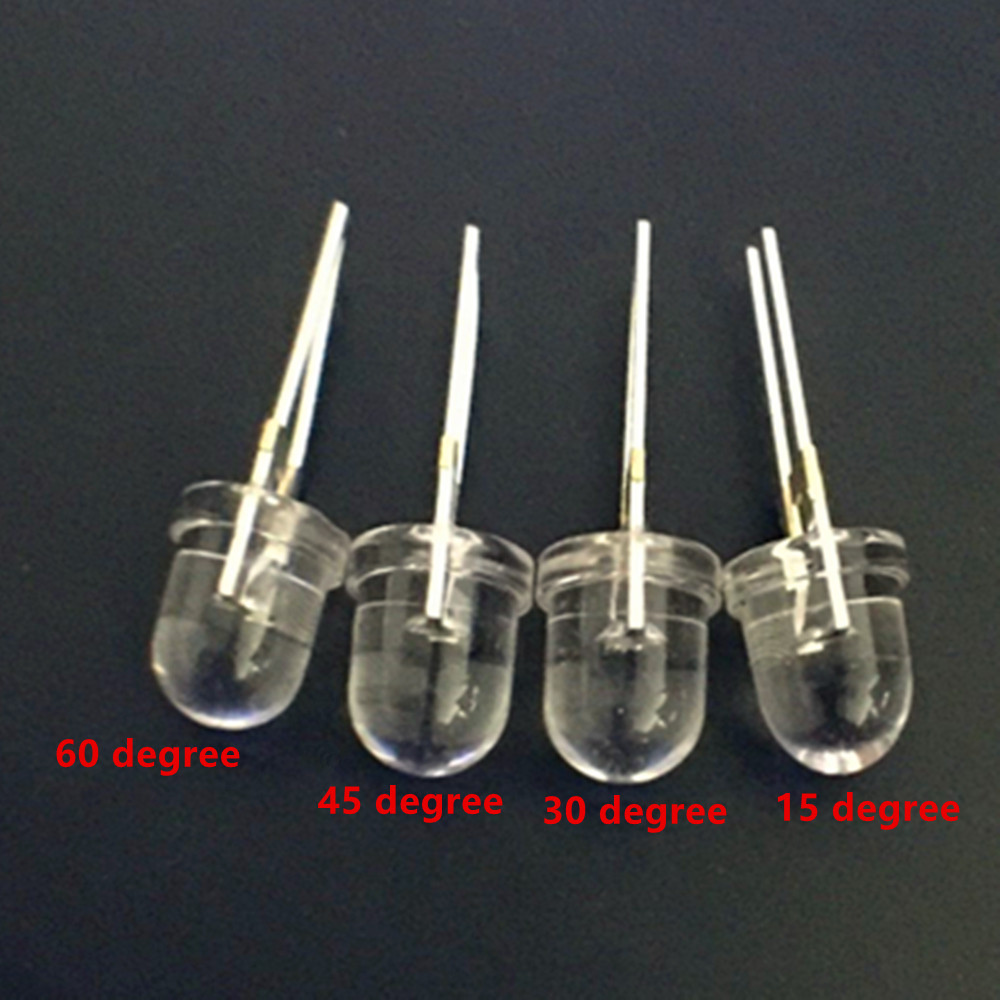

Angle compare picture
