- Model Number: 20mm diameter
10.6nm CO2 laser 20mm Beam Combiner Laser Diode Red Dot Pointer Beam Combiner Mount set for Laser Marking Machine
20mm diameter beam combiner
5v Red pointer , and 12mm diameter red pointer
The function of beam combiner：
It is combine two beams into one .
It is widely used in co2 laser industry .it make co2 laser and red light can be visible . General is 10.6um infrared laser and 500-700nm red light into a bunch.
The light beam of the other wavelengths can also be integrated
The principle of combined lens：
co2 laser is invisible line . But red line is visible
Beam combiner make co2 laser pass through , It does not affect the CO2 optical .and it make the red line reflecting , then the beam combiner combine the visible red line with invisible co2 laser line .then make the laser beam visible

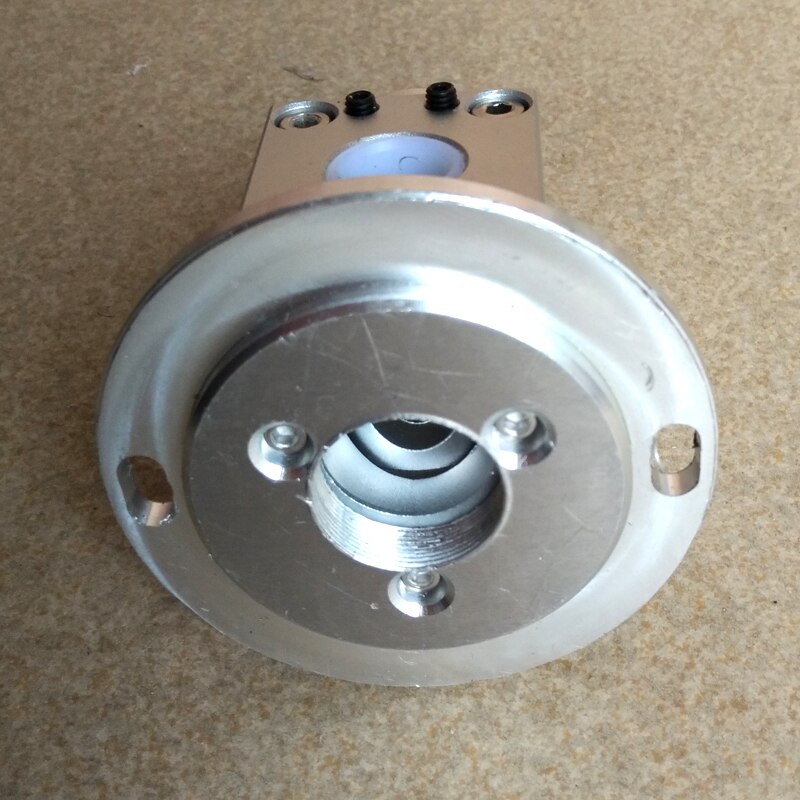

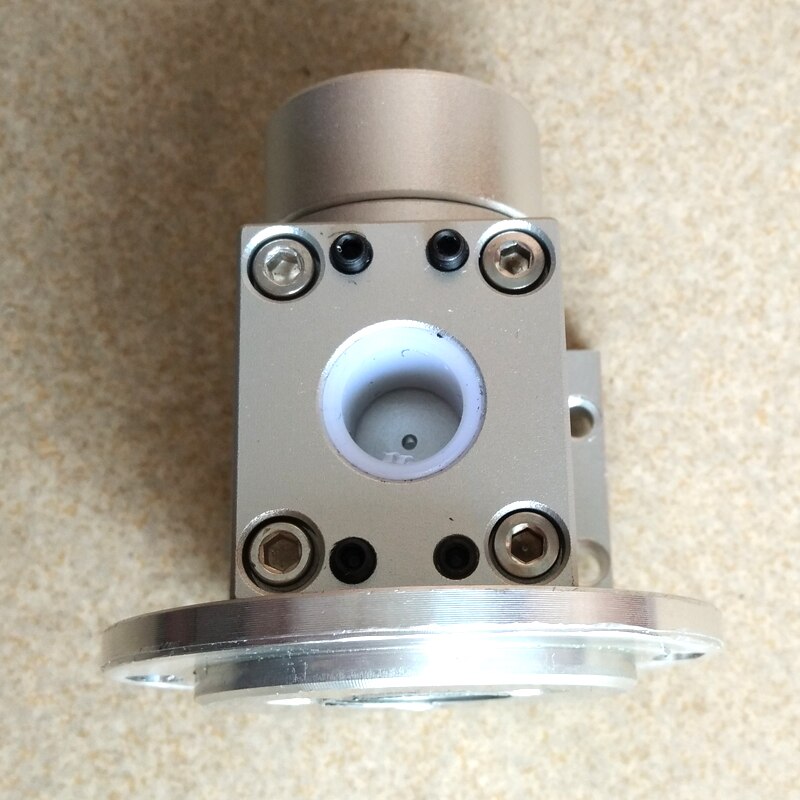

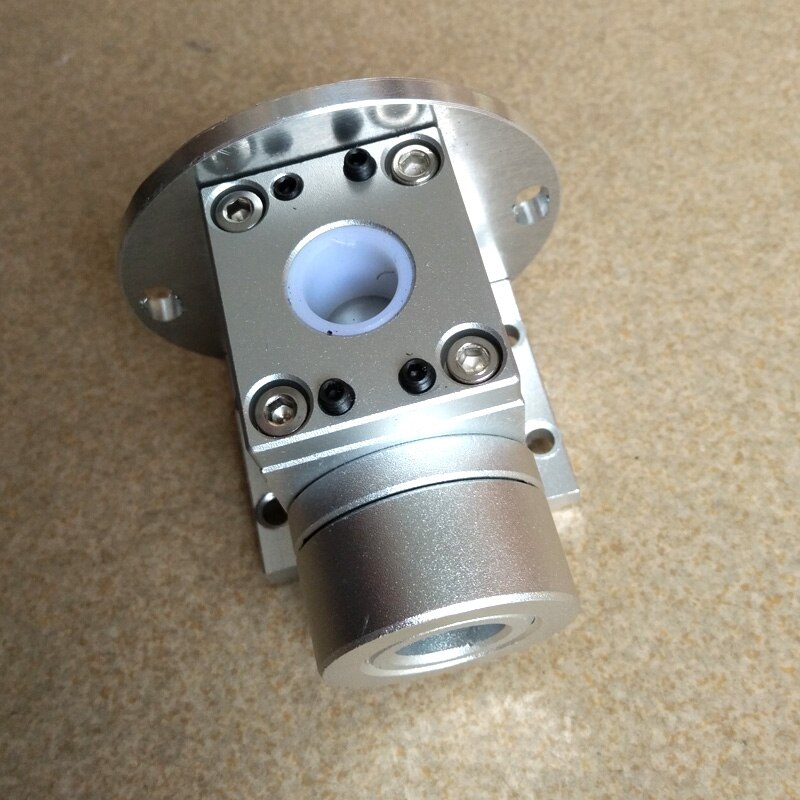

Used beam combiner support to hold the beam combiner and red pointer together ,
It is completed set of laser beam combiner
If you required more information please feel free to contact us ,
