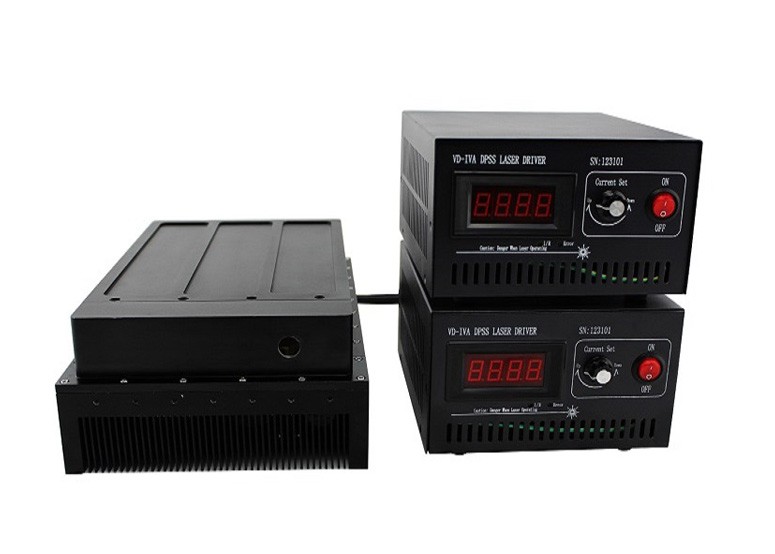

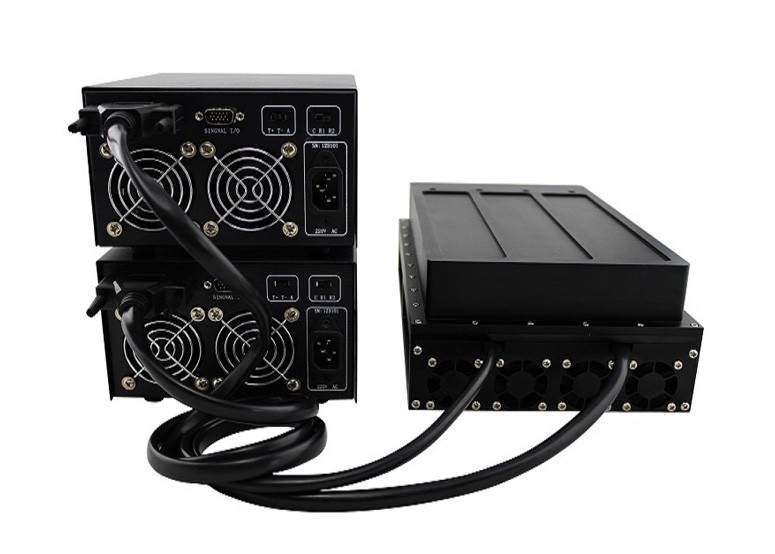

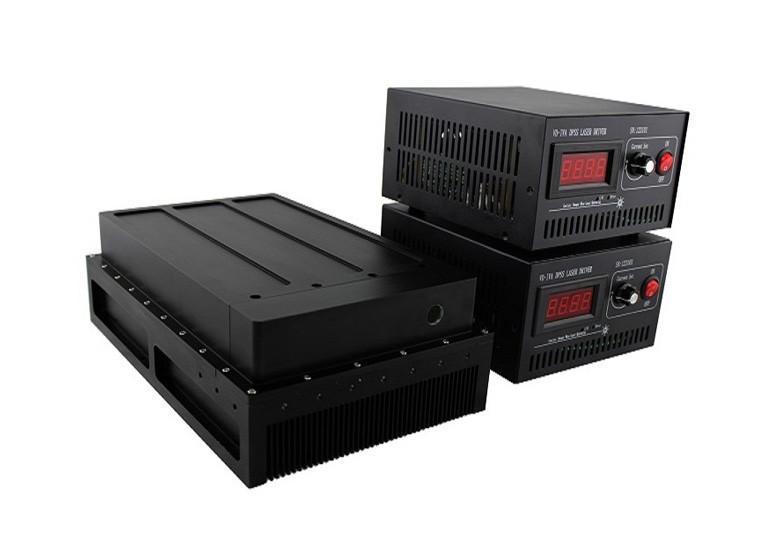

1064nm-20W Infrared laser high stability analog modulation with TTL




Features: 1.TTL modulation, analog modulation, 2. power adjustable, 3. stability 1%
Scope of application: laser medical, scientific research, optical instruments, focusing microscope.

Wavelength (nm) 1064
Output Power (W) 20
Working Mode CW
Beam Mode Transverse TEM00
Longitude Multi-longitude
Spectral Linewidth (nm) <0.1
Polarization Line polarization
Polarization Ratio >100:1
Beam Quality (M2 factor) <1.4
Beam Divergence (full angle, mrad) 2
Beam Diameter at Aperture (mm) 3.0
Beam Roundness >90%
Power Stability (RMS, over 8 hours) <5%
Aperture Position (mm) 90
Laser Head Dimensions (L×W×H,

320 x 112 x 109

Integrated Driver Model VD-IIIB Series
External Modulation 5V TTL / 5V Analogue
Modulating Frequence 30KHz TTL / 10KHz Analogue
Cooling System TEC + Air cooled
Warm-up Time (minutes) <15
Operation Temperature (℃) 18~30
Expected Lifetime (hours) >10000
Warranty Time 1 year
