Description
1230 532nm 10mW Green Laser Diode Module Focus Dot Point Industrial Grade 5V
Parameters
Wavelength:532nm
Output Power:10mW
Working Voltage:DC5V
Working Temperature:＋15 ℃~＋35 ℃
Laser Shape:Dot
Focusable:N/A
Material:Brass
Duty Cycle:45 seconds on,15 seconds off
Dimensions:ф12×46 (30 + 16mm) Length: copper + PCB board
Features
The range :3000 meters
inout voltage = DC 5V
(5V for the most suitable voltage,
Such as use the battery power ,Voltage can between 4.7-5V,
Such as use the transformer.Make sure that the voltage between 4.7-5V)
The default focus is at 13 meters ,
That is at 13 meters can get the minimum point .10 * 10mm
Try to be placed in the thermal conductivity of the metal block can be ventilated environment when use the laser,
Turn off the laser if the laser heat
This is conducive to the life of the product.
By not adding the heat sink lit situations.
If the body heat.
It can not continuous lighting for more than 45 seconds.
Package

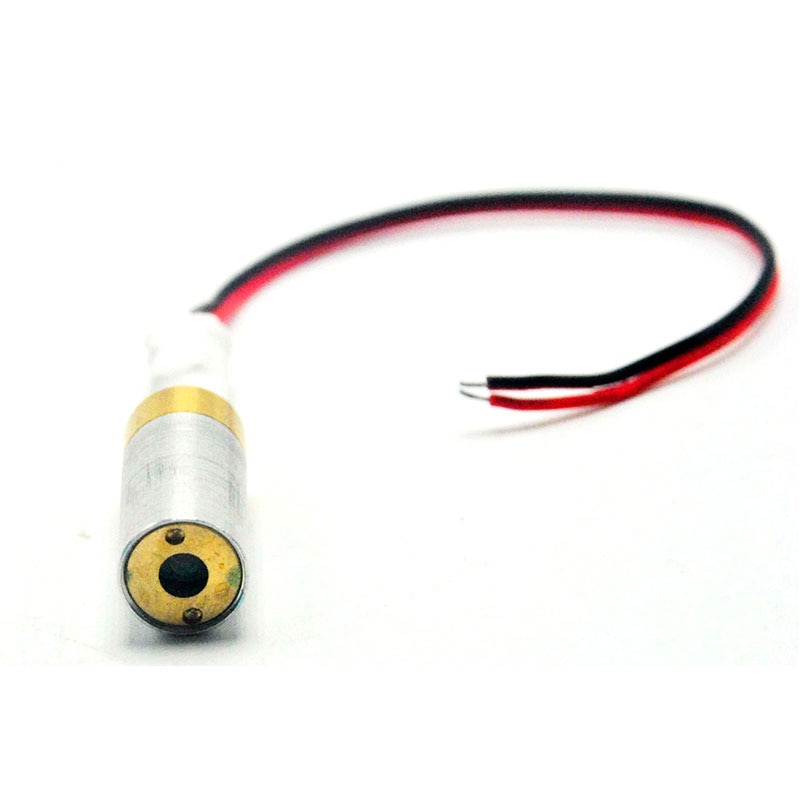

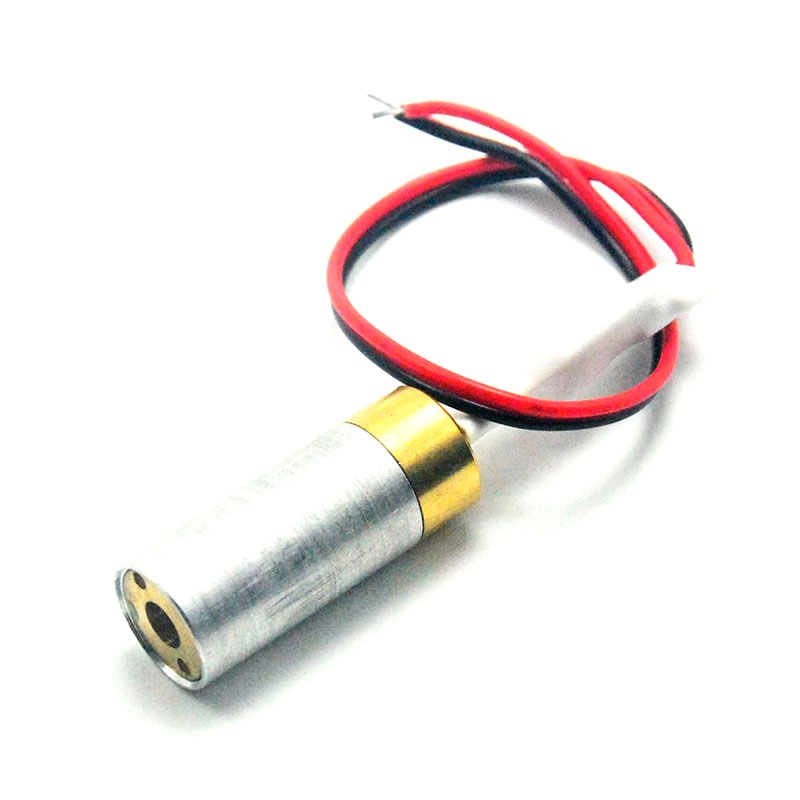

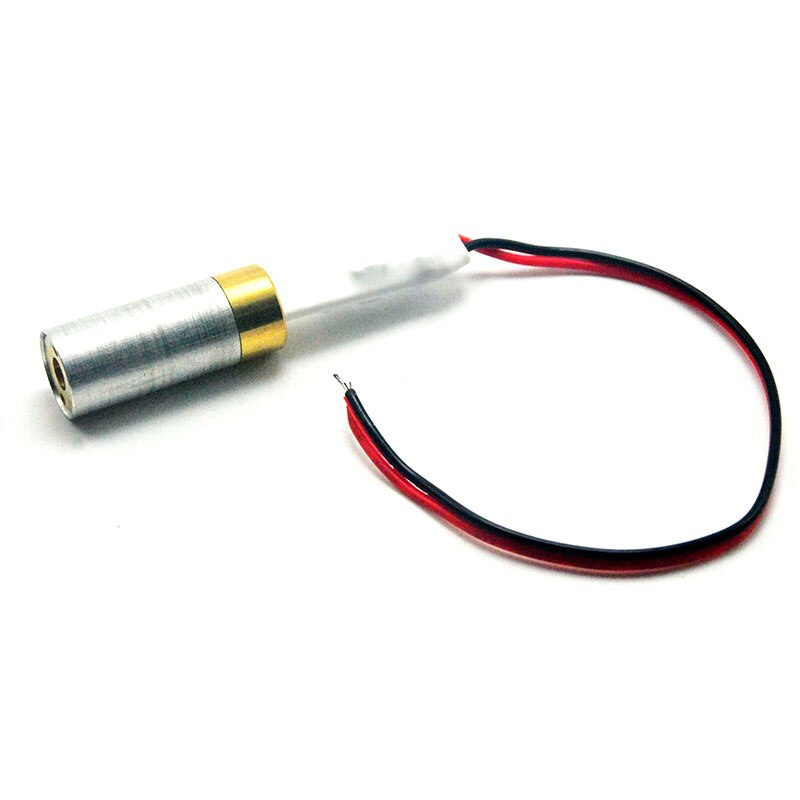

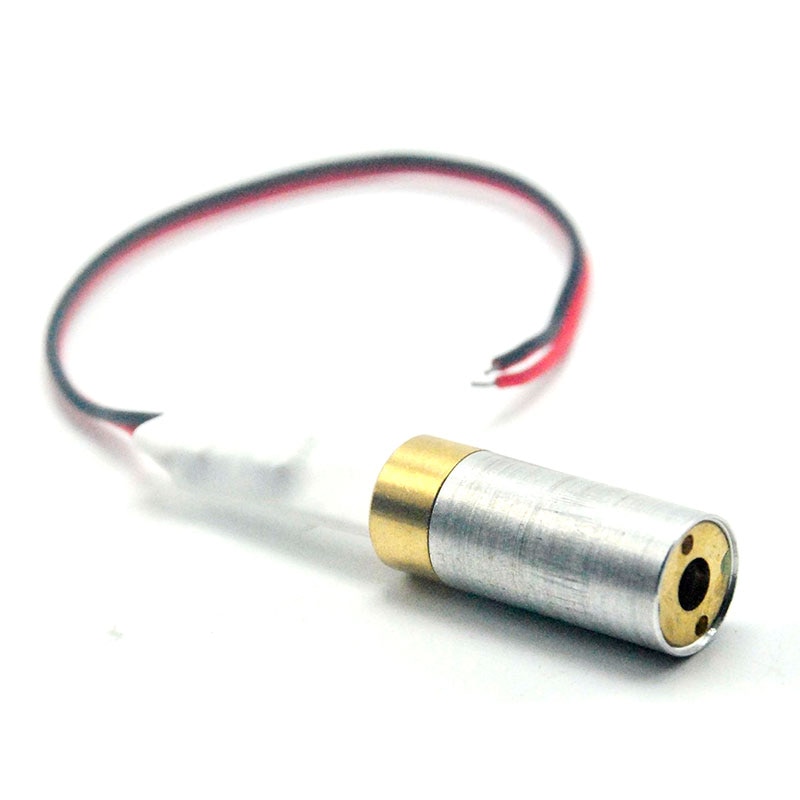

1pc 10mW 532nm Green Dot Laser Diode Module
