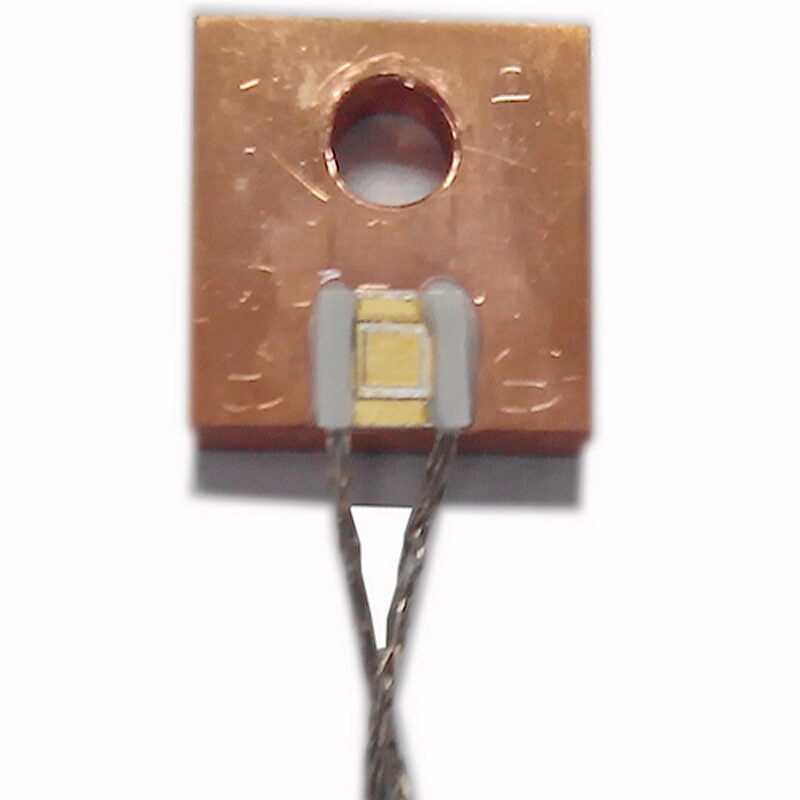

2W 860nm 850nm VCSEL-array Laser Diode



2W 860nm 850nm VCSEL-array Laser Diode

The vertical-cavity surface-emitting laser, or VCSEL, is a type of semiconductor laser diode with laser beam emission perpendicular from the top surface, contrary to conventional edge-emitting semiconductor lasers (also in-plane lasers) which emit from surfaces formed by cleaving the individual chip out of a wafer. VCSEL applications include fiber optic communications, precision sensing, computer mice and laser printers.

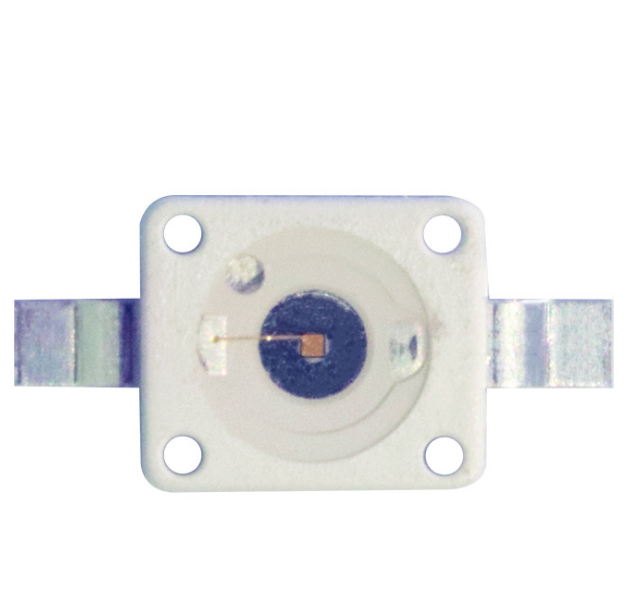

VCSEL Laser Diode

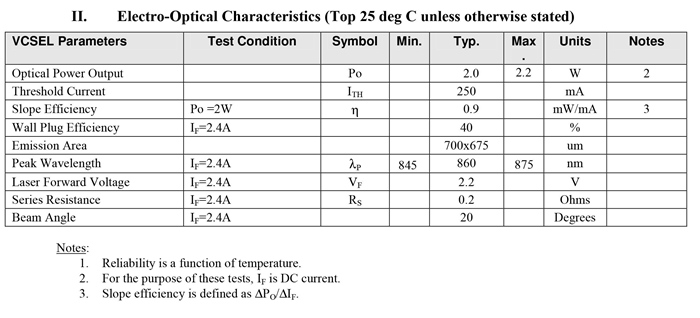

Wavelength 850nm – 860nm
Power 2W
Spectral width <0. 1nm Divergence angle 20 degrees Even delicate spot Application: Laser Medical Laser Night Vision Security Monitoring Face recognition PRODUCT FEATURES: -40~ +85℃ operating temperature High Efficiency,42%@25℃,>35%@50℃
Large emissio area,low power density,safer

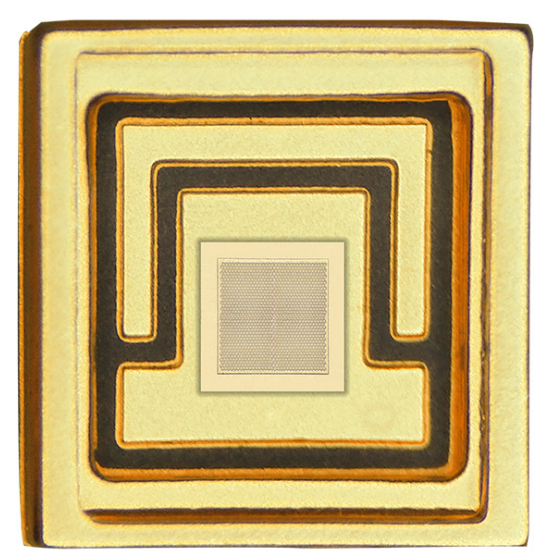

200 element array
Modulation small emission area,easy to collimate
Long lifetime,>50,000hrs
3D Imaging
Gesture Recognition
Laser Illumincation
Security surveillance
Medical applications
Broadband acesss network
Assisting driving advanced systems
IR laser curtain
Li-Fi transmitter
Range finders
Free space optical communications
Military applications
Absolute Maximum Ratings

Storage Temperature: -40 to +85℃
Case Operating Temperature: -40 to +85℃
Relative Humidity: 5% to 9%
Reverse Power Supply Voltage: 5V
Maximum continuous forward current: 3A
ESD Exposure(Human Body Model) :1KV


Stress greater than those listed under”Absolute Maximum Rating” may cause permanent damage to the device.This is a stress rating only and function operation of the device at these or any other conditions above those indicated in the operations section for extended periods of time may affect reliability.
The inherent design of this component causes it to be sensitive to electrostatic discharge( ESD). To prevent ESD-induced damage and/or degradation to equipment ,take normal ESD precautions when handing this product.

This product is a high-performance 850nm VCSELs (Vertical Cavity Surface-Emitting Lasers) designed for high-speed data communications and packaged with a custom designed power monitor diode. … These combined features simplify design for high data rate communication and eye safety.

850nm VCSELs from ushio

We offer a variety of standard Vertical Cavity Surface Emitting Lasers (VCSELs) in ready to use fiber coupled packages. Packaging options include Receptacle style housings such as ST, FC and SC as well as fiber pigtailed co-axial assemblies. VCSELs are typically used with multi-mode optical fiber and may be specified for coupling to 50 um , 62.5 um or 100 um core optical fibers. VCSELs may also be fiber coupled to single mode fibers with 5, 7 or 9 um core diameters. Units built with fiber pigtails are available terminated with optical connectors. Specialty fiber sizes may be available upon request

VCSELs are used for communication links to 500 meters in networks, enterprise and data centers. The technology has served the data communications industry for more than 10 years. VCSEL is an emerging technology for many applications including chip to chip interconnect, touchless sensing and gesture recognition.
