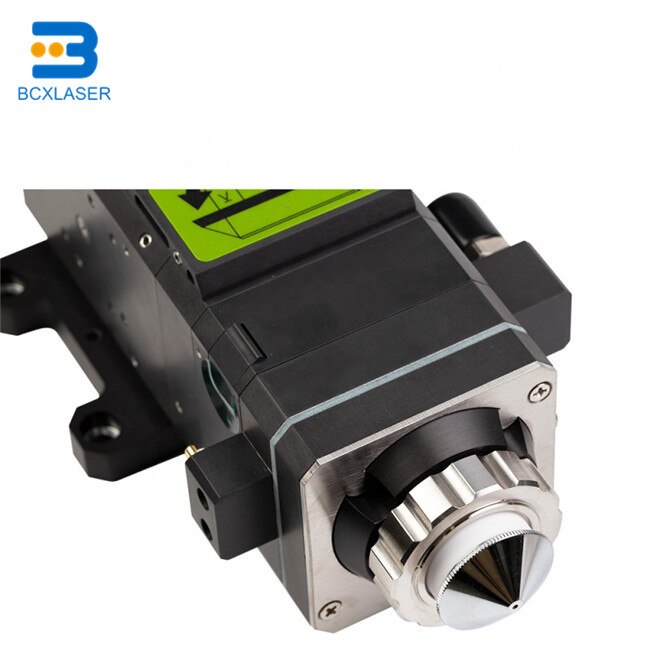

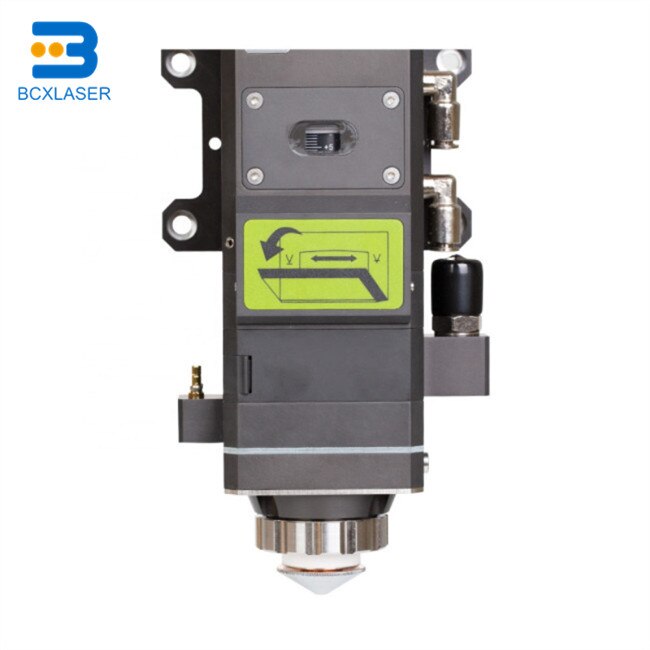

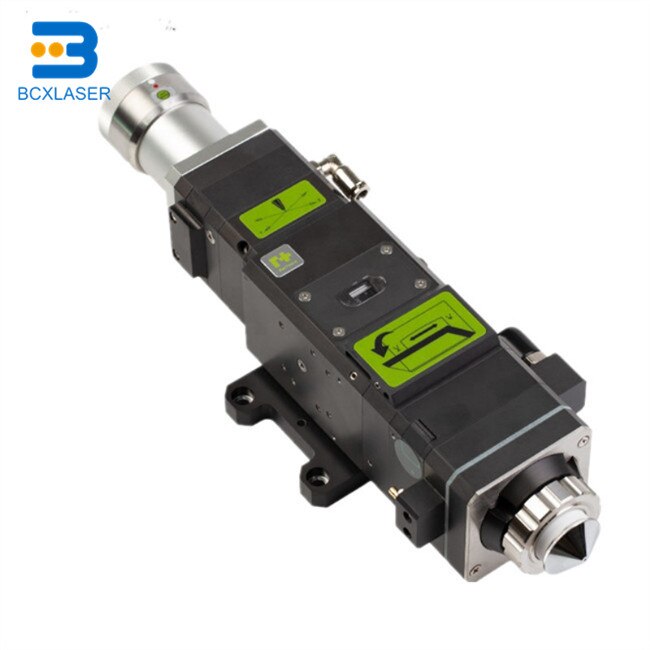

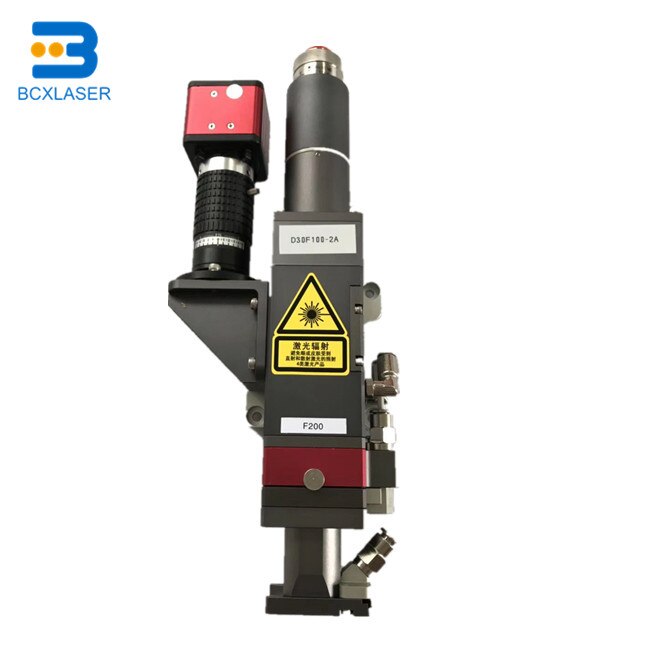

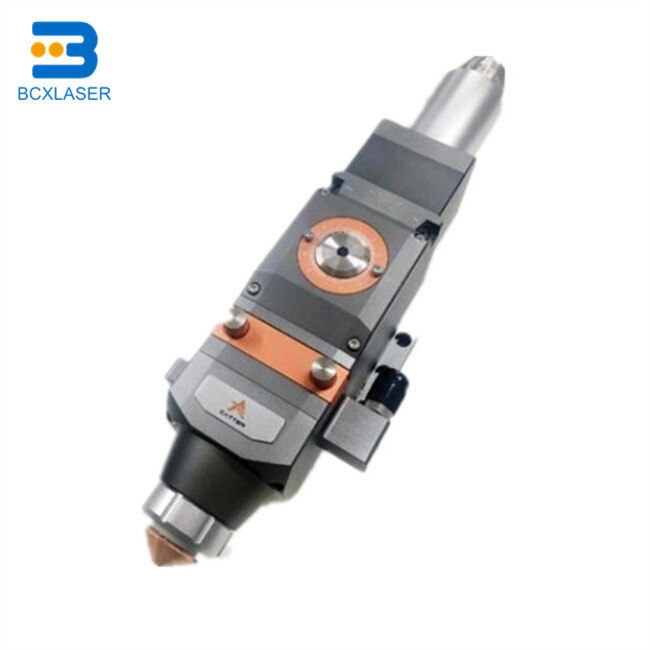

500W 1000W 2000W Fiber Laser Cutting Head


SKU: 4000240127834 Category:



Laser cutting head

Details of Raytools laser head:

Fiber laser cutting head:

Laser power : up to 3KW

Focal length option(single, quartz, wavelength 1025~1080nm):

100mm, 125mm, 150mm, 200mm(2D), 125mm, 150mm(3D)

Optical through aperture: 25mm

Cutting nozzle tip size: 1.0mm~3.0mm

Cutting nozzle type: single layer, double-layer, multi-hole, and customized.

Assisted gas pressure: max 20bar

Weight: 1.5KG


Collimator Lens:

Focal length(double, quartz, length 1025~1080nm): 60mm, 75mm, 100mm

Optical through aperture: 25mm

Fiber connector: QBH, LLK-B, QD


Height sensor:

Range(accurate to 1mm): 0.5~10mm

Calibration: Automatic or manual

Response time: <1ms

Temperature stability: In the range of 0~45ºC, the temperature stability is less than ±5%.

Power supply: DC 24V

Output (linear signal or optimized curve): 0~10V analog value or ±10V analog value

We also supply fiber laser source, cypcut cutting system and laser consumables of raytools laser head, such as laser protective window, focus lens, nozzle, ceramic rings.
