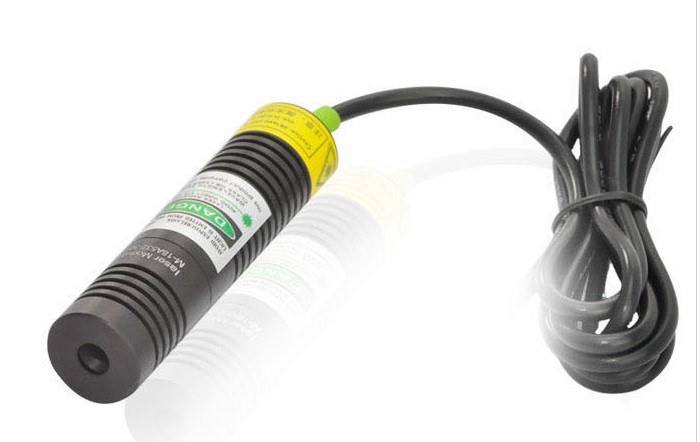

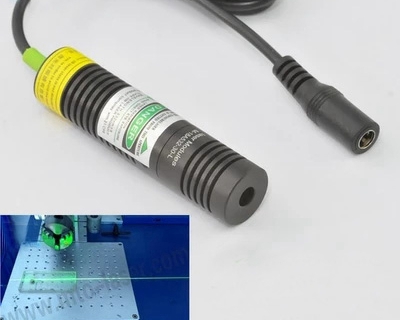

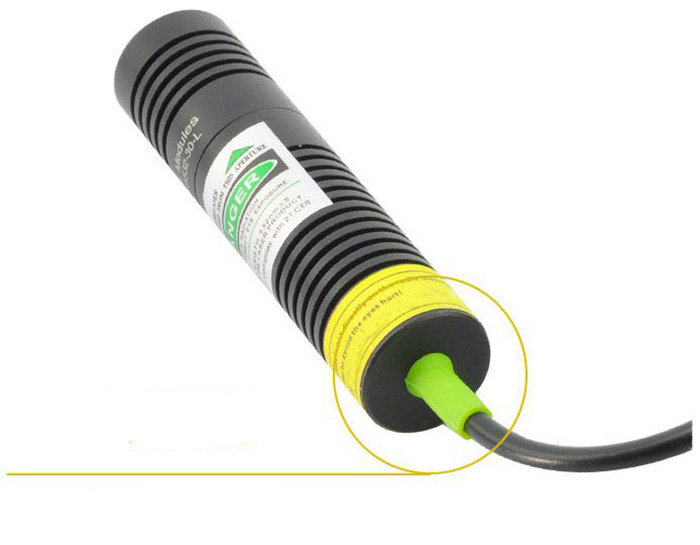

532nm 5mW-50mW Green Laser Module for Align



532nm 5MW-50MW Green Laser Module for laser align on CNC machines or other silimar applications.

The max ouput power is 50mW, you can choose the output power, just contact us after placing an order.

Exterior Dimensions: φ 18 * 75mm
Export wavelength: 532nm
Export power: 5mw, 10MW, 20MW, 30MW, 50MW selectable
Beam divergence em 1.5 mrad
Circuit Control: ACC Track
Operating voltage: DC = 5v
Operating current: 260ma or less
Expected heat time:< 10min
Operating Temperature:-10 ℃ ~ + 40 ℃
Storage temperature: + 10 ℃ ~ + 35 ℃
Structural features: Laser pipe
