54.02° solid circle homogenization effect: red, green and blue laser module, projection lamp, industrial laser module

$699.00$759.00

SKU: N/A Categories: ,

Description

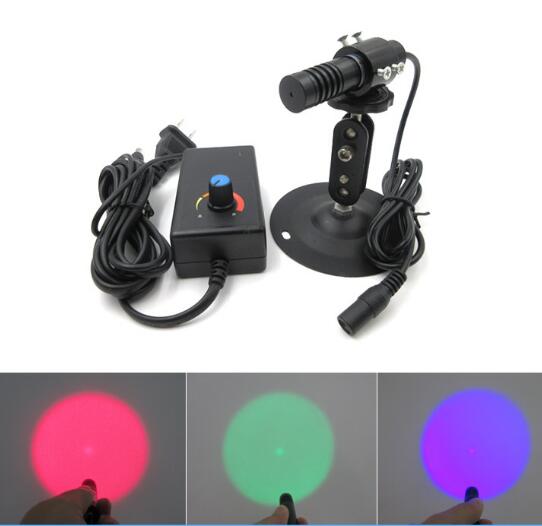

54.02° solid circle homogenization effect: red, green and blue laser module, projection lamp, industrial laser module

Specifications:
Lens angle: 54.02°
Mounting height: 0~2m
Output wavelength: 650nm / 520nm / 450nm (optional)
Core power: 100MW (optional)
Working voltage: DC 2.8V to 5.2v
Working current: <500mA

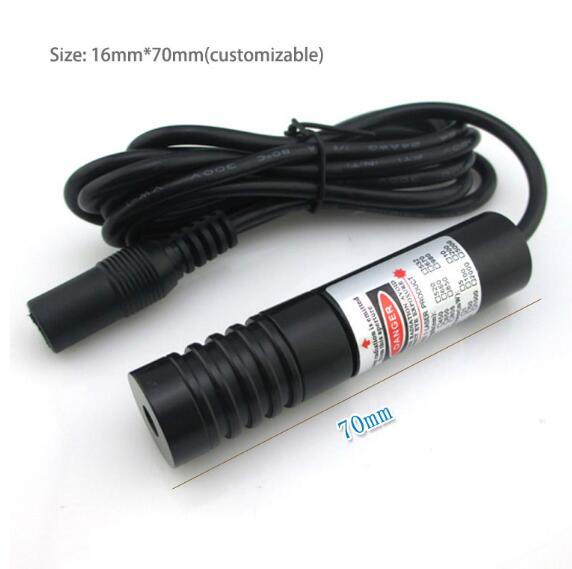

Laser dimension: 16 * 70mm (customizable)
Optical lens: grating (imported from Germany)

Spot description:

At 0.25 m, the diameter of the punched solid circle is 255 mm

At 0.5 m, the diameter of the punched solid circle is 510 mm

At 1 meter, the diameter of the punched solid circle is 1020 mm

The installation height is 0 meters – 2 meters can be used

Advantage:

The light spot is clear and bright

The size of the light spot can be adjusted to meet your different requirements;

The shell is made of aviation aluminum-plated insulating paint, which fully dissipates heat, is shock-proof and anti-fall, and anti-static;

Imported laser diode directly emits light, with particularly high stability, and can work 24 hours a day;

Intelligent driver board with imported IC, 2.8-5.2V ultra-wide range power supply (other voltages can be customized);
High temperature resistant, corrosion-resistant DC plug wire, suitable for all-weather and all-environment use;

Wavelength, power, wire length, working distance, spot effect, etc. can be customized according to customer requirements, what you want, here are all there!





Additional information

color

red, green, blue
