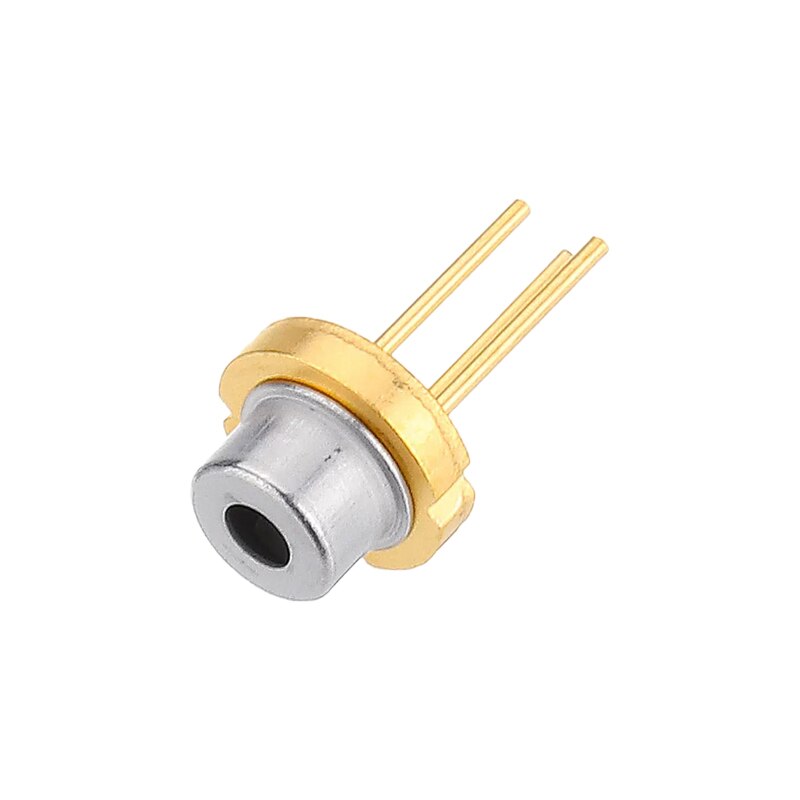

DL-3147-060 650nm 655nm 5mW CW 5.6mm TO-18 Red Laser/Lazer Diode LD

Red Laser Diode

DL-3147-060

Features

• Wavelength : 650 nm (Typ.)

• Low threshold current : Ith = 20mA (Typ.)

• High operating temperature : 5 mW at 70°C

• TE mode

Applications

DVD-ROM/PLAYER

Laser module

industrial instrument



Datasheet: https://www.laserlands.net/datasheet/11061174.pdf

Model: Sanyo DL-3147-060

Wavelength: 650nm/+5nm

Output: 5mW

Voltage: 2.3V DC

Current: <45mA

Working Temperature: – 10 ℃ ~ + 70 ℃

Storage Temperature: – 40 ℃ ~ + 85 ℃

Package: Sanyo DL-3147-060 diode



Note:

1. only for professionals.

Note:

1. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.

2.  Be sure the operator has experience in optics DIY or testing.

3.  Don’t operate when the power is connected.
