2. Number of characters: 1
3.Screen size: 0.56 inches
4. Luminous color: red; green, white
5, 8 word height: 0.56 inches

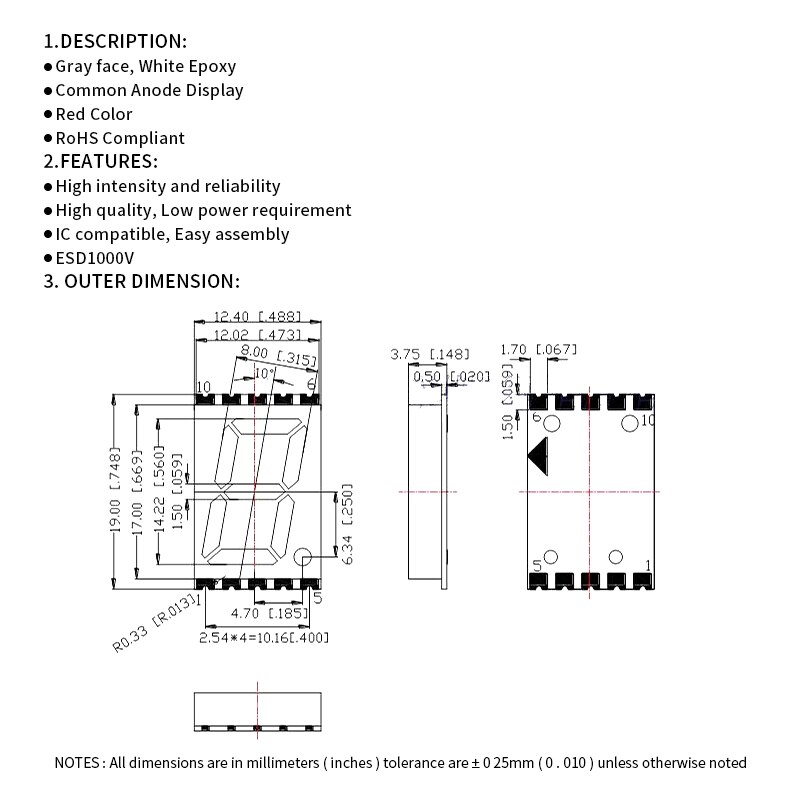

6.Dimension: 19.0mm × 12.40mm × 3.85mm
7. Public feet: 3-8
8. Total PIN number: 10 pins

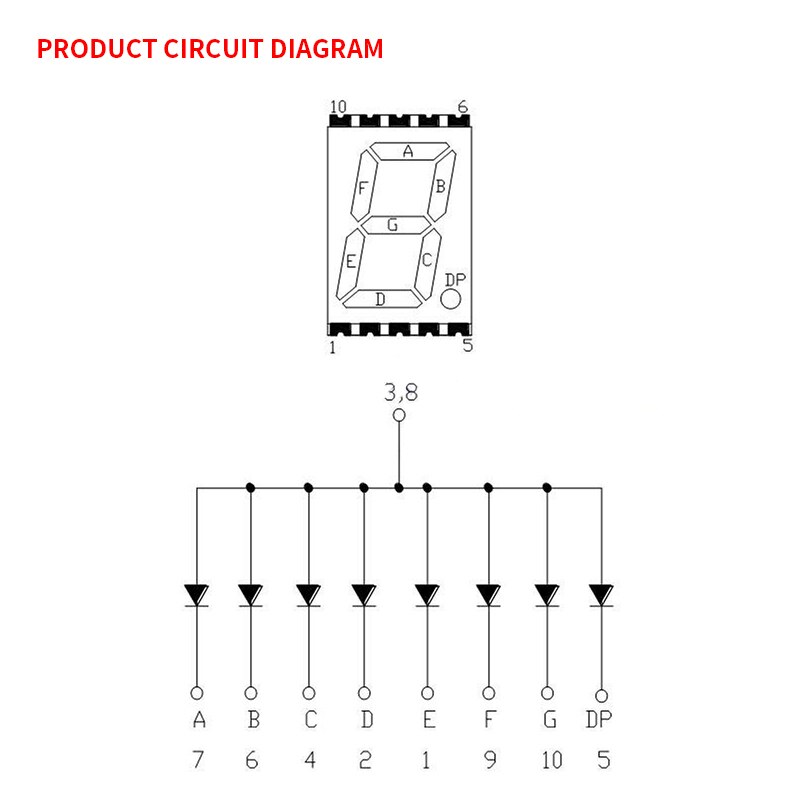

9. Polarity: common cathode / common anode
10. Surface color: gray panel
11. Font color: red
12. Colloid color: milky white

LED digital tube feature description

★ Can drive light under low voltage and small current

★ Luminous response time is extremely short (<0.1μs), good high frequency characteristics, good monochromaticity, high brightness

★ Small size, light weight, good impact resistance. Solid-state packaging, the packaging method is glue-filled, high stability

★ Long life, more than 50,000 hours

★ Can continuously scan and drive each byte

★ Good display effect, wide viewing angle

★ It is recommended to use constant current, constant brightness will cause uneven brightness

★ Products with protective film on the surface can be torn off before use

★ Welding temperature: 260 ℃, residence time up to 5 seconds

★ When the operating temperature is higher than 25 ℃, Ifm, ifp and Id must be reduced; the current reduction rate is -036mA / ℃ (DC drive), or -0.86mA / ℃ (pulse drive), the power consumption rate is -0.75mW / ℃ . The working current of the product cannot be greater than 60% of the corresponding working temperature conditions Ifm or Ifp.
