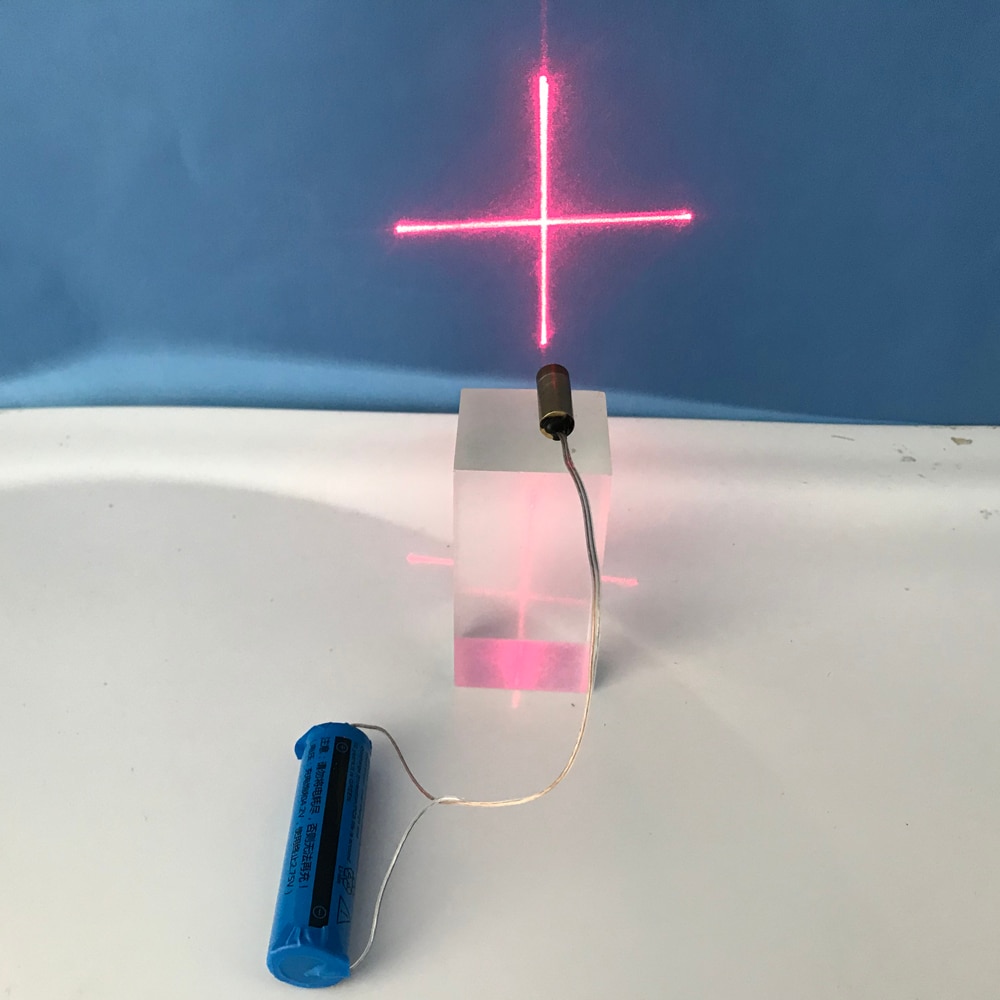

650nm 5mW 3V Laser Red Cross Module

1.Description:
It is a 650nm 5mW 3V Red Cross Laser Module.Its effect is a dot that can be used for horizontal positioning, pointing point and so on.

2.Feature:
1>.Continuous laser
2>.Visible laser
3>.Constant light

3.Parameter:
1>.Work Voltage:DC 3V
2>.Wavelength:650nm
3>.Output power:5mW
4>.Work current:16mA~20mA
5>.Light color:Red
6>.Spot mode:Cross-shape
7>.Service life:8000~10000hours
8>.Work Temperature:-25℃~85℃
9>.Work Humidity:5%~95%RH

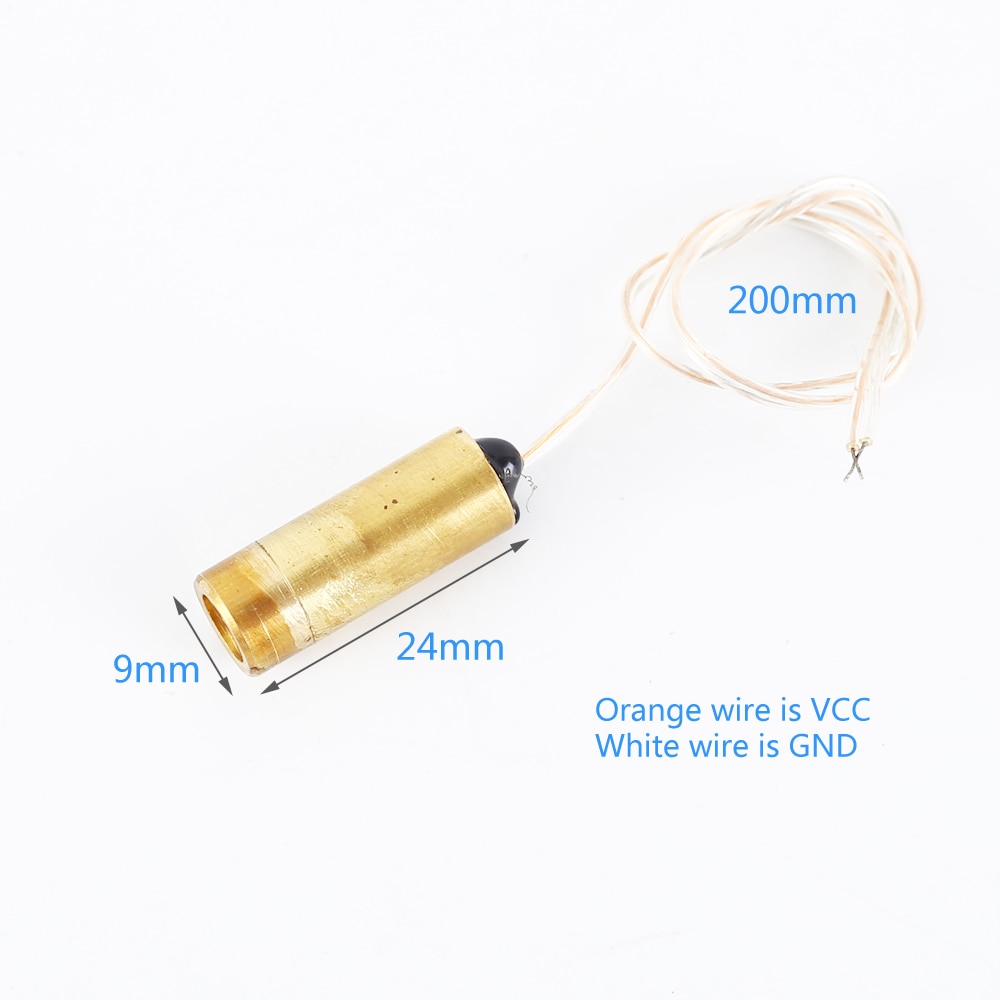

10>.Size:24*9*9mm

4.Package:
1>.1pcs 650nm 5mW 3V Laser Red Cross Module

650nm 5mW 3V Laser Red Line Module

.Description:
It is a 650nm 5mW 3V Red Line Laser Module.Its effect is a dot that can be used for horizontal positioning, pointing point and so on.

2.Feature:
1>.Continuous laser
2>.Visible laser
3>.Constant light

3.Parameter:
1>.Work Voltage:DC 3V
2>.Wavelength:650nm
3>.Output power:5mW
4>.Work current:16mA~20mA
5>.Light color:Red
6>.Spot mode:Line-shape
7>.Service life:8000~10000hours
8>.Work Temperature:-25℃~85℃
9>.Work Humidity:5%~95%RH
10>.Size:24*9*9mm

4.Package:
1>.1pcs 650nm 5mW 3V Laser Red Line Module

650nm 5mW 3V Laser Red Dot Module

1.Description:
It is a 650nm 5mW 3V Red Dot Laser Module.Its effect is a dot that can be used for horizontal positioning, pointing point and so on.

2.Feature:
1>.Continuous laser
2>.Visible laser
3>.Constant light

3.Parameter:
1>.Work Voltage:DC 3V
2>.Wavelength:650nm
3>.Output power:5mW
4>.Work current:16mA~20mA
5>.Light color:Red
6>.Spot mode:Dot-shape
7>.Service life:8000~10000hours
8>.Work Temperature:-25℃~85℃
9>.Work Humidity:5%~95%RH
10>.Size:18*9*9mm

4.Package:
1>.1pcs 650nm 5mW 3V Laser Red Dot Module
