Sale!

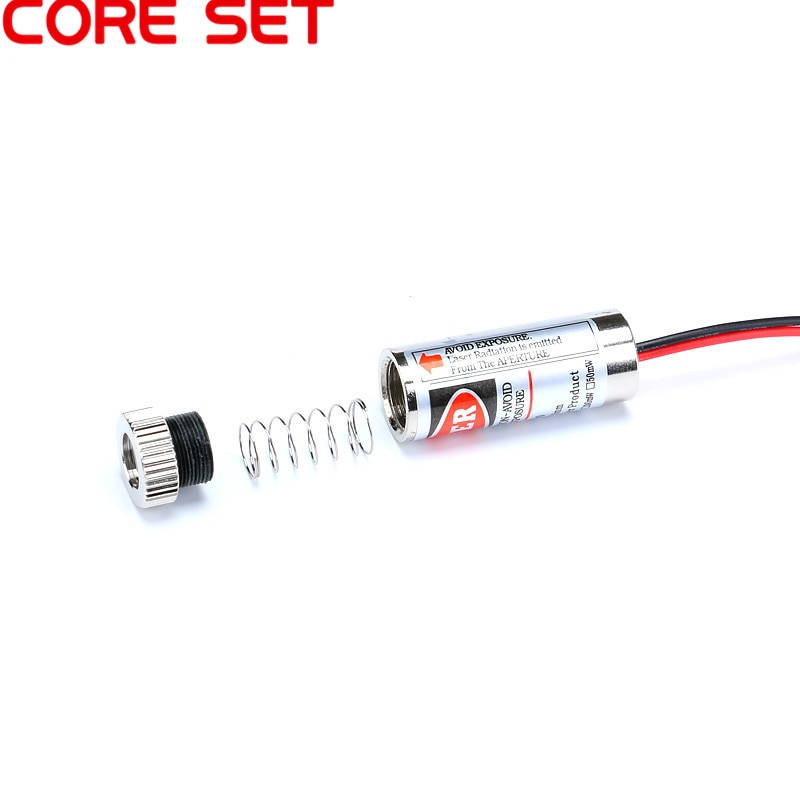

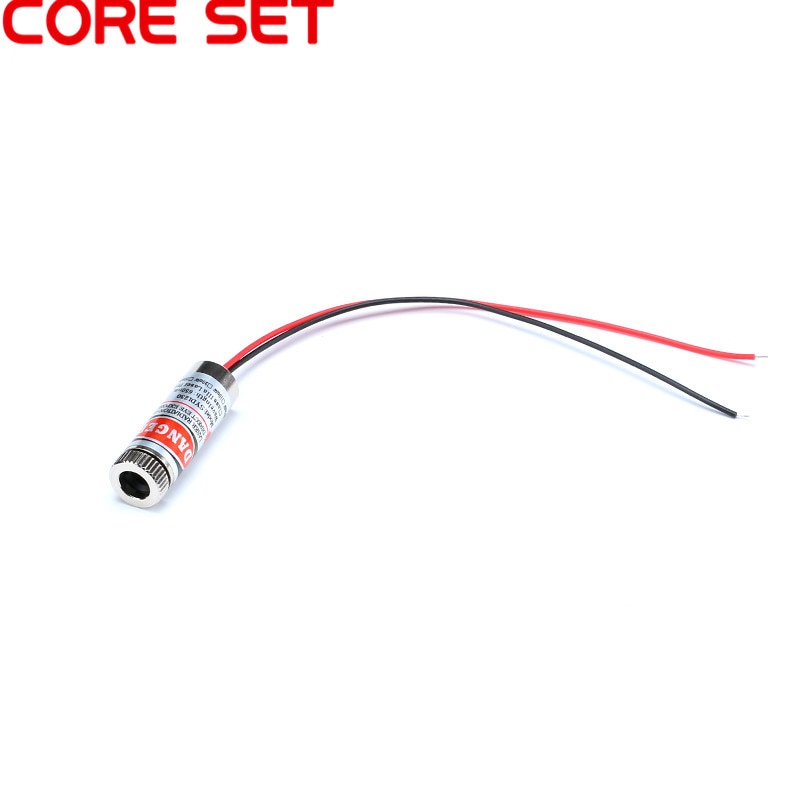

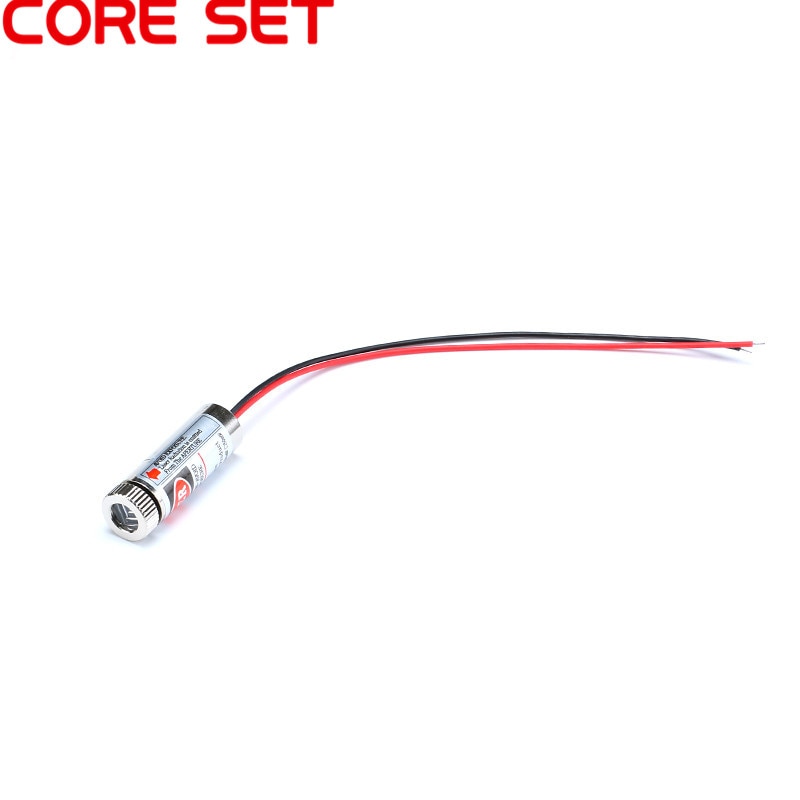

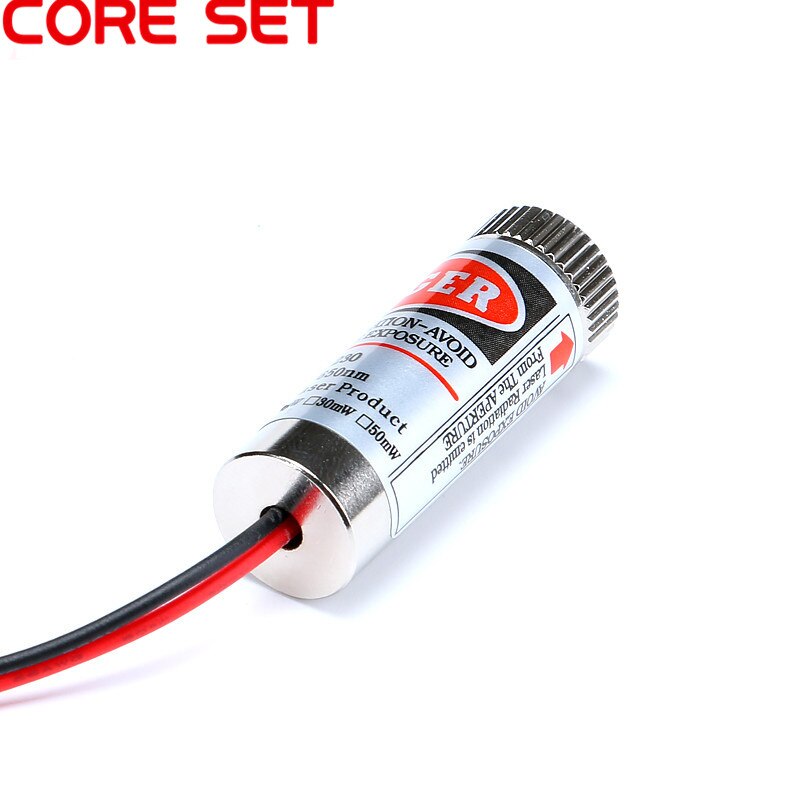

650nm 5mW Red Point / Line / Cross Laser Module Head Glass Lens Focusable Focus Adjustable Laser Diode Head Industrial Class

$9.64

SKU: 32970959152 Category:

Description

Introduction:

  Laser launch principle and the specificity of the production process determines the laser with ordinary light does not have the characteristics of the three good (monochromatic good, good coherence, good direction) a high (high brightness).
The use of laser orientation of the good brightness, high grams widely used in various occasions, change the series of laser tube convenient and intuitive, easy to install, stable and reliable.
Product Usage:

1.It could be used for sight positioning

2. It could be used for laser testing tools

3. It could be used for concentricity positioning

4. It could be used to make signal equipment
Product Information(Point):

Red dot point laser tube, laser module

Wavelength: 650nm

Diameter: 12MM

Weight: 13.5g

Long: 35MM

Max Power: 5MW

Voltage: DC3V-6V

Max Current: 40MA

Drive circuit: APC
Product Information(Line):
Red (adjustable Line) laser tube, laser module

Wavelength: 650nm

Diameter: 12MM

Weight: 13.5g

Long: 36MM

Power: 5MW

Voltage: 3V-6V

Current: 30-50MA
Product Information(Cross):
Red cross line laser tube, laser module

Diameter: 12MM

Weight: 13.5g

Long: 36MM

Power: 5MW

Voltage: DC3V-6V

Current: 25-50MA1423
