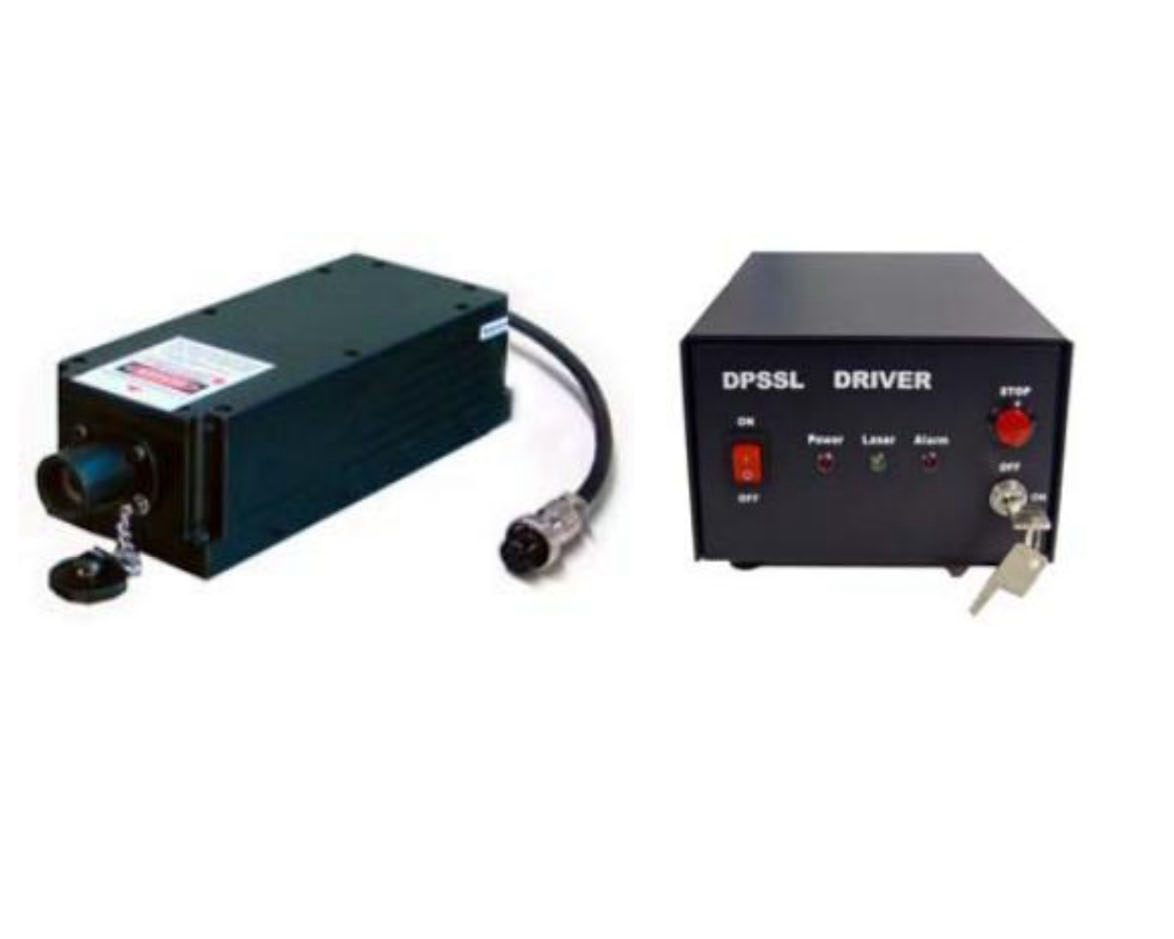

660nm Diode Pumped Solid State Laser



660nm Diode Pumped Solid State Laser

660nm Red Light A Single-longitudinal-mode Laser

Product features:
1.The power is stable, the operation is simple, the power supply is overheated.
and the current limiting protection circuit.
2.High beam quality, narrow linewidth, stable wavelength, low noise, and coherent length of 50 meters.
3.The original imported pump source has reliable performance and long service life.
4.It is suitable for holography, Raman spectroscopy, fluorescence excitation, bioengineering, etc.

Wavelength (nm): 660±1

Spectral Linewidth (nm): <10-5

Coherent length(m): >50

Output Power (mW): >50

Operating Mode: CW

Beam Mode:  Transverse: TEM00

Longitude: Single

Beam Quality (M2 factor): <1.2

Polarization Ratio: >100:1

Beam Diameter (1/e2,mm): ~1.5

Beam Divergence (full angle, mrad): <1.2

Beam pointing stability(mrad): <0.05

Power Stability (RMS, over 4 hours): <1%

Noise of amplitude (RMS, 20Hz~20MHz): <0.5%

Aperture Position (mm): 27.4

Laser Head:

Dimensions (L×W×H, mm): 197 x 70 x 50

Net Weight (kg): 2.0

Power Driver:

Dimensions (L×W×H, mm): 236 x 145 x 104

Net Weight (kg): 2.3

Cooling System: TEC

Power Supply: 90~240VAC@50Hz

Warm-up Time (minutes): <10

Operation Temperature (℃): 10~35

Expected Lifetime (hours): >10000

Warranty Time: 1 year

660nm Diode Pumped Solid State Laser Datasheet
