980nm and 808nm 15W Multi-Function Detachable Diode Laser

Description

980nm and 808nm 15W Multi-Function Detachable Diode Laser

Features:
15W output power
808nm and 980nm wavelength
integration
Standard fiber coupling for 400μm/
0.22NA
Customer options:
Aiming beam
Power PD
Thermistor
Fiber detector
Applications:
Medical use
Material processing

Parameter:

Center wavelength:970~990nm

CW Output Power: 15w

Threshold current: 1A

Operating current: 11A

Operating voltage: 4V

Reverse Voltage: 5V

Slope Efficiency: 1.8W/A

Electrical-to-Optical Efficiency: 40%

Spectral width(FWHM):6nm

Center wavelength:798~818nm

CW Output Power: 15W

Threshold current: 1.8A

Operating current: 10A

Operating voltage: 4.5V

Reverse Voltage: 5V

Slope Efficiency: 1.6W/A

Electrical-to-Optical Efficiency: 40%

Spectral width(FWHM):6nm

Wavelength Shift with Temperature: 0.3nm/℃

Fiber Data:

Buffer diameter: 730μm

Cladding diameter: 440μm

Core diameter: 400μm

Numeric aperture: 0.22

Others:

ESD:  500V

Storage Temperature(Non-operating): -20~70

Lead Soldering Temp: 260℃

Lead Soldering Time: 10sec

Operating Case Temperature: 15~35℃

Relative Humidity: 15~75%

PD Data:

Current:200~2000

Thermistor:

10±3%/3477 (K Ω)/β(25℃)

Aiming Beam Data:

Output Power:2mW

Wavelength : 630~643nm

Voltage;  2.2V

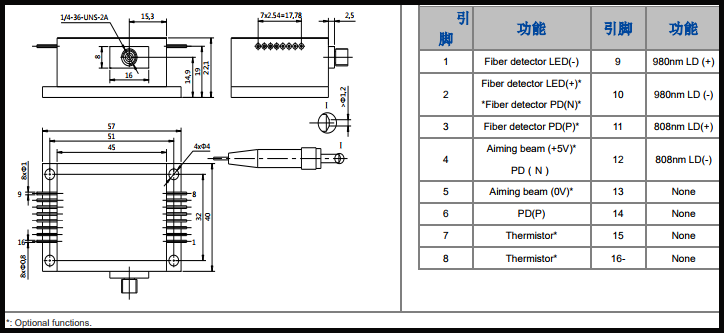

Please kindly check the datasheet:

980nm and 808nm 15W Multi-Function Detachable Diode Laser
