Direct Diode Laser System


Direct Diode Laser System

 Up to 300W output power
 Air cooling
 Fiber delivery
 Red aiming beam (optional)
 Temperature control
 Compact design

Optical Data
CW-Output Power: 400mW 2W,4W, 8W,10W,15W 20W, 30W, 50W
Center Wavelength: 635nm 808nm, 915nm, 980nm
Tolerance of : ±10nm
Spectral Width (FWHM): <3nm
Power Stability: ±5%
Fiber Data
Fiber Core Diameter: 105, 200µm 105,200,300,400µm 105,200,300,400µm
Numerical Aperture: 0.22
Fiber Connector: SMA-905
LD Controller Data
Control Range: 15~30℃
Accuracy: ±1℃
Alarm Setting: 15~30℃
Operation Mode: CW/QCW
Operation Current: <1A <10A <15A
Operation Requirements
Operation Temperature: 0~40℃
Cooling Requirement: Internal fan. At least 10 cm clearance, both sides
Operation Humidity: 5-80%
Storage Temperature: -20-55℃
Power Supply Requirements
Input Power: 220 V AC, 50 ~ 60 Hz or AC 90~260 V, 50 ~ 60 Hz
Power Loss: <30W <100W <500W

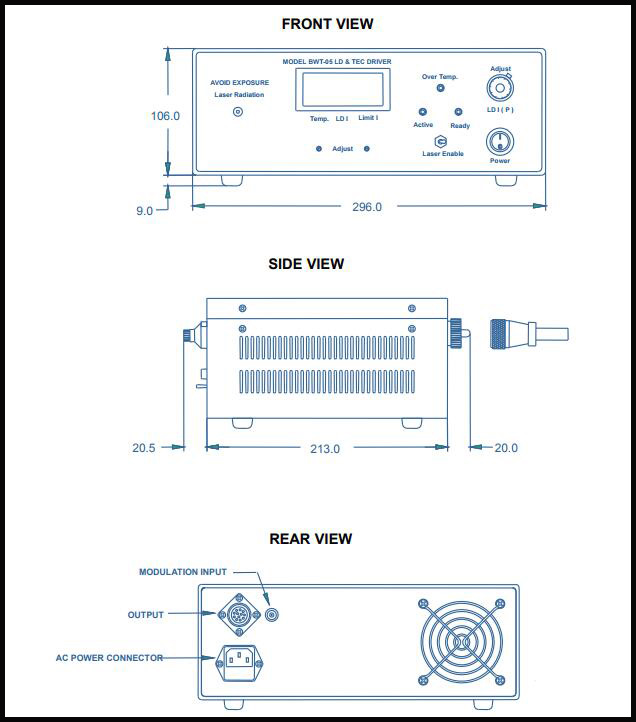

Dimensions: (L×W×H) 296×254×115mm 296×254×115mm 420×337×174mm
Weight: <10Kg <10Kg <18Kg

Product parameters
