Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: ±5%
- Technology: Wirewound
- Type: Wirewound Potentiometer
- Operating Temperature: -55 -125℃
- is_customized: Yes
- Max. Operating Voltage: 450V
- Model Number: 3590S
- Rated Power: 2W

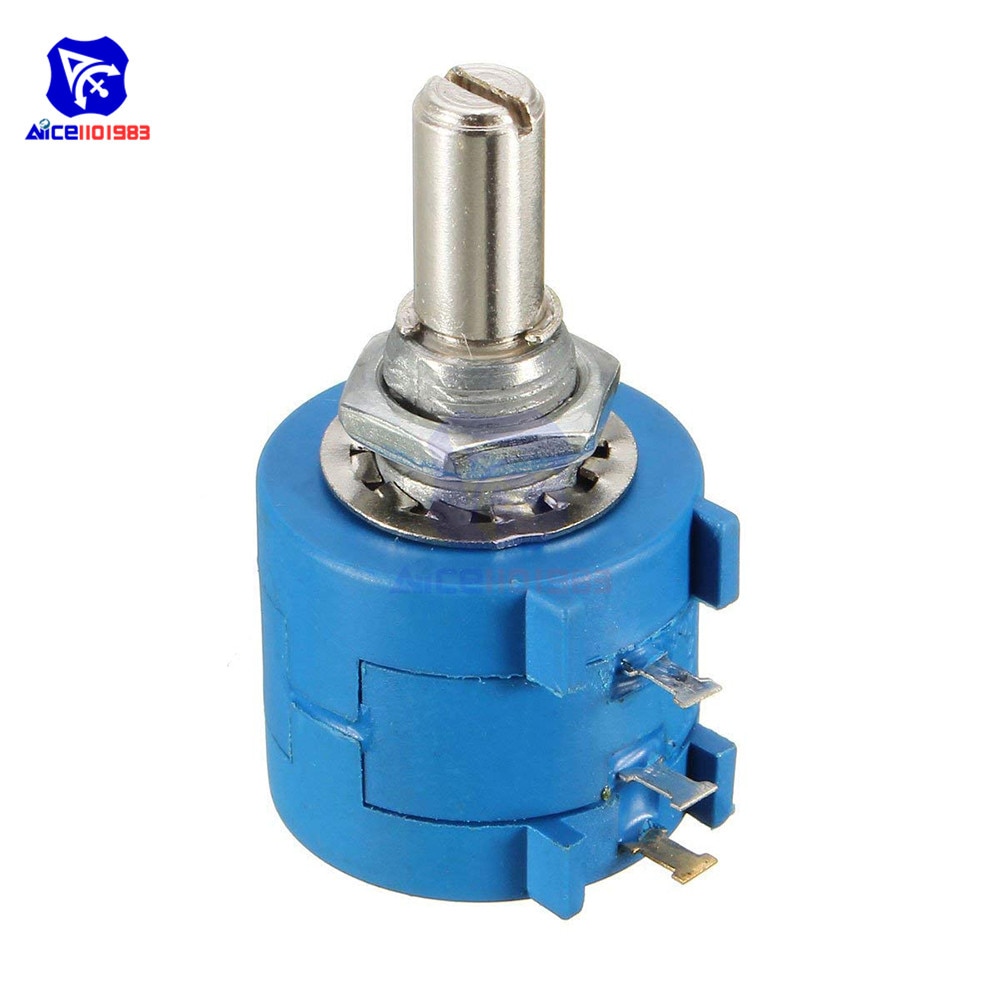

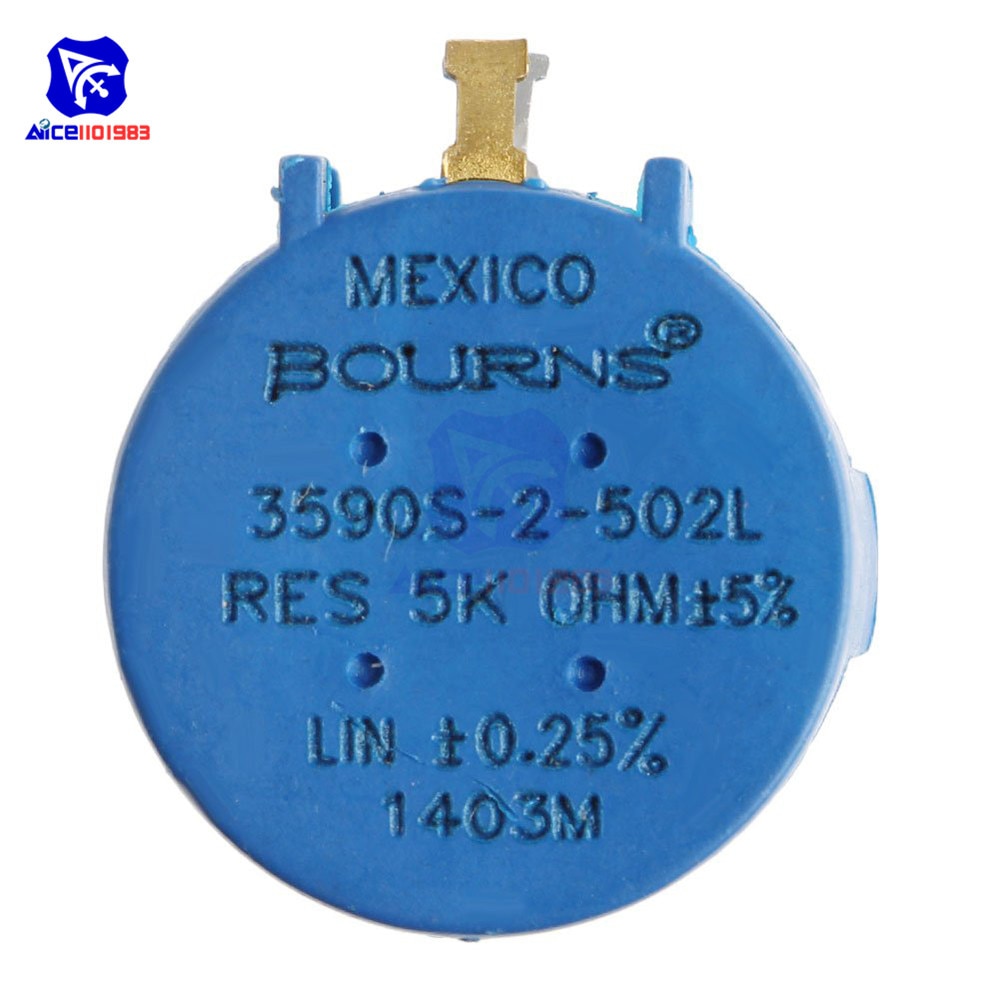

3590S Series 500R -100KΩ ±5% 2W Potentiometer
Specification:
Material: Plastic
Color: Blue

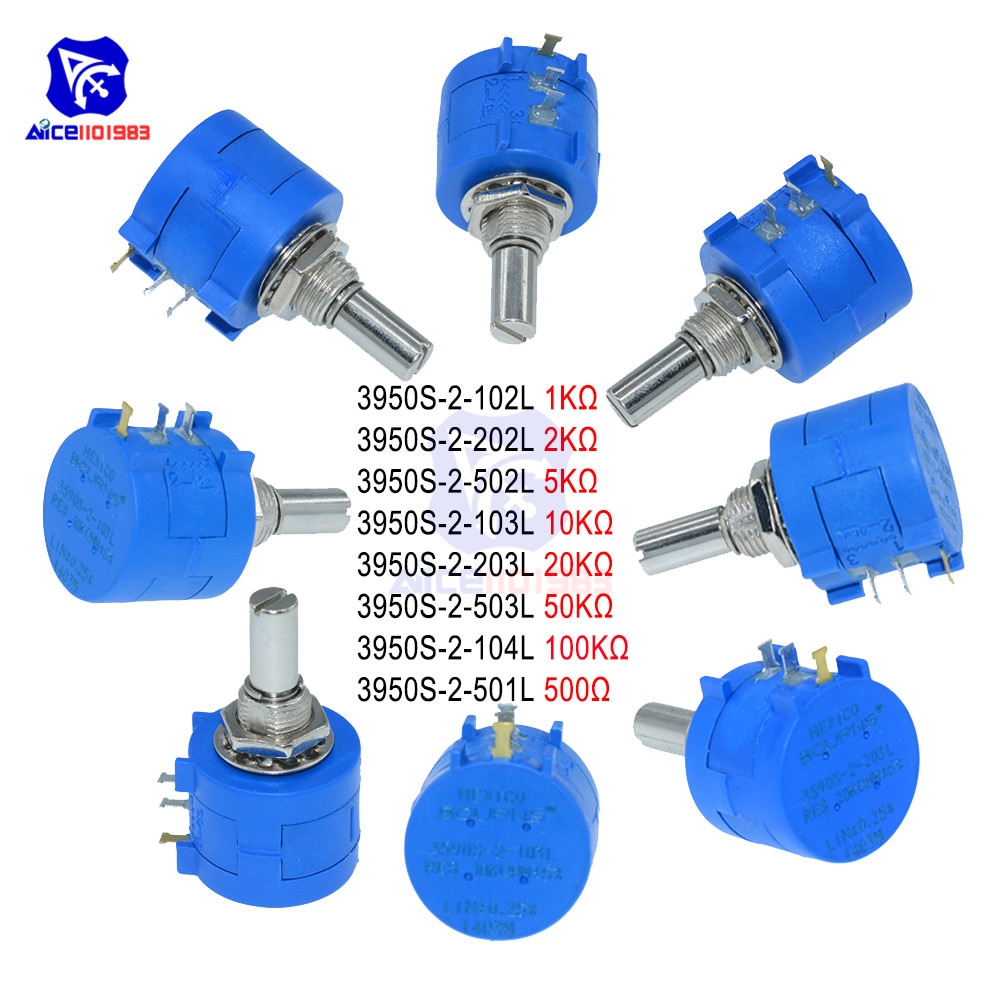

Model: 3590S-2-501L, 3590S-2-102L, 3590S-2-202L, 3590S-2-502L, 3590S-2-103L, 3590S-2-203L, 3590S-2-503L, 3590S-2-104L
Type: Rotary Shaft
Technology: Wirewound
Turns: 10
Spinning life: 1,000,000 revolutions
Power: 2W
Resistance Value: 500R Ohm, 1K Ohm, 2K Ohm, 5K Ohm, 10K Ohm, 20K Ohm, 50K Ohm, 100K Ohm (Option)
Resistance Tolerance: ±5%
Linearity: ±0.25%
Shaft Diameter: 6mm/0.24″
Threaded Diameter: 9mm/0.35″
Total Length: 40mm/1.6″
Load life: 1000 hours
Mechanical angle: 3600° ±10°
Operating temperature range: -55℃ – 125℃
Size(No Include Shaft): 22x19mm/0.9″x0.7″(DxH)

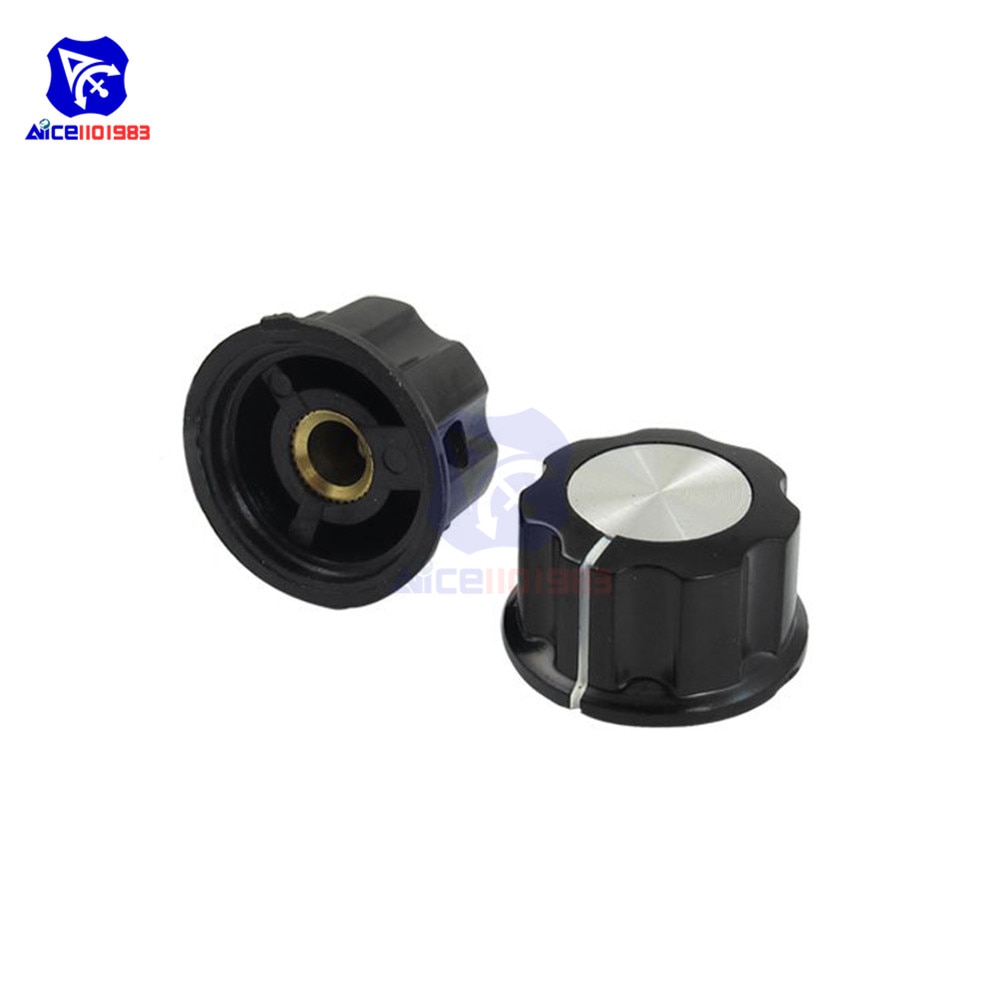

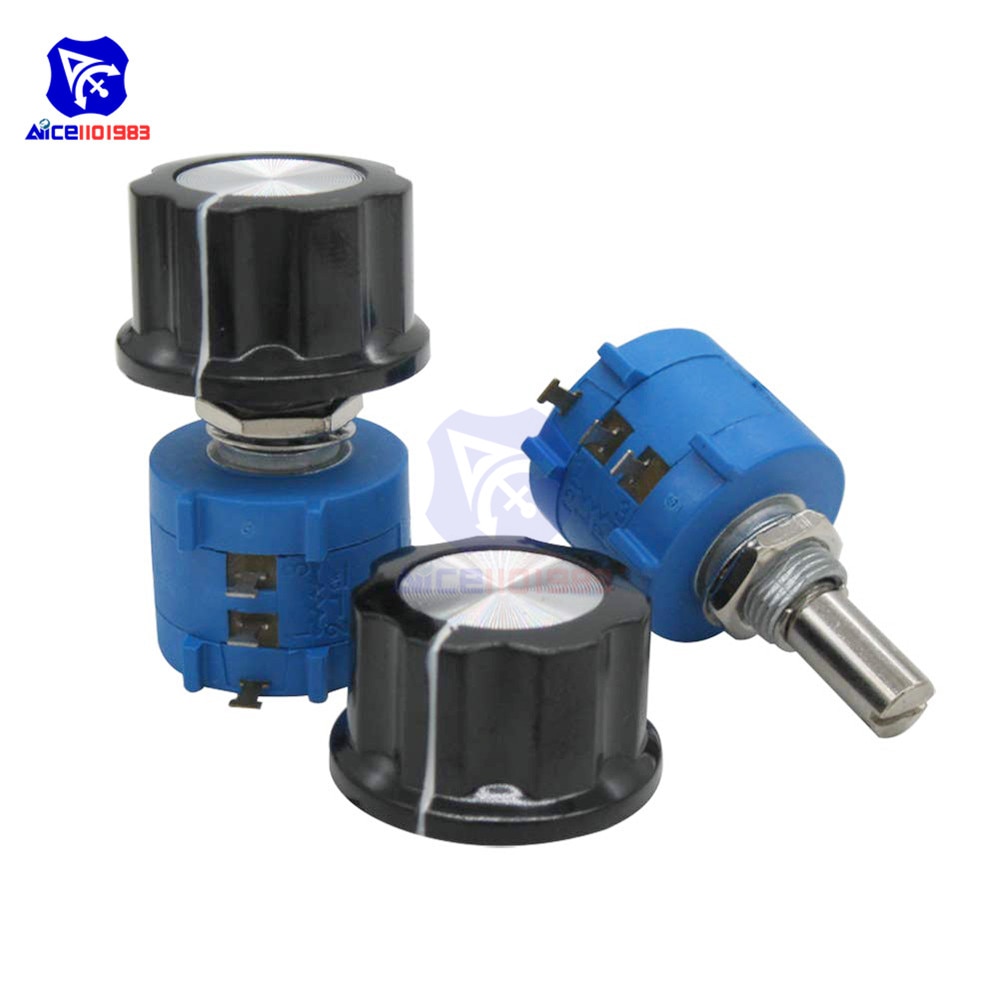

[MF-A03 Potentiometer Knob]
Specification:
Item Name: Rotary Knob.
Material: Plastic, Metal
Color: Black, Silver Tone
Fit for Knurled Shaft Diameter: 6mm
Application: Potentiometer Knob, Rotary Encoder Switch, Volume Adjustment
Suitable for: 3590S RV24YN RV30YN WX050 WX030 WH118 WX010 Potentiometers.
Size: Diameter: 28mm Height: 15mm
