Description
- Brand Name: DRAGON DIAMOND
- Certification: CE
- Origin: CN(Origin)

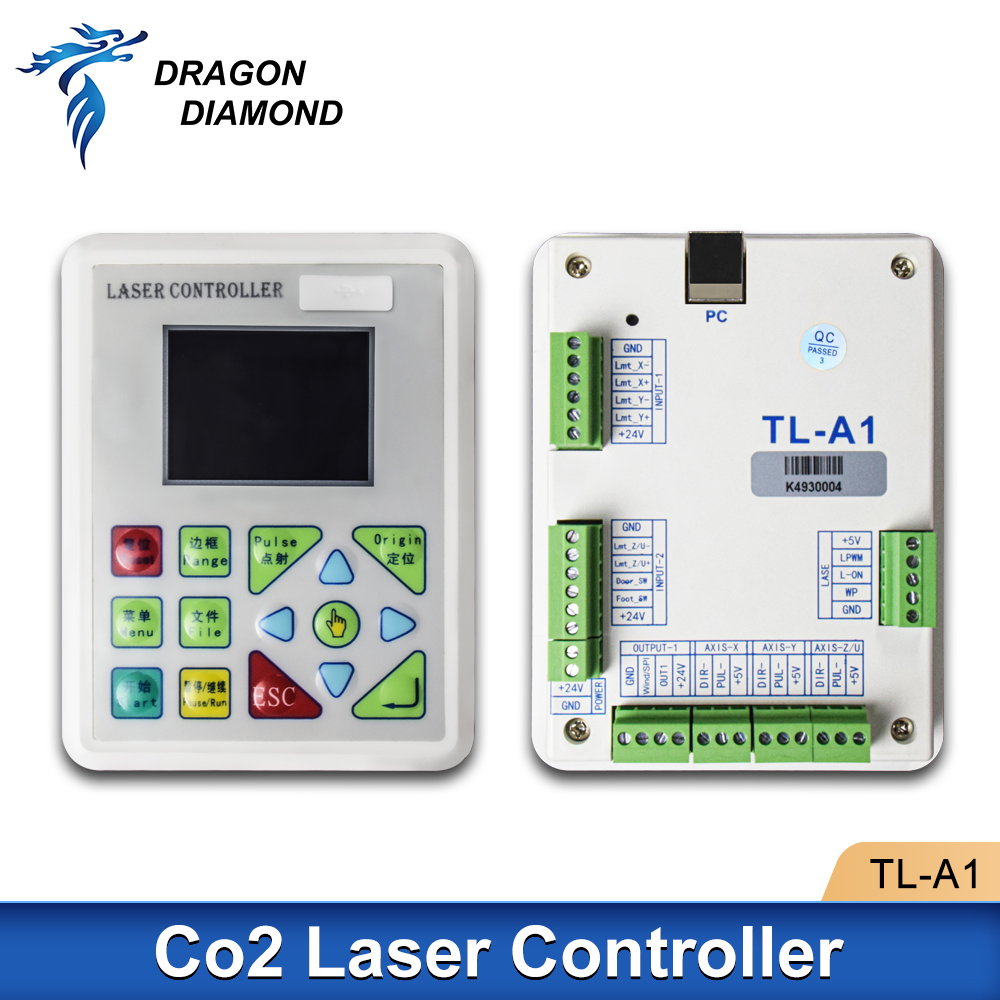

- Model Number: K40 Co2 Laser Controller System

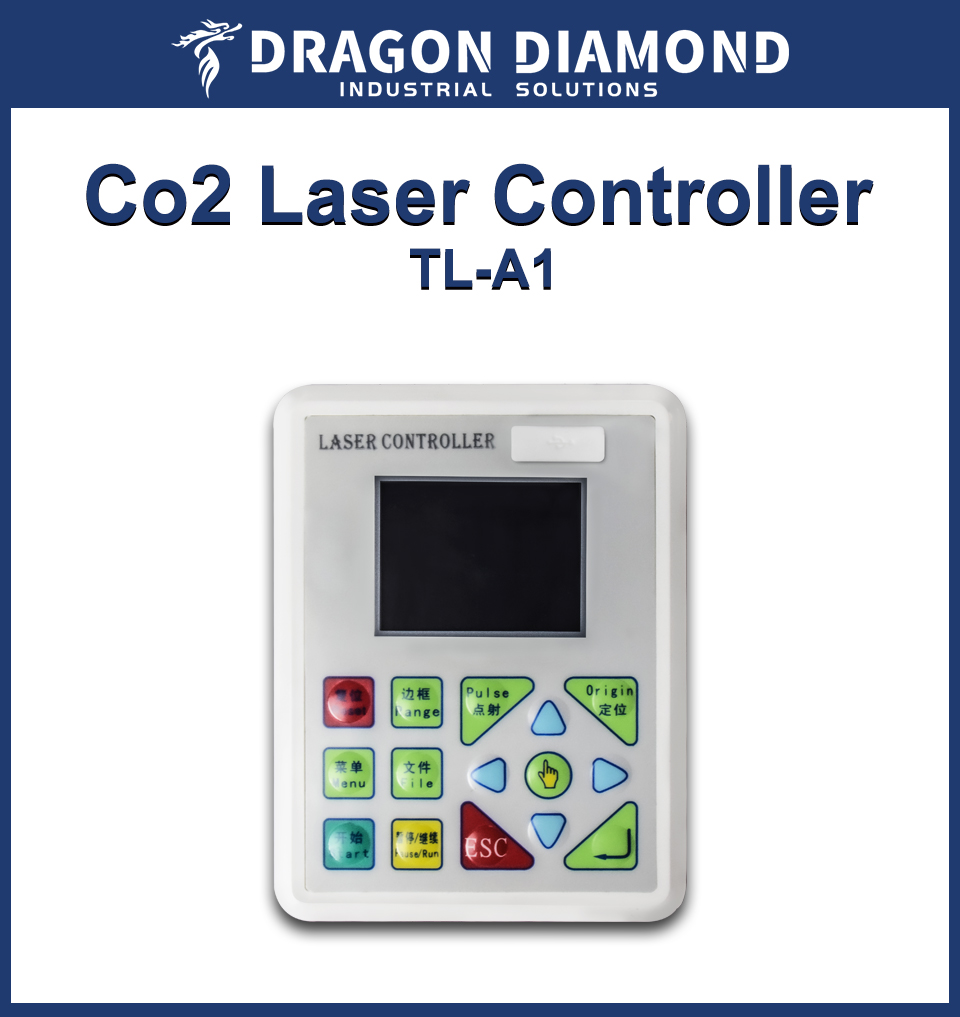

- Model: TL-A1

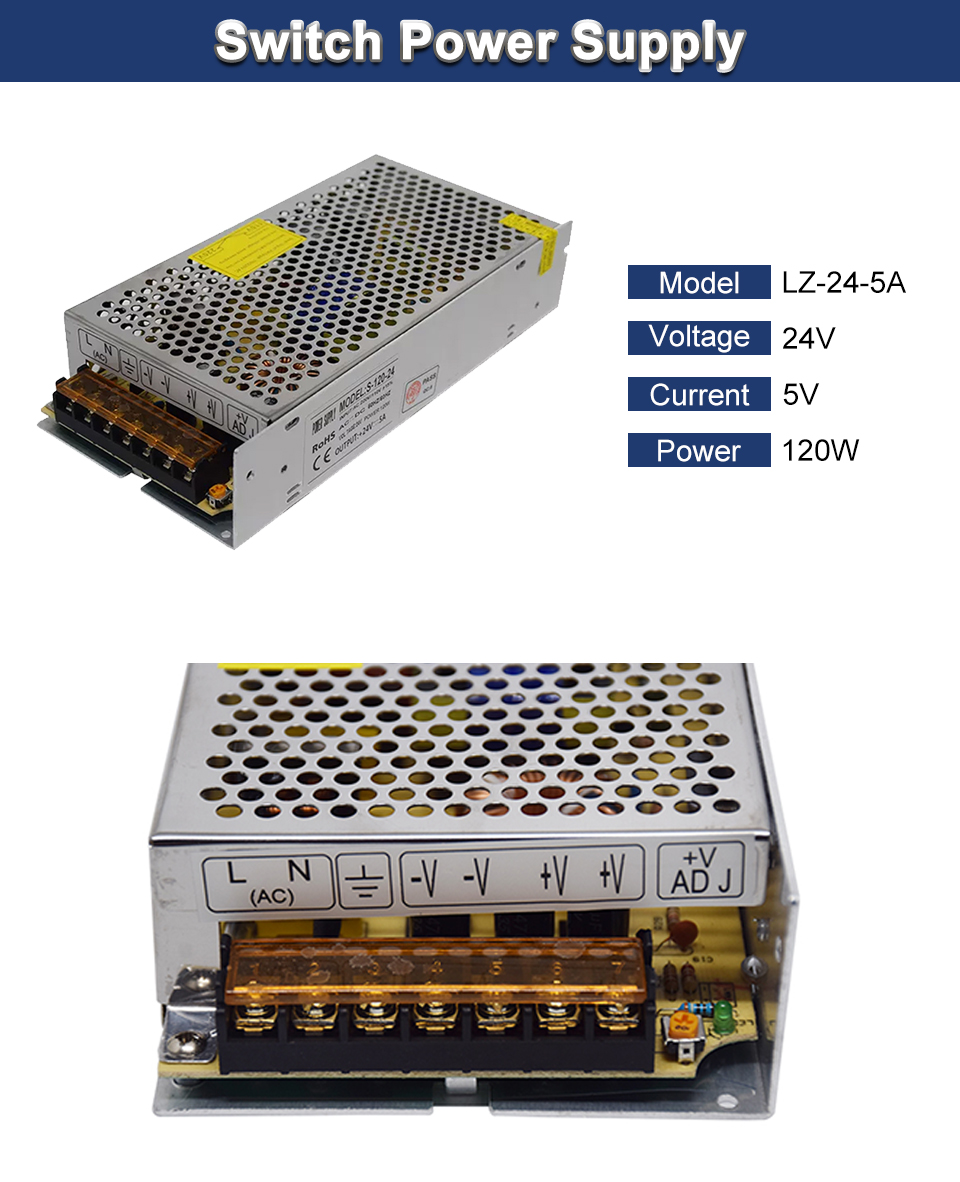

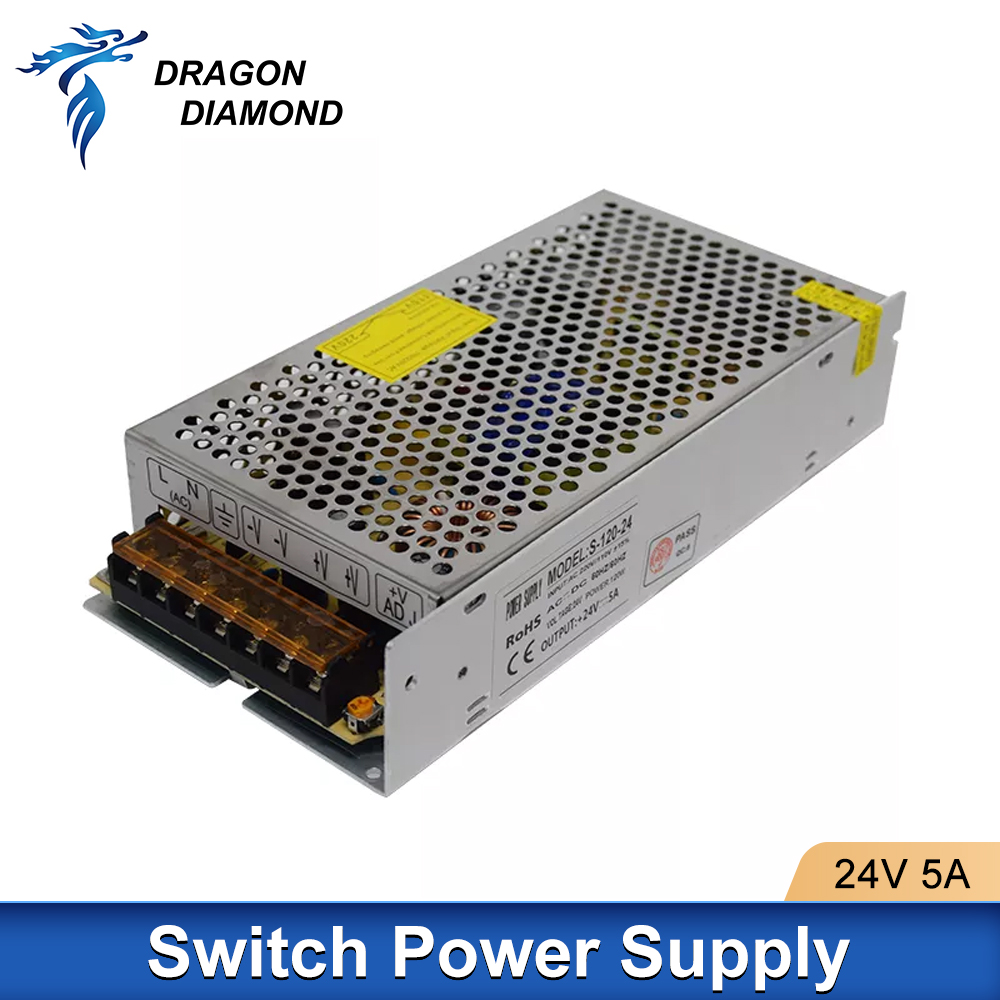

- Switch Power Supply: 24V 5A
- Software: Supports CorelDraw, AutoCAD, Illustrator
- Languages: English, Korean, Russian, Italian, Spanish, Portuguese, Vietnamese
- Axis: Support 3 axis motor control
- Support WIFI: Yes
Features:
1.Power supply of DC24V.
2.Support Chinese simplified, English, Chinese traditional, Korean, Russian, Italian, Spanish, Portuguese, Vietnamese and other multi-language.
3.Support USB.2 interface, support USB communication to computer , support reading and writing of U disk.

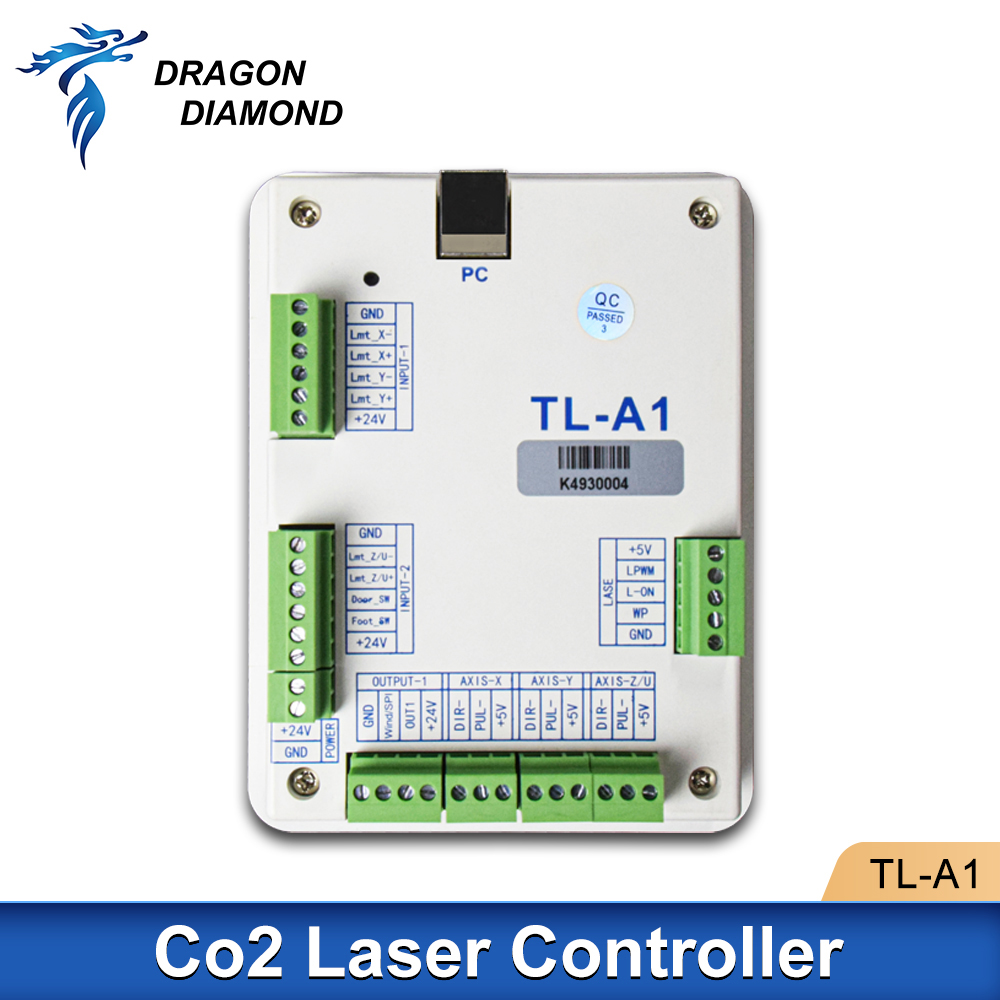

4.Use High-Performance 32-Bit CPU with ARM Floating-Point Unit(FPU), 128M Flash, 32M RAM, 6 general inputs, 12 general outputs, TTL electrical level.

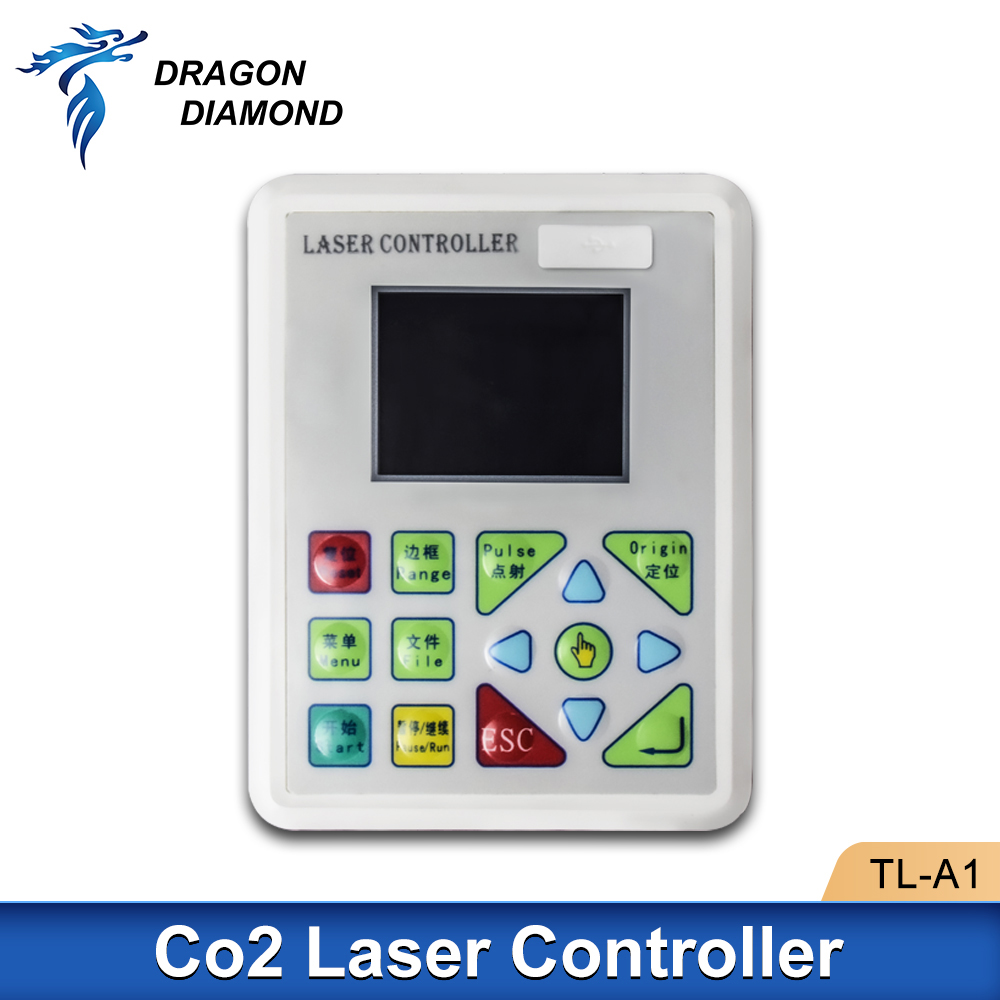

5.Equipped with 2.4‘‘LDC with color temperature of 65K.
6.Support 3 axes motor control (X,Y axis used for horizontal motion, Z axis used for rotary cutter lift, U axis for feeding or platform lift, where the Z/U axis is multiplexed with one port. Motor pulse frequency can be as high as 166KHz;).
7.Adopt 7-segment S-shape acceleration and deceleration and adaptive speed planning algorithm, and support speed parameter setting and small circle speed limit with one button; Different cutting parameters available for different graphics; support backlash compensation.
8.Support 1 lasers’ control, adjustable output voltage of laser control: 0~5V,adjustable PWM output: 0~100k, adjustable duty cycle: 0~100%.
9.Support real-time Clock,machine clock.
10.Support rotary cutting, marked-positioning cutting rotating cutting height compensation, pressure feeding roller control.
11.Support track preview, continuous engraving after power-off, real-time correction of power light intensity and speed during work, rotary engraving, switchingof 2 platforms, split feeding, pressure feeding, automatic blowing, auto focus, foot switch, safety protection, upgrade, processing statistics information and other functions.
