ESP32-CAM-MB MICRO USB ESP32 Serial to WiFi ESP32 CAM Development Board CH340 CH340G 5V Bluetooth OV2640 Camera 2.4G Antenna IPX


SKU: 1005001900359624 Category:


ESP32-CAM-MB MICRO USB ESP32 Serial to WiFi ESP32 CAM Development Board CH340 CH340G 5V Bluetooth OV2640 Camera 2.4G Antenna IPX

  • Condition: New
  • Type: Voltage Regulator
  • Model Number: ESP32-CAM-MB
  • Supply Voltage: 4.75-5.25V
  • Dissipation Power: ESP32 CAM
  • is_customized: Yes
  • Operating Temperature: -20 ~ 70
  • Package: TQFP
  • type:: CH340G USB
  • type: 1: esp32 cam
  • type: 2: esp32 camera
  • type: 3: esp32 development board
  • type: 4: Bluetooth module
  • type: 5: esp cam
  • type: 6: development board
  • type: 7: ov2640
  • type: 8: esp32 shield
  • type: 9: esp32 ethernet

This product has built-in antenna,if you need to use external antenna,you should resoldering resistance with soldering iron
by yourself

Step 1: To weld this two parts in blue box

Step 2: To Fuse the two position selected by the green boxes in the picture

Step 3: to weld a Resistor

The results are as follows

1. Arduino development environment construction

(1) Download the Arduino IDE on the Arduino official website

(2) Click ”I agree”, click Next

(3) The default is to install on the c drive, you can click Browse to change the installation location

(4) Here I installed it in the arduino folder of drive d (remember this installation path)

(5) Wait for the installation to complete, open the hardware under the installation path

(6) Unzip the file ”espressif”

After the download is complete, unzip it to the hardware directory

(7) Open ArduinoIDE and select the corresponding development board

At this point, the Arduino IDE development platform is set up. Here is how to use the example

2. ESP-CAM video stream and photo examples

(1) Open Camera file

(2) After the download is complete, enter the ”Camera” directory and double-click to open ”Camera.ino”

(3) Select the development board, select the port, upload the code

(4) **Open the serial port, select the baud rate 115200, reset the development board, and check the serial port output**

(5) Visit the video streaming server

You can turn on the WIFI of your mobile phone and connect to ”ESP-xx:xx:xx:xx:xx:xx” (each development board has a different suffix). Open the browser and type the address. Press the Start Streaming button to start video streaming. Press Get Still to take a photo, the photo is stored in the SD card, and the photo is named randomly

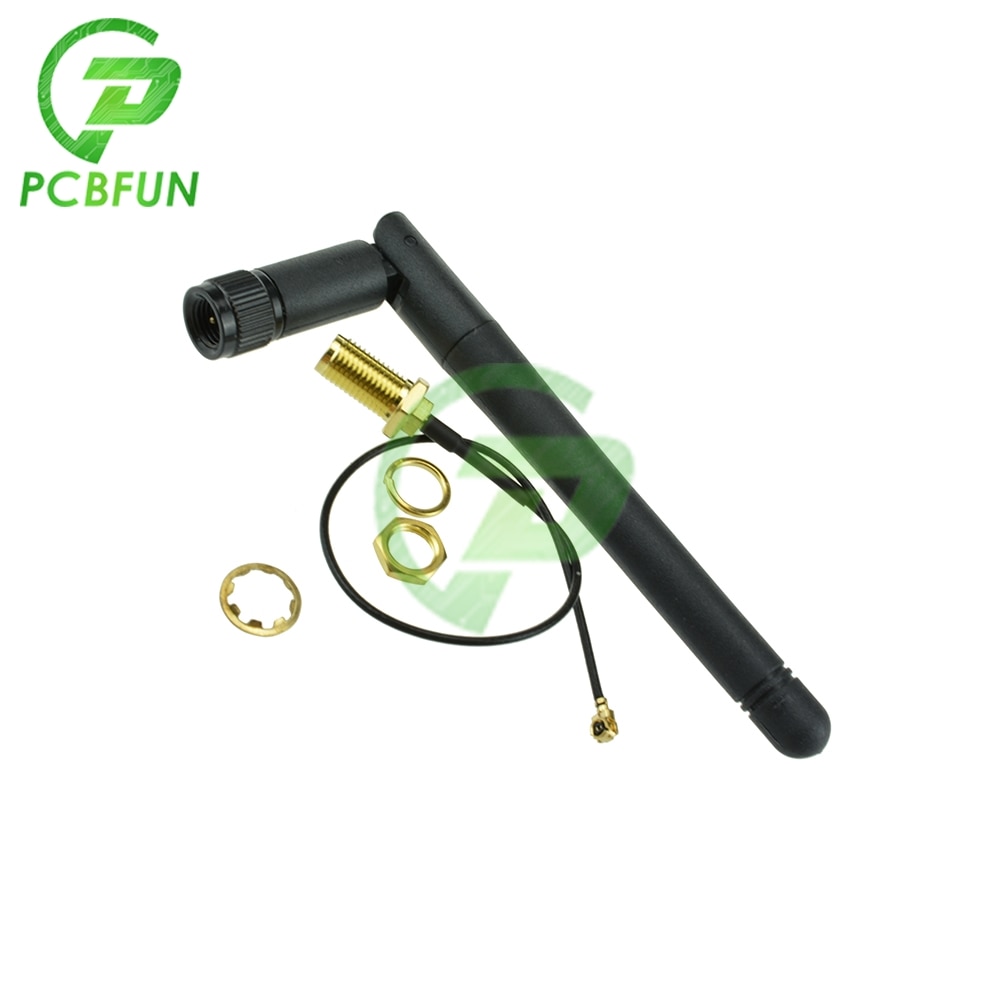

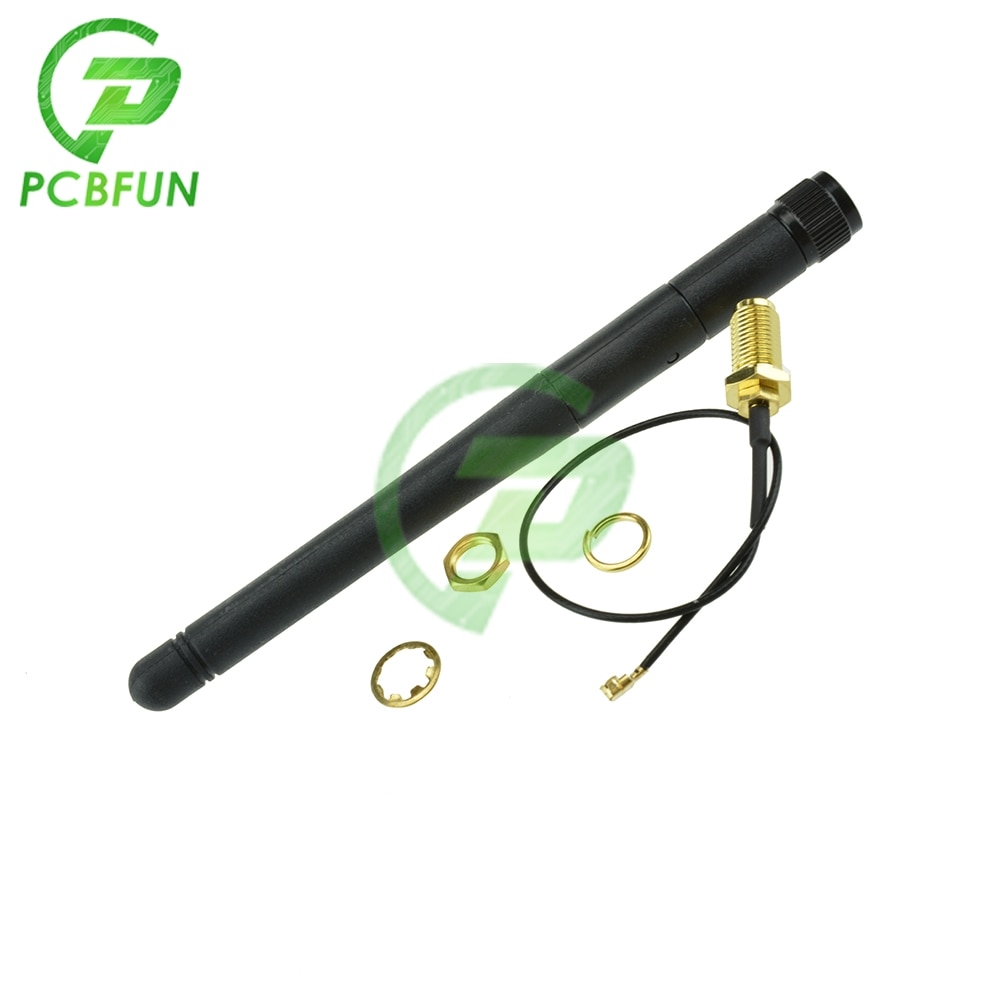

2.4GHz Wifi Antenna 3dBi RP-SMA Male Omni for wireless router+ IPX to RP-SMA Jack Male Pin Extension Cord Pigtail Cable


100% Brand New and High Quality
2.4G WIFI Antenna
SMA connector 2.4GHz 2dBi Wireless WLAN Antenna Aerial
Gain: 2dbi
Connector:RP SMA Male (female pin) Connector
Antenna length :11cm



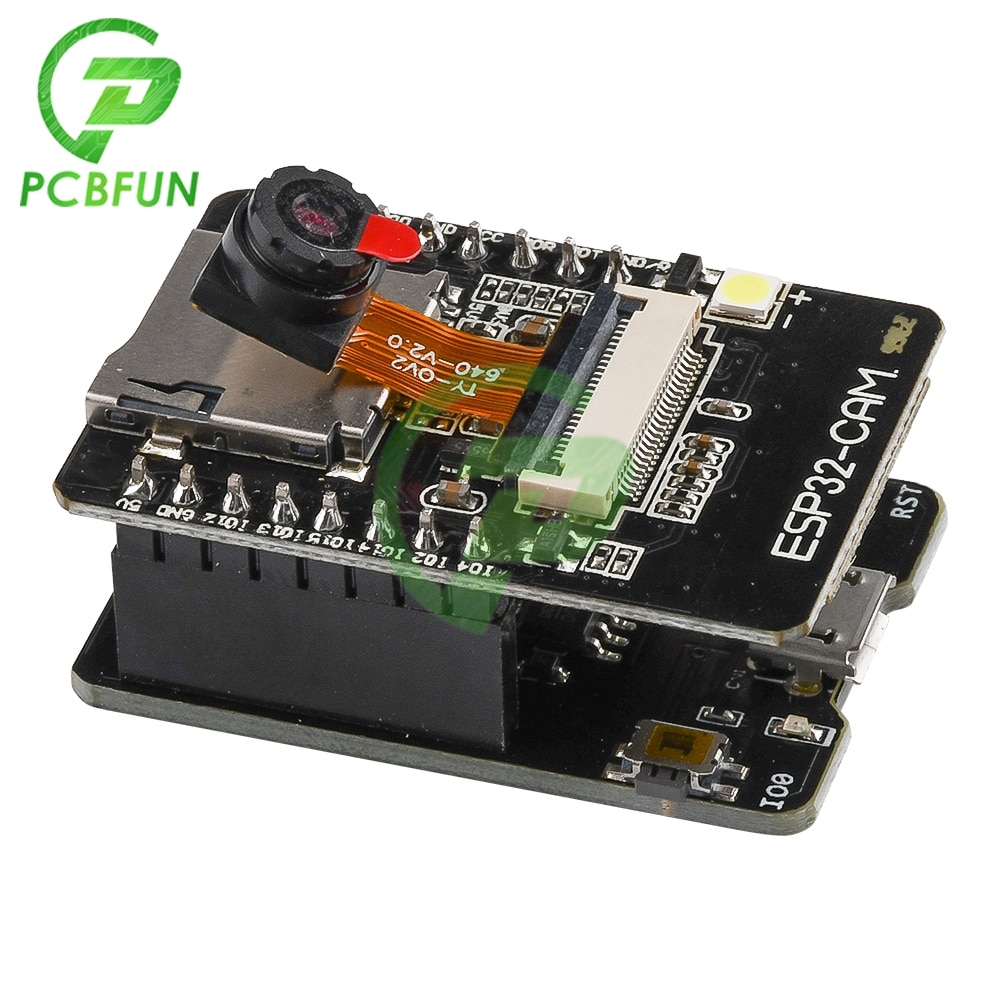

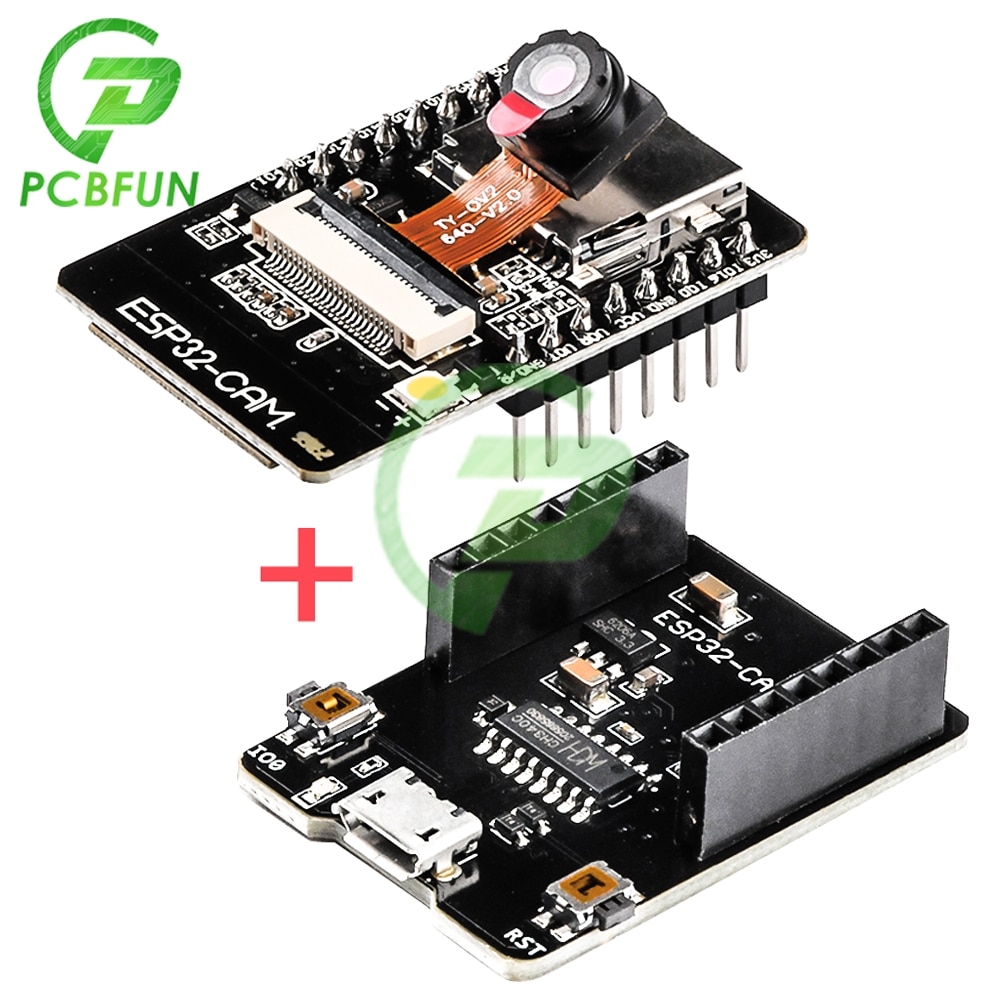

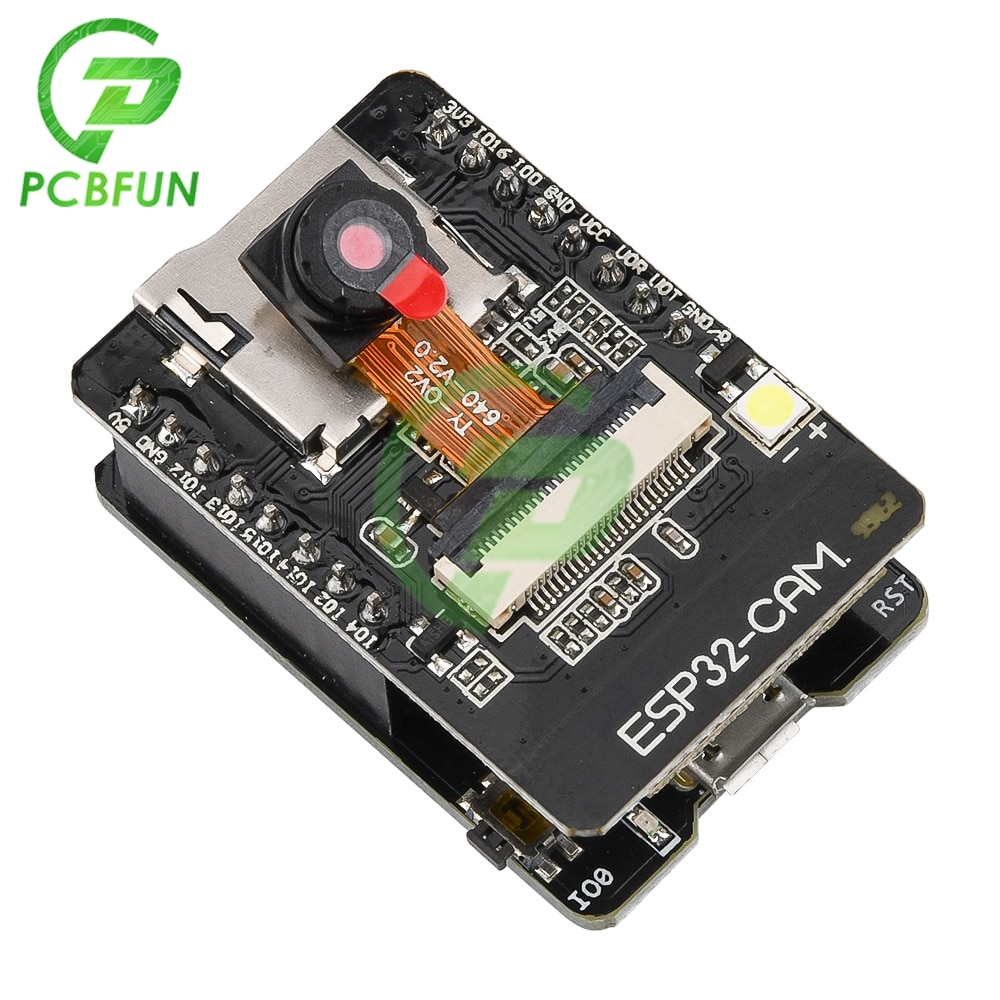

The HK-ESP32-CAM-MB module is a small camera module with a size of 39.8*27*. This module can work independently as the smallest system. A new WiFi+Bluetooth dual-mode development board based on ESP32 design, using PCB on-board antenna, with 2 high-performance 32-bit LX6CPU, using 7-level pipeline architecture, main frequency adjustment range 80MHz to 240Mhz. Ultra-low power consumption, deep sleep current is as low as 6mA. It is an ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
HK-ESP32-CAM-MB adopts Micro USB interface, convenient and reliable connection method, convenient to apply to various IoT hardware terminal occasions.


 Use low-power dual-core 32-bit CPU, which can be used as an application processor.
 The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
 Built-in 520 KB SRAM, external 8MB PSRAM
 Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
 Support OV2640 and OV7670 cameras, built-in flash
 Support picture WiFI upload
 Support TF card
 Support multiple sleep modes.
 Embedded Lwip and FreeRTOS
 Support STA/AP/STA+AP working mode
 Support Smart Config/AirKiss one-click network configuration
 Support secondary development

Application scenario

 Home smart device image transmission
 Wireless monitoring
 Smart agriculture
 QR wireless recognition
 Wireless positioning system signal
 And other IoT applications


Working voltage 4.75-5.25V
SPIFlash default 32Mbit
RAM internal 520KB + external 8MB PSRAM
Wi-Fi 802.11b/g/n/e/i
Bluetooth Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Support TF card, maximum support 4G
IO port 9
Serial port rate default 115200bps
Spectrum range 2400 ~2483.5MHz
Antenna form Onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Packaging method DIP-16
Transmit power 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiving sensitivity CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption Turn off the flash:180mA@5V
Turn on the flash and adjust the brightness to the maximum:310mA@5V
Deep-sleep: The lowest power consumption can reach6mA@5V
Moderm-sleep: the lowest can reach20mA@5V
Light-sleep: the lowest can reach6.7mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Working temperature -20 ℃~ 70 ℃
Storage environment -40 ℃~ 125 ℃, <90%RH
Weight 10g

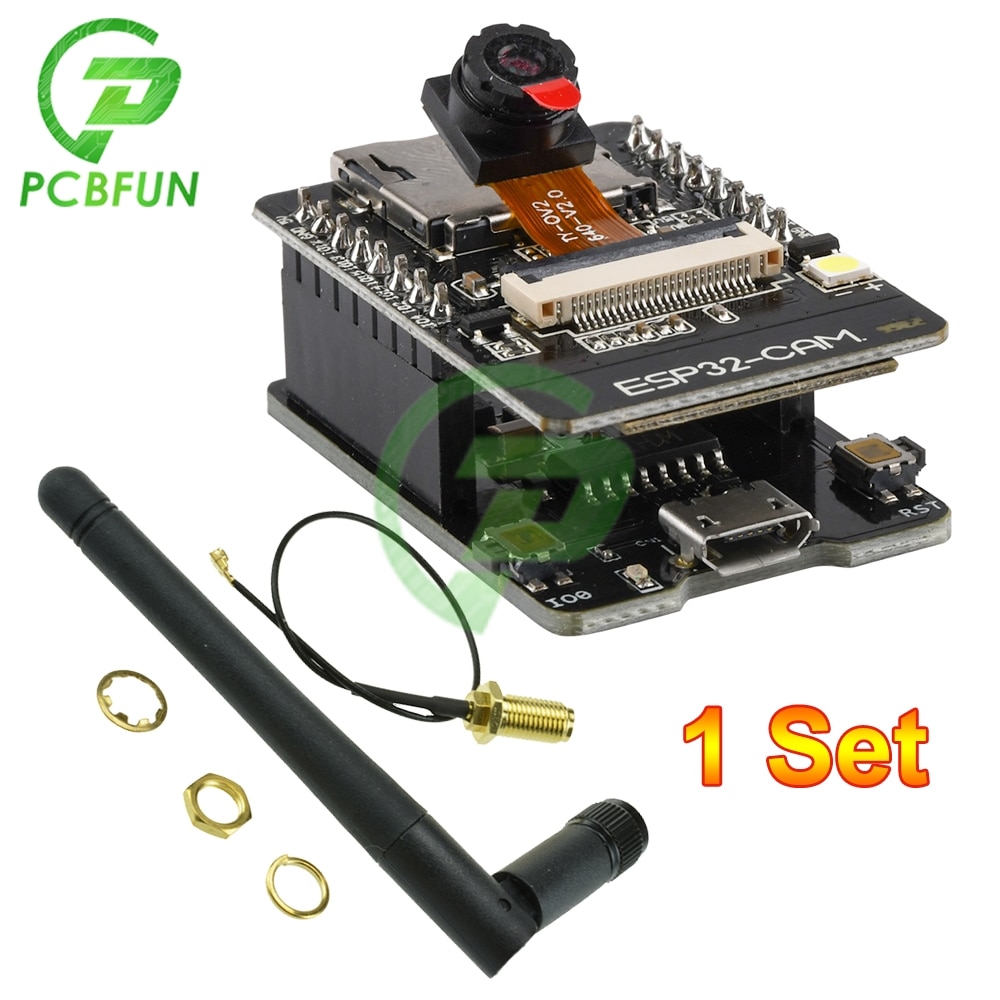

package Include : ( we send it to you as you choose)

1 x ESP32-CAM-MB WIFI ESP32 CAM Bluetooth Development Board with OV2640 Camera MICRO USB to Serial Port CH340G 4.75V-5.25V Nodemcu
