Description
CNC USB 3axis Control Board Offline Controller DIY CNC Laser Cutter Engraving Machine Accessories Offline Working LCD Control Panel
- Used for DIY mini CNC laser engraving machine
- Support offline working function, no need to connect computer
- New upgrade, support english language
Functions:
-
Send NC file in TF card
-
Control the Spindle/Laser
-
Move axis/Go Home/Probe
-

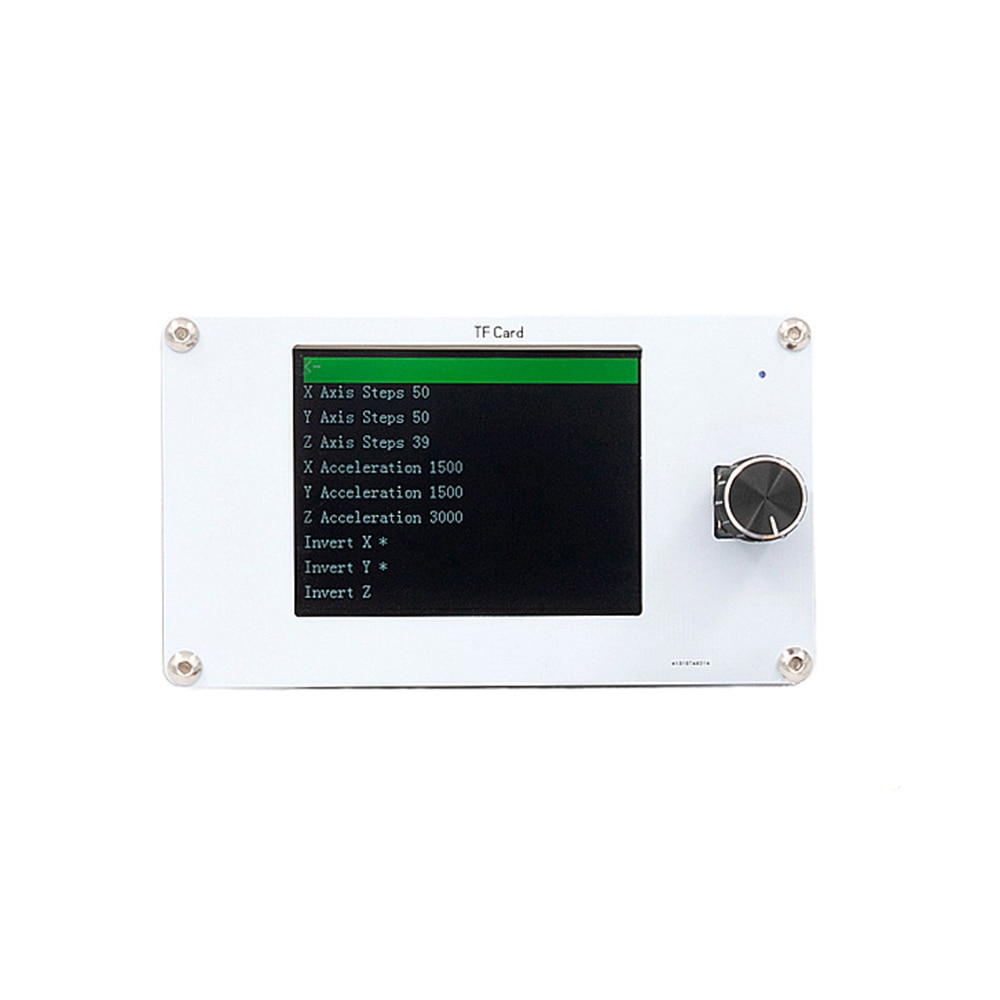

Change necessary Grbl settings
-
Support Grbl firmware and Laser Printer firware.
-
And more…
This Display Panel can take the place of Computer most of the time, but files in TF card still need Computer to create it.
Operation:

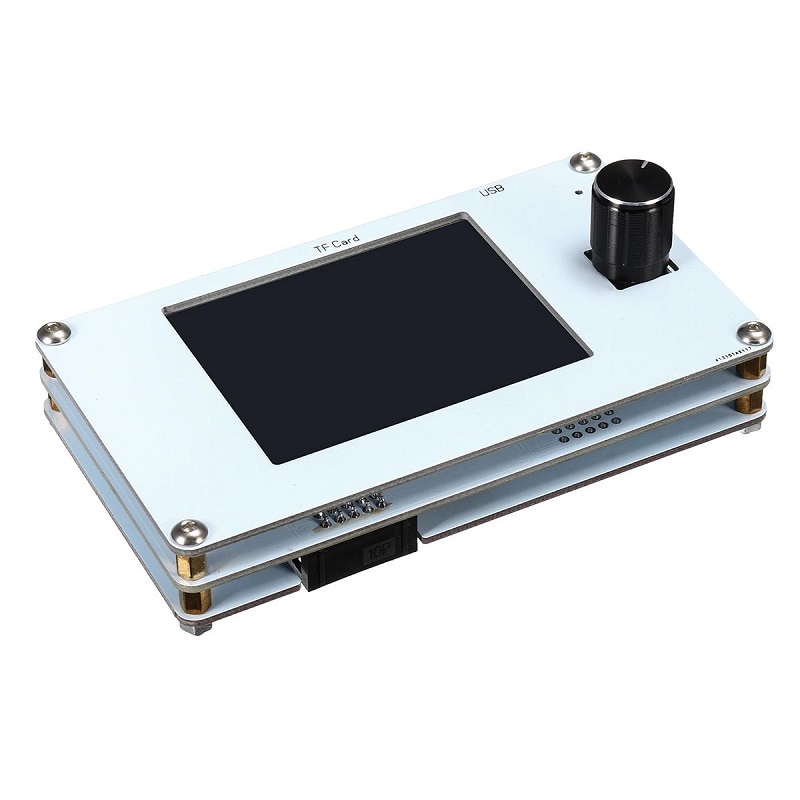

The Display Panel has only one knob, the knob can rotate and press down.
-
Rotate: change the menu item to be selected, change values, change engraving speed, etc..
-
Press: pop-up menu, confirm the choice.
Packing Include:

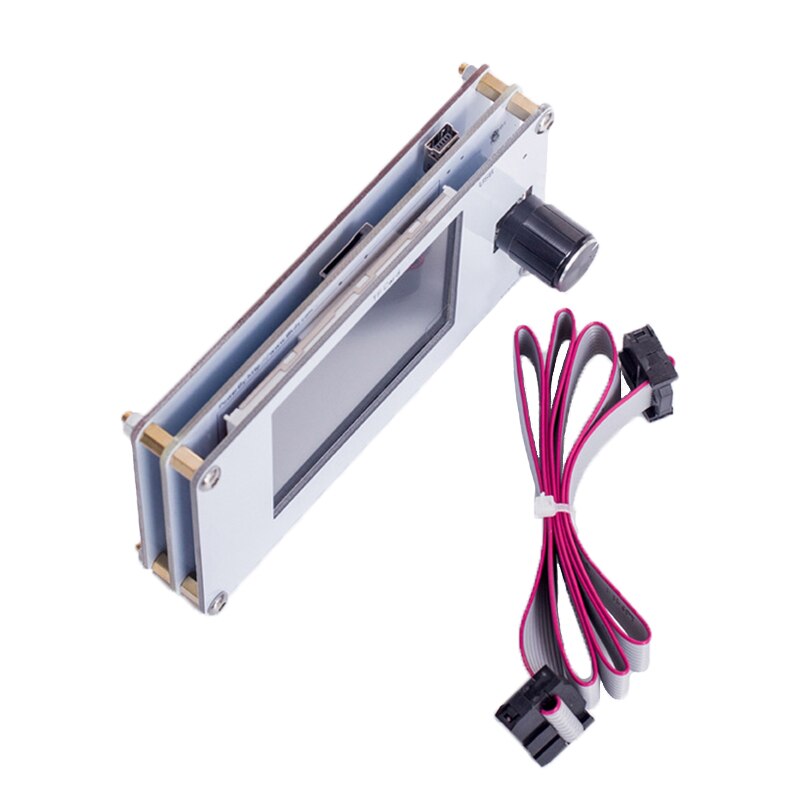

1×offline controller panel
1×connecting line
1×8GB TF card

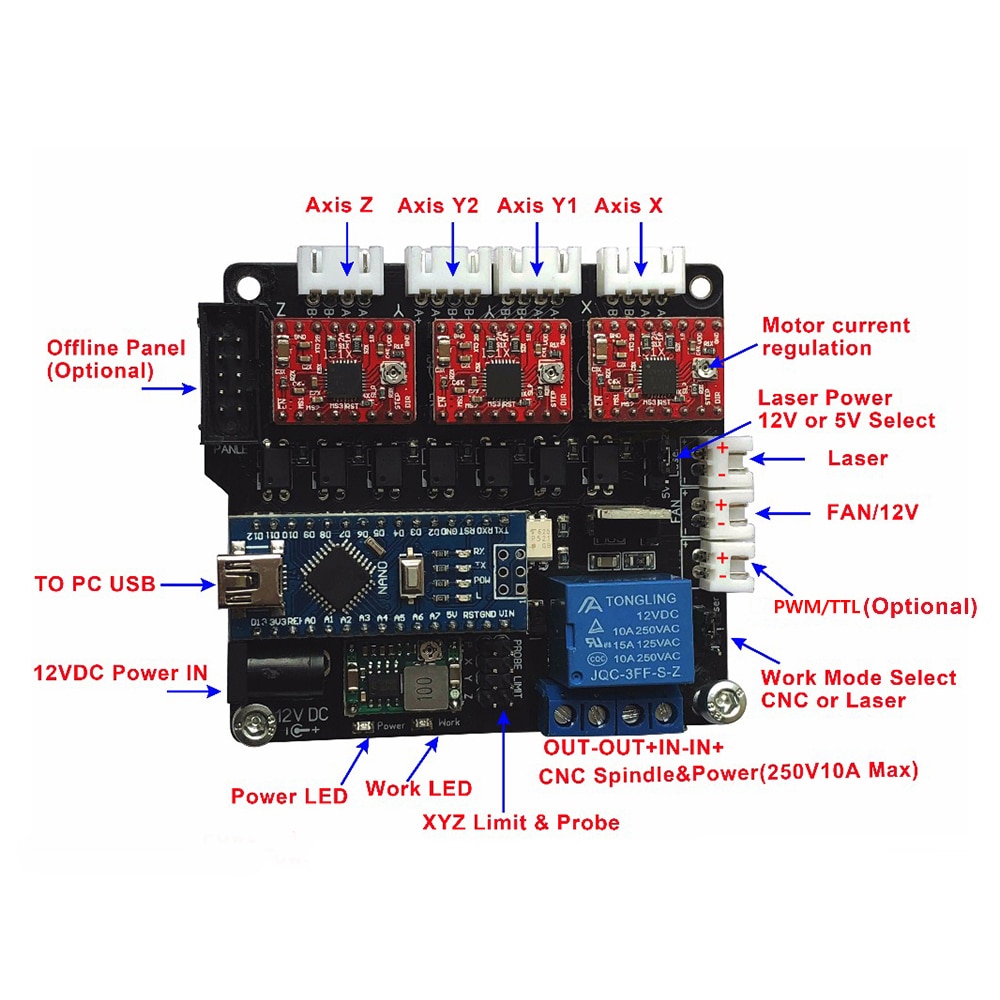

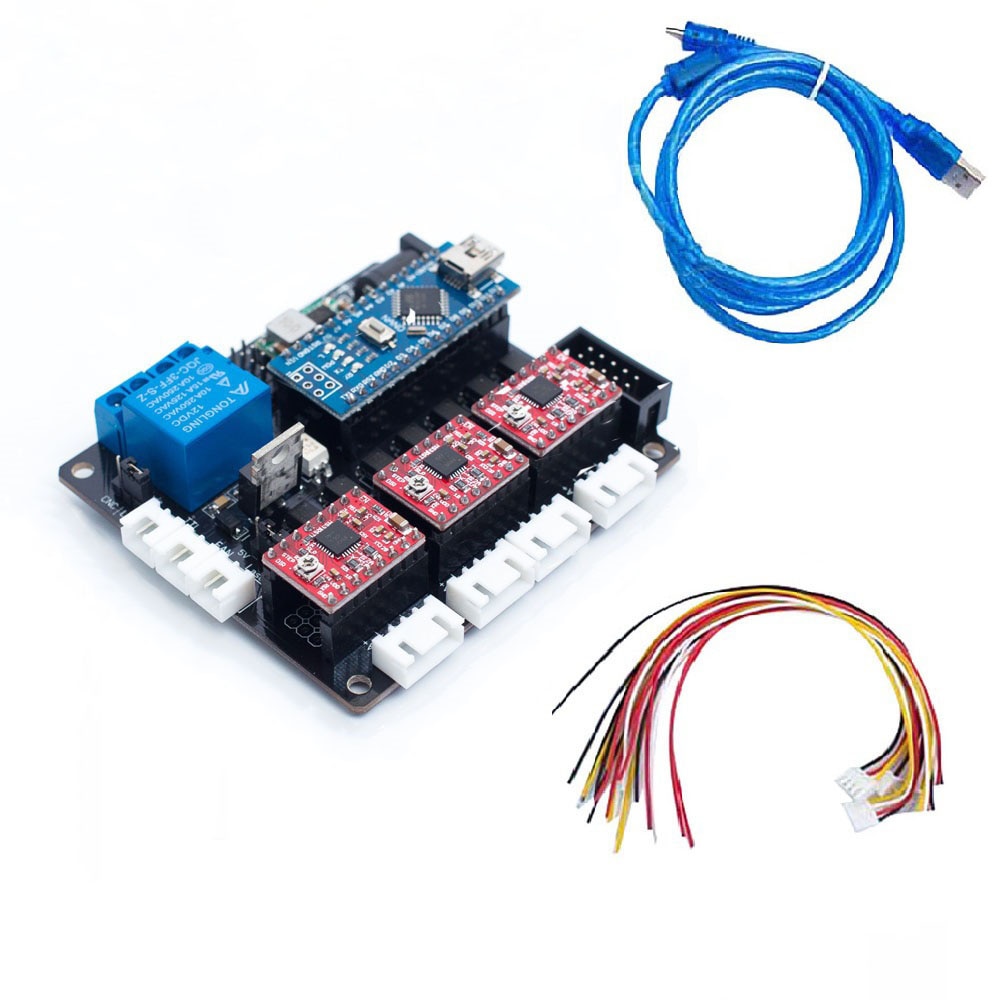

1×3axis control board (2 in 1 kit)
If you order the offline controller separately, please refer to the connection diagram as below:
If you need 2axis offline controller kit, please click here:
