Green Dot Laser Diode Module 505nm 30mW 515nm 5mW Positioning Module ACC Dirver Circuit

$39.00$49.00

SKU: N/A Category:

Description

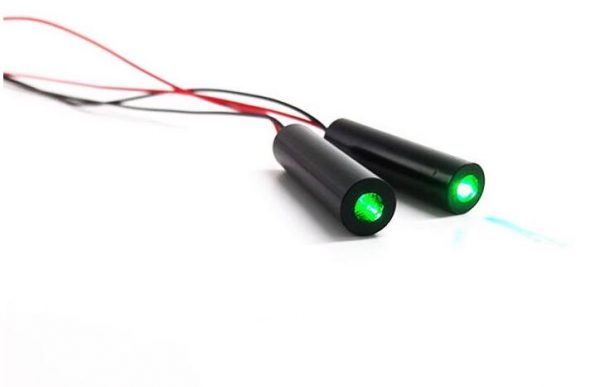

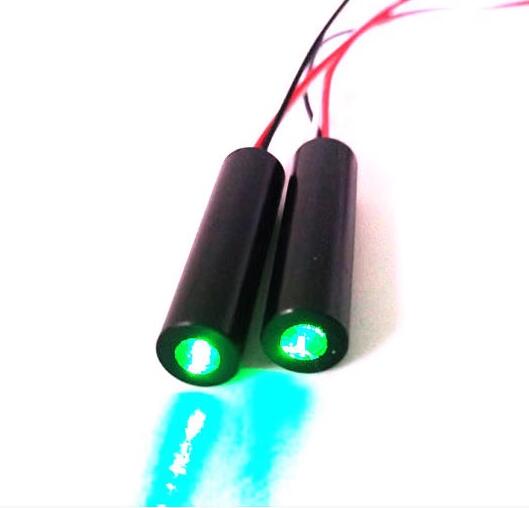

Green Dot Laser Diode Module 505nm 30mW  515nm 5mW Positioning Module ACC Dirver Circuit

Wavelength: 505nm 515nm
Output Power: <30mW5mW
Circuit Mode: CW
Spot Size: <6×10 at 10 meters, <5mm at 1 meter
Divergence Angle: <0.7mard
Lens Material: Glass(K9)
Driver Circuit: ACC
Operating Voltage: 2.8-3.5V
Operating Current: <200mA
Operating Temperature: -10℃~+60℃
Storage Temperature: -40℃~+80℃
Wavelength Drift: 0.25nm/℃
Housing Material: Aluminum
Mean Time to Failure: >10000H
Size: 505nmΦ10*35mm,515nmΦ8x32mm
Wire Length: 150mm
Laser Safety: Class Ⅲb

Additional information

wavelength

505nm, 515nm
